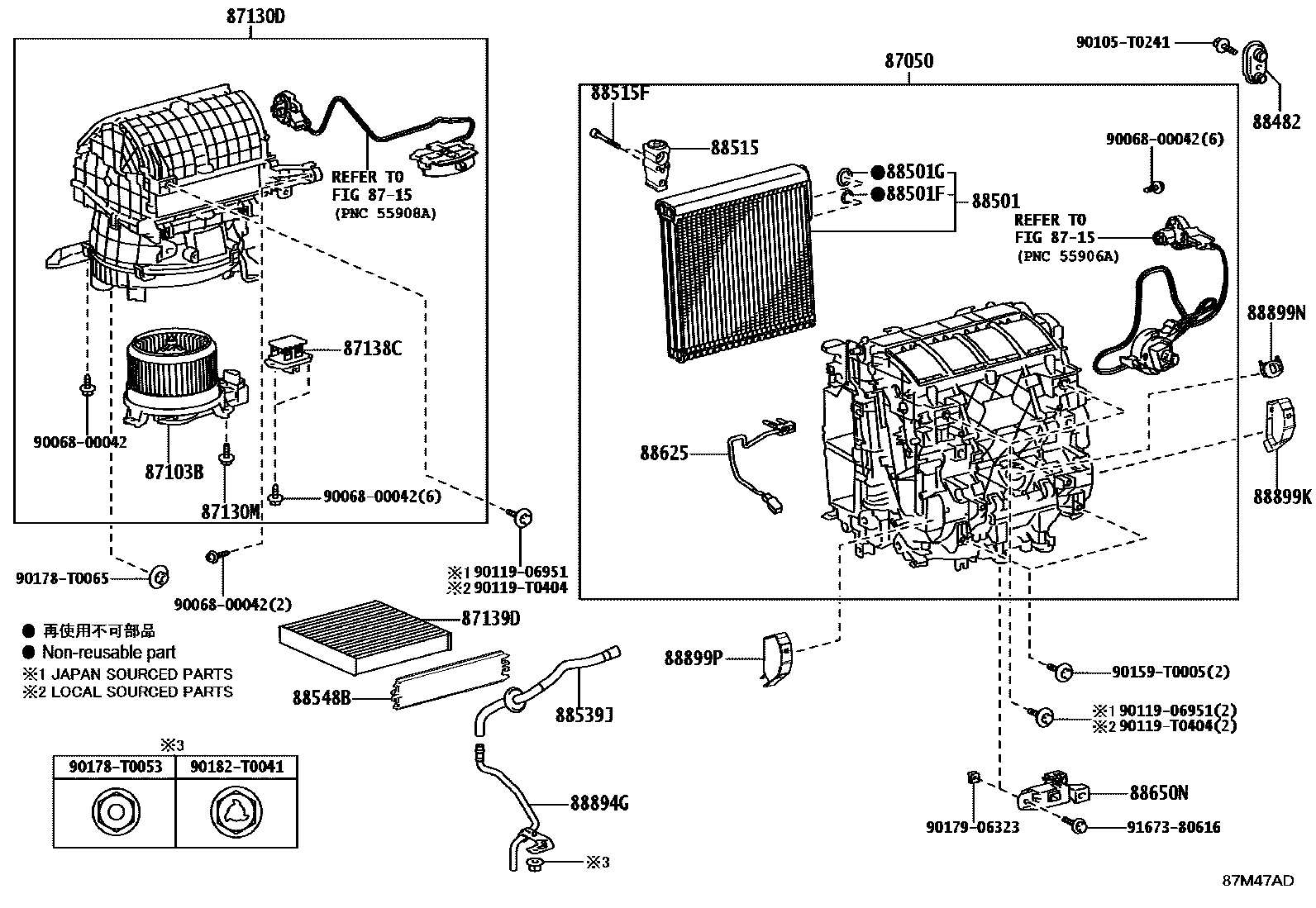

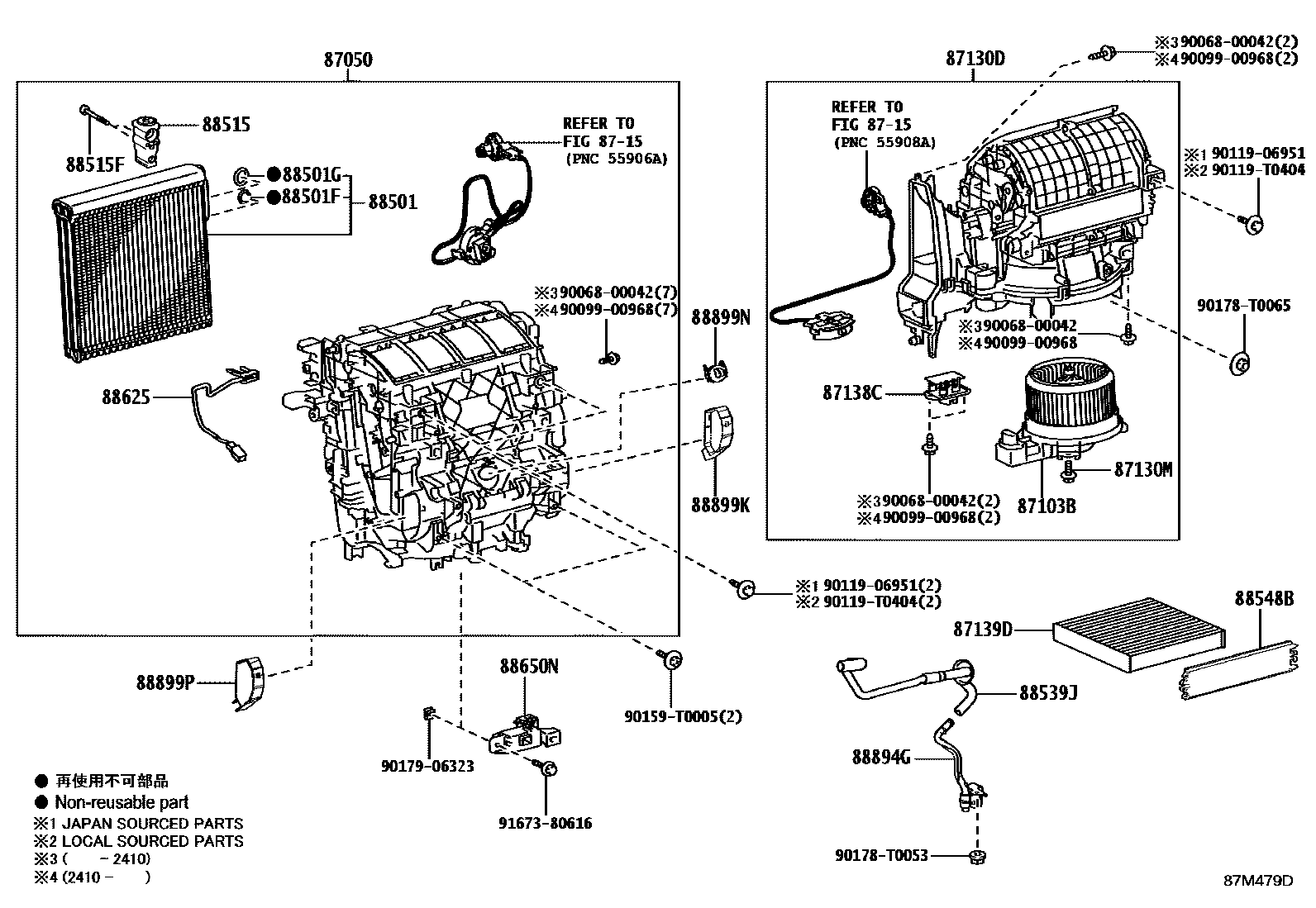

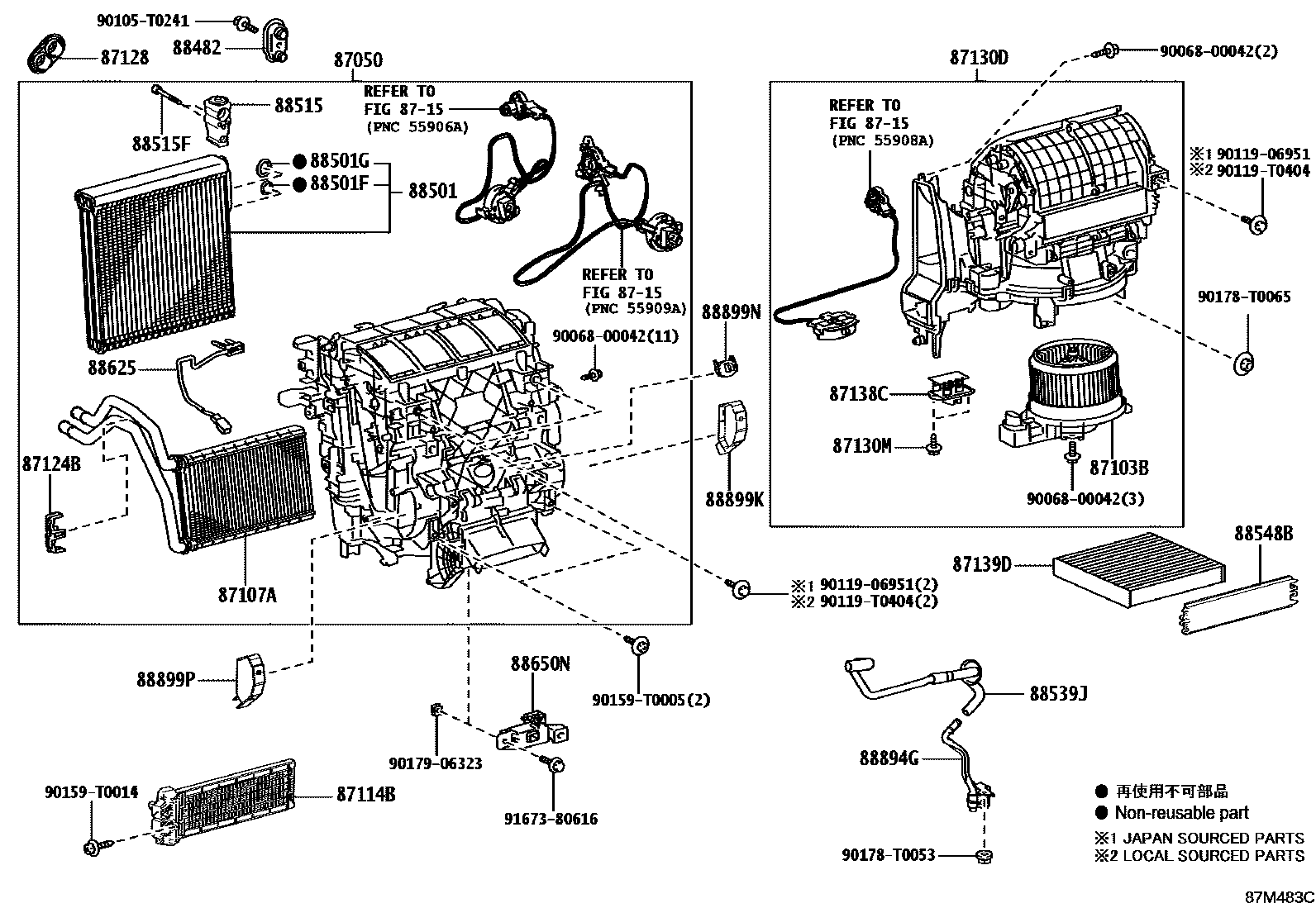

Toyota HILUX 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota HILUX EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 3 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87050 | Air conditioning radiator assembly | 87050-0KT90 · 87050-0KU00 · 87050-0KU20 · 87050-0KU30 |
| 87103B | Blower motor sub-assembly with fan | 87103-0K321 · 87103-0K331 · 87103-0K391 · 87103-0K511 |
| 87107A | Heater radiator device sub-assembly | 87107-0K110 |
| 87114B | heater cover | 87114-0K040 |
| 87124B | heater clip | 87124-06140 |
| 87128 | heater seal | 87128-0K180 |
| 87130D | Blower assembly | 87130-0K500 · 87130-0K510 · 87130-0K520 · 87130-0K581 |
| 87130M | Screws (for blower) | 87193-87101 · 90068-00041 |
| 87138C | Blower resistor | 87138-0K350 · 87138-0K360 |
| 87139D | Air fine filter element | 87139-0K060 · 87139-0K070 · 87139-0K110 · 87139-58010 |
| 88482 | cooler cover | 88482-0K010 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-0K590 · 88501-0K600 · 88501-0K670 |
| 88501F | No. 1 cooler evaporator O-ring (discharge) | 90068-14044 · 90099-14120 |
| 88501G | No. 1 cooler evaporator O-ring (suction) | 90068-14043 · 90099-14121 |
| 88515 | Cooler expansion valve | 88515-0K580 |
| 88515F | Bolt (for cooler expansion valve) | 90068-04062 |
| 88539J | Cooler drain hose | 88539-0K380 · 88539-0K390 · 88539-0K480 |
| 88548B | air filter housing | 88548-0K161 · 88899-06330 |
| 88625 | Cooler No. 1 Thermistor | 88620-0K010 |
| 88650N | Air conditioning amplifier assembly | 88650-0KB20 |
| 88894G | Drain hose connector | 88894-0K010 · 88894-0K020 · 88894-0K180 |
| 88899K | Cover plate | 88899-0K200 |
| 88899N | Cover plate | 88899-33070 |
| 88899P | Cover plate | 88899-0K210 |
