Toyota HILUX 后视镜 — Figure 8701

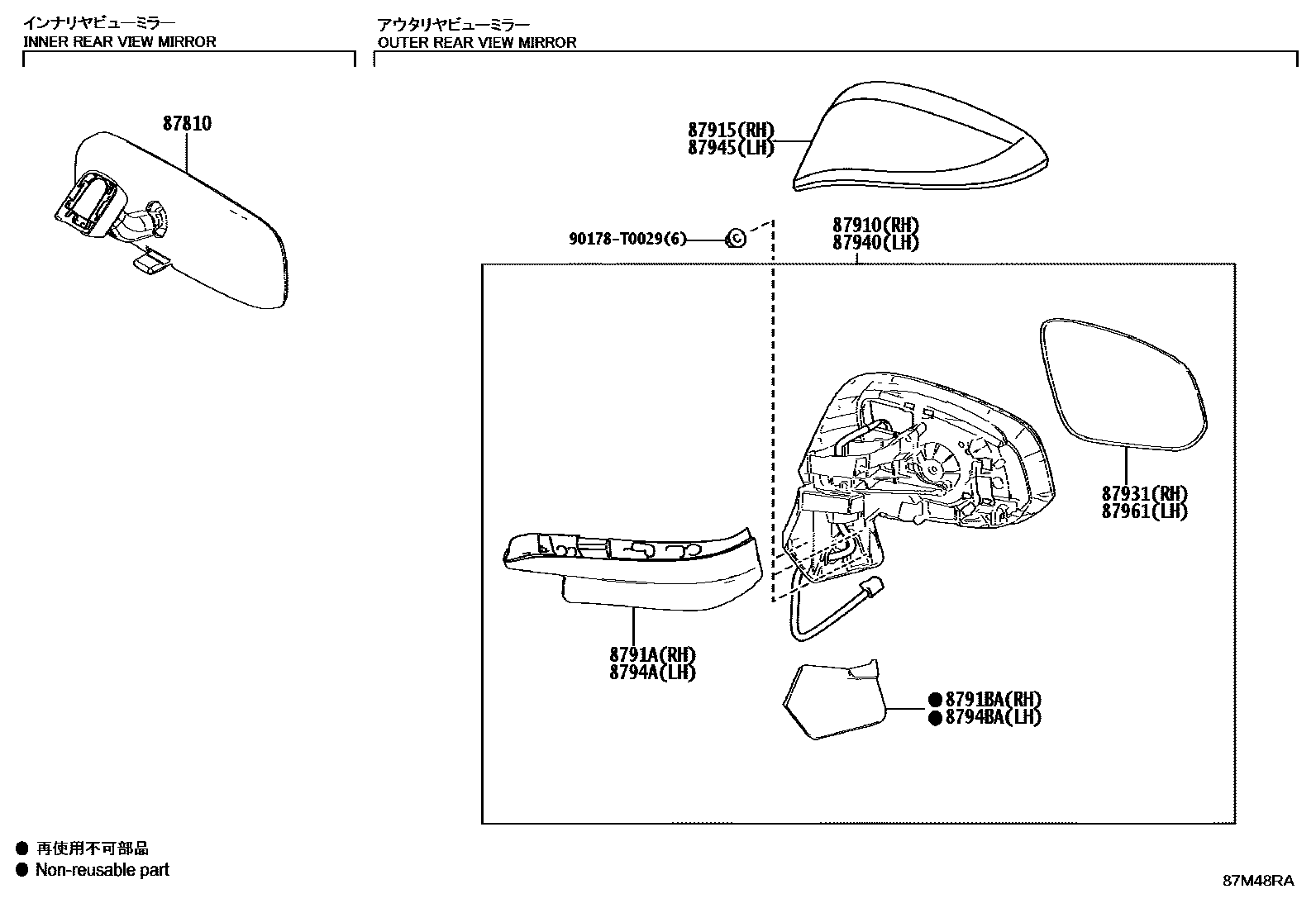

Toyota HILUX EPC diagram 8701, 后视镜, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810 | Interior rearview mirror assembly | 87810-06041 |
| 87910 | Right exterior rearview mirror assembly | 87910-0KS00 · 87910-0KS10 · 87910-0KS20 · 87910-0KS30 |
| 87915 | Right exterior rearview mirror cover | 87915-0K390 |
| 8791A | Right exterior rearview mirror cover No. 2 | 8791A-0K010 |
| 8791BA | No. 3 right exterior mirror cover | 8791B-0K010 · 8791B-0K020 |
| 87931 | Right exterior rearview mirror | 87931-0KC60 |
| 87940 | Left exterior rearview mirror assembly | 87940-0KS00 · 87940-0KS10 · 87940-0KS20 · 87940-0KS30 |
| 87945 | Left exterior rearview mirror cap | 87945-0K390 |
| 8794A | No. 2 left exterior rearview mirror cap | 8794A-0K010 |
| 8794BA | No. 3 left exterior rearview mirror cap | 8794B-0K010 · 8794B-0K020 |
| 87961 | Left exterior rearview mirror | 87961-0KB20 |
