Toyota HILUX 预碰撞安全系统 — Figure 8617

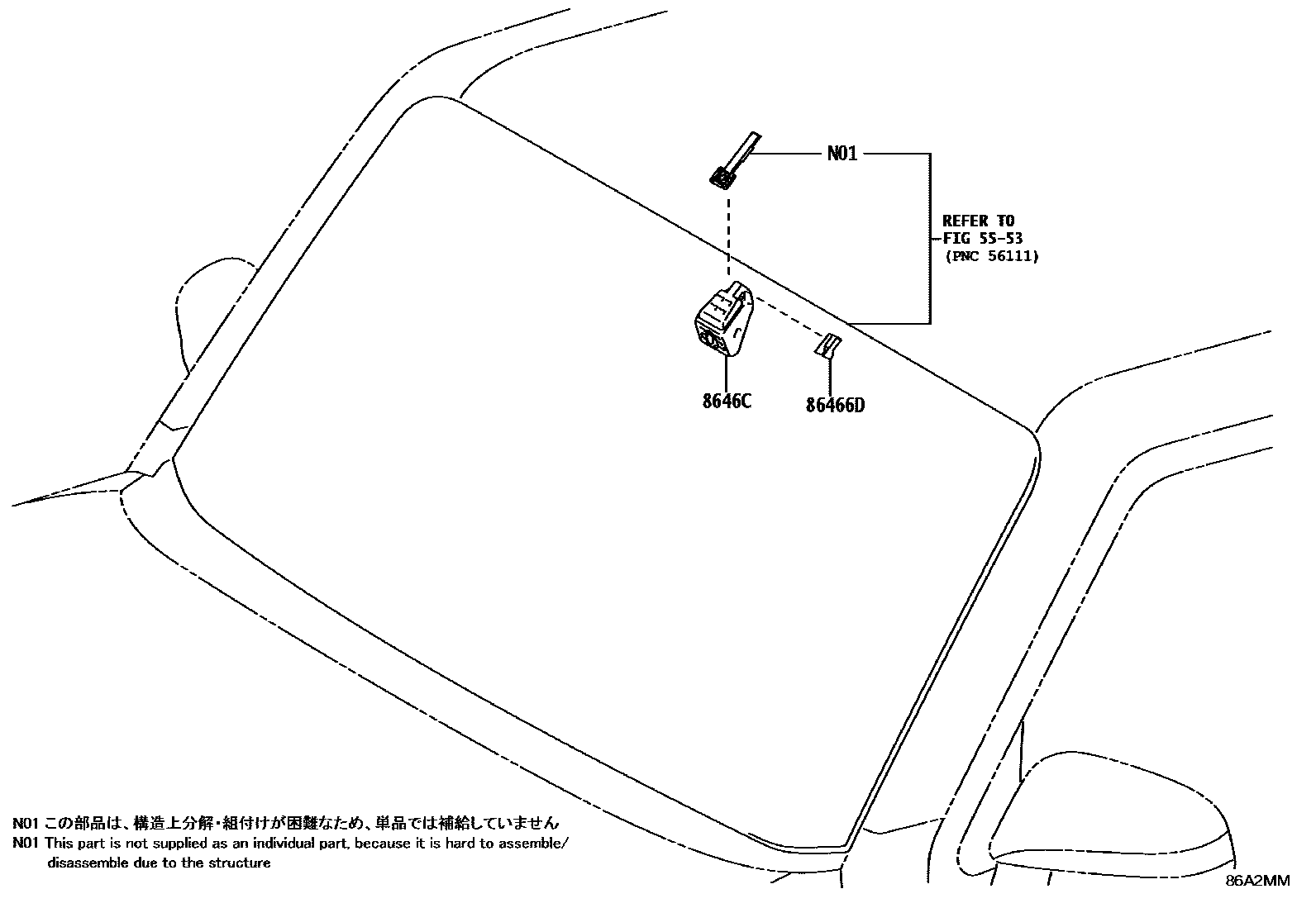

Toyota HILUX EPC diagram 8617, 预碰撞安全系统, with 1 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86466D | Front identification cover No. 1 | 864D2-YY010 |
| 8646C | front recognition camera | 864D1-YY030 |
