Toyota HILUX antenna — Figure 8604

Toyota HILUX EPC diagram 8604, antenna, with 1 images and 4 PNC and OE references.

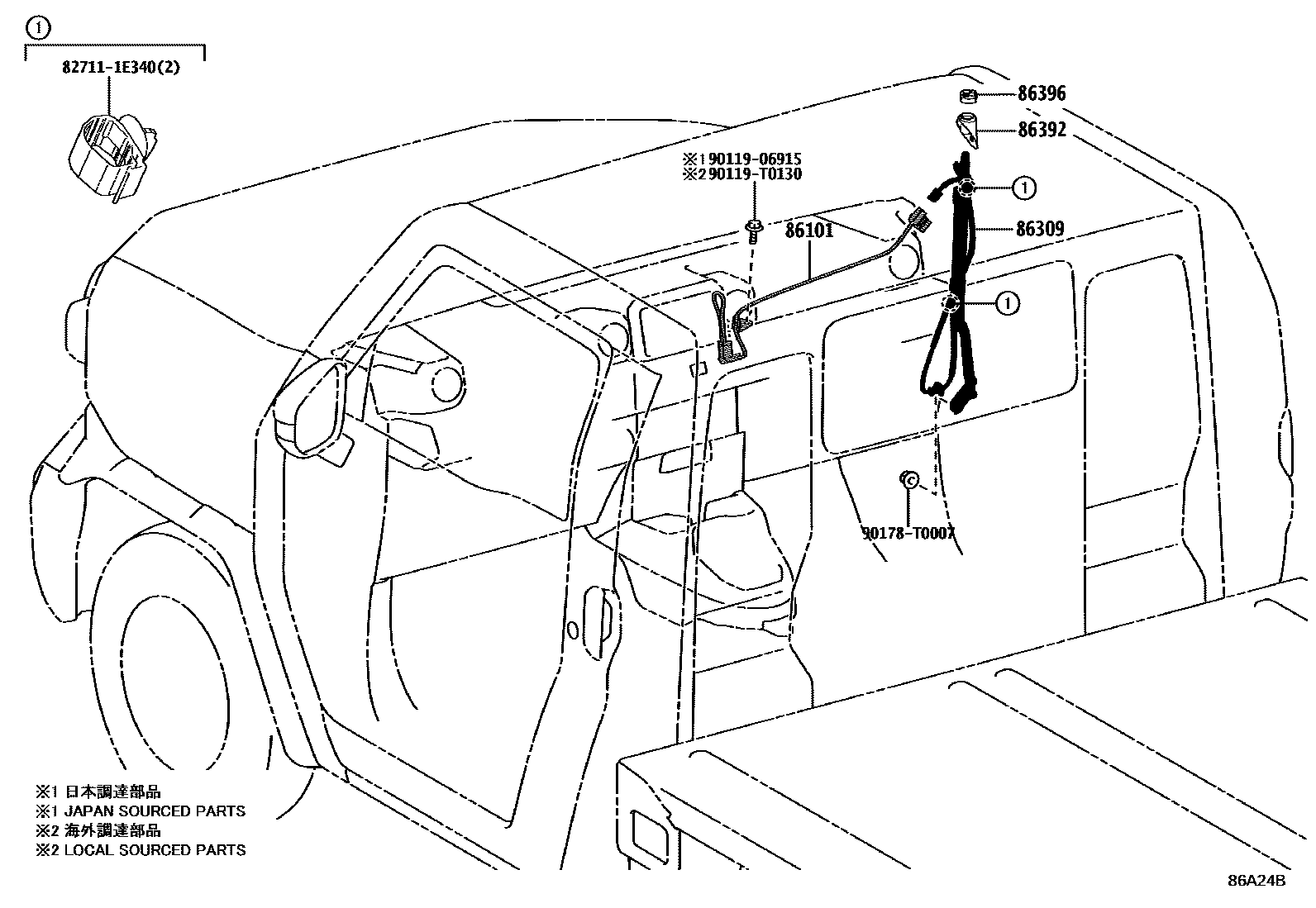

Toyota HILUX antenna EPC diagram — 86A24B
antenna — 86A24B (202312 – 999999)

PNC and OE references

PNCPart nameOE numbers
86101Antenna wire sub-assembly86101-0KQ60 · 86101-0KQ70
86309Cylindrical antenna sub-assembly86309-0K060
86392Antenna decorative parts86392-0K020
86396Antenna nut86396-16020
