Toyota HILUX 挡风玻璃清洗器 — Figure 8503

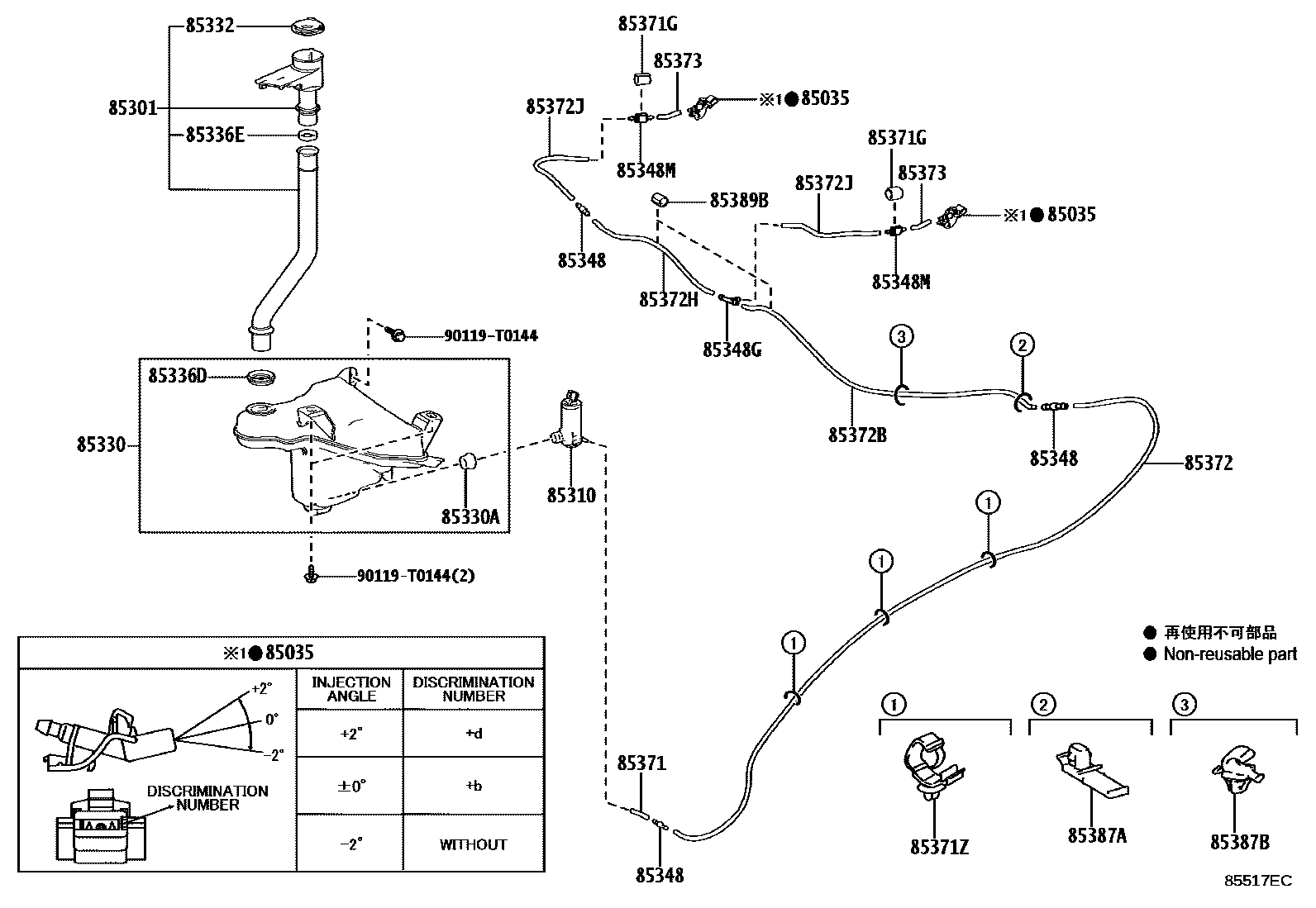

Toyota HILUX EPC diagram 8503, 挡风玻璃清洗器, with 1 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035 | Cleaner nozzle sub-assembly | 85381-0K070 · 85381-0K080 · 85381-0K090 |
| 85301 | Cleaner water inlet sub-assembly | 85301-0K170 |
| 85310 | Windshield washer motor and pump assembly | 85330-0K012 |
| 85330 | Windshield washer fluid tank assembly | 85315-0K480 |
| 85330A | Windshield washer fluid tank bushing | 90099-32089 |
| 85332 | Windshield washer fluid tank cap | 85316-16070 |
| 85336D | Windshield washer fluid tank seal | 85336-30160 |
| 85336E | Windshield washer water inlet hose seal | 85336-42320 |
| 85348 | Windshield washer hose connector No. 1 | 85375-10260 |
| 85348G | Windshield washer hose connector No. 2 | 85348-12250 |
| 85348M | No. 3 windshield washer hose connector | 85321-26020 |
| 85371 | Windshield washer hose (from motor to connector) | 90068-33394 |
| 85371G | Front washer protection device | 85389-26080 |
| 85371Z | Cleaner hose clamp | 82711-0K070 |
| 85372 | Windshield washer hose No. 1 (from connector to connector) | 90068-59186 |
| 85372B | Windshield washer hose No. 2 (from connector to connector) | 90068-33437 |
| 85372H | No. 3 windshield washer hose (from connector to connector) | 90068-33436 |
| 85372J | No. 4 windshield washer hose (from connector to connector) | 90068-33438 |
| 85373 | Windshield washer hose (from connector to nozzle) | 90068-33394 |
| 85387A | Cleaner clip No. 2 | 82711-3A640 |
| 85387B | No. 3 cleaner clip | 85371-12040 |
| 85389B | Windshield washer protection device | 85389-26080 |
