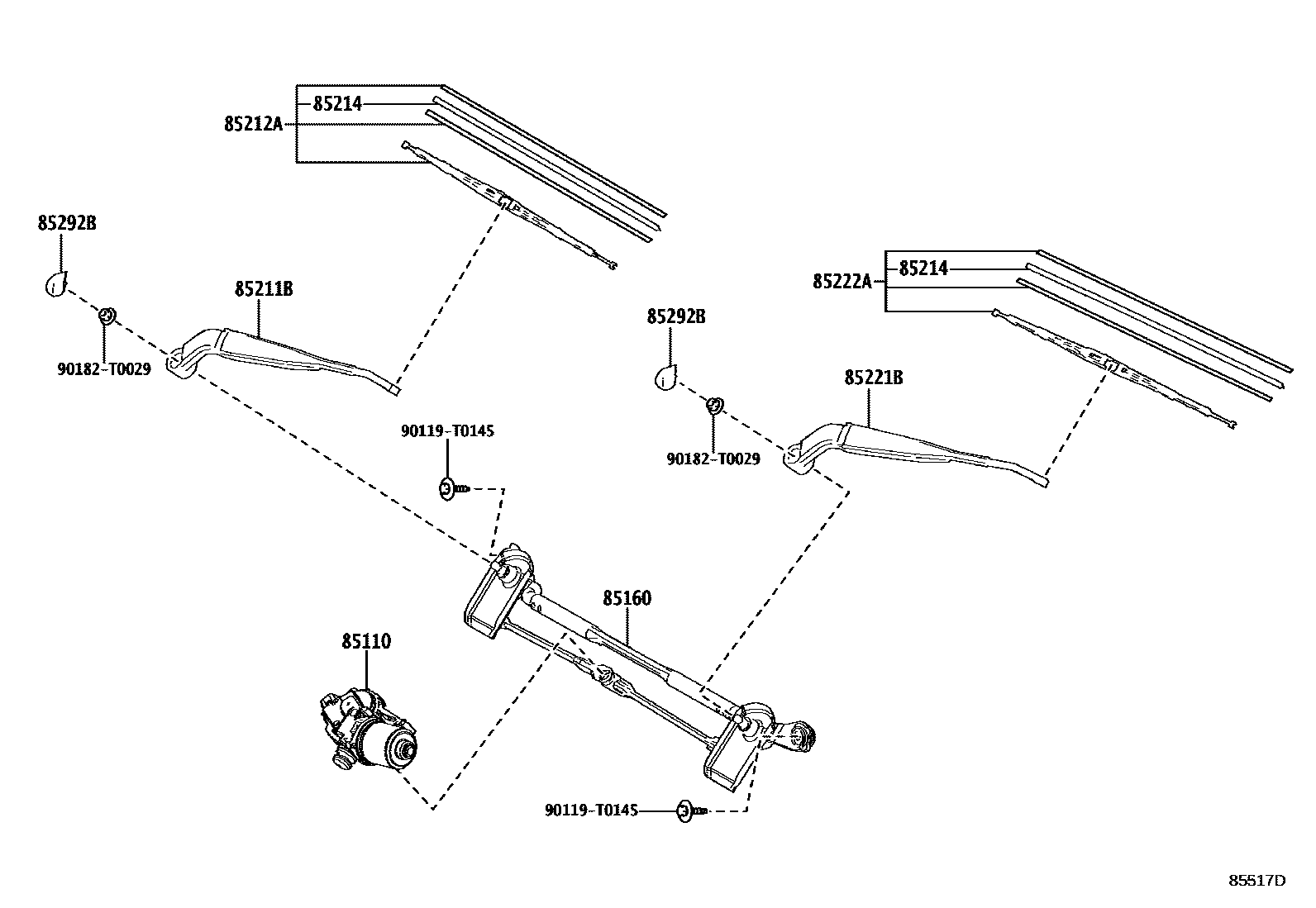

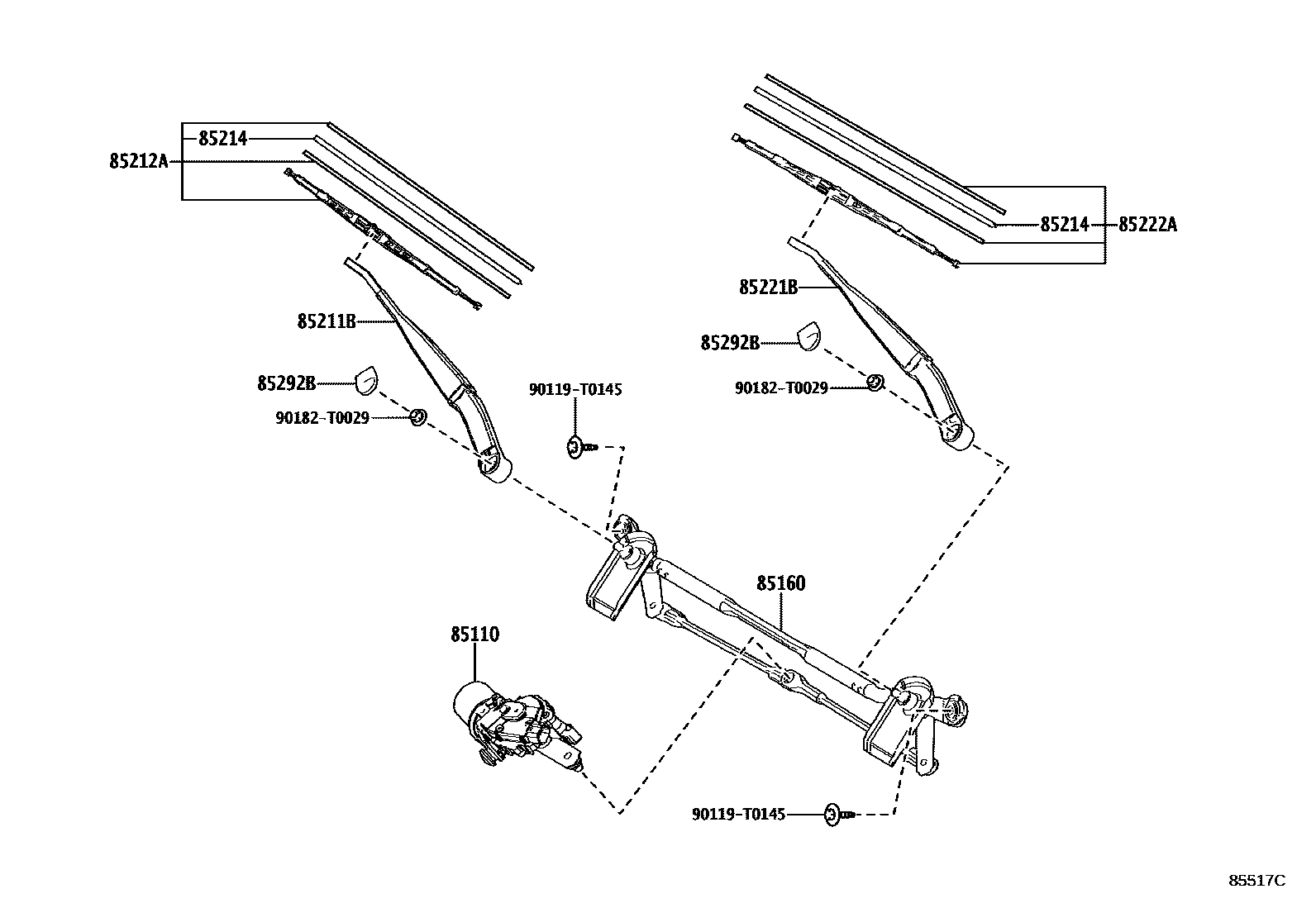

Toyota HILUX 挡风玻璃刮水器 — Figure 8501
Toyota HILUX EPC diagram 8501, 挡风玻璃刮水器, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110 | Windshield wiper motor assembly | 85110-0K260 · 85110-0K270 |
| 85160 | Windshield wiper connecting rod assembly | 85150-0K260 · 85150-0K270 |
| 85211B | Right front wiper arm | 85211-0K250 · 85211-0K260 |
| 85212A | Right front wiper blade | 85212-0K150 · 85222-0K120 |
| 85214 | Wiper blade No. 1 rubber strip | 85214-0K350 |
| 85221B | Left front wiper arm | 85221-0K120 · 85221-0K240 |
| 85222A | Left front wiper blade | 85212-0K150 · 85222-0K120 |
| 85292B | Front wiper arm cap | 85292-0D030 |
