Toyota HILUX 空气囊 — Figure 8421

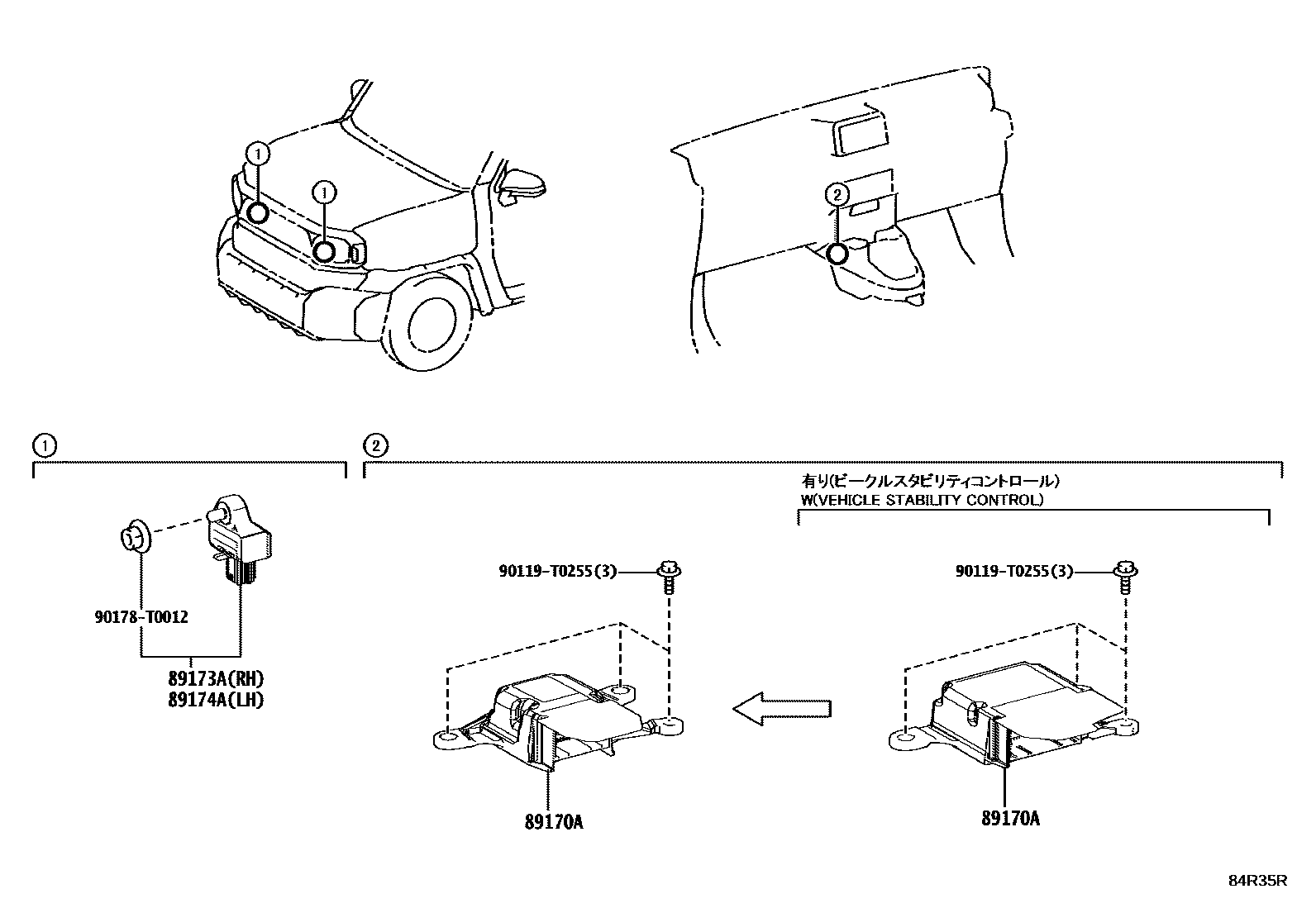

Toyota HILUX EPC diagram 8421, 空气囊, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89170A | Air bag ECU assembly | 89170-0KF80 · 89170-0KG10 |
| 89173A | Right front air bag sensor | 89173-09B20 |
| 89174A | Left front air bag sensor | 89173-09B20 |
