Toyota HILUX ABS 和 VSC — Figure 8414

Toyota HILUX EPC diagram 8414, ABS 和 VSC, with 1 images and 4 PNC and OE references.

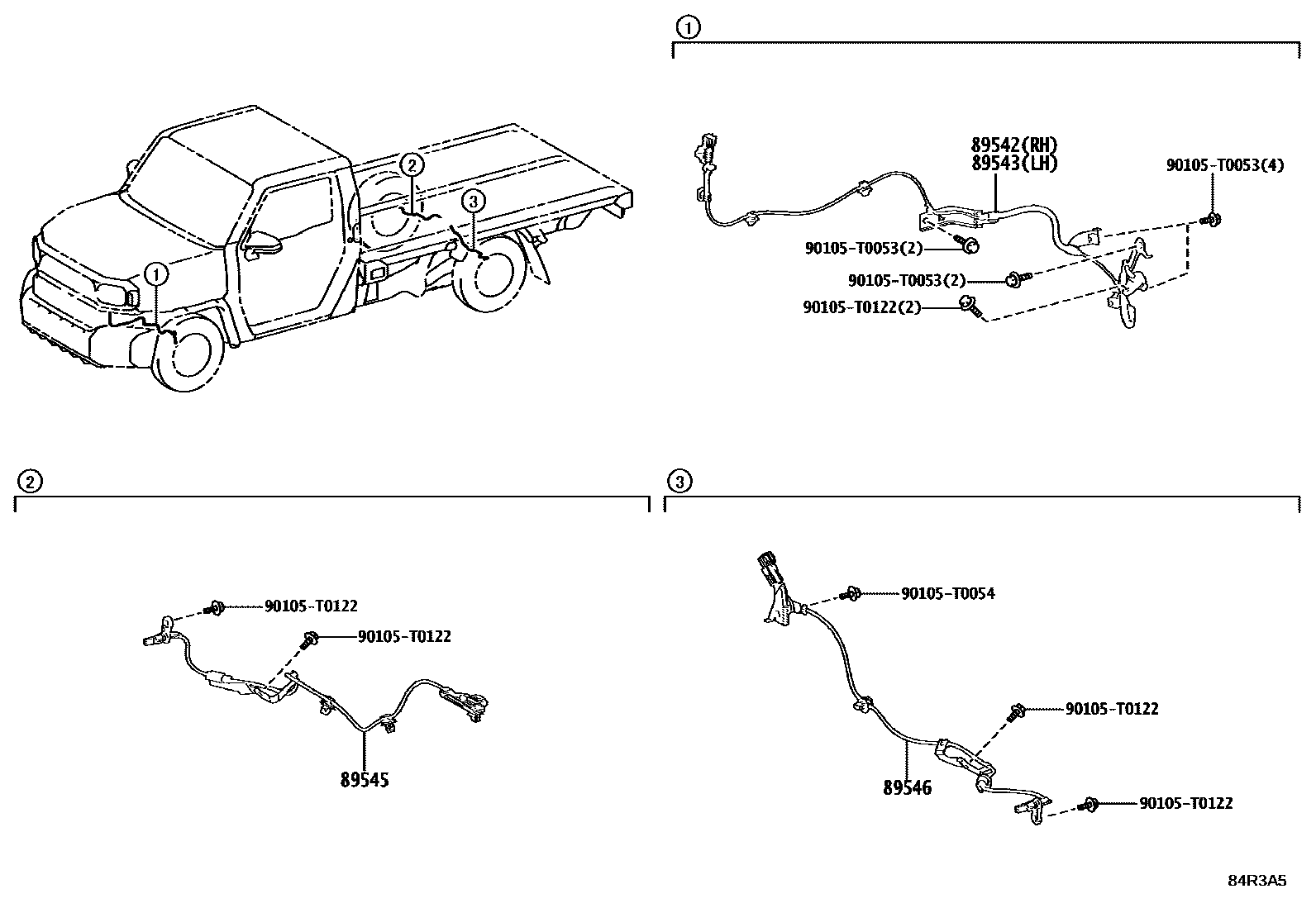

Toyota HILUX ABS 和 VSC EPC diagram — 84R3A5
ABS 和 VSC — 84R3A5 (202312 – 999999)

PNC and OE references

PNCPart nameOE numbers
89542Right front wheel speed sensor89542-0K050
89543Left front wheel speed sensor89543-0K050
89545Right rear wheel speed sensor89545-0K220
89546Left rear wheel speed sensor89546-0K220
