Toyota HILUX 电子控制柴油机(ECD) — Figure 8405
Toyota HILUX EPC diagram 8405, 电子控制柴油机(ECD), with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

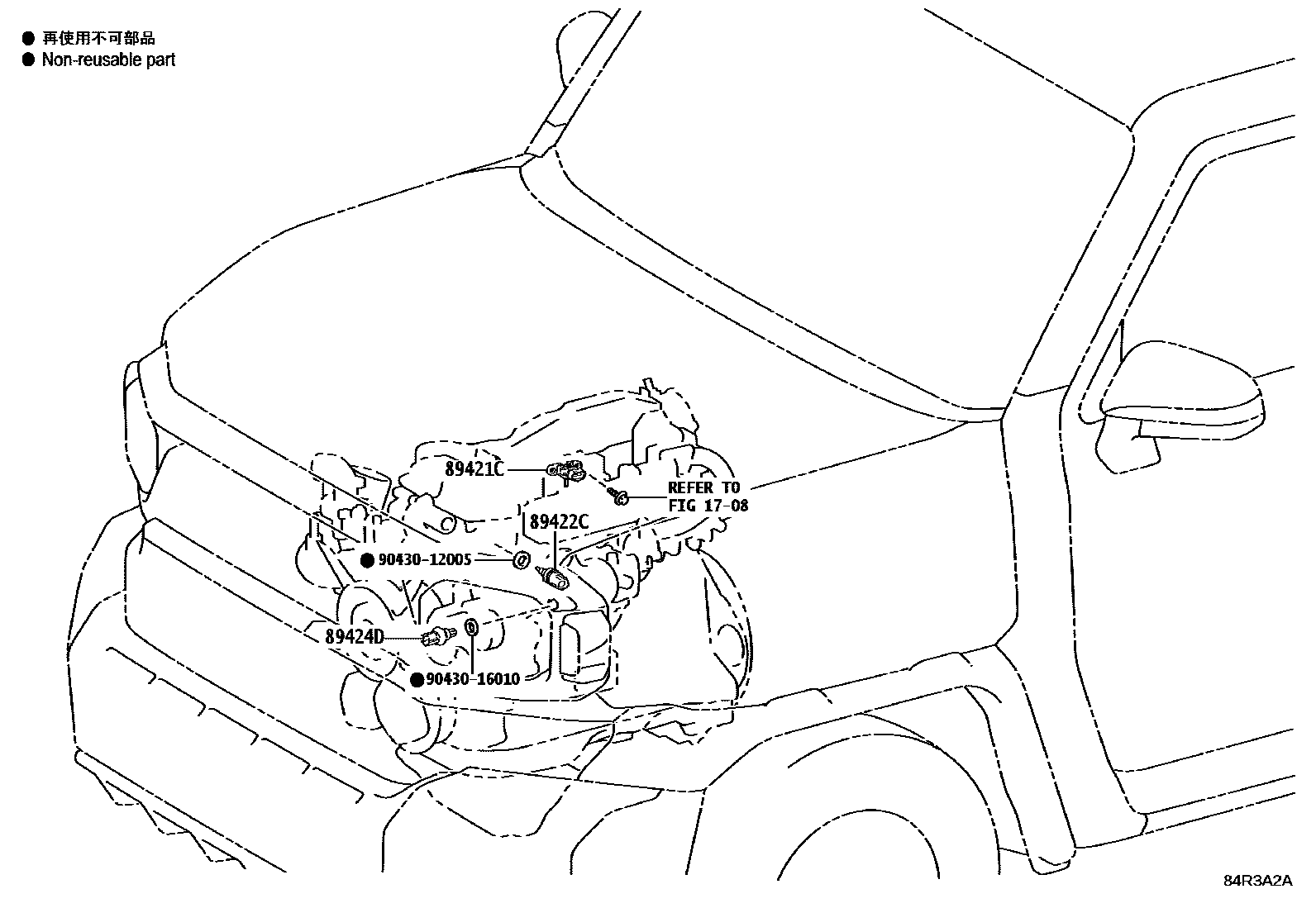

| 89421C | Turbo pressure sensor (for diesel turbines) | 89421-71030 |
| 89422C | Diesel engine water temperature sensor | 89422-33030 |
| 89424D | Intake air temperature sensor | 89424-60010 |

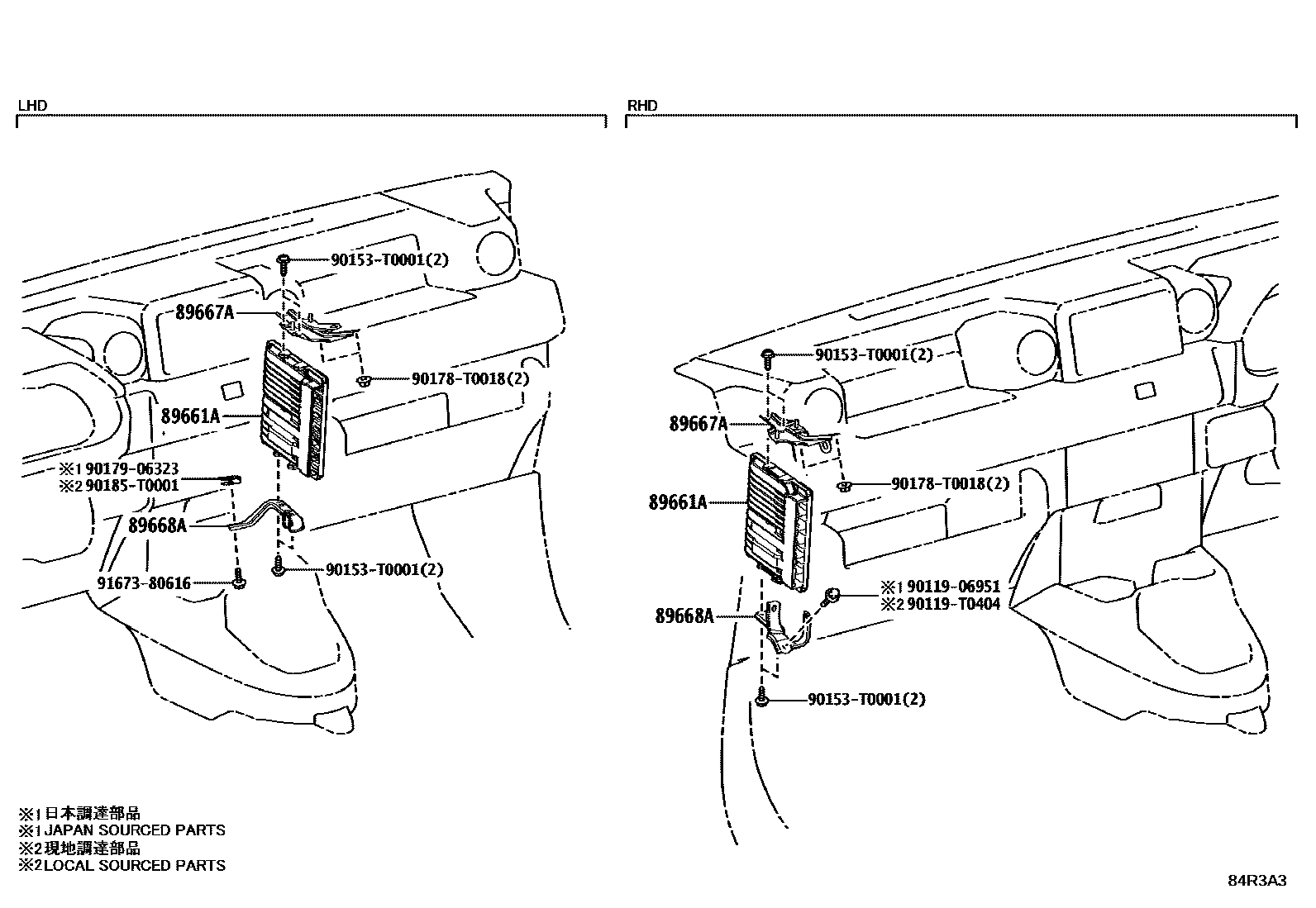

| 89661A | Engine control ECU | 89661-FB210 · 89661-FB220 · 89661-FB230 · 89661-FB240 · 89661-FB241 |
| 89667A | No. 1 engine control ECU bracket | 89667-0K240 · 89667-0K260 · 89667-0K300 · 89667-0K310 |
| 89668A | No. 2 engine control ECU bracket | 89668-0K250 · 89668-0K260 · 89668-0K340 |
