Toyota HILUX 电子燃油喷射系统 — Figure 8404
Toyota HILUX EPC diagram 8404, 电子燃油喷射系统, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

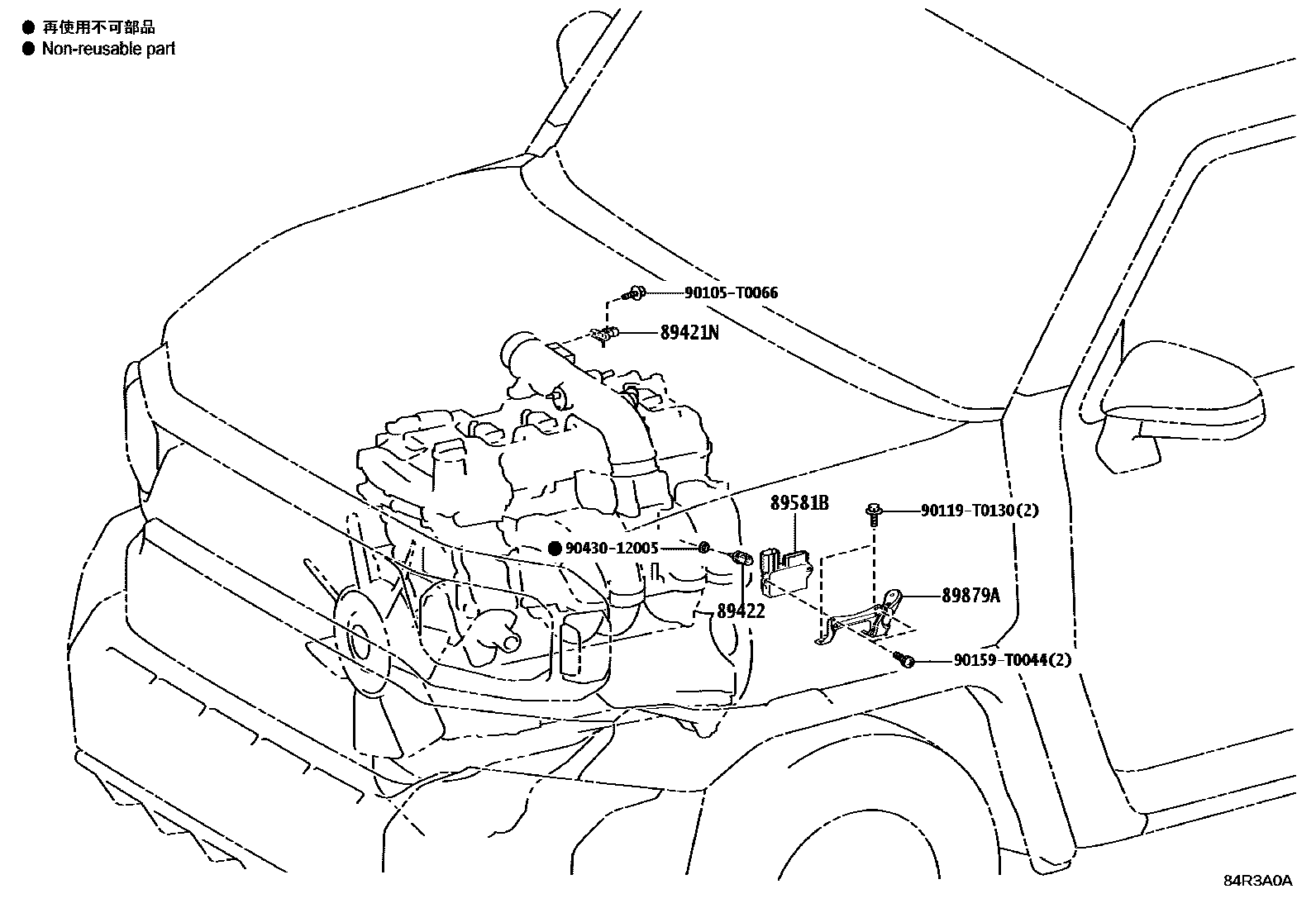

| 89421N | air pressure sensor | 89421-71010 |
| 89422 | Water temperature sensor (for E.F.I.) | 89422-33030 |
| 89581B | Air injection control driver | 89581-60010 |

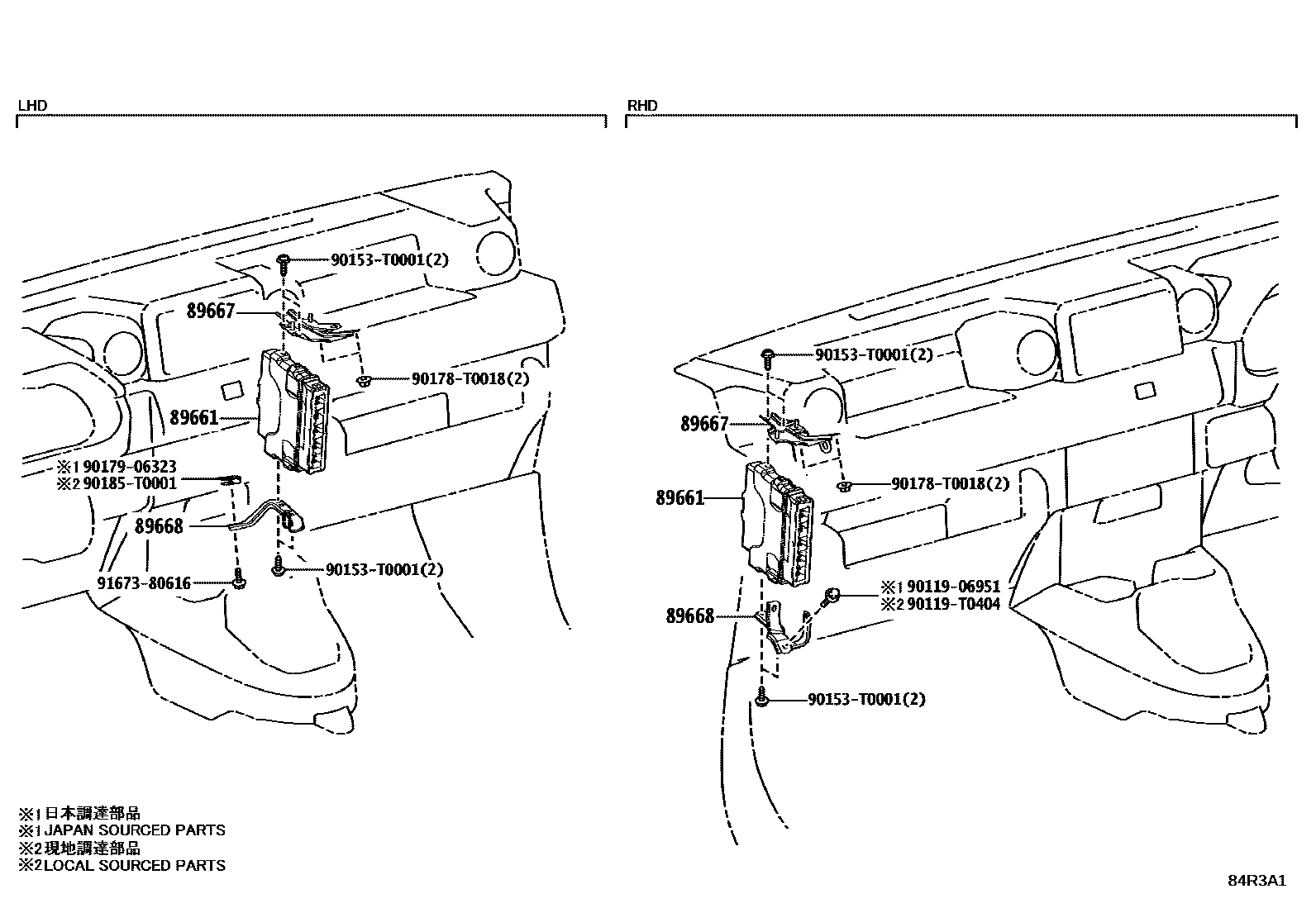

| 89661 | Engine control ECU | 89661-FAQ90 · 89661-FB190 · 89661-FB200 |
| 89667 | Engine control ECU bracket | 89667-0K240 · 89667-0K260 · 89667-0K300 · 89667-0K310 |
| 89668 | No. 2 engine control ECU bracket | 89668-0K250 · 89668-0K260 · 89668-0K340 |
| 89879A | Injector driver bracket | 89589-0K010 |
