Toyota HILUX 开关和继电器和ECU — Figure 8401
Toyota HILUX EPC diagram 8401, 开关和继电器和ECU, with 13 images and 84 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-30050 |
| 28300F | No. 2 starter relay assembly | 28300-0L011 · 28300-21020 |

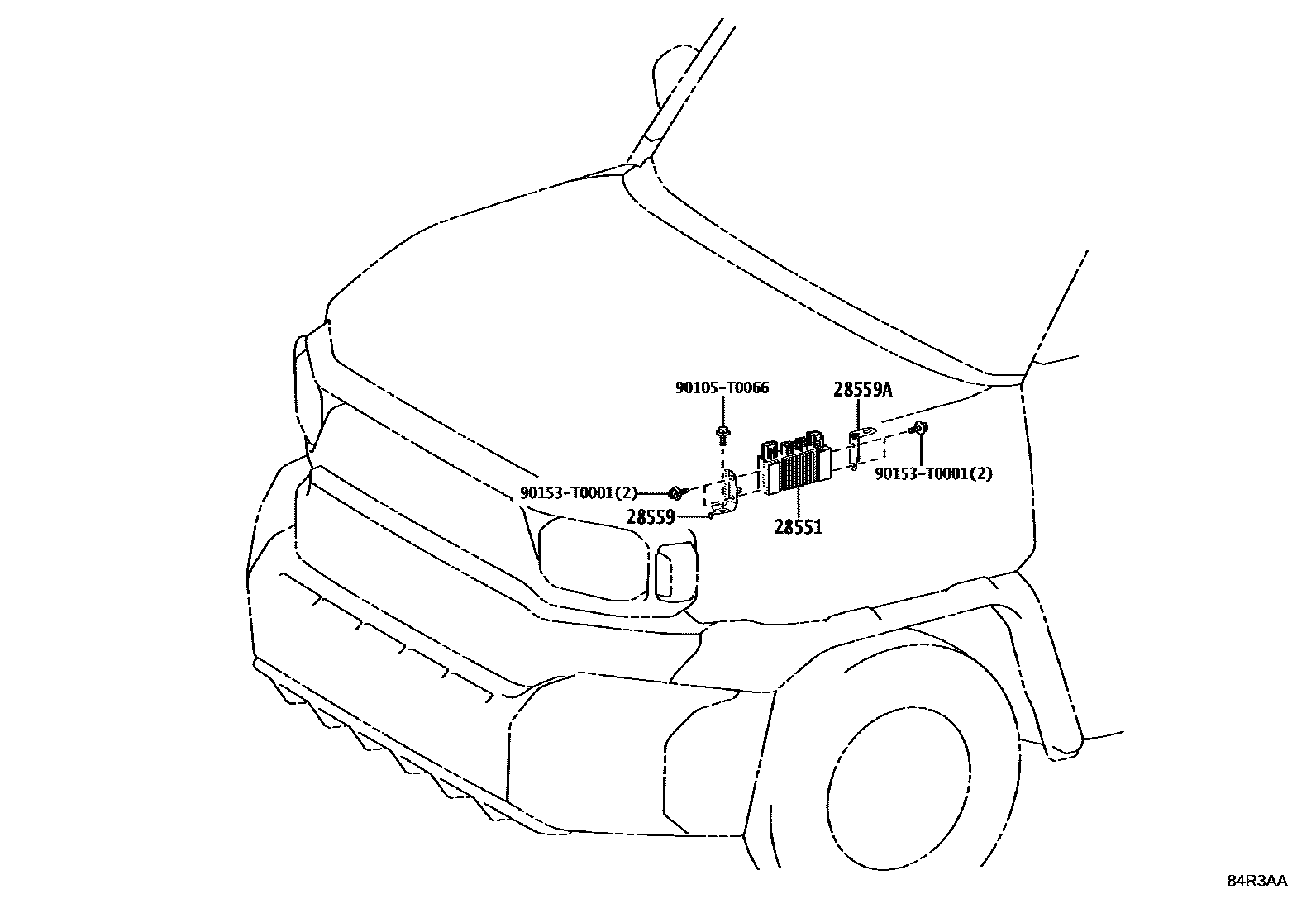

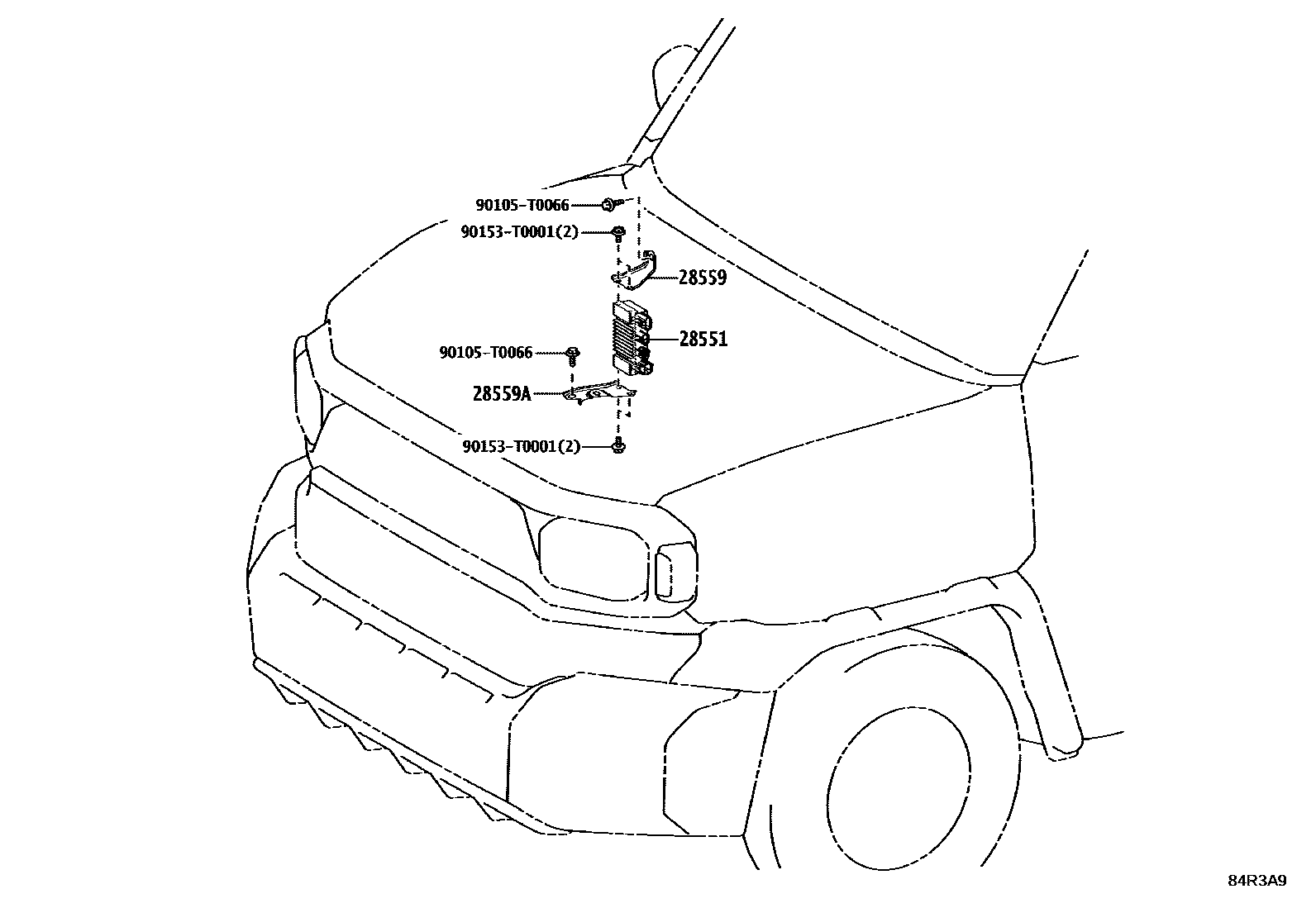

| 28551 | glow plug controller | 28551-0E010 · 28551-30010 |
| 28559 | Glow plug controller bracket No. 1 | 28559-0L010 · 28559-0L030 |
| 28559A | Glow plug controller bracket No. 2 | 28559-0L020 · 28559-0L040 |
| 28590B | Fuel control relay assembly | 90987-02027 · 90987-T2001 |
| 28610 | Intake air heater or glow plug relay assembly | 90987-02025 · 90987-T2002 |
| 82210M | fuse | 90982-08286 |
| 82210N | Instrument panel fuse | 90982-08294 · 90982-08295 |
| 82600D | Dashboard fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82610A | Fuse box assembly | 82610-0K030 |
| 82610C | Fuse box assembly | 82610-0K020 |
| 82610D | Fuse box assembly | 82610-0K050 |
| 82616 | fuse puller | 82616-58010 |
| 82630 | Fuse holder assembly | 82630-0K020 |
| 82642A | driving light relay | 90987-T2001 |
| 82660D | Relay assembly | 82660-0K200 · 82660-0K210 |
| 82660E | Relay assembly | 82660-0K220 · 82660-0K230 |
| 82661 | No. 1 relay box cover | 82661-0K050 |
| 82662A | No. 1 relay box upper cover | 82662-0KB40 · 82662-0KB50 · 82662-0KB60 · 82662-0KB70 |
| 82663 | Relay box lower cover | 82663-0K020 |
| 82663B | No. 3 relay box lower cover | 82663-0K160 |
| 82665 | Relay box label | 82665-0K010 |
| 82666 | Connector holder | 82666-0K150 |
| 82672A | Junction box cover | 82672-0K090 |
| 82673A | Junction box bracket | 82673-0K010 · 82673-0K030 |
| 82673B | Junction box bracket | 82673-0K020 |

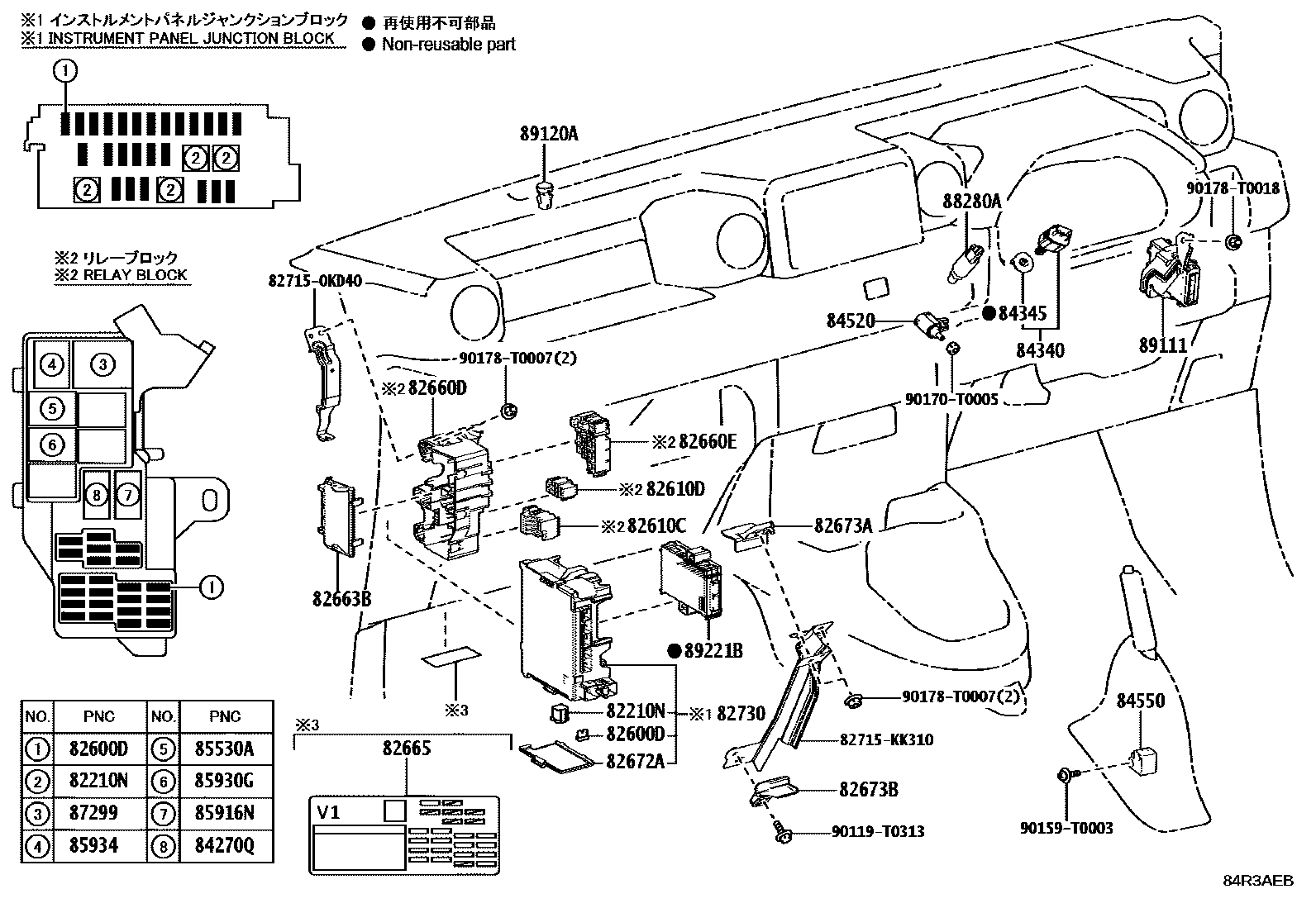

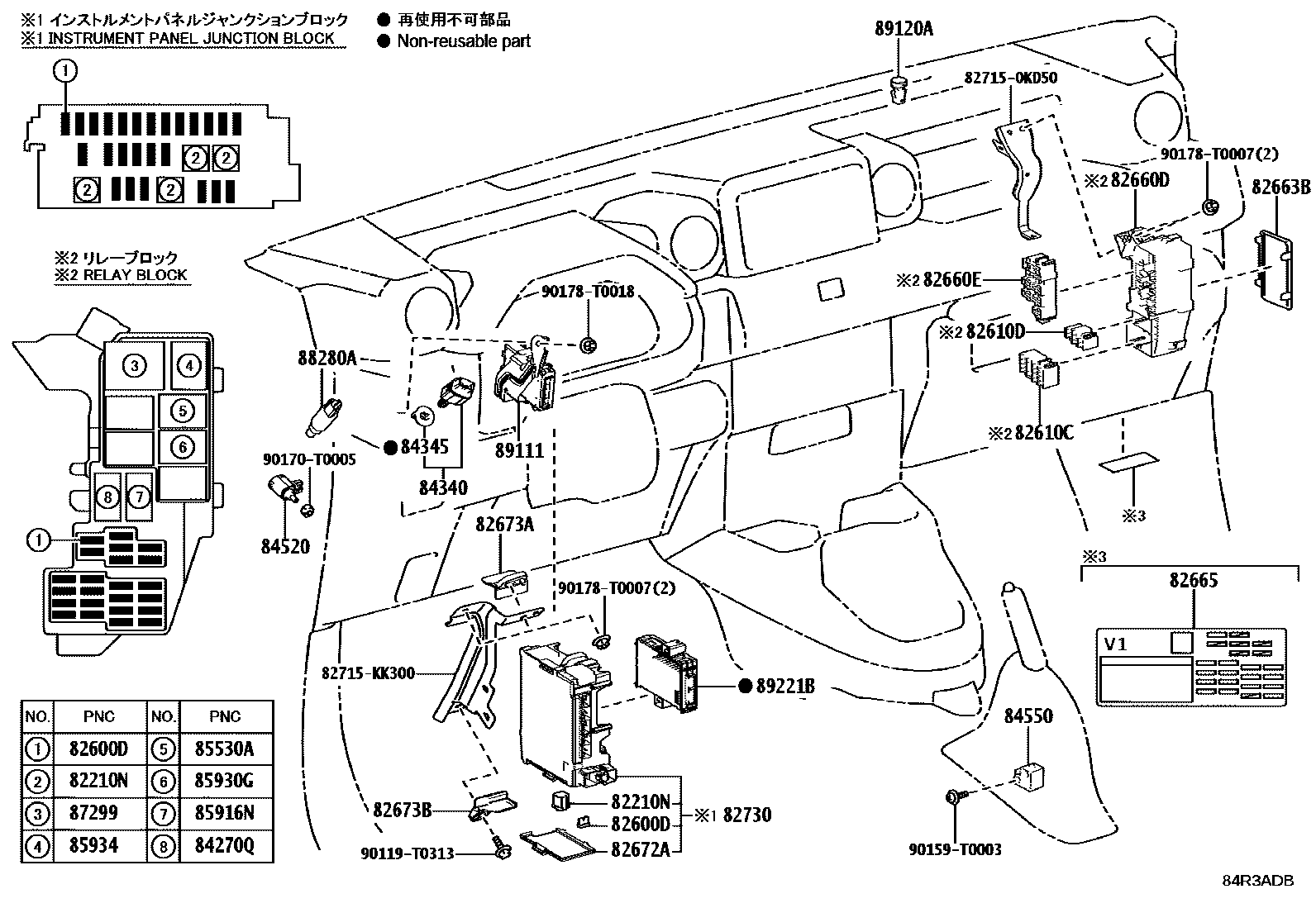

| 82730 | Instrument panel junction box assembly | 82730-0K260 |

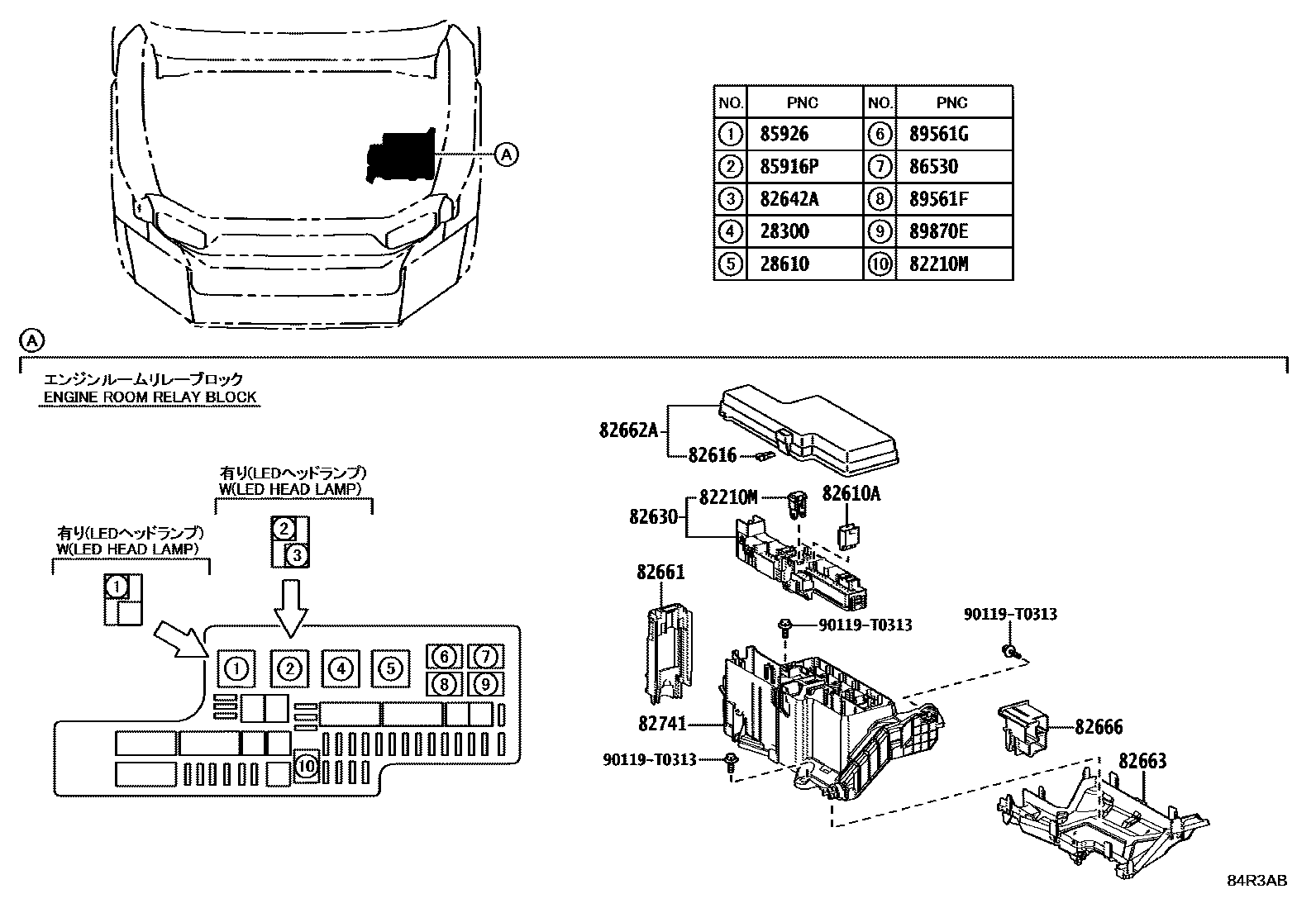

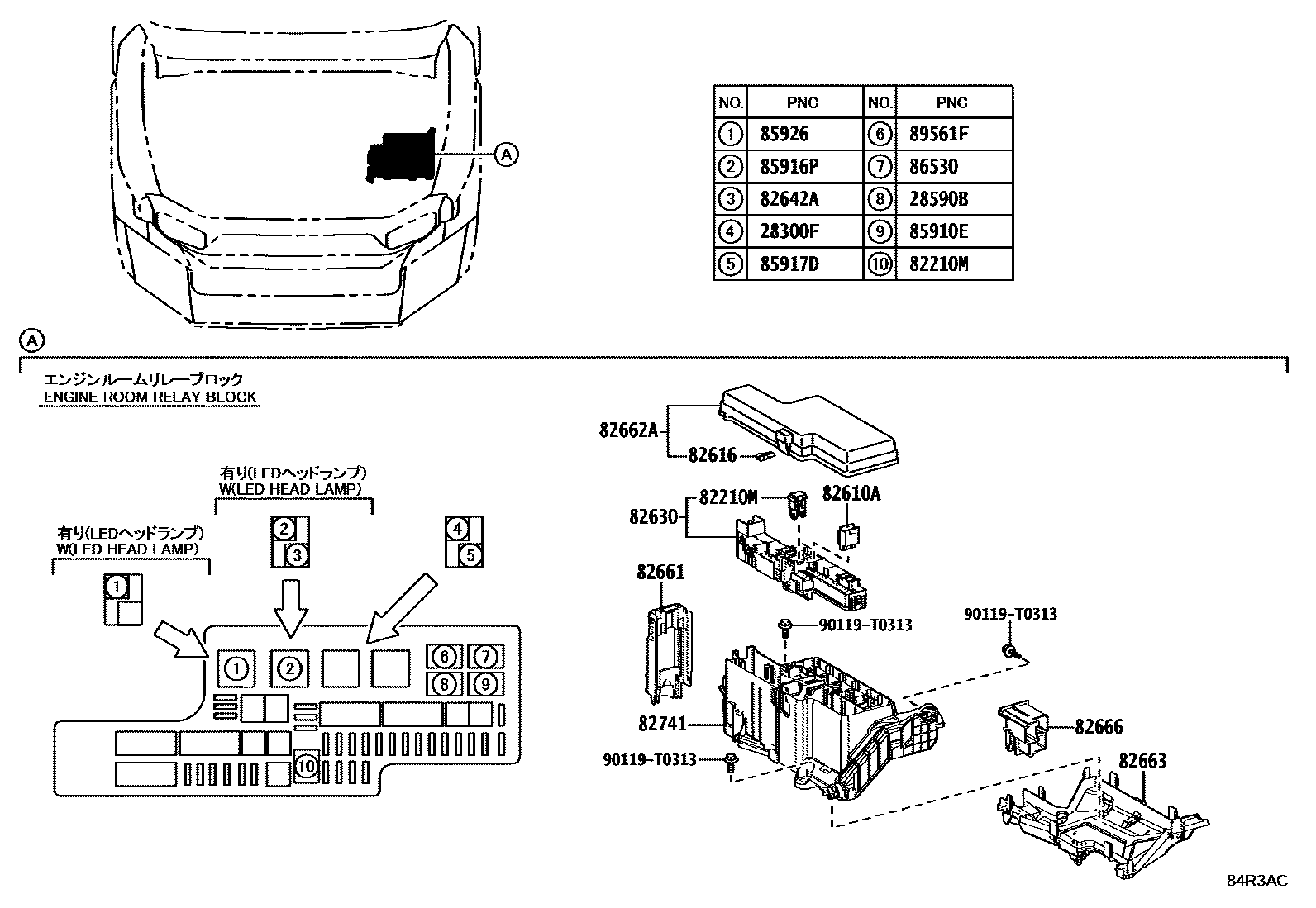

| 82741 | Engine room relay box | 82741-0K020 |
| 83181G | speedometer sensor | 83181-12020 |
| 83181H | O-ring (for speedometer sensor) | 96711-24030 |
| 83320 | Fuel gauge sensor assembly | 83320-0G010 · 83320-0K150 · 83320-0K220 |
| 83520 | Oil pressure gauge sensor assembly | 83520-60060 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-28010 · 83530-28020 · 83530-60010 |
| 84052 | Unlock warning switch assembly | 84052-0K020 |
| 84140 | Headlight dimmer switch assembly | 84140-02A80 · 84140-06550 · 84140-0K410 · 84140-0K440 · 84140-0K470 · 84140-0K510 · 84140-0K600 · 84140-0K640 · 84140-0K690 |

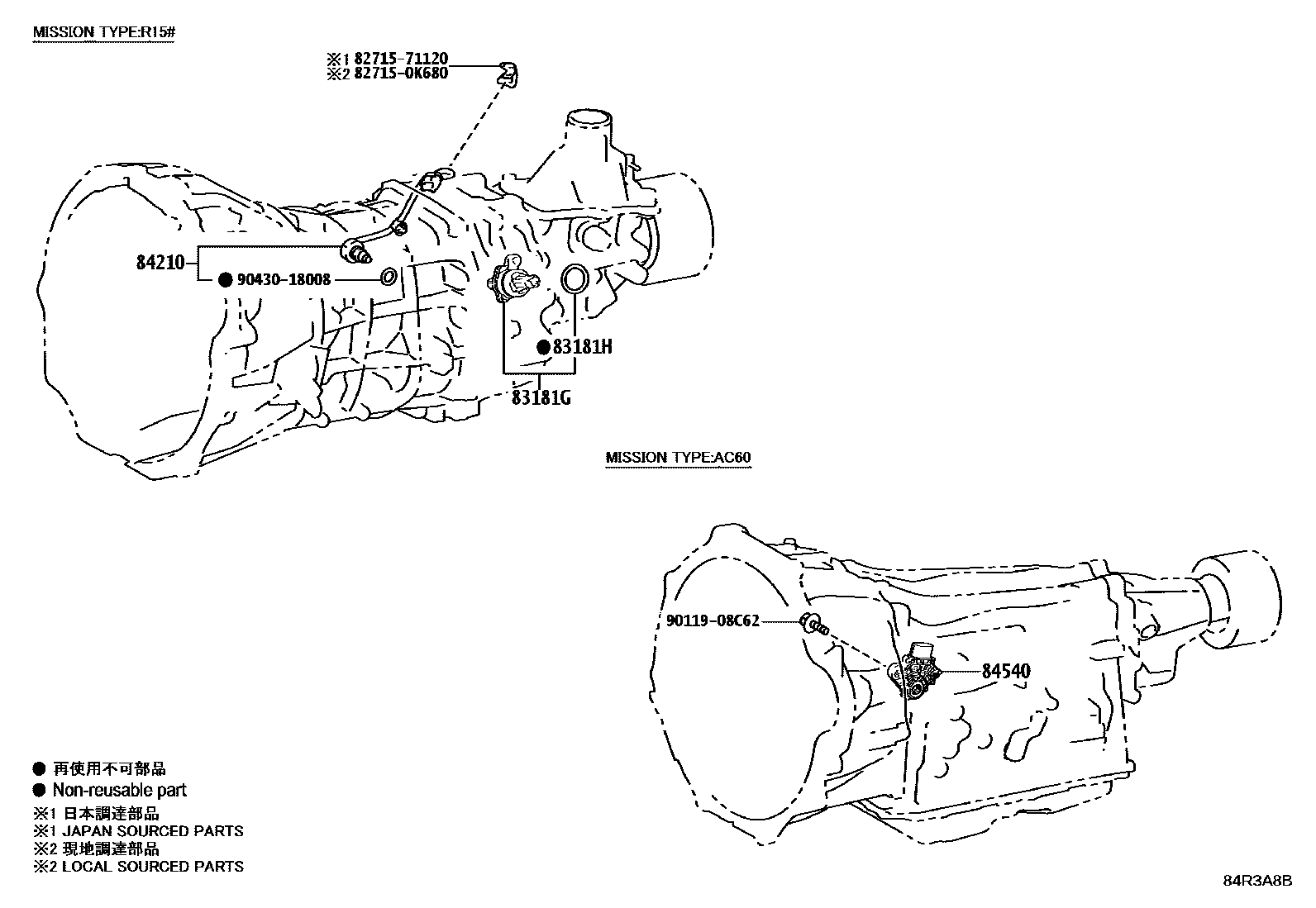

| 84210 | Reversing light switch assembly | 84210-71040 |
| 84233 | Door control light switch assembly (for front door) | 84231-0K020 |
| 84270M | Diesel particulate reduction switch assembly | 84270-0K060 |
| 84270Q | headlight relay | 90987-02027 · 90987-T2001 |

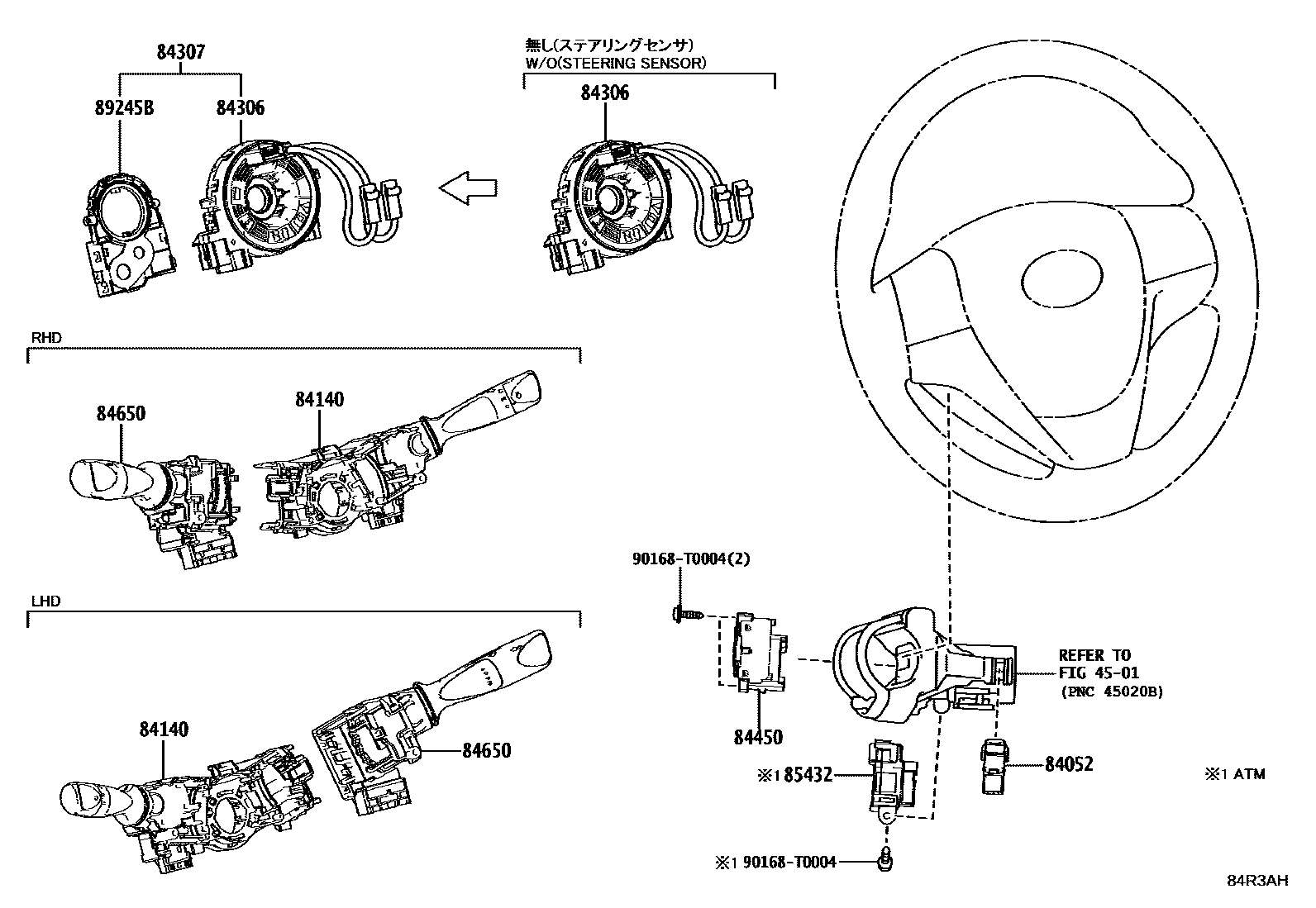

| 84306 | Spiral cable sub-assembly | 84306-0K140 · 84306-0K270 · 84308-0K080 |
| 84307 | Spiral cable sub-assembly with sensor | 84307-0K210 |
| 84330 | Hazard warning signal switch assembly | 84332-0K080 |
| 84340 | brake light switch assembly | 84340-09380 |
| 84345 | Brake light switch base adjuster | 84345-0K010 |
| 84450 | Ignition or starter switch assembly | 84450-02040 |
| 84520 | Clutch start switch assembly | 84520-42010 |
| 84540 | Neutral start switch assembly | 84540-60050 |
| 84550 | Parking brake switch assembly | 84550-02030 |
| 84650 | Windshield wiper switch assembly | 84652-0D340 · 84652-0K260 · 84652-0K300 |

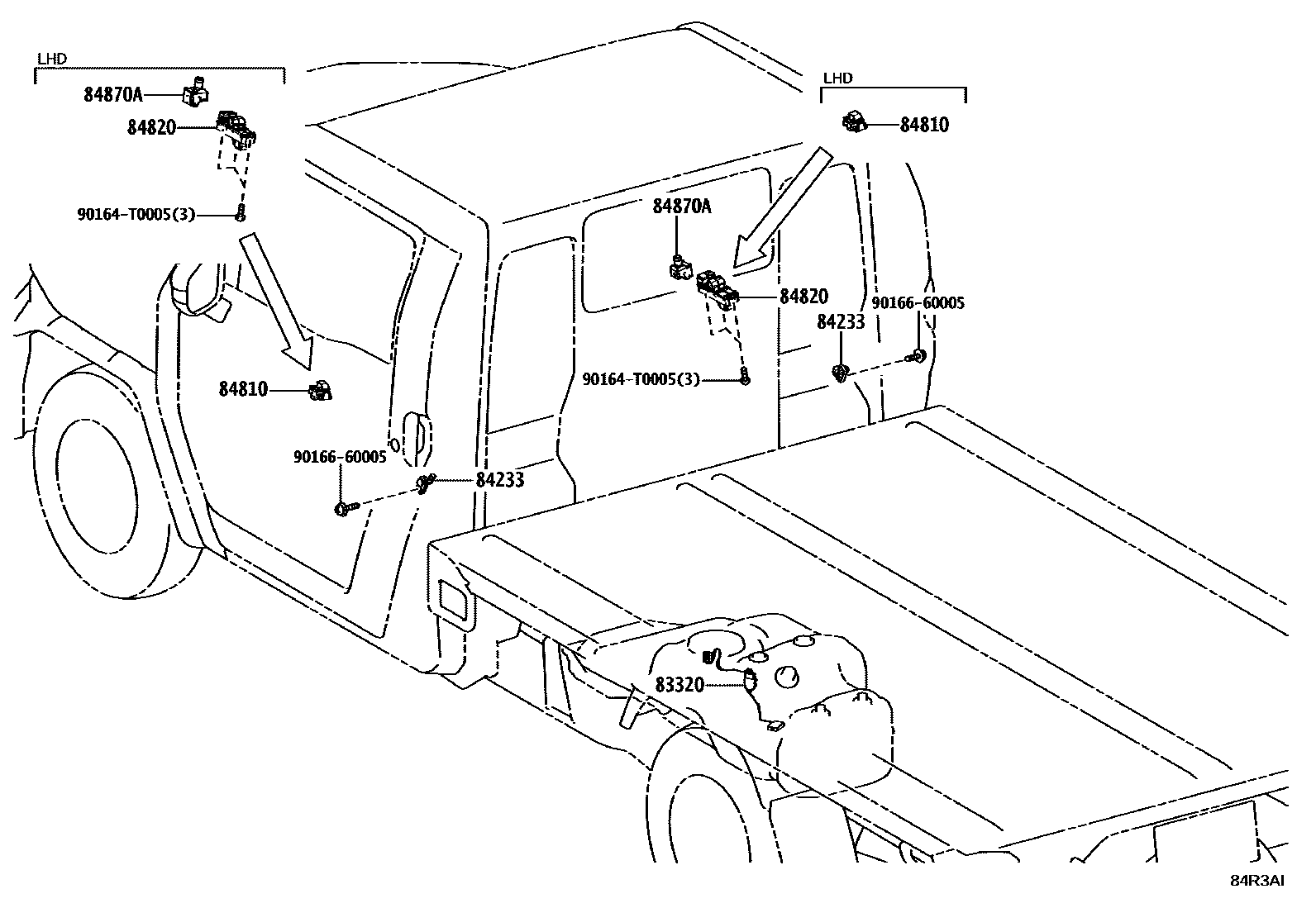

| 84810 | Electric window lift switch assembly | 84810-0D300 |
| 84820 | Electric window lift main switch assembly | 84820-0K190 · 84820-0K200 · 84820-0K400 |
| 84870A | Exterior rearview mirror switch assembly | 84872-0K010 · 84872-0K020 |

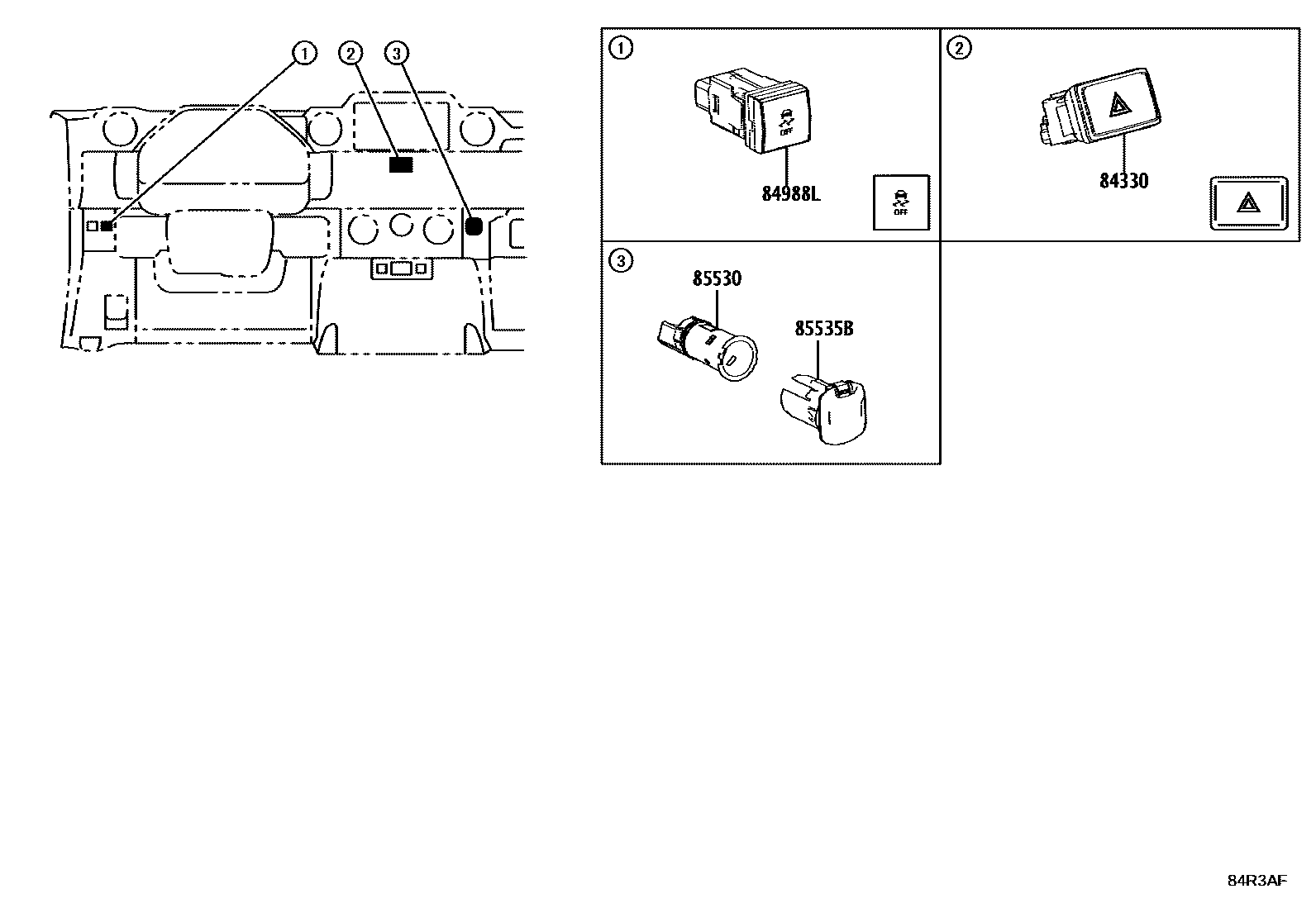

| 84988L | VSC off switch | 84988-06110 |
| 85432 | Key interlock solenoid valve | 85432-0D010 |

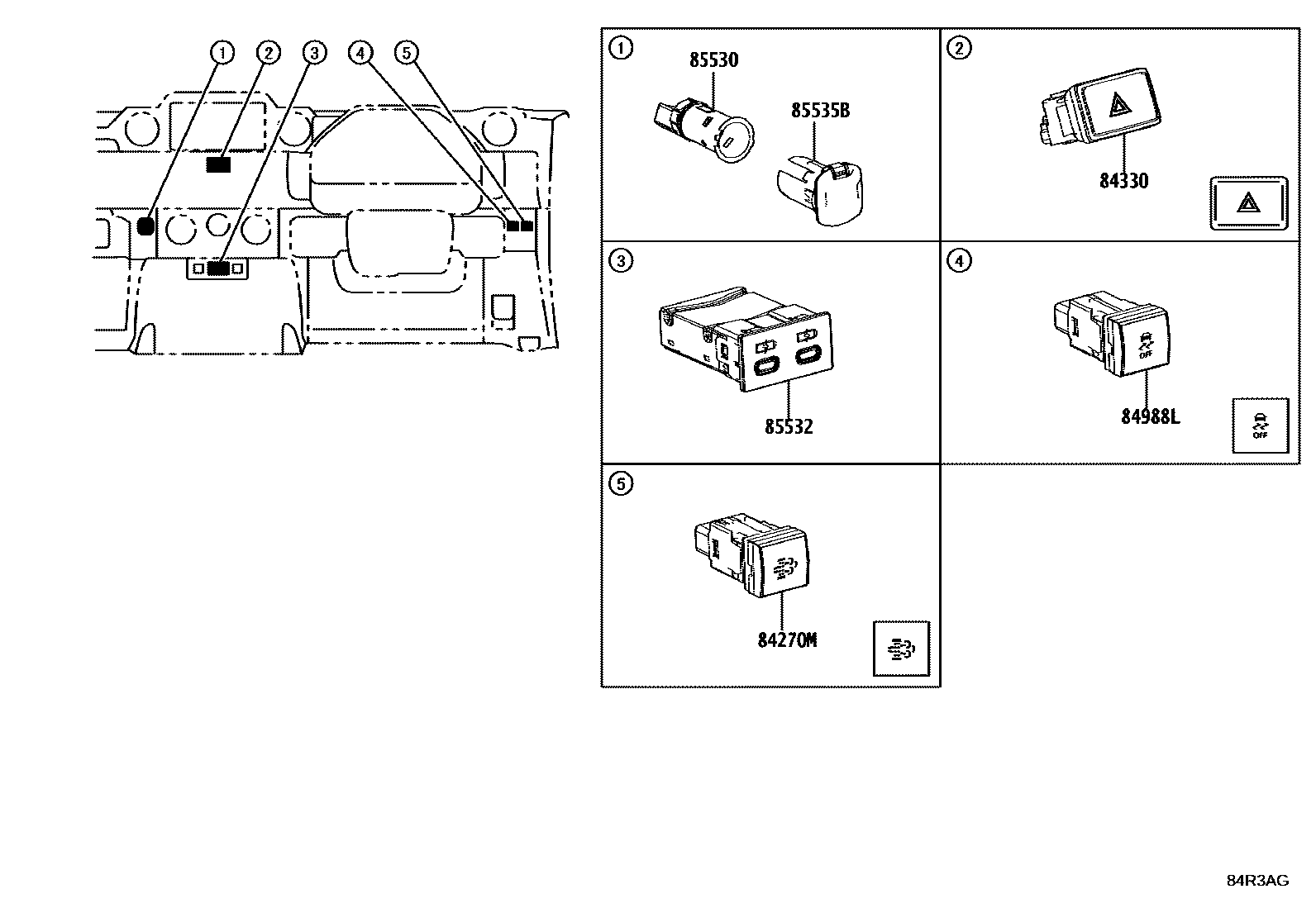

| 85530 | No. 1 power socket assembly | 85530-52010 |
| 85530A | power outlet relay | 90987-T2001 |
| 85532 | USB charging socket | 85532-0K050 |
| 85535B | No. 1 power outlet cover | 85535-78010 |
| 85910E | Injector relay | 90987-02027 · 90987-T2001 |
| 85916N | Tail light relay | 90987-02027 · 90987-T2001 |
| 85916P | headlight relay | 90987-T2001 · 90987-T2002 |
| 85917D | Heater relay (for air-fuel ratio sensor) | 90987-02027 · 90987-T2001 |
| 85926 | Headlight dimmer relay | 90987-T2001 · 90987-T2003 |
| 85930G | ACC relay | 90987-T2001 |
| 85934 | Electromagnetic clutch relay | 90987-02028 |
| 86530 | Speaker relay assembly | 90987-T2001 |
| 87299 | heater relay | 90987-T2003 |
| 88280A | Clutch switch assembly | 88280-42010 |
| 89111 | Network gateway ECU | 89100-71011 |
| 89120A | Automatic light control sensor | 89121-50020 |
| 89221B | Body ECU | 89221-0K052 · 89221-0K082 · 89221-0K192 · 89221-0KA12 |
| 89245B | steering sensor | 8924B-0D020 |

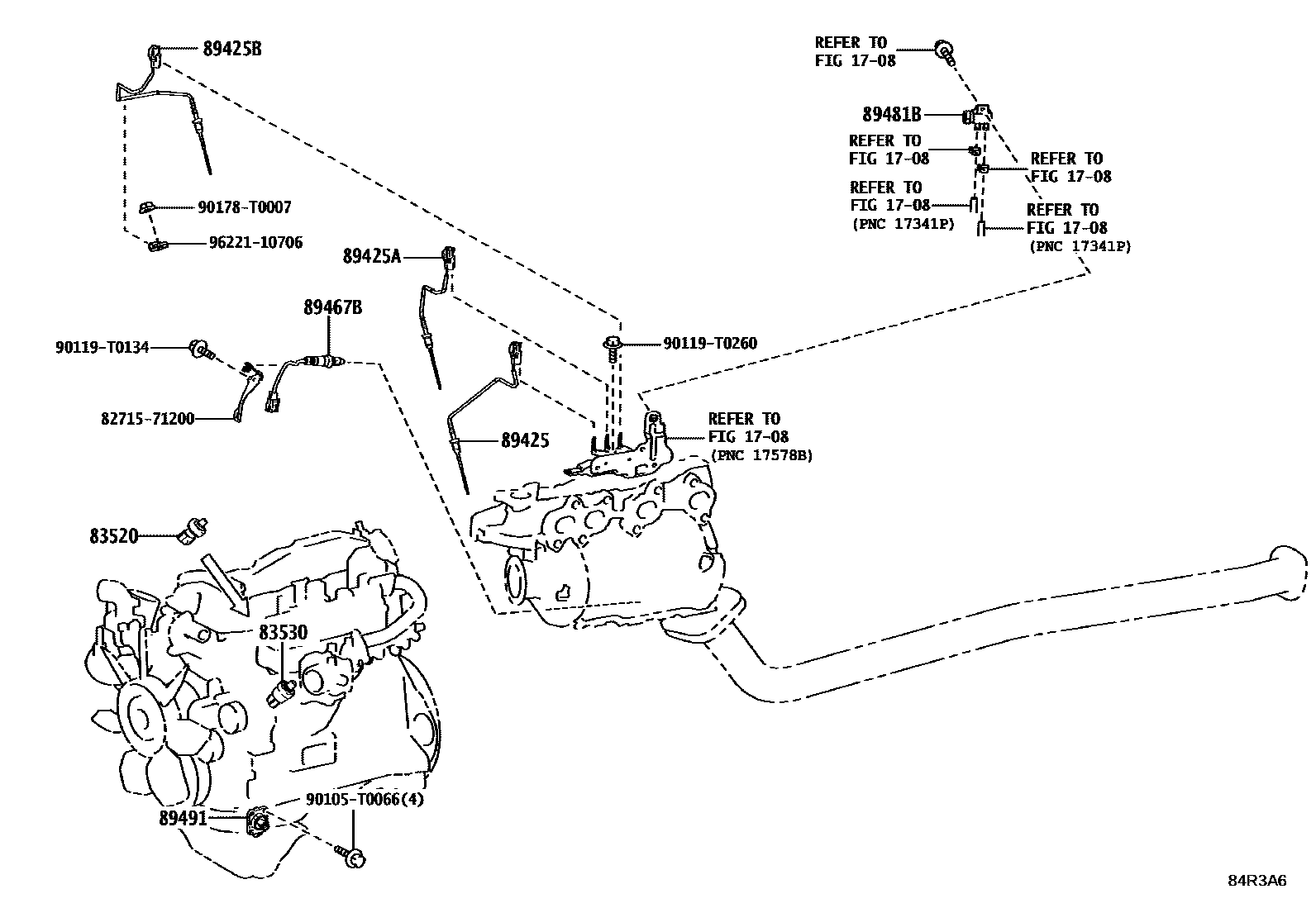

| 89425 | Exhaust gas temperature sensor | 89425-71070 |
| 89425A | No. 2 exhaust gas temperature sensor | 89425-71080 |
| 89425B | No. 3 exhaust gas temperature sensor | 89425-71090 |

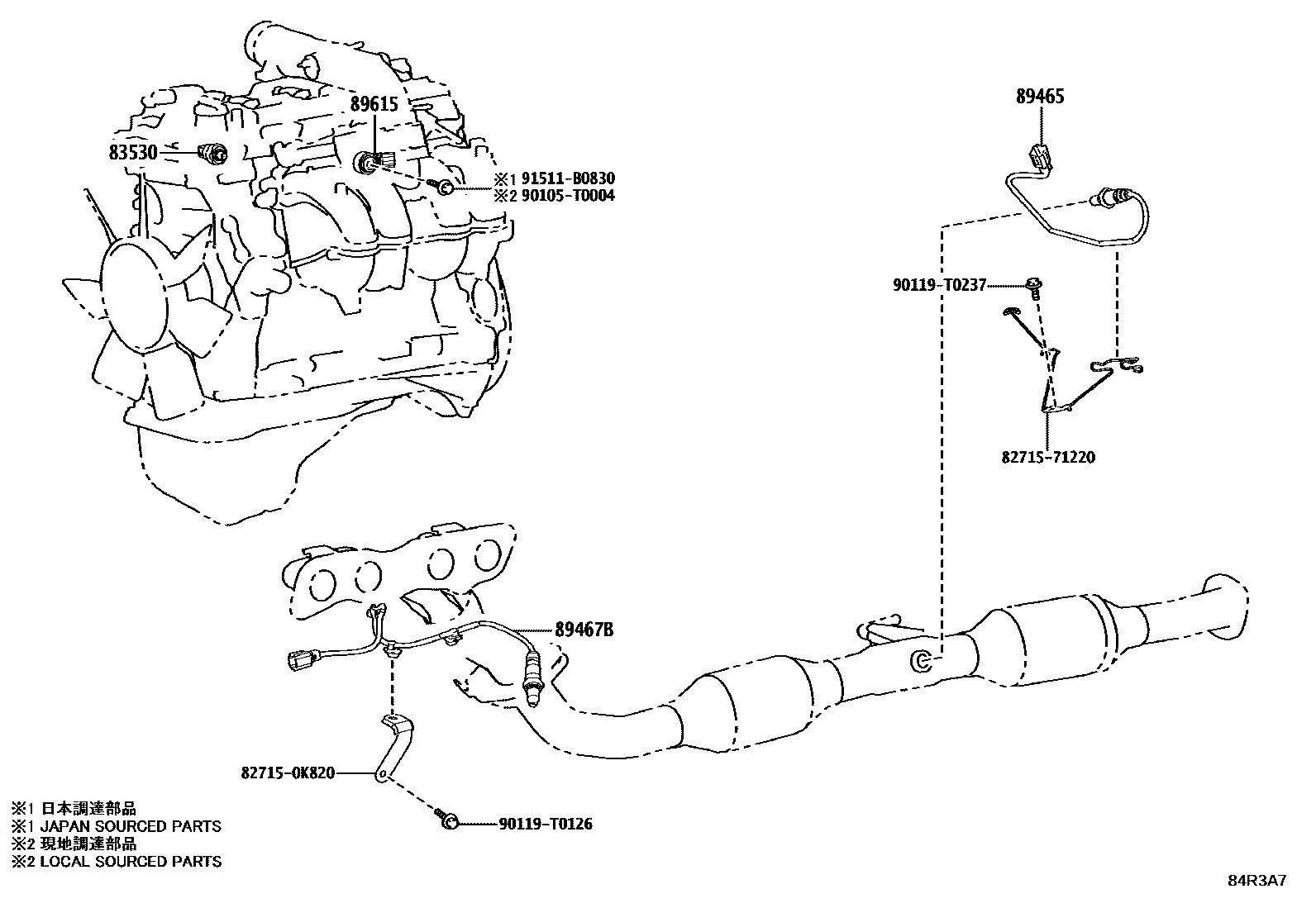

| 89465 | oxygen sensor | 89465-0K190 |
| 89467B | air fuel ratio sensor | 89467-71120 · 89467-71130 |
| 89481B | Differential pressure sensor | 89481-71010 |
| 89491 | Engine oil level sensor | 89491-26190 |
| 89561F | Electronic fuel injection No. 1 main relay | 90987-02027 · 90987-T2001 |
| 89561G | Electronic fuel injection No. 2 main relay | 90987-02027 · 90987-T2001 |
| 89615 | knock control sensor | 89615-20090 |
| 89870E | Electronic drive unit relay | 90987-02027 · 90987-T2001 |
