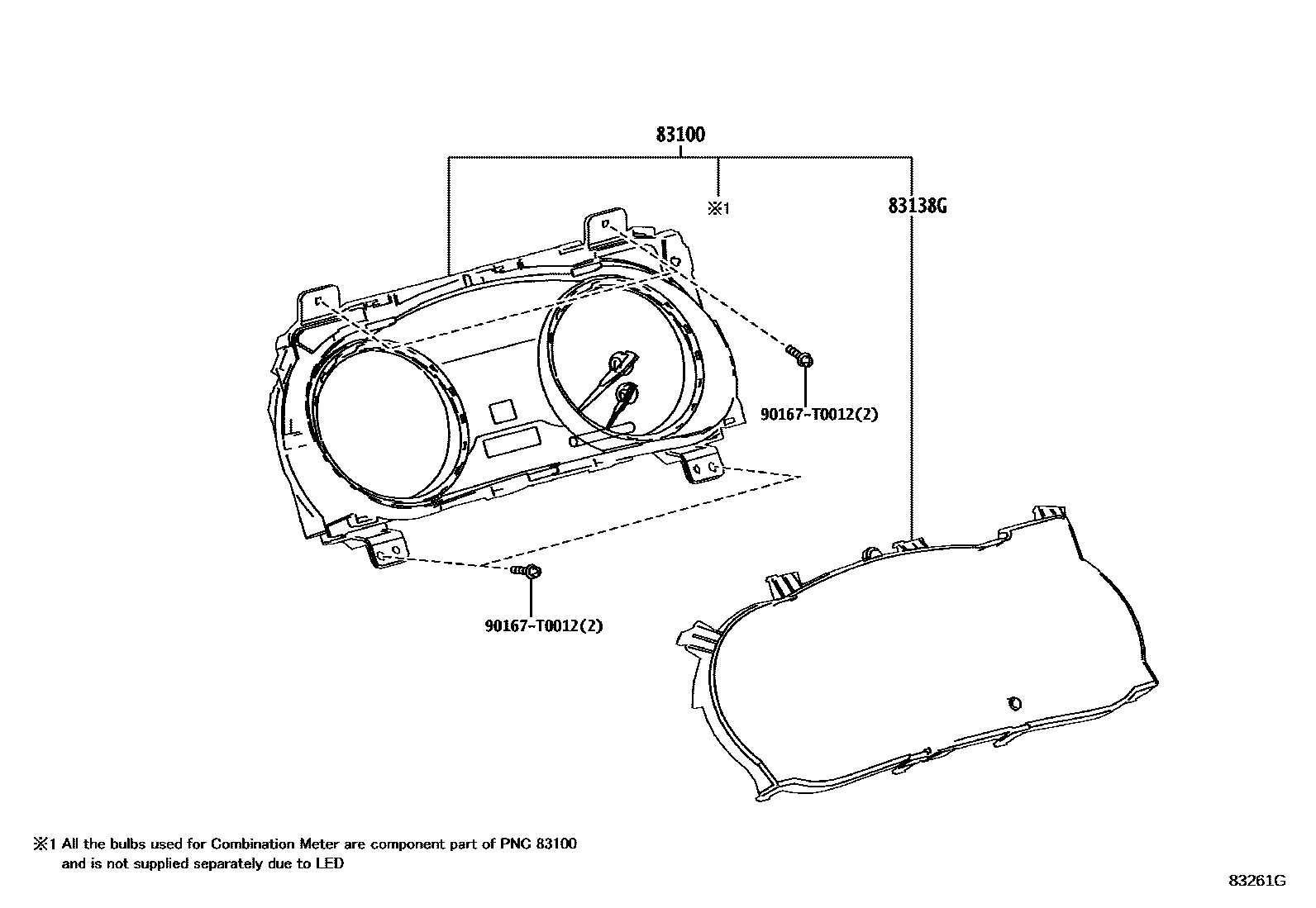

Toyota HILUX 仪表 — Figure 8301
Toyota HILUX EPC diagram 8301, 仪表, with 1 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 83100 | Combined instrument assembly | 83800-FFE30 · 83A00-FB540 · 83A00-FB550 · 83A00-FB560 · 83A00-FB570 · 83A00-FB590 · 83A00-FB600 · 83A00-FB610 · 83A00-FB620 · 83A00-FB630 · 83A00-FB640 · 83A00-FB650 · 83A00-FB660 · 83A00-FB680 · 83A00-FB690 · 83A00-FBM30 · 83A00-FBM40 · 83A00-FBM60 · 83A00-FCM40 |
| 83138G | Instrument cluster glass | 83852-FBJ30 |
