Toyota HILUX 线束和卡夹 — Figure 8202
Toyota HILUX EPC diagram 8202, 线束和卡夹, with 24 images and 43 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

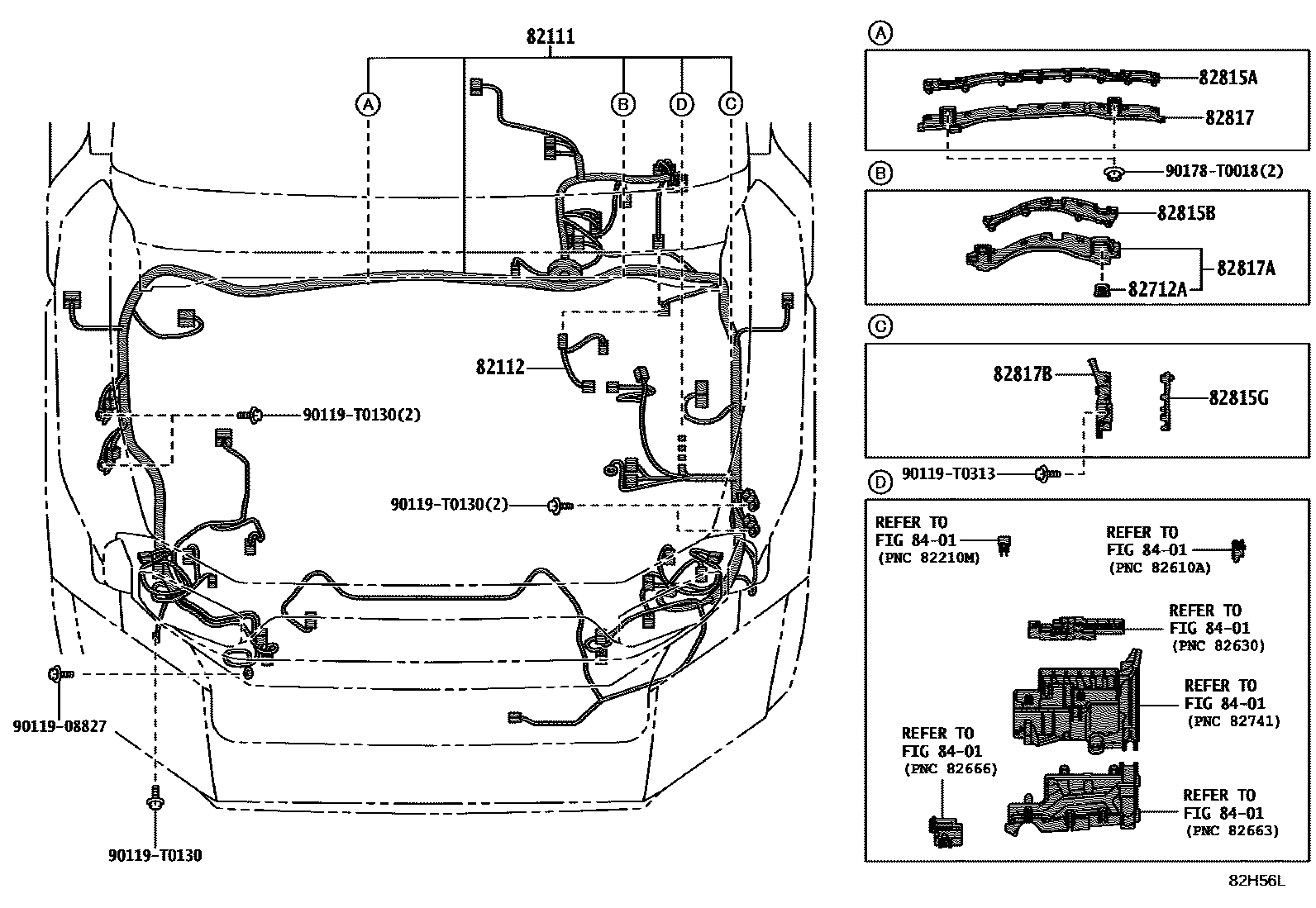

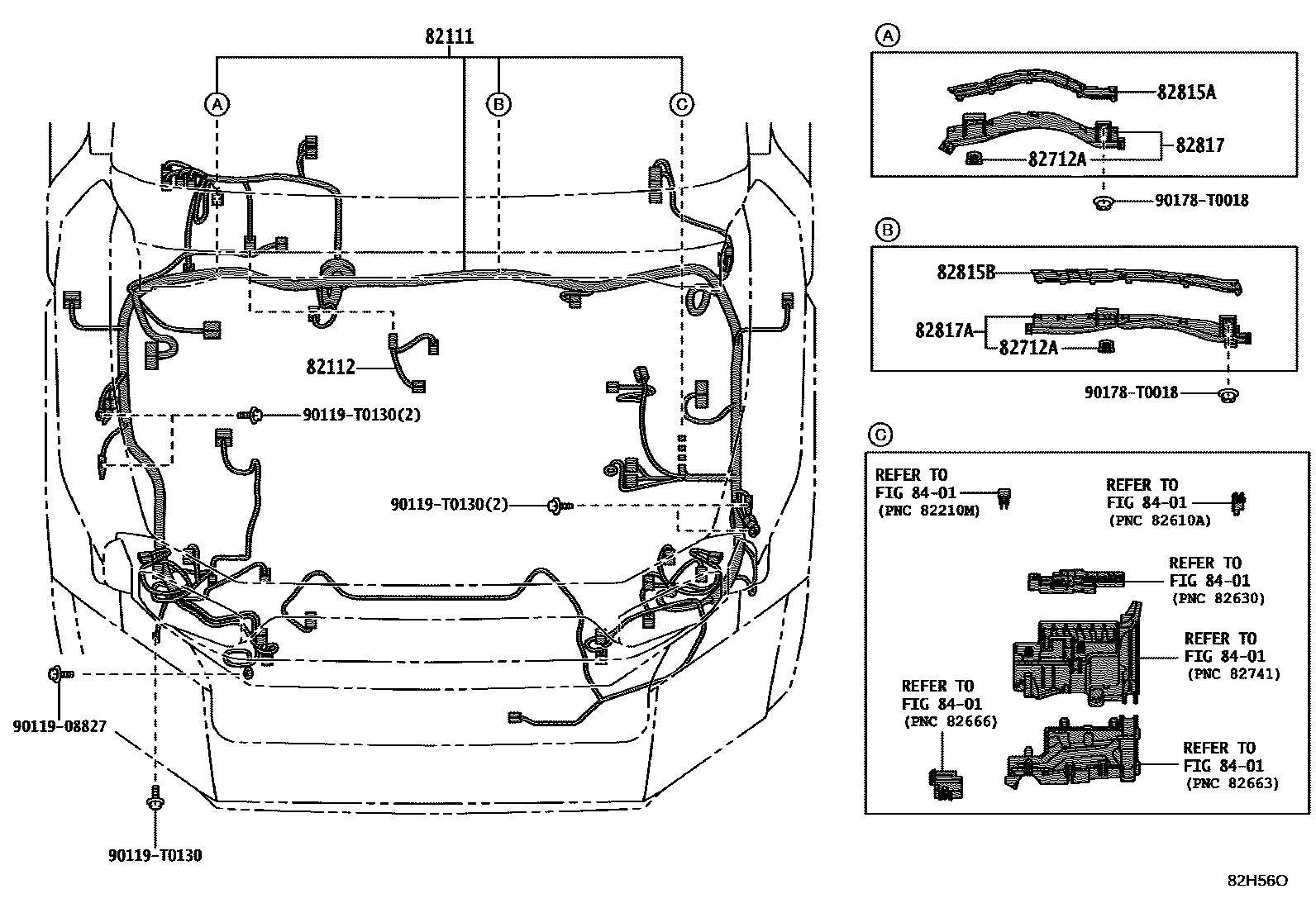

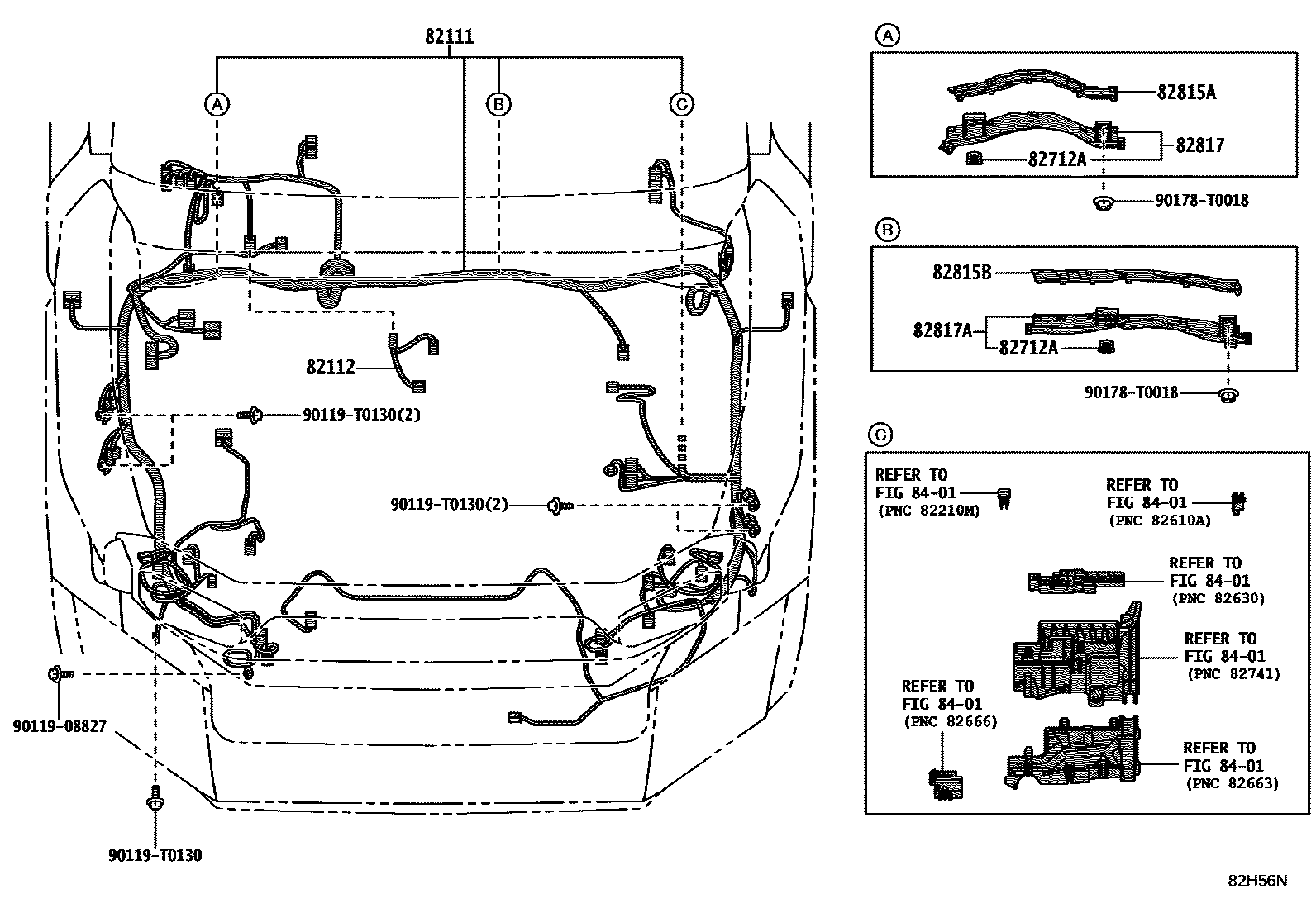

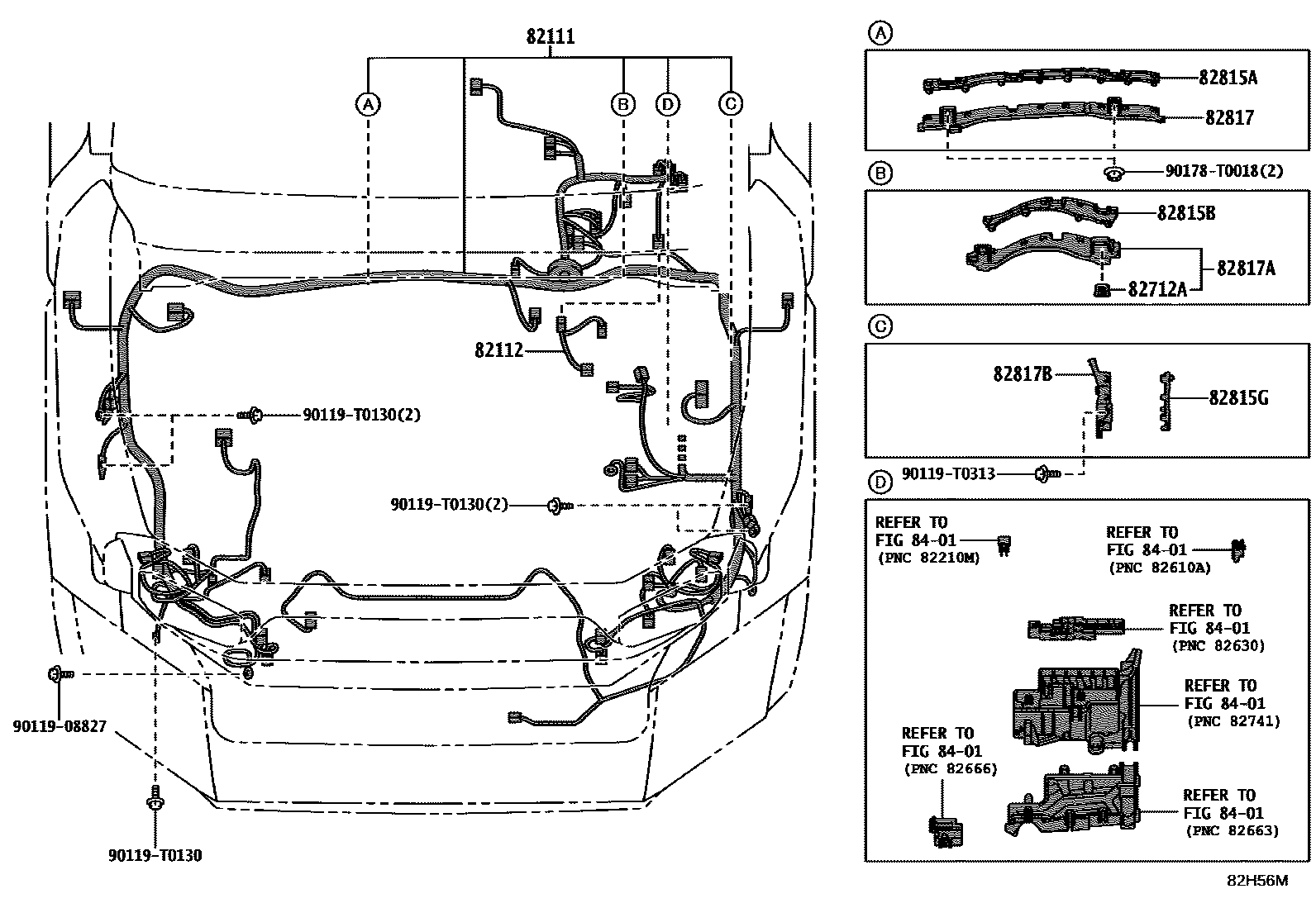

| 82111 | Engine room main wiring harness | 8211G-KKW20 · 8211G-KKW30 · 8211G-KKW40 · 8211G-KKW60 · 8211G-KKW70 · 8211G-KKW80 · 8211G-KKW90 · 8211G-KKX10 · 8211G-KKX20 · 8211G-KKX30 · 8211G-KKX40 · 8211H-KK060 · 8211H-KKK00 · 8211H-KKK20 · 8211H-KKK30 · 8211H-KKK40 · 8211H-KKK50 |
| 82112 | Engine room wiring harness No. 2 | 82112-KK010 |

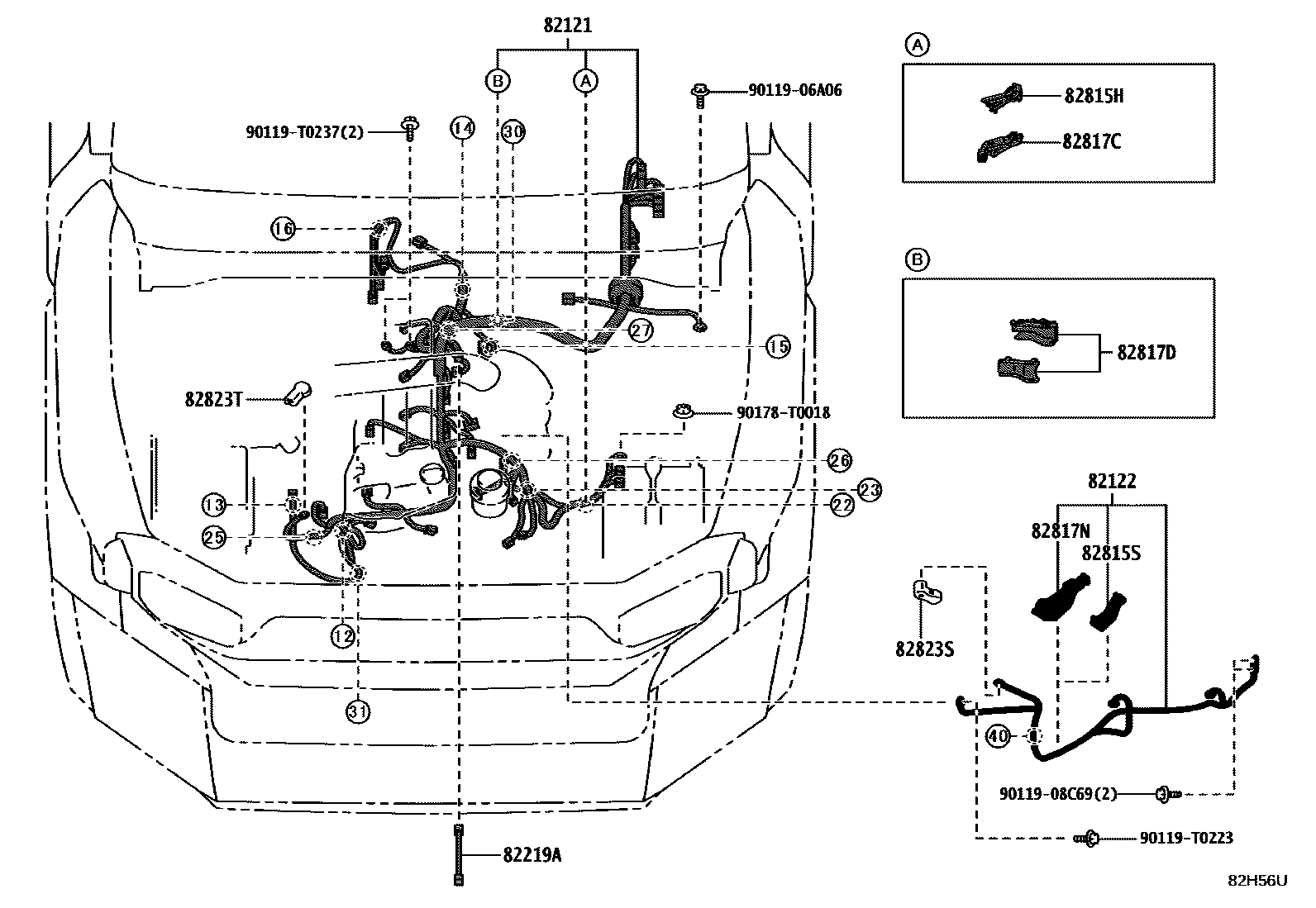

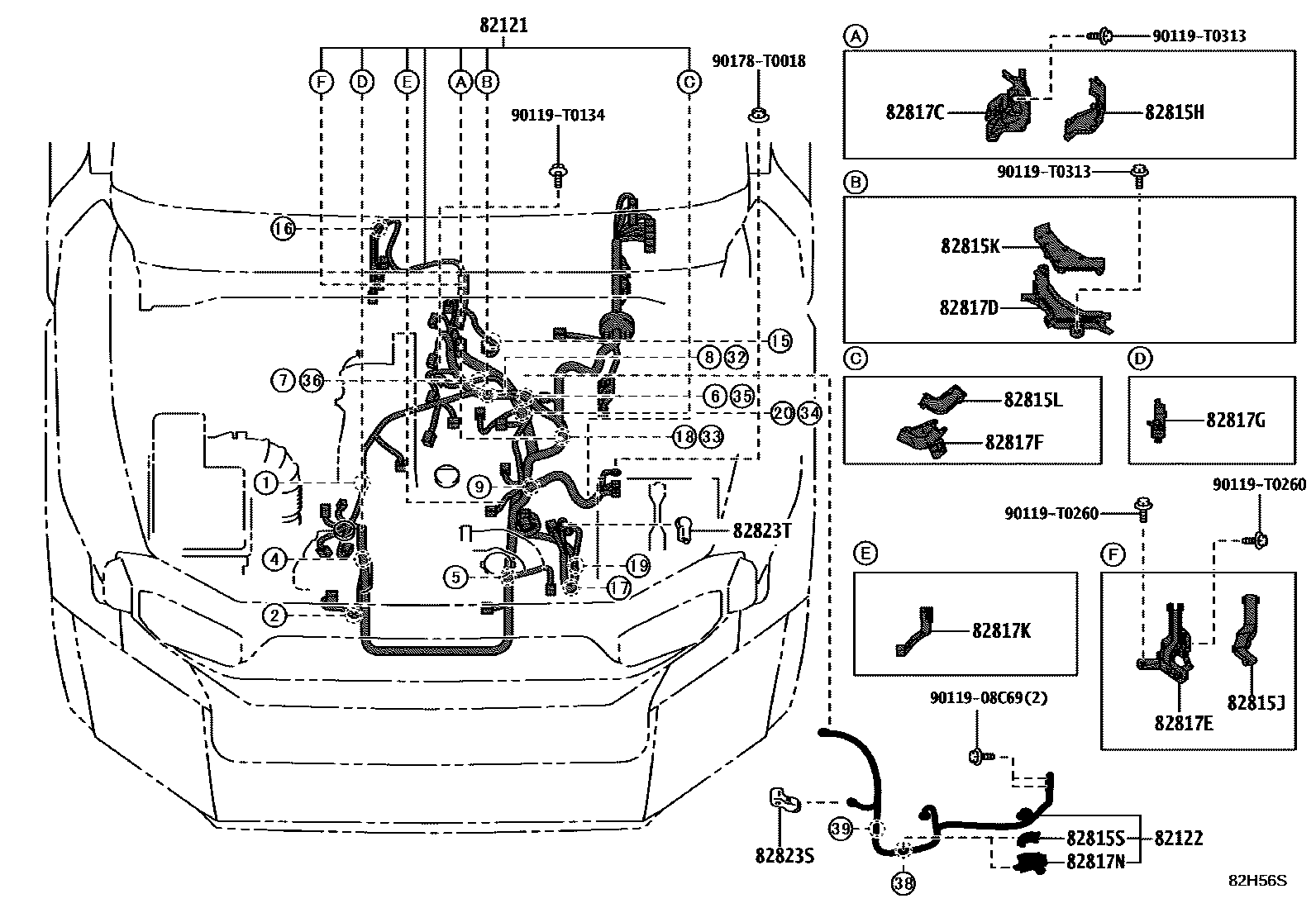

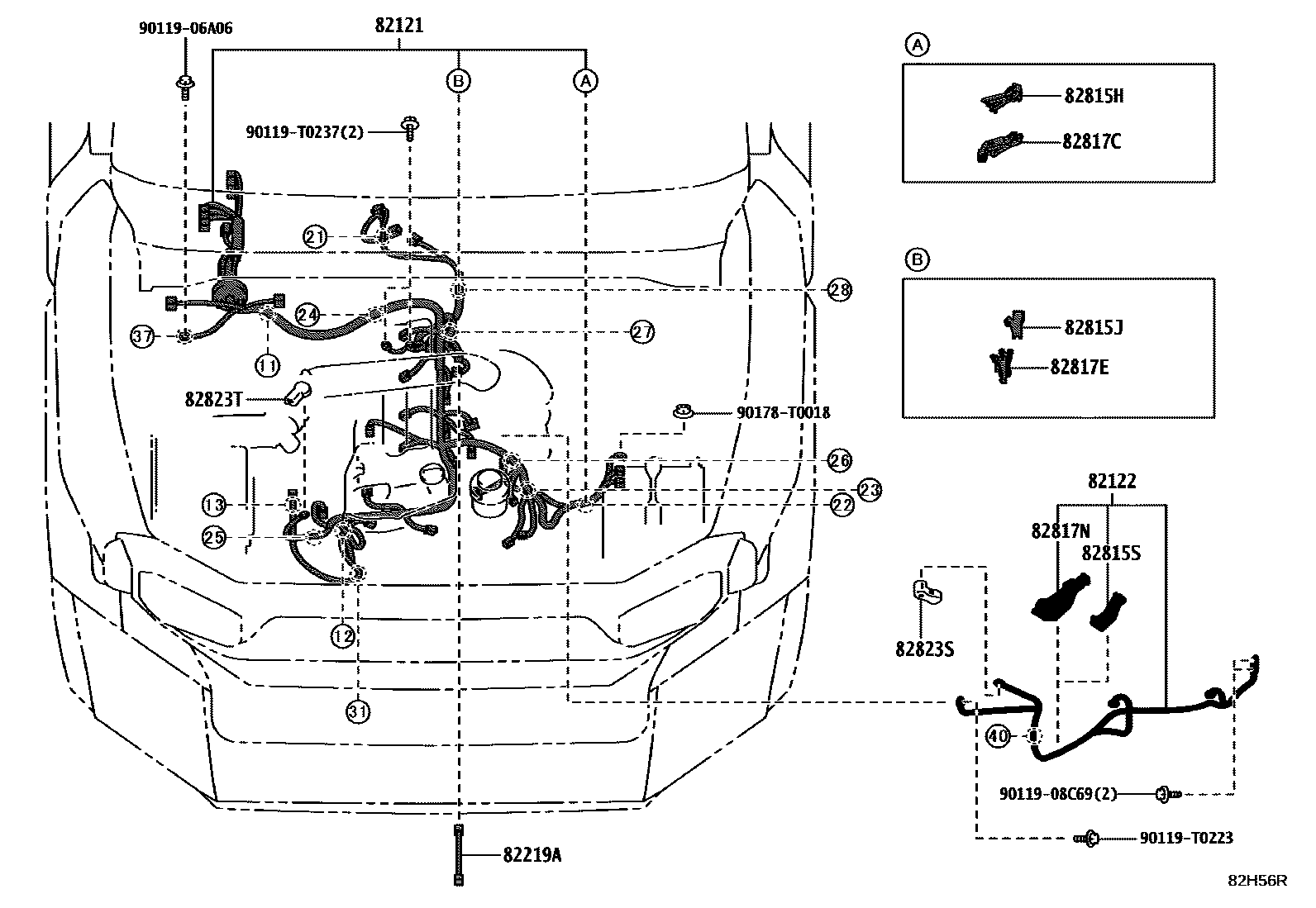

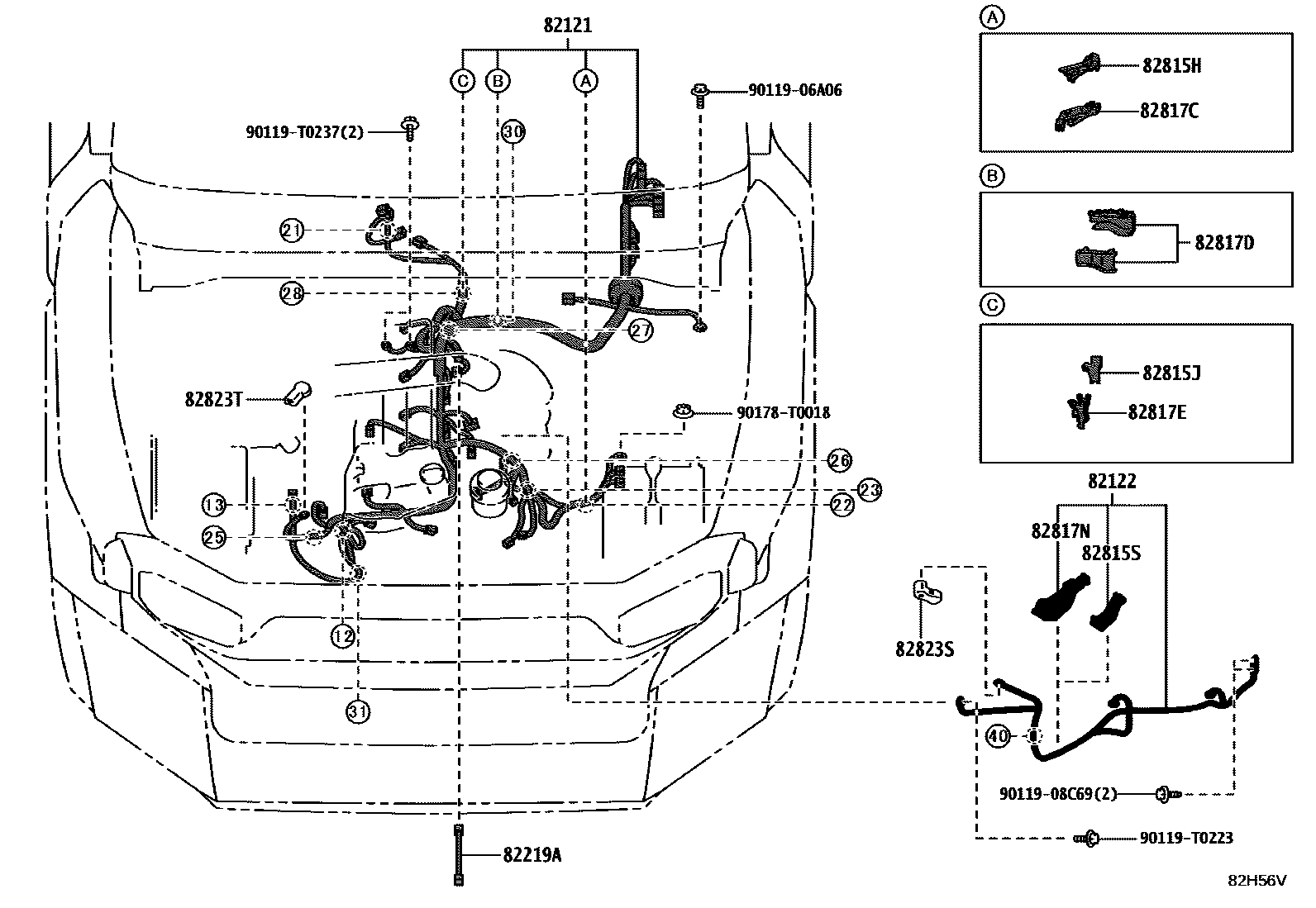

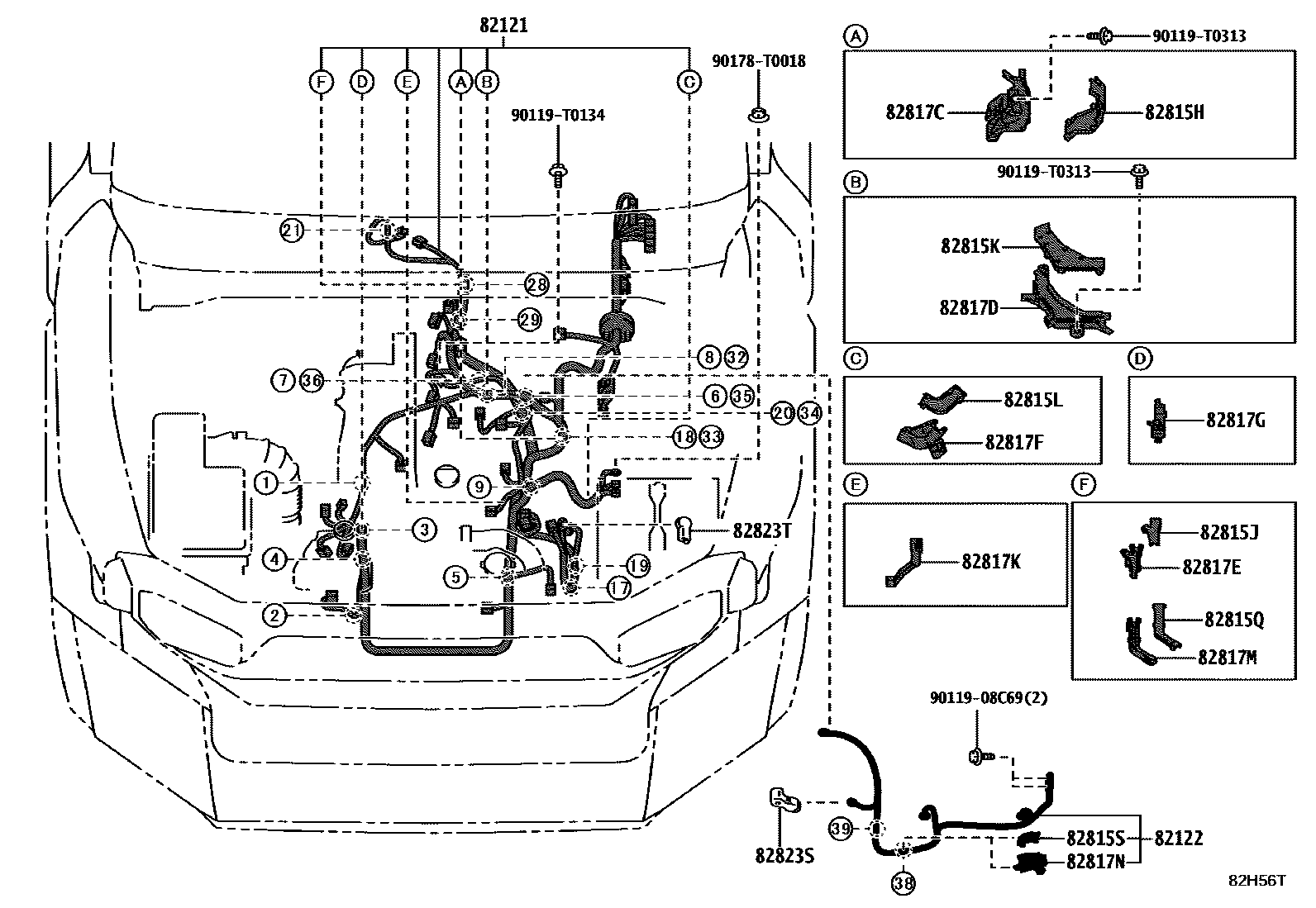

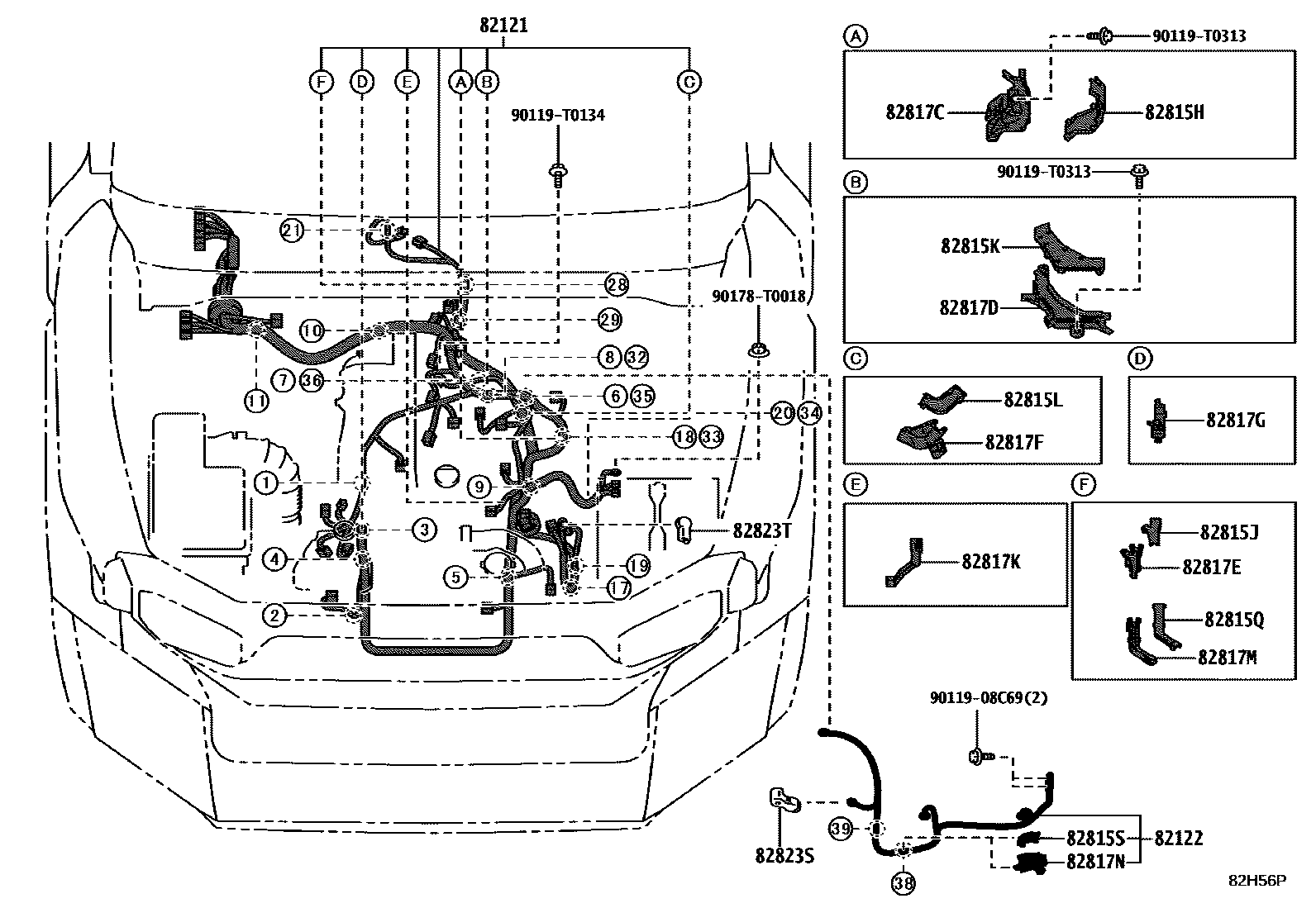

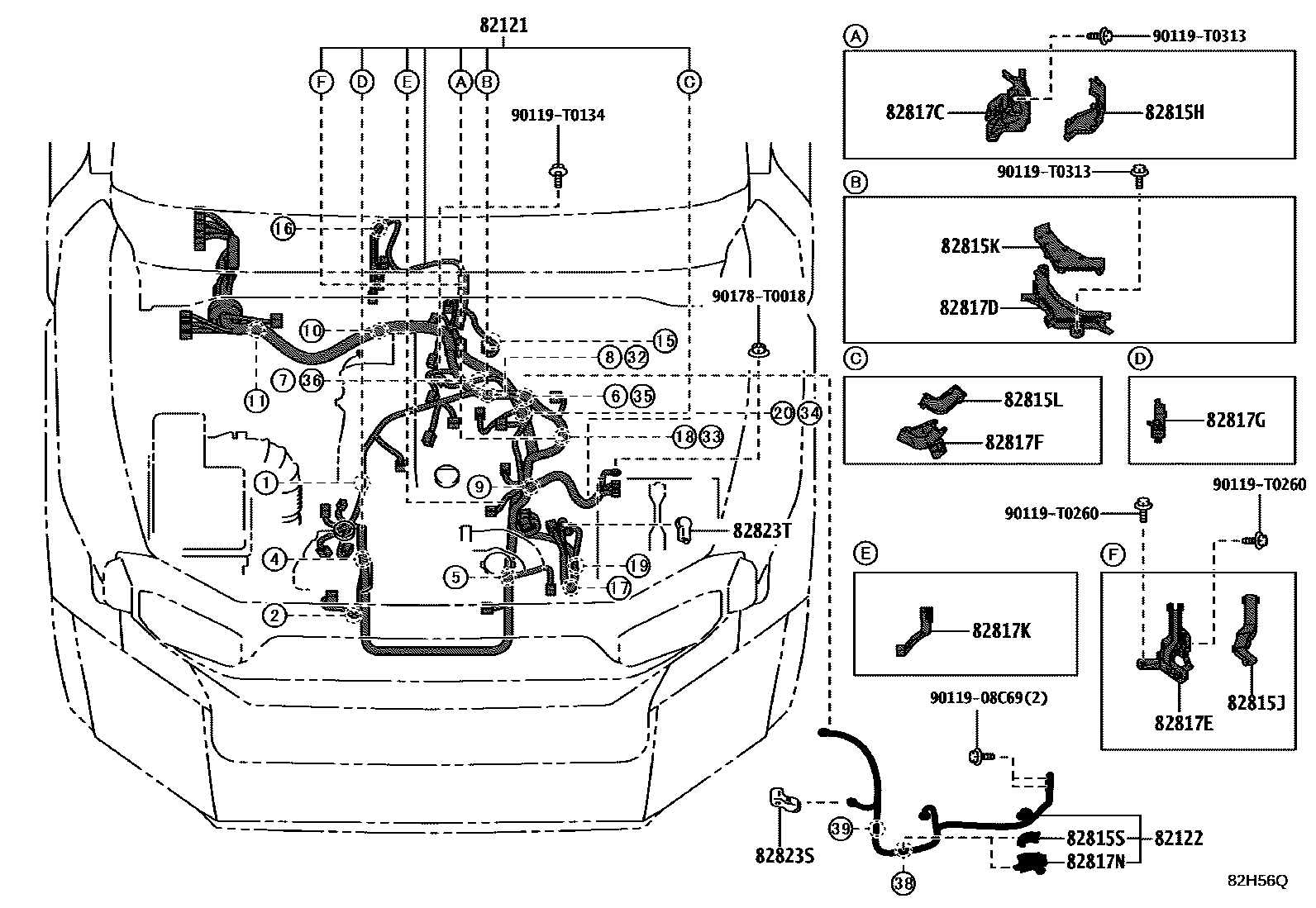

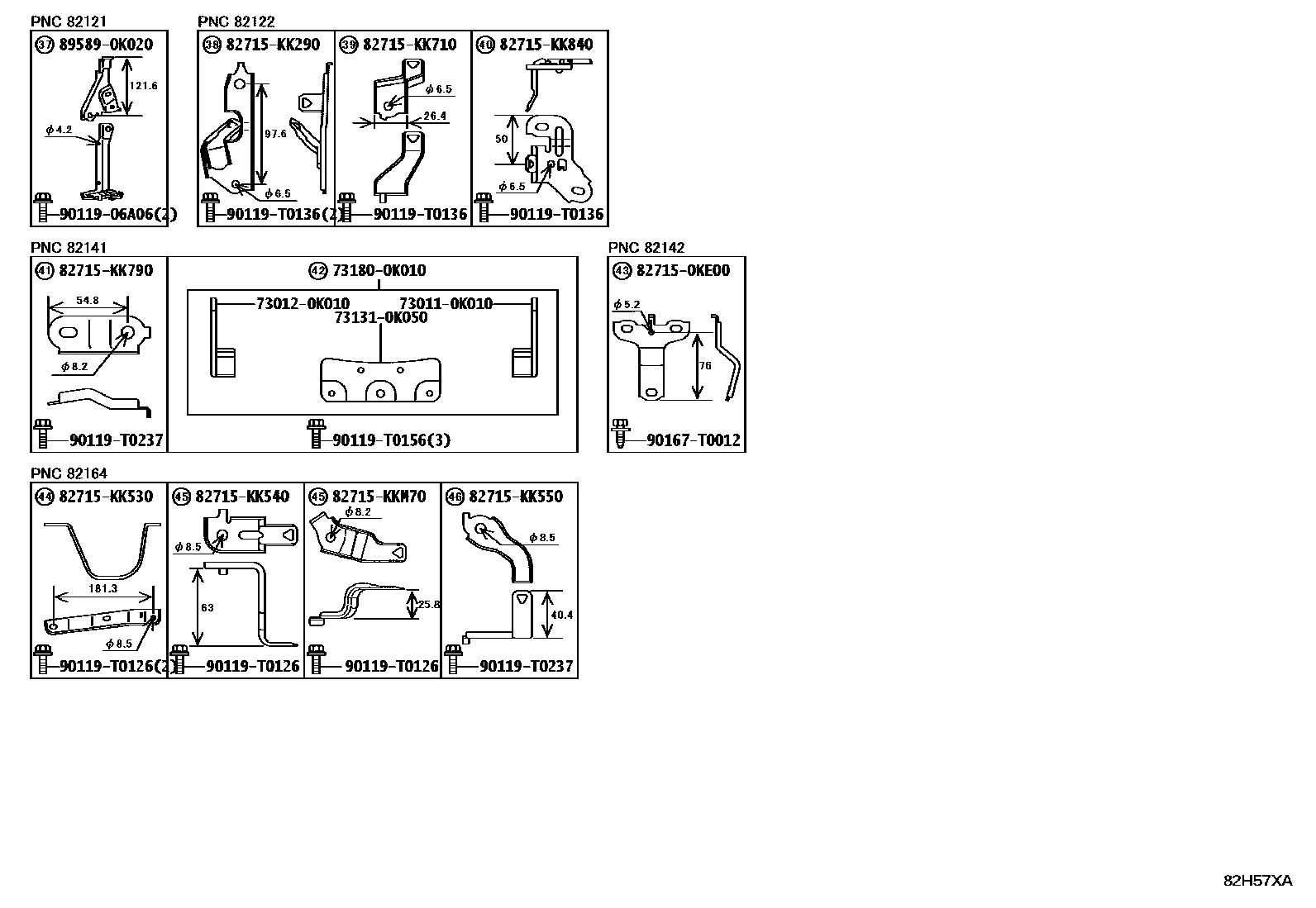

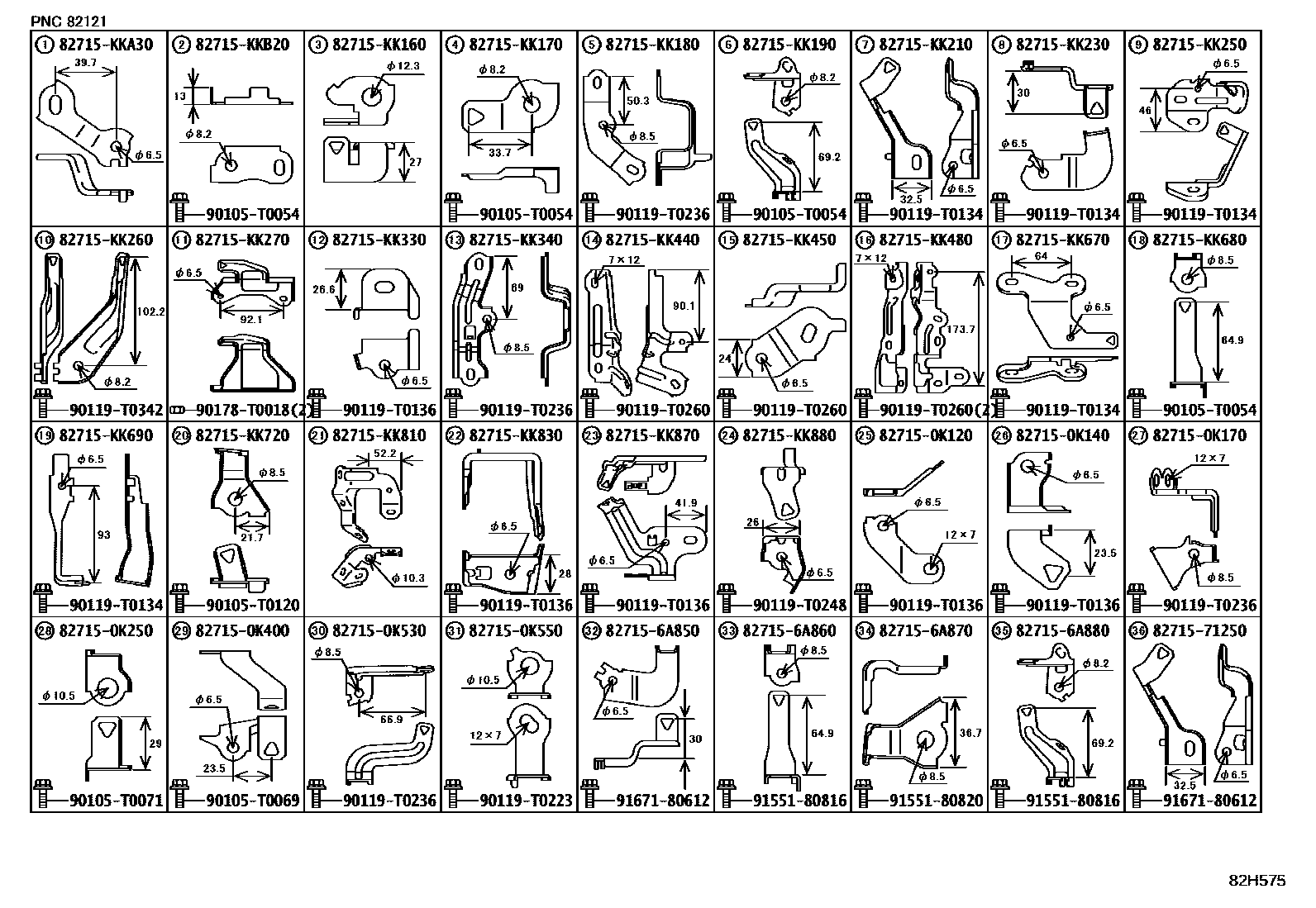

| 82121 | Engine wiring harness | 8213C-KKP40 · 8213C-KKP50 · 8213C-KKP60 · 8213C-KKP70 · 8213C-KKP90 · 8213C-KKQ00 · 8213C-KKQ20 · 8213C-KKQ30 · 8213C-KKQ40 · 8213C-KKQ50 · 8213C-KKQ60 · 8213C-KKQ70 · 8213C-KKQ80 |
| 82122 | Engine No. 2 wiring harness | 82122-KK460 · 82122-KK470 |

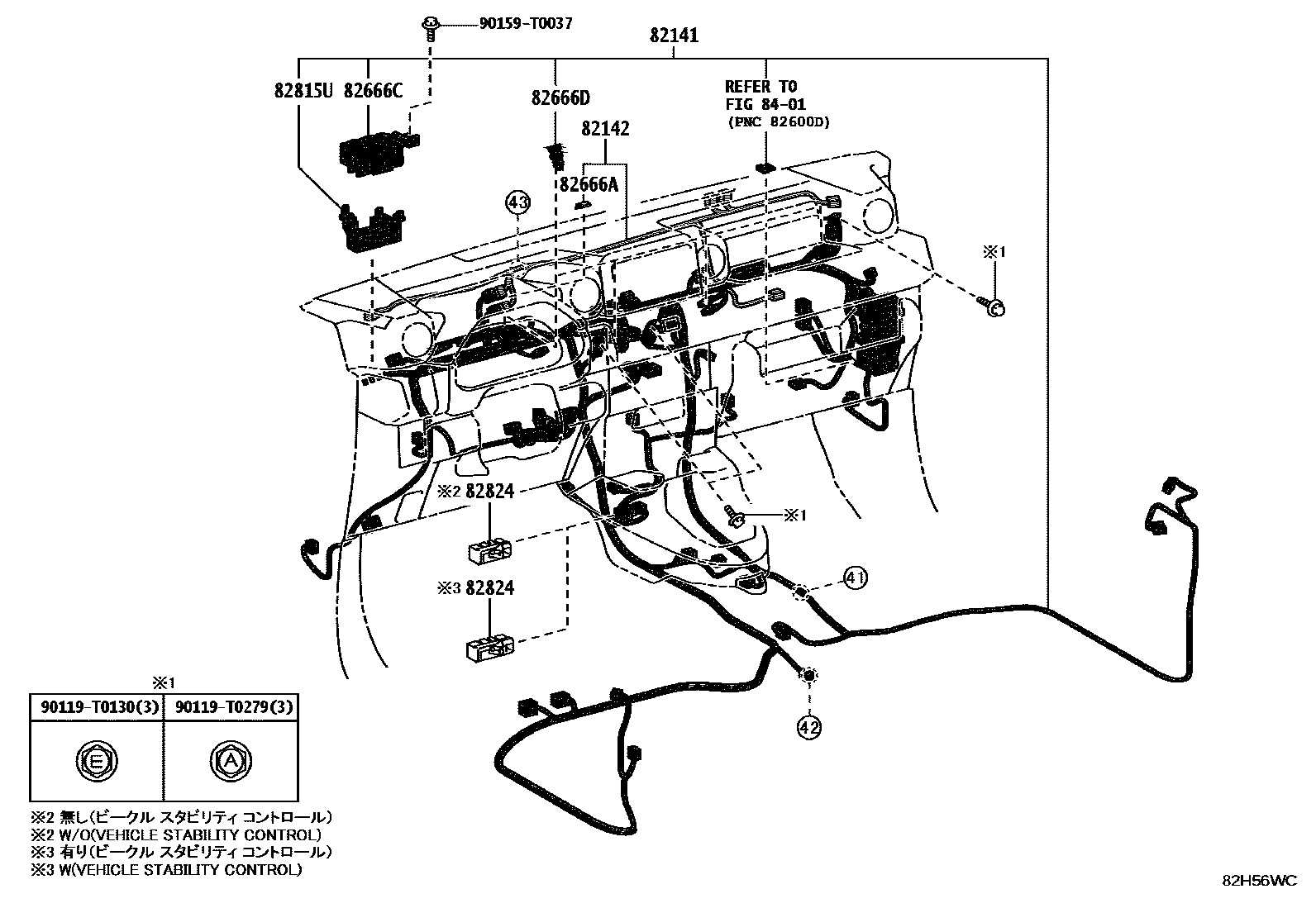

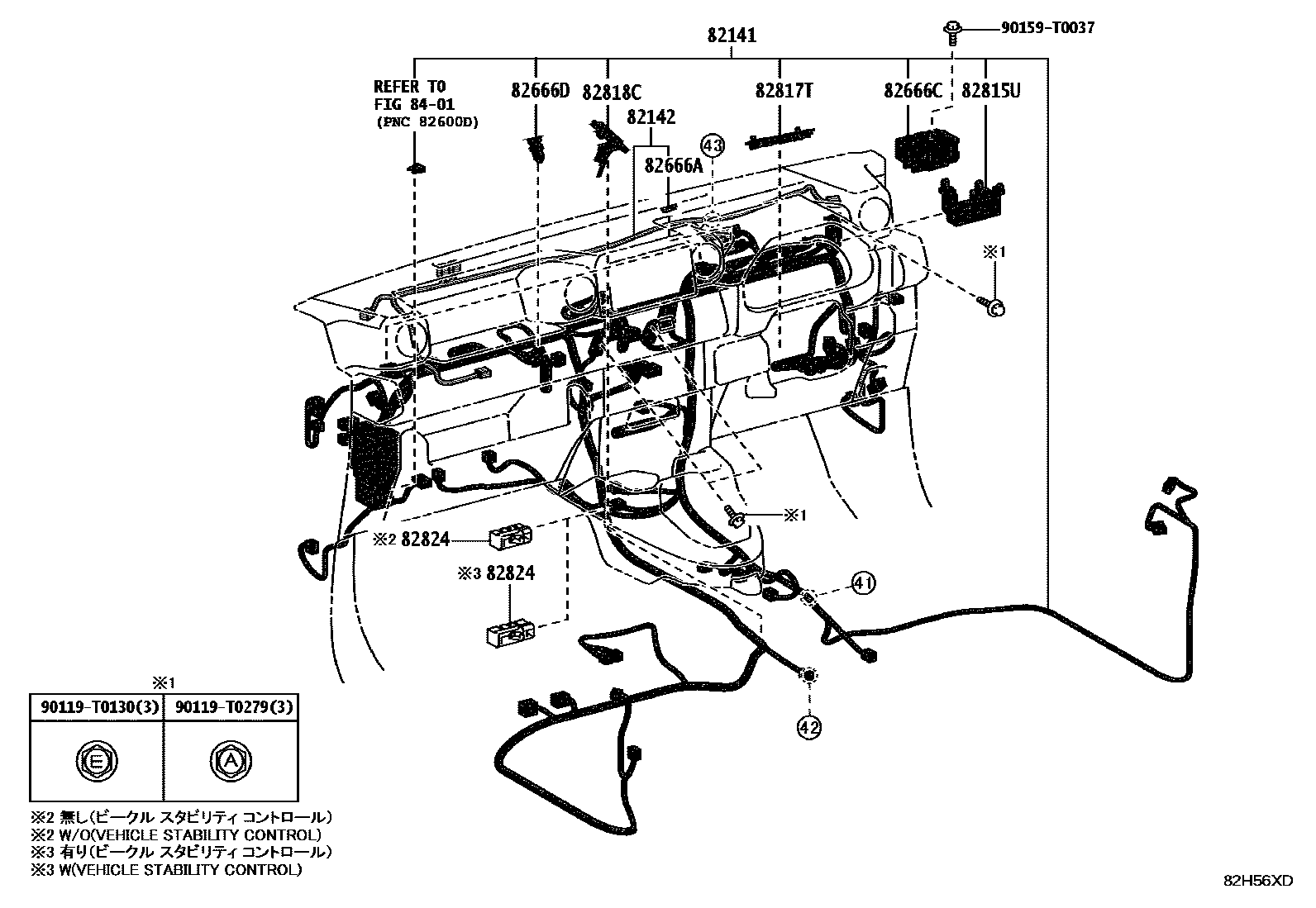

| 82141 | Dashboard wiring harness | 8214G-KKF30 · 8214G-KKF40 · 8214R-KKD00 · 8214R-KKD10 · 8214R-KKD40 · 8214R-KKD60 · 8214R-KKD70 · 8214R-KKD80 · 8214R-KKD81 · 8214R-KKE00 · 8214R-KKE10 · 8214R-KKS50 · 8214R-KKS51 · 8214R-KKS60 · 8214R-KKS62 · 8214R-KKS70 · 8214R-KKS71 · 8214R-KKS90 · 8214R-KKT00 · 8214R-KKZ50 · 8214R-KKZ52 · 8214R-KKZ60 · 8214R-KKZ61 · 8214T-KKQ50 · 8214T-KKQ52 · 8214T-KKQ60 · 8214T-KKQ61 · 8214T-KKQ70 · 8214T-KKQ72 · 8214T-KKQ80 · 8214T-KKQ81 · 8214T-KKQ90 · 8214T-KKR00 · 8214V-KKK30 · 821C3-KKS70 · 821C3-KKS80 · 821C3-KKY10 · 821C3-KKY20 |
| 82142 | Instrument panel wiring harness No. 2 | 82142-KKD20 · 82142-KKD30 · 82142-KKD40 · 82142-KKD50 · 82142-KKE30 |

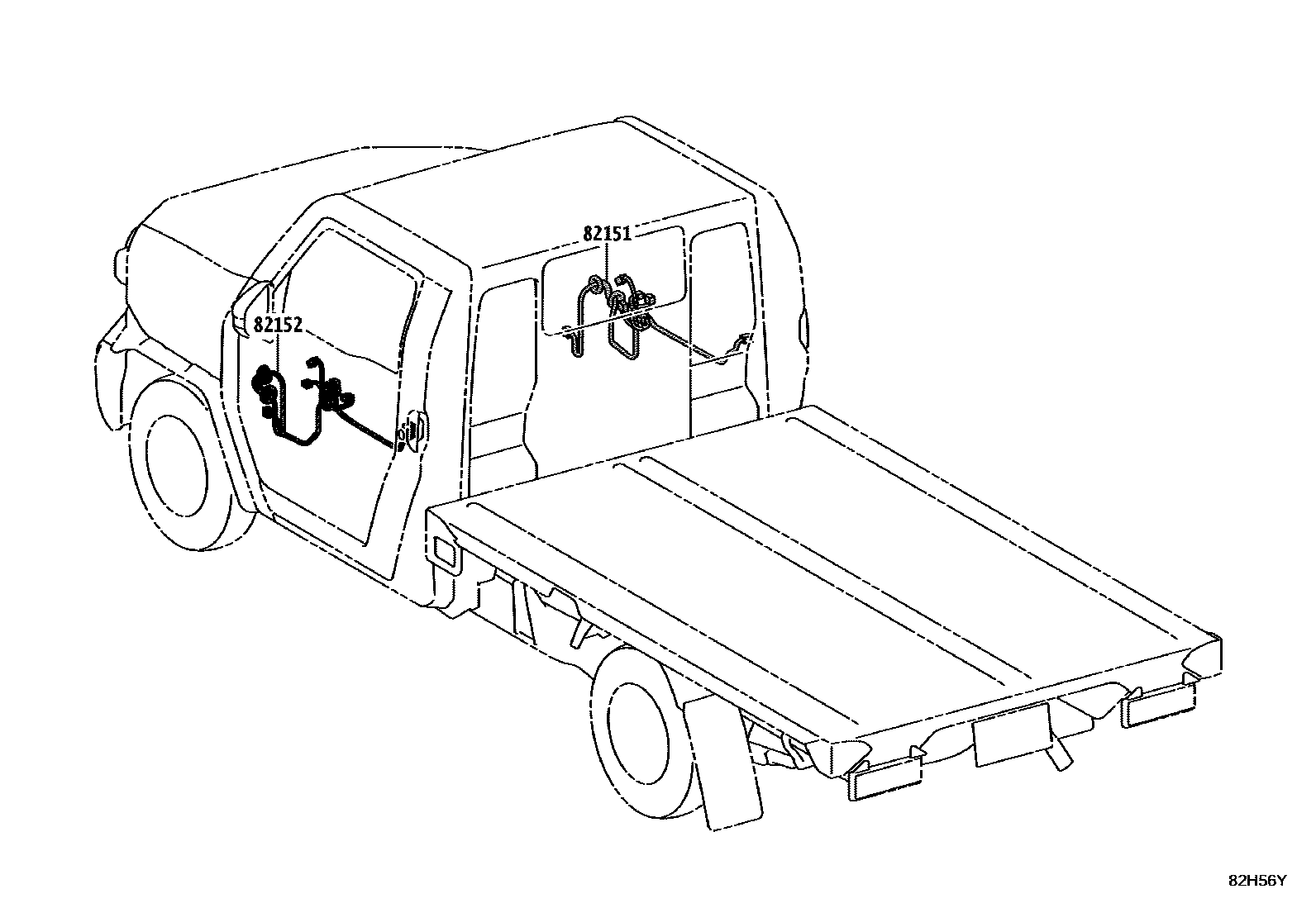

| 82151 | Right front door wiring harness | 82197-KK330 · 821A7-KK640 · 821A7-KK650 |
| 82152 | Left front door wiring harness | 821A8-KKS00 · 821A8-KKS10 · 821A8-KKS40 |

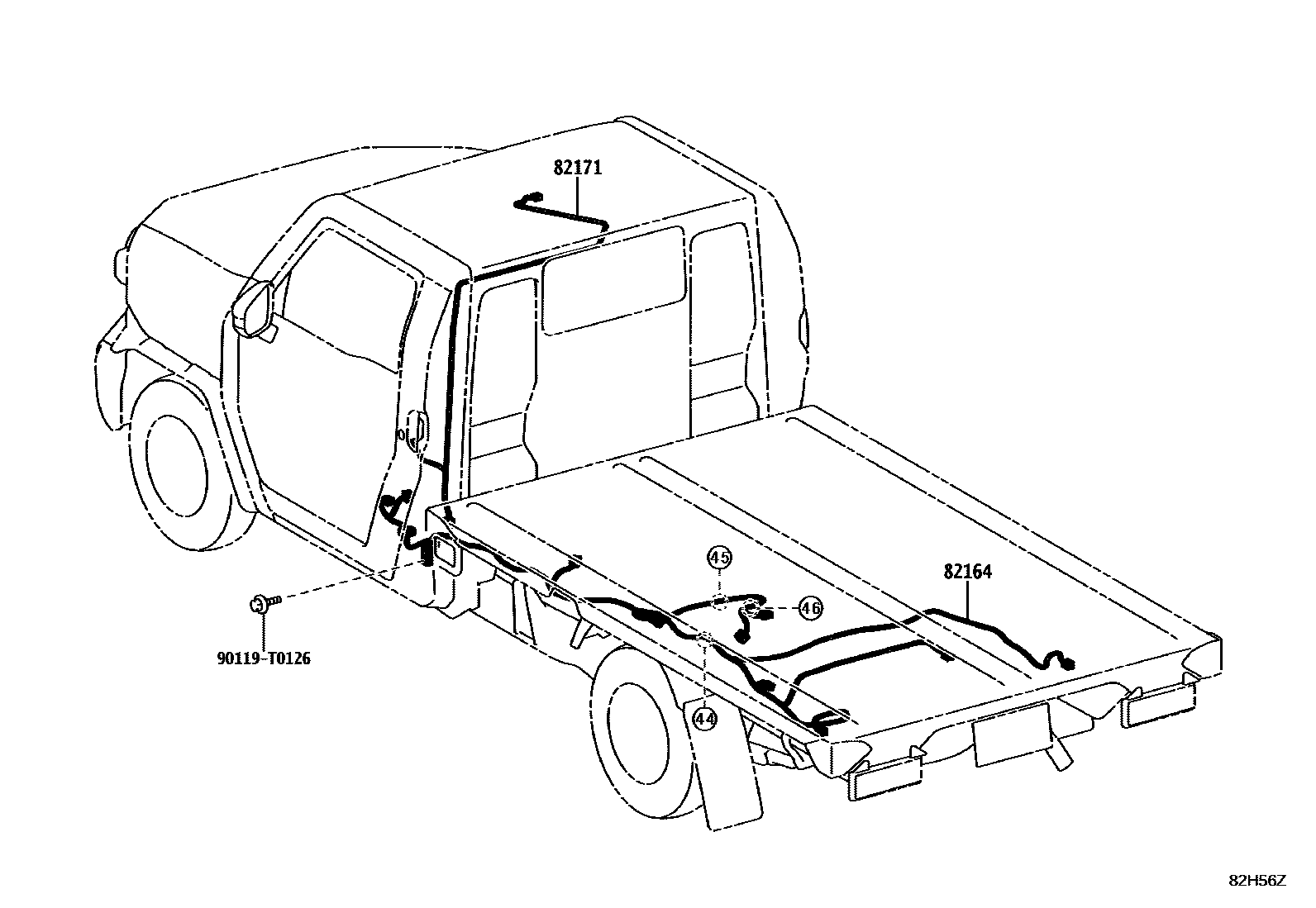

| 82164 | Frame wiring harness set | 82137-KK400 · 82137-KK410 · 82137-KK420 · 82137-KKS10 · 82164-KKU10 · 82164-KKU20 · 82164-KKU30 · 82164-KKU40 · 82164-KKU50 · 82164-KKU60 |
| 82171 | Roof No. 1 wiring harness | 82171-KKT30 · 82171-KKU20 · 8217A-KKB10 · 8217A-KKB20 |
| 82219A | sensor harness | 82219-0K010 |

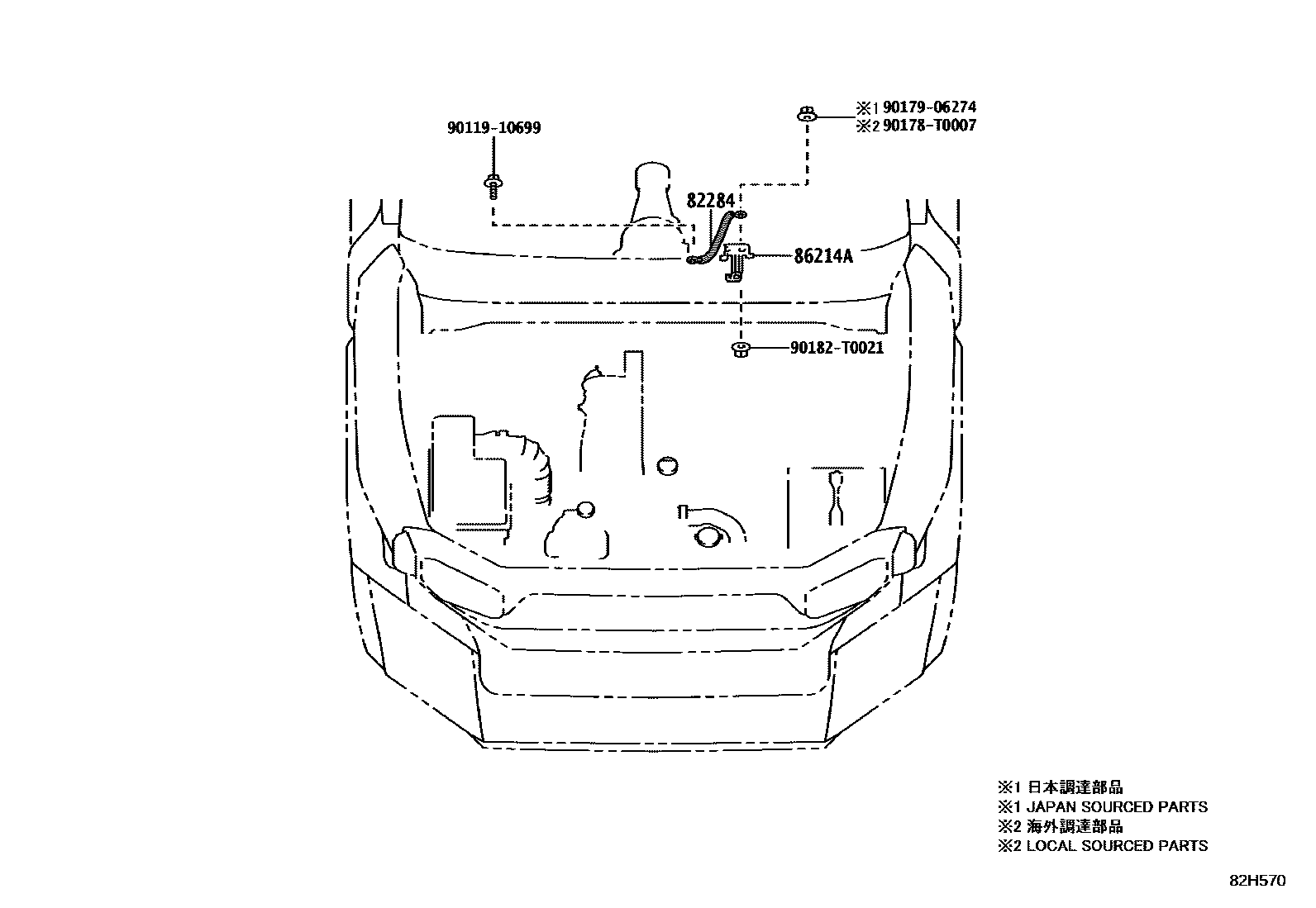

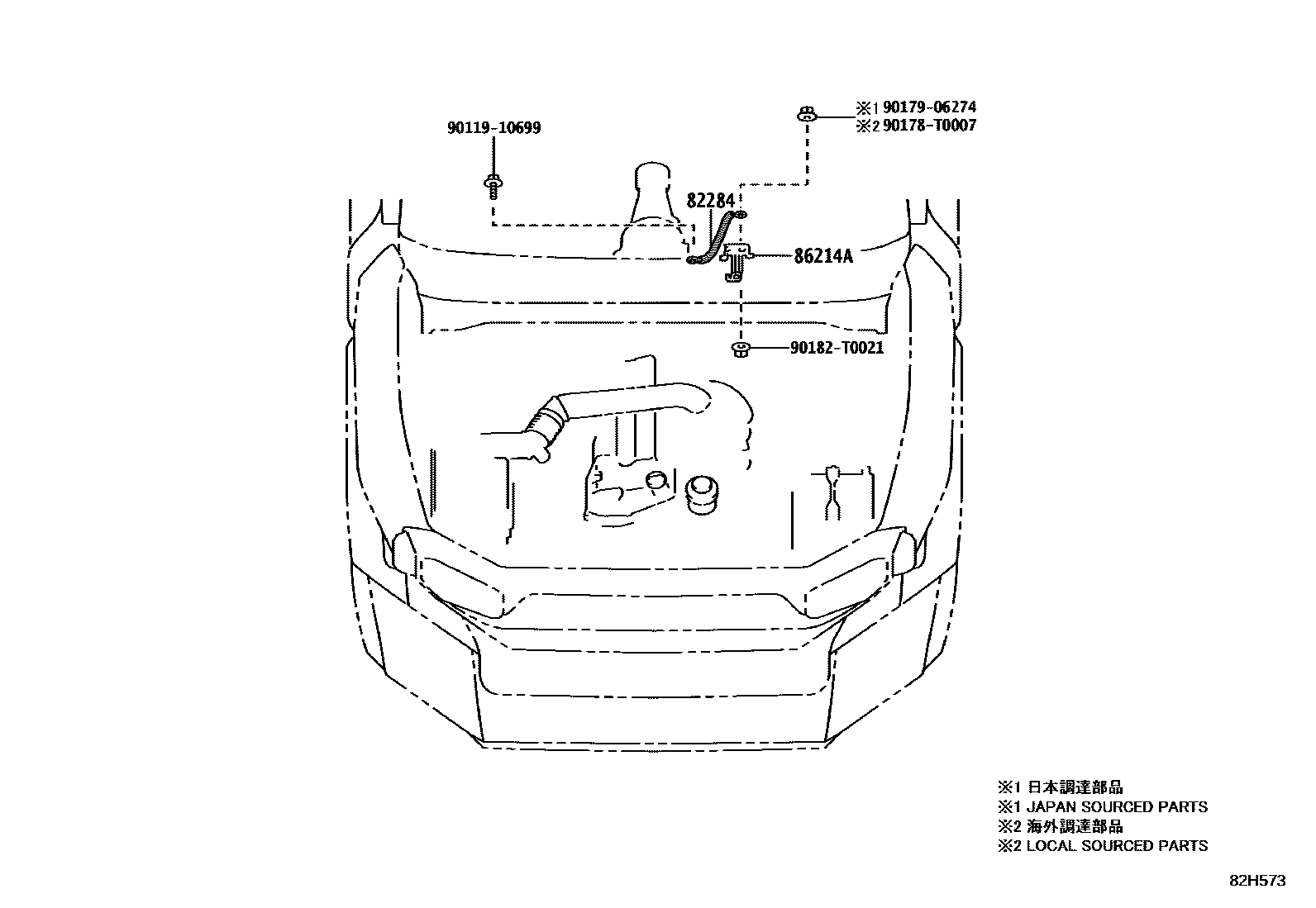

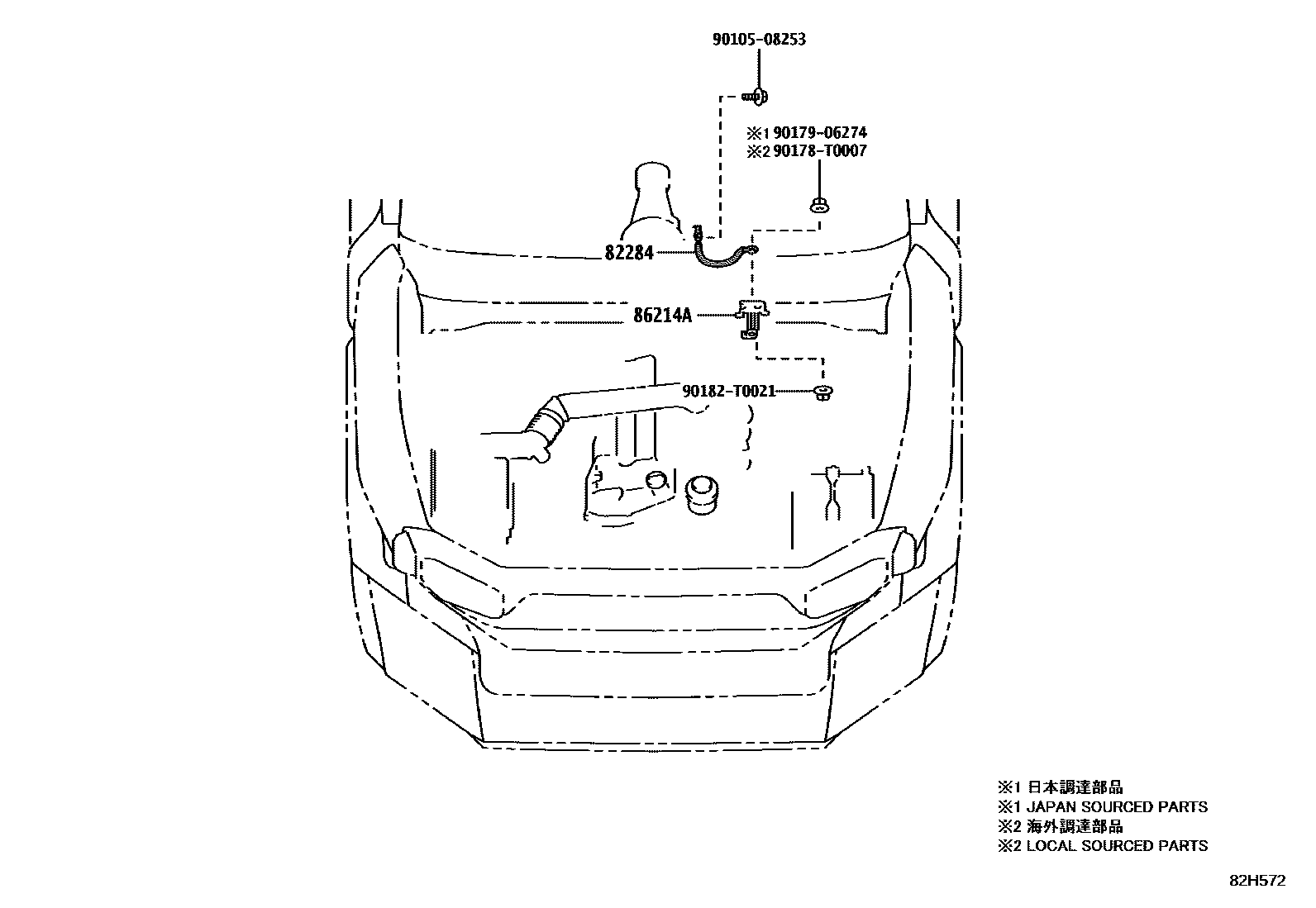

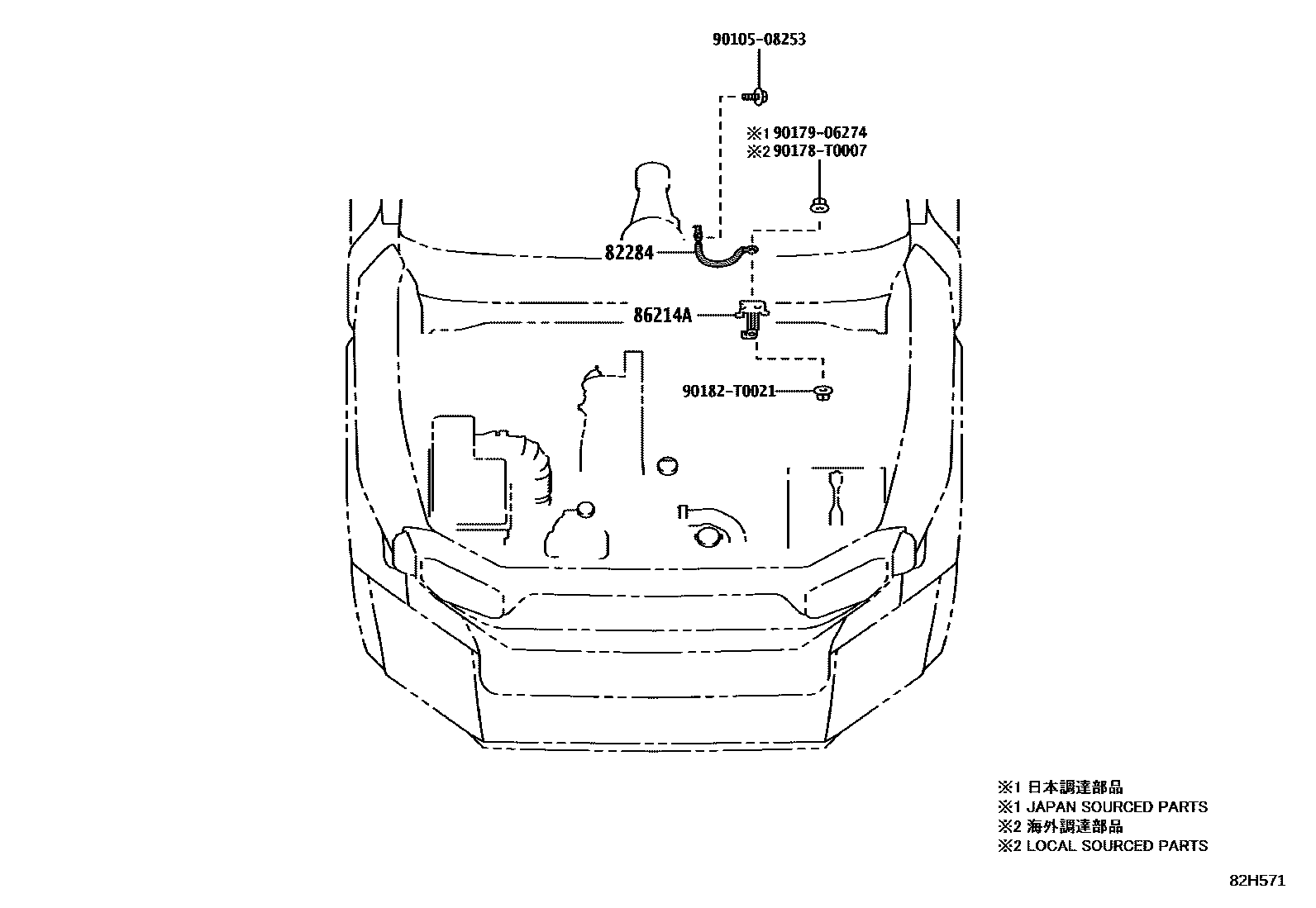

| 82284 | Ground wire | 82284-KK010 · 82284-KK020 |
| 82666A | Connector holder No. 2 | 82666-21040 |
| 82666C | No. 4 connector holder | 82666-0K170 · 82666-0K180 |
| 82666D | No. 5 connector holder | 82666-26180 |
| 82712A | Wire harness bracket | 82712-33190 |
| 82815A | Wiring harness protector cover | 82815-0K530 · 82815-0K560 |
| 82815B | Wiring harness protector cover | 82815-0K520 · 82815-0K550 |
| 82815G | No. 5 wire harness protector cover | 82815-0K540 |
| 82815H | No. 6 wire harness protector cover | 82815-0K270 · 82815-0K661 |
| 82815J | No. 7 wire harness protector cover | 82815-0K350 · 82815-0K640 |
| 82815K | No. 8 wire harness protector cover | 82815-0K280 |
| 82815L | No. 9 wire harness protector cover | 82815-0K510 |
| 82815Q | No. 13 wire harness protector cover | 82815-0K630 |
| 82815S | No. 15 wire harness protector cover | 82815-0K400 · 82815-0K800 |
| 82815U | No. 17 wire harness protector cover | 82815-0K470 · 82815-0K480 |
| 82817 | No. 1 wire harness protection device | 82817-0K530 · 82817-0K560 |
| 82817A | No. 2 wire harness protection device | 82817-0K520 · 82817-0K550 |
| 82817B | No. 3 wire harness protection device | 82817-0K540 |
| 82817C | No. 4 wire harness protection device | 82817-0K270 · 82817-0K691 |
| 82817D | No. 5 wire harness protection device | 82817-0K050 · 82817-0K280 |
| 82817E | No. 6 wire harness protection device | 82817-0K350 · 82817-0K670 |
| 82817F | No. 7 wire harness protection device | 82817-0K510 |
| 82817G | No. 8 wire harness protection device | 82817-0K300 |
| 82817K | No. 10 wire harness protection device | 82817-0K310 |
| 82817M | No. 12 wire harness protection device | 82817-0K660 |
| 82817N | No. 13 wire harness protection device | 82817-0K400 · 82817-0KA30 |
| 82817T | No. 15 wire harness protection device | 82817-0K800 |
| 82818C | No. 4 wire harness protection device | 82817-0KD40 |
| 82823S | starter terminal cover | 82823-0K010 · 82823-35040 · 82823-35050 |
| 82823T | Generator terminal cover | 82823-22050 |

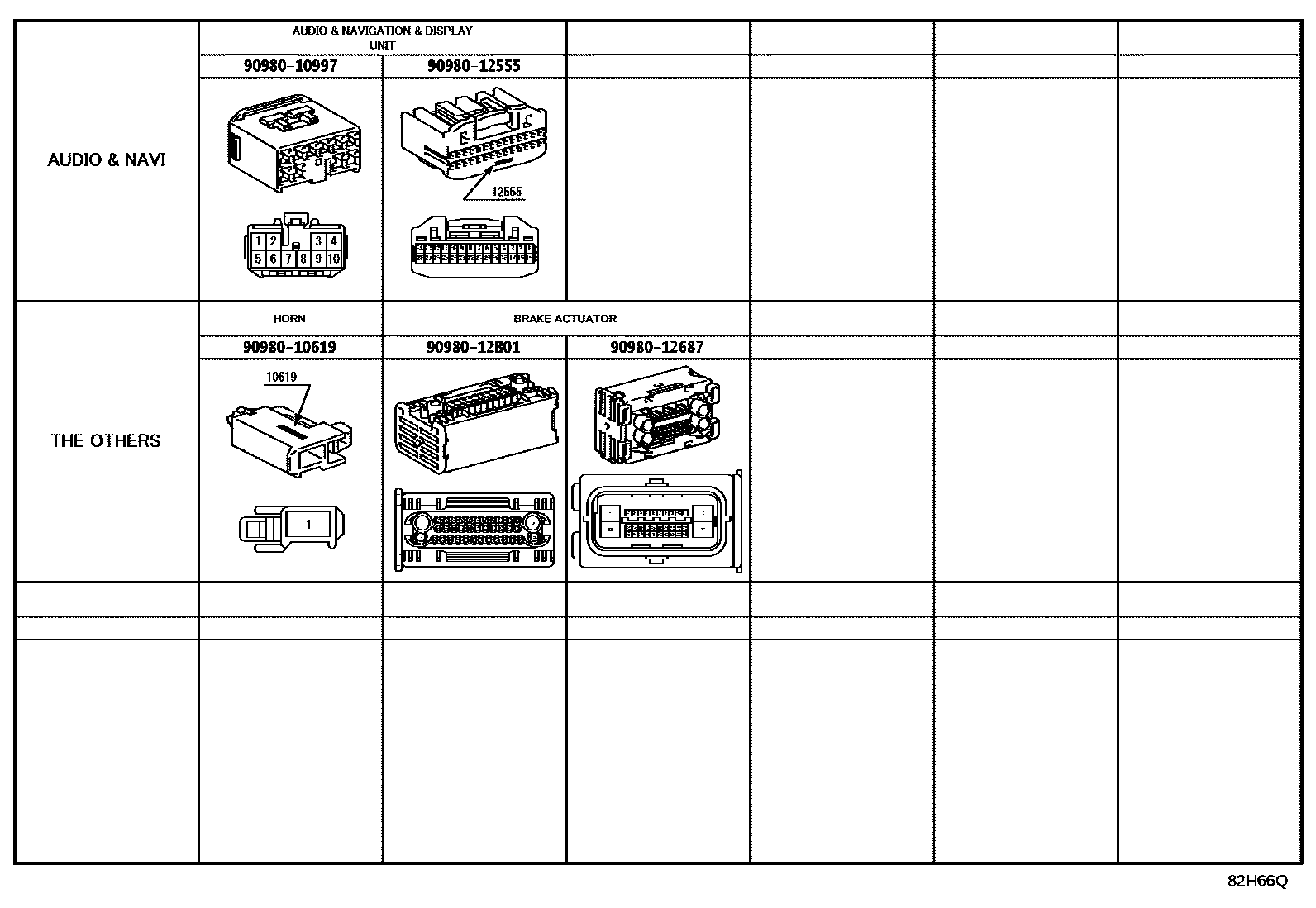

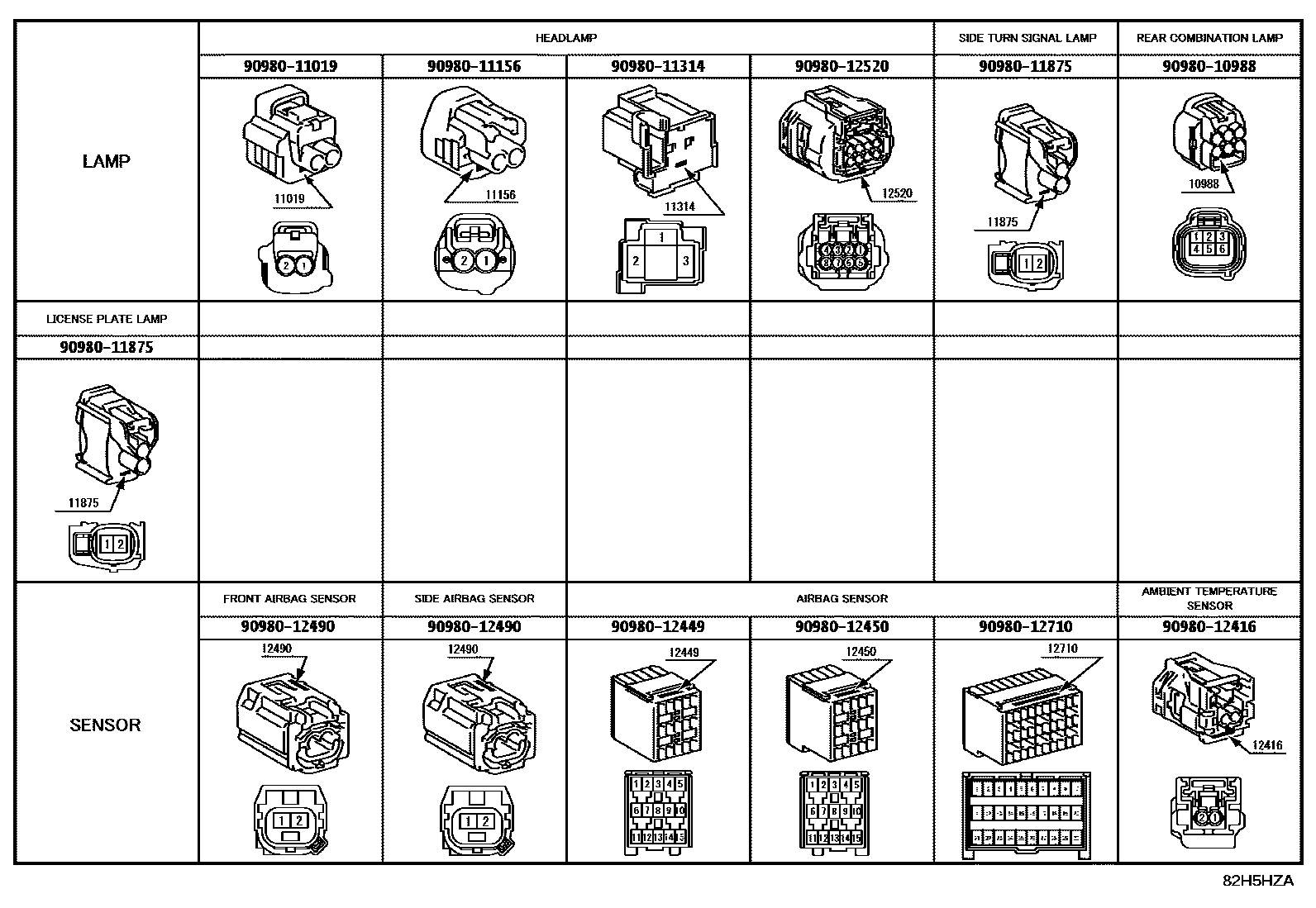

| 82824 | Harness connector | 90980-12448 · 90980-12878 |
| 86214A | Radio ground bracket | 86214-KK010 |
