Toyota HILUX 后组合灯 — Figure 8111

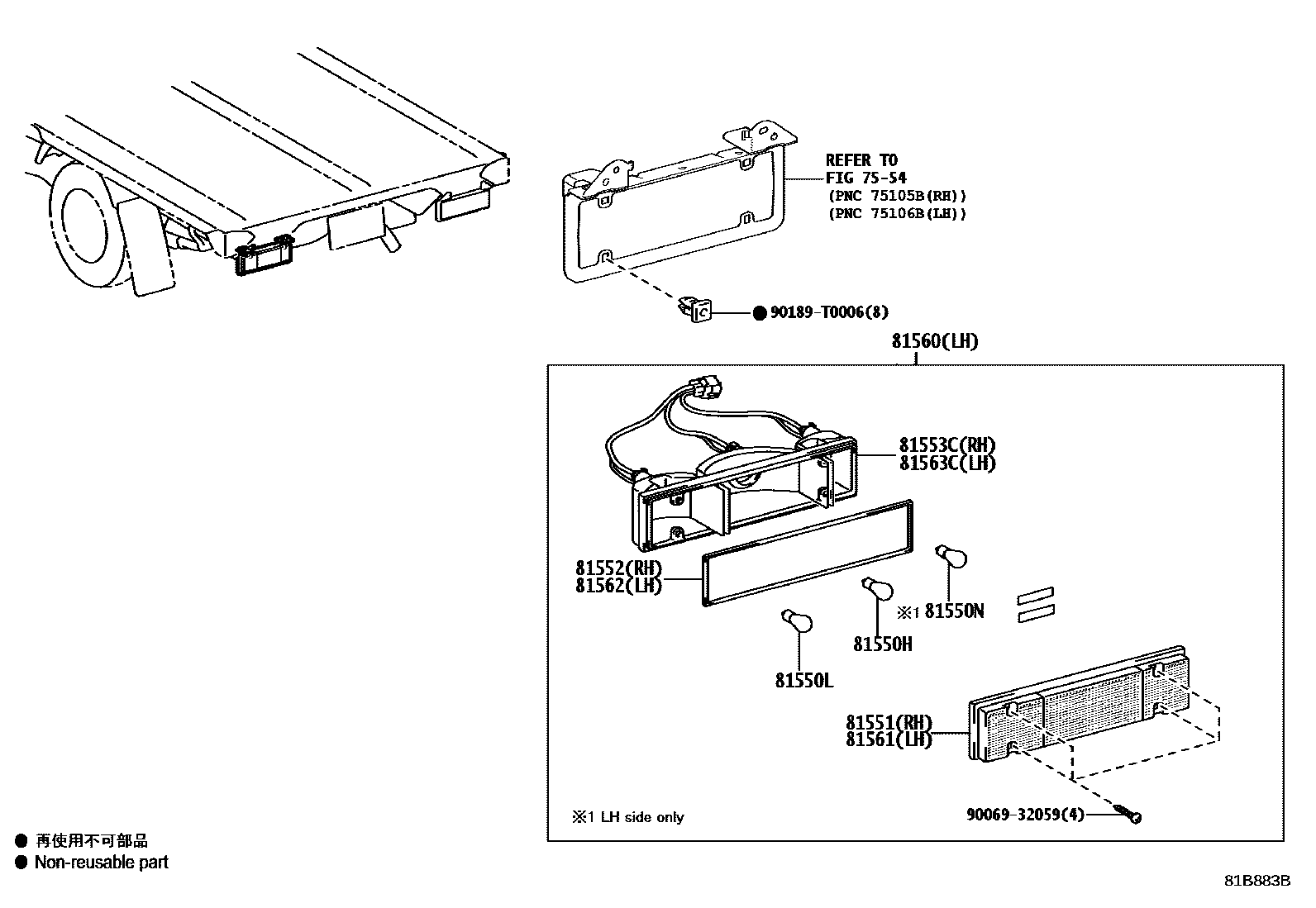

Toyota HILUX EPC diagram 8111, 后组合灯, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81550H | Tail and brake light bulbs | 90981-TD004 |
| 81550L | Rear turn signal light bulb | 90981-TD003 |
| 81550N | reversing light bulb | 90981-TD003 |
| 81551 | Right rear combination lamp shade | 81551-0K360 |
| 81552 | Right rear combination lamp shade gasket | 81552-0K360 |
| 81553C | Right rear combination light body | 81553-0K590 |
| 81560 | Left rear combination light assembly | 81560-0K400 |
| 81561 | Left rear combination lamp shade | 81561-0K400 |
| 81562 | Left rear combination lamp shade gasket | 81552-0K360 |
| 81563C | Left rear combination light body | 81563-0K400 |
