Toyota HILUX 前转向灯 — Figure 8103

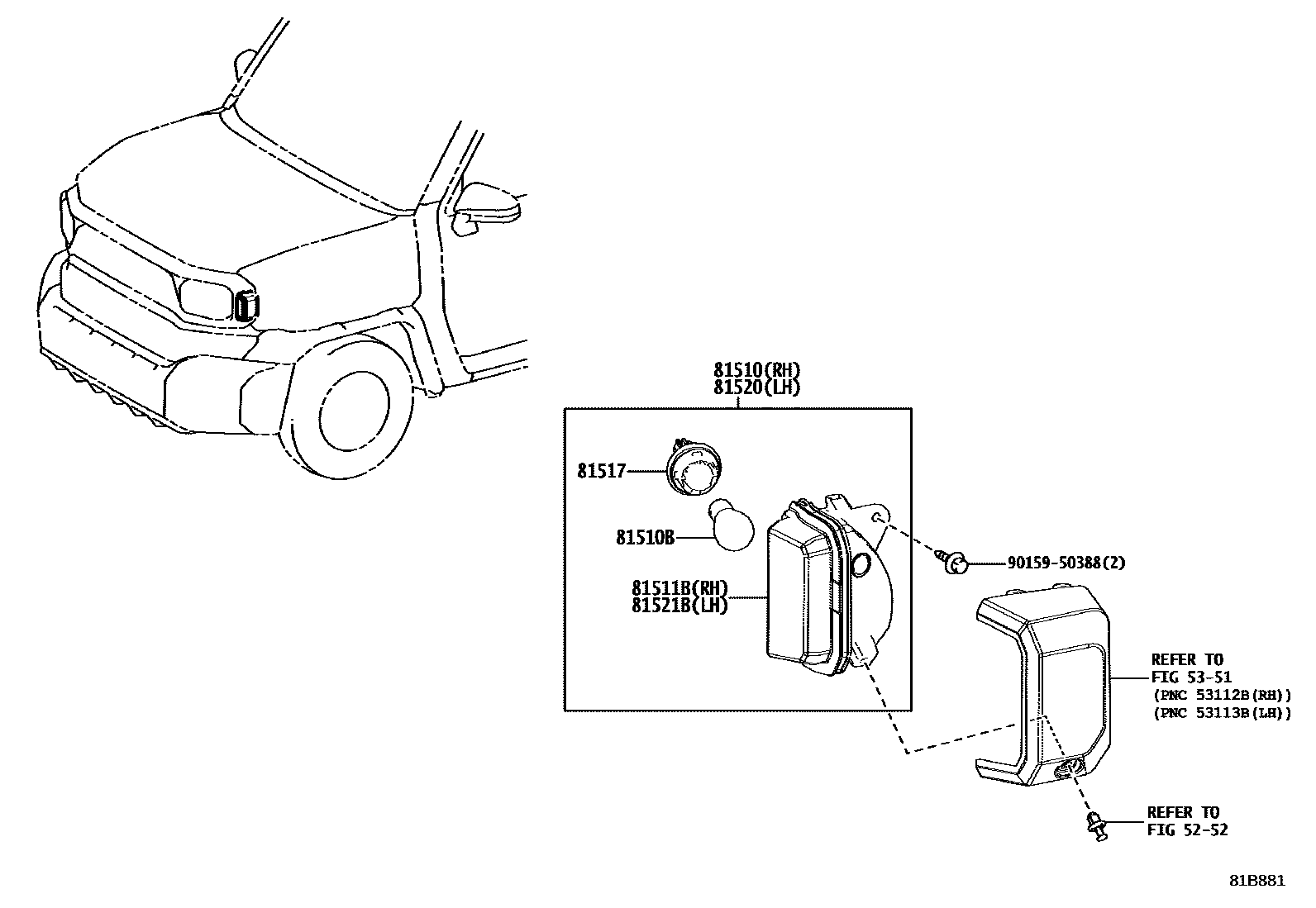

Toyota HILUX EPC diagram 8103, 前转向灯, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81510 | Right front turn signal lamp assembly | 81510-0K080 |
| 81510B | Bulb (for front turn signal lamp) | 90981-13093 · 90981-15028 · 99132-11210 |
| 81511B | Right front turn signal lamp cover and lamp body | 81511-0K080 |
| 81517 | Front turn signal lamp holder | 90075-99078 |
| 81520 | Left front turn signal lamp assembly | 81520-0K080 |
| 81521B | Left front turn signal lamp cover and lamp body | 81521-0K080 |
