Toyota HILUX Headlamp — Figure 8101

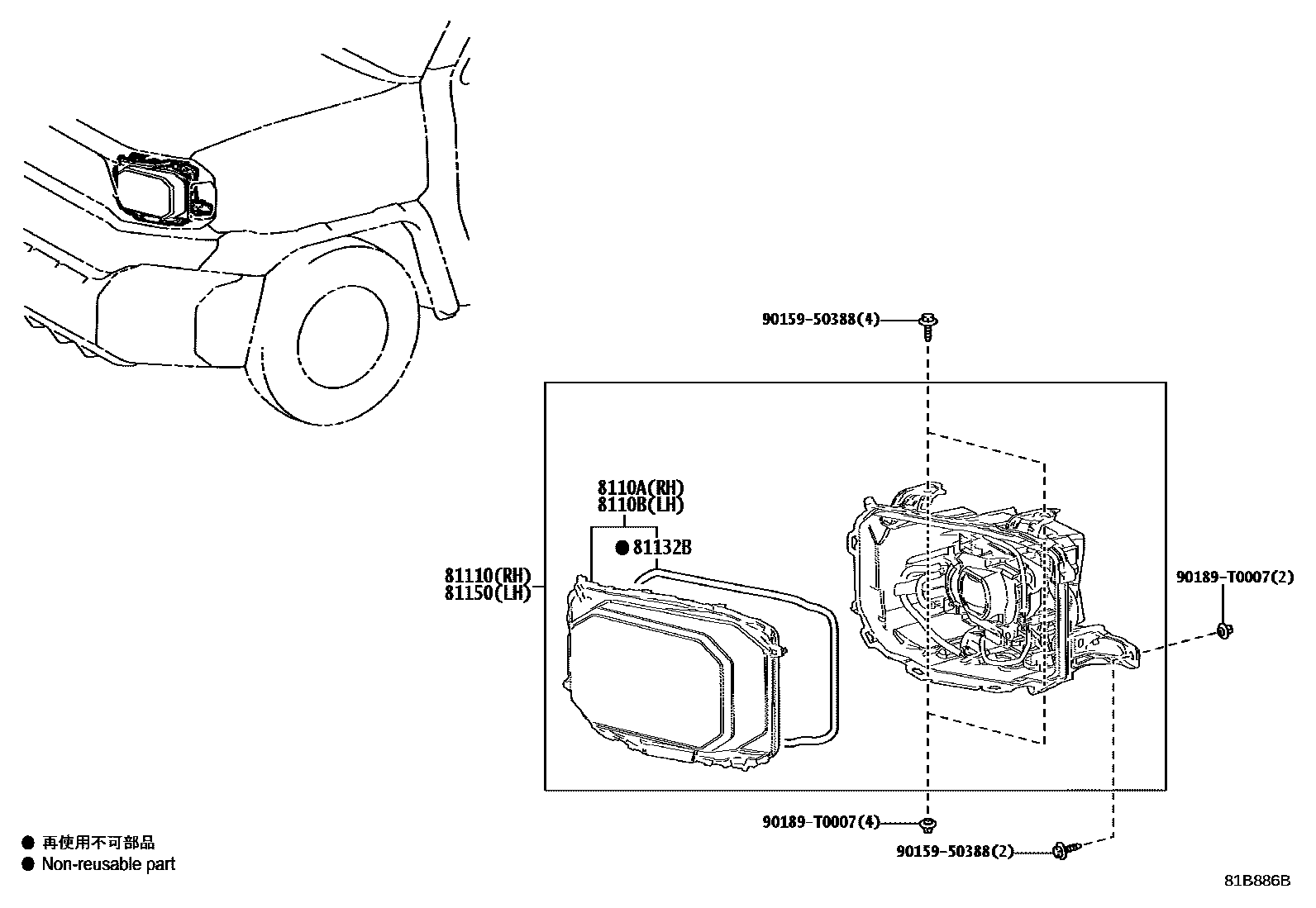

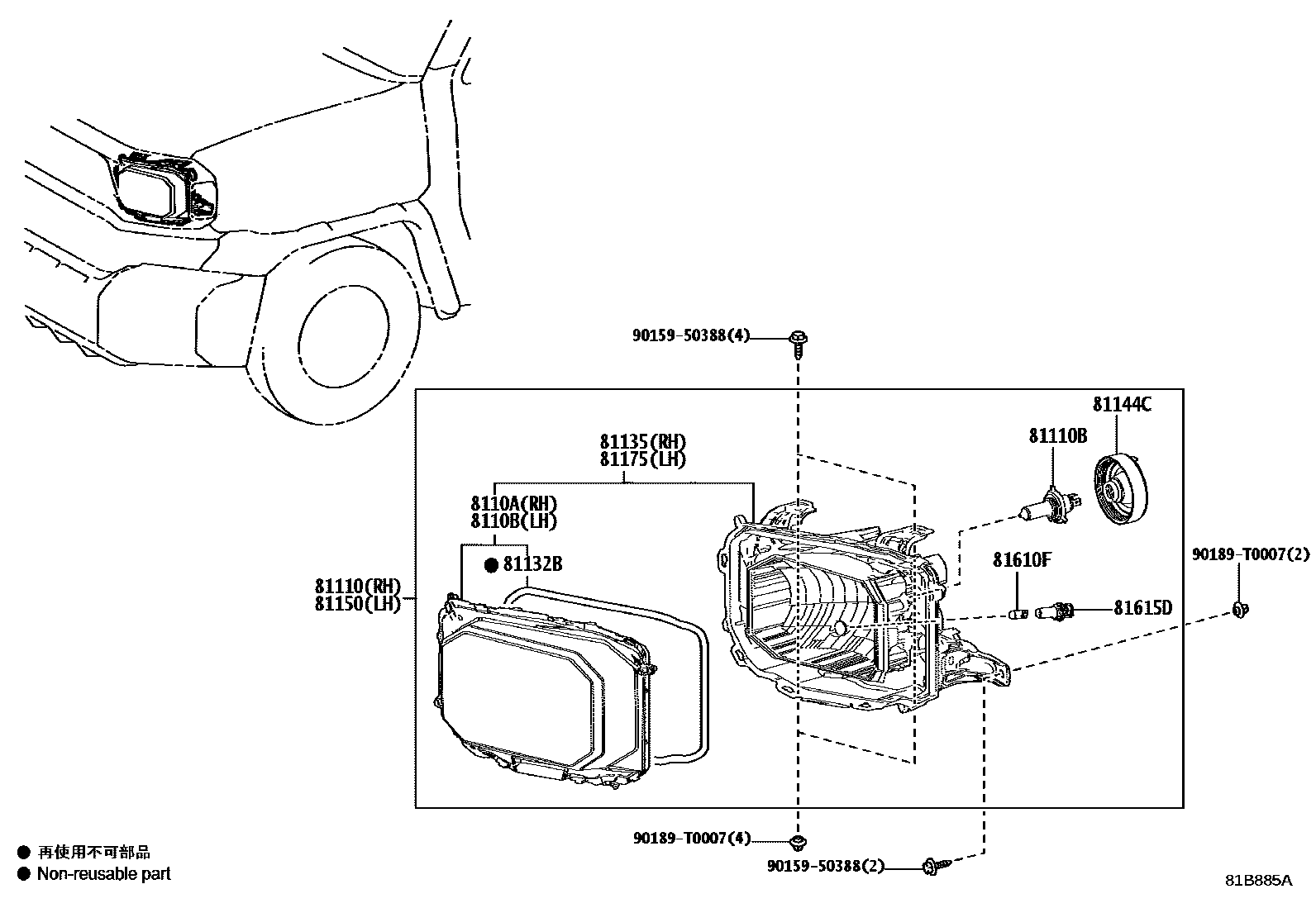

Toyota HILUX EPC diagram 8101, Headlamp, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 8110A | Right headlight cover sub-assembly | 8110A-0KW30 · 8110A-0KW40 · 8110A-0KX40 · 8110A-0KX50 |
| 8110B | Left headlight cover sub-assembly | 8110B-0KQ10 · 8110B-0KW30 · 8110B-0KX40 · 8110B-0KX50 |
| 81110 | Right headlight assembly | 81110-0KW30 · 81110-0KW40 · 81110-0KX40 · 81110-0KX50 |
| 81110B | Bulb (for headlight No. 1) | 90981-13058 |
| 81132B | Headlight cover gasket | 81132-48C30 |
| 81135 | Right headlight assembly assembly | 81145-0KW30 · 81145-0KW40 |
| 81144C | Headlight lamp holder cover | 90075-65019 |
| 81150 | Left headlight assembly | 81150-0KQ10 · 81150-0KW30 · 81150-0KX40 · 81150-0KX50 |
| 81175 | Left headlight assembly assembly | 81185-0KQ10 · 81185-0KW30 |
| 81610F | Light bulb (for width indicator light) | 90981-11069 · 99132-12050 |
| 81615D | Width light lamp holder | 90075-60089 |
