Toyota HILUX 工具箱和牌照支架 — Figure 7554

Toyota HILUX EPC diagram 7554, 工具箱和牌照支架, with 3 images and 11 PNC and OE references.

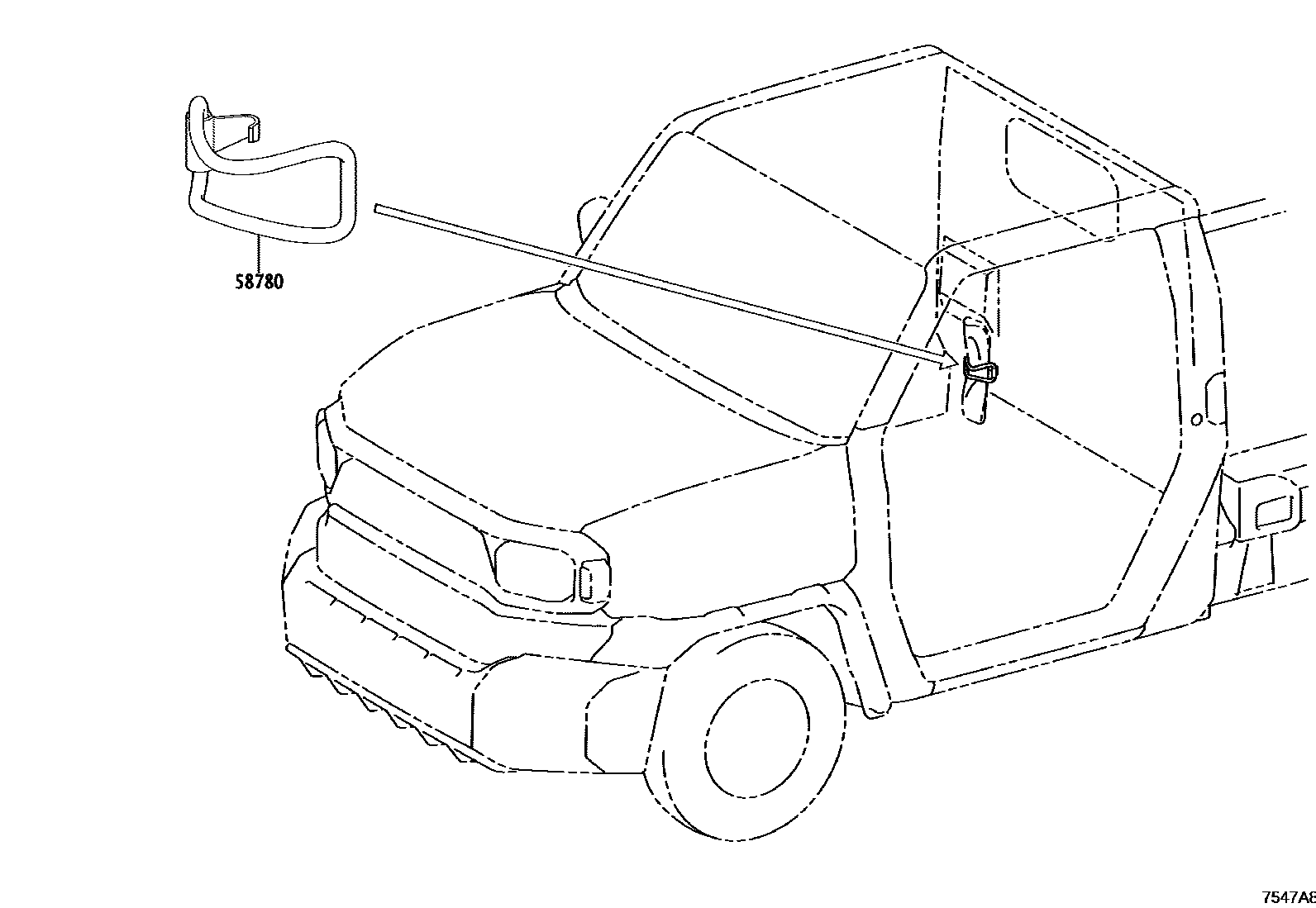

Toyota HILUX 工具箱和牌照支架 EPC diagram — 7547A8
工具箱和牌照支架 — 7547A8 (202312 – 999999)

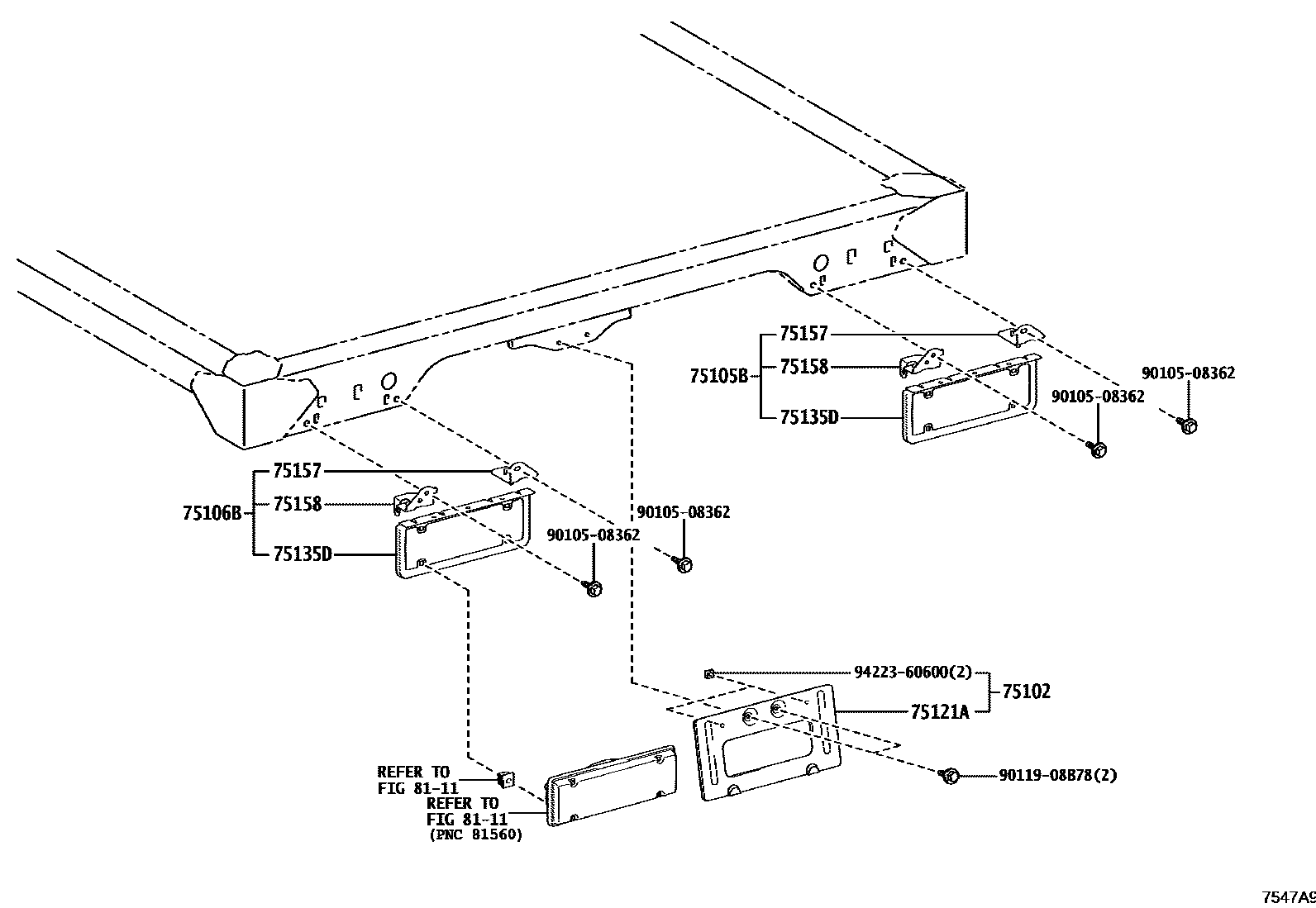

Toyota HILUX 工具箱和牌照支架 EPC diagram — 7547A9
工具箱和牌照支架 — 7547A9 (202312 – 999999)

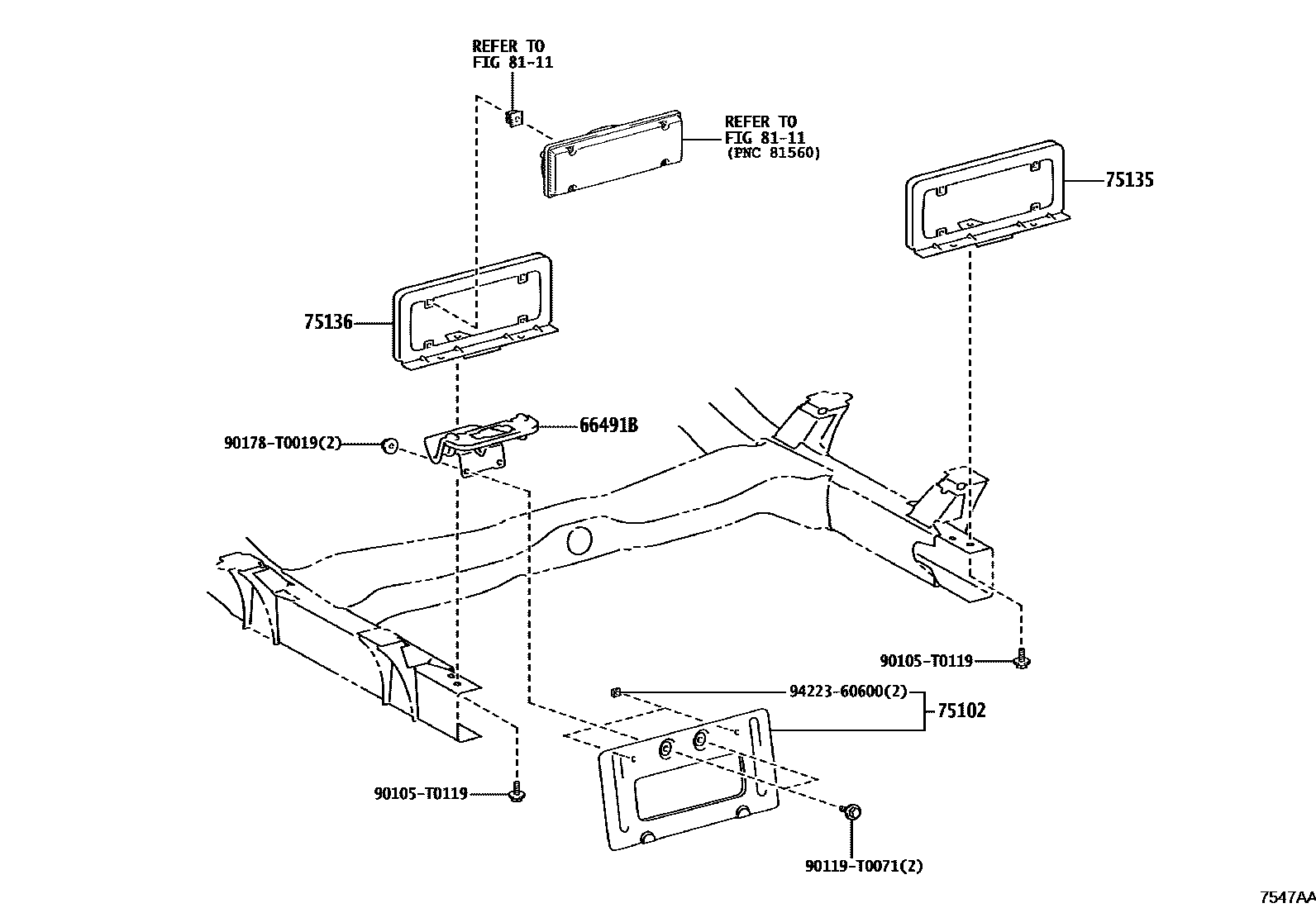

Toyota HILUX 工具箱和牌照支架 EPC diagram — 7547AA
工具箱和牌照支架 — 7547AA (202312 – 999999)

PNC and OE references

PNCPart nameOE numbers
58780Tool box strap assembly58780-0K060 · 58780-0K150
66491Blicense plate bracket hanger66491-0K010
75102Rear license plate bracket sub-assembly75102-0K030 · 75102-25020
75105BRight rear combination lamp bracket sub-assembly75105-0K010
75106BLeft rear combination lamp bracket sub-assembly75105-0K010
75121ARear license plate bracket75121-0K030
75135Right rear combination light bracket75103-95411
75135DRear combination light bracket75135-0K030
75136Left rear combination light bracket75103-95411
75157No. 1 rear combination light stay75157-0K010
75158ETAI, BLOC OPTIQUE ARRIERE, NO.275158-0K010
