Toyota HILUX 防护条 — Figure 7552

Toyota HILUX EPC diagram 7552, 防护条, with 1 images and 13 PNC and OE references.

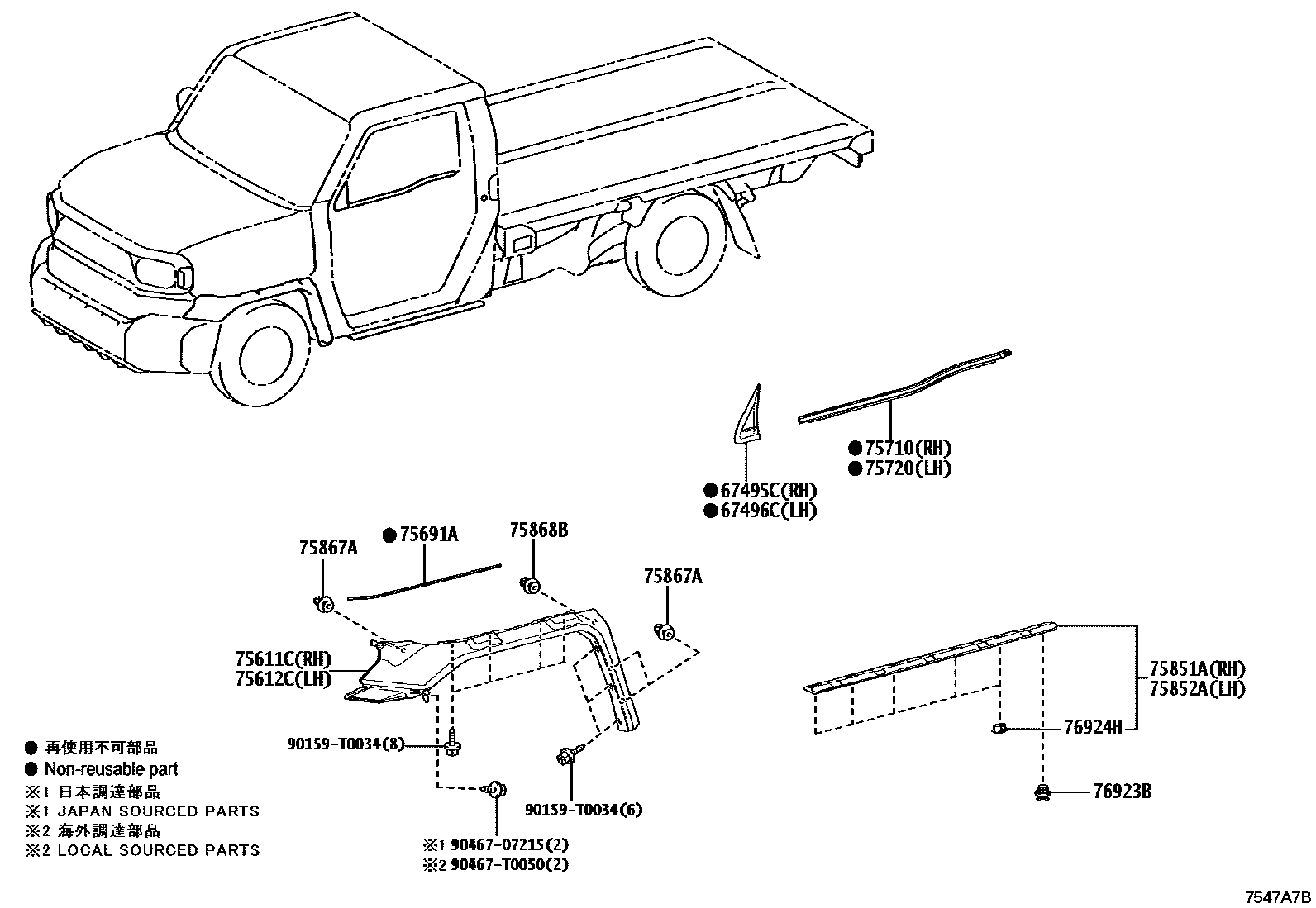

Toyota HILUX 防护条 EPC diagram — 7547A7B
防护条 — 7547A7B (202312 – 999999)

PNC and OE references

PNCPart nameOE numbers
67495CRight front door front lower door frame upper cover67495-0K010
67496CLeft front door front lower door frame upper cover67496-0K010
75611CRight front fender outer protective strip75611-0K070
75612CLeft front fender outer protective strip75612-0K070
75691ARight front fender outer protective strip liner75691-0K010
75710Right front door waistline protection strip assembly75710-KK010
75720Left front door waistline protection strip assembly75720-KK010
75851ARight front door sill panel protective strip75851-0K120
75852ALeft front door sill panel protective strip75852-0K120
75867ADoor sill panel protective strip clip75867-33030
75868BNo. 2 door sill plate protective strip clip75868-33020
76923BSide fender fixings76923-52021
76924HNo. 2 side fender fixings76924-0K010
