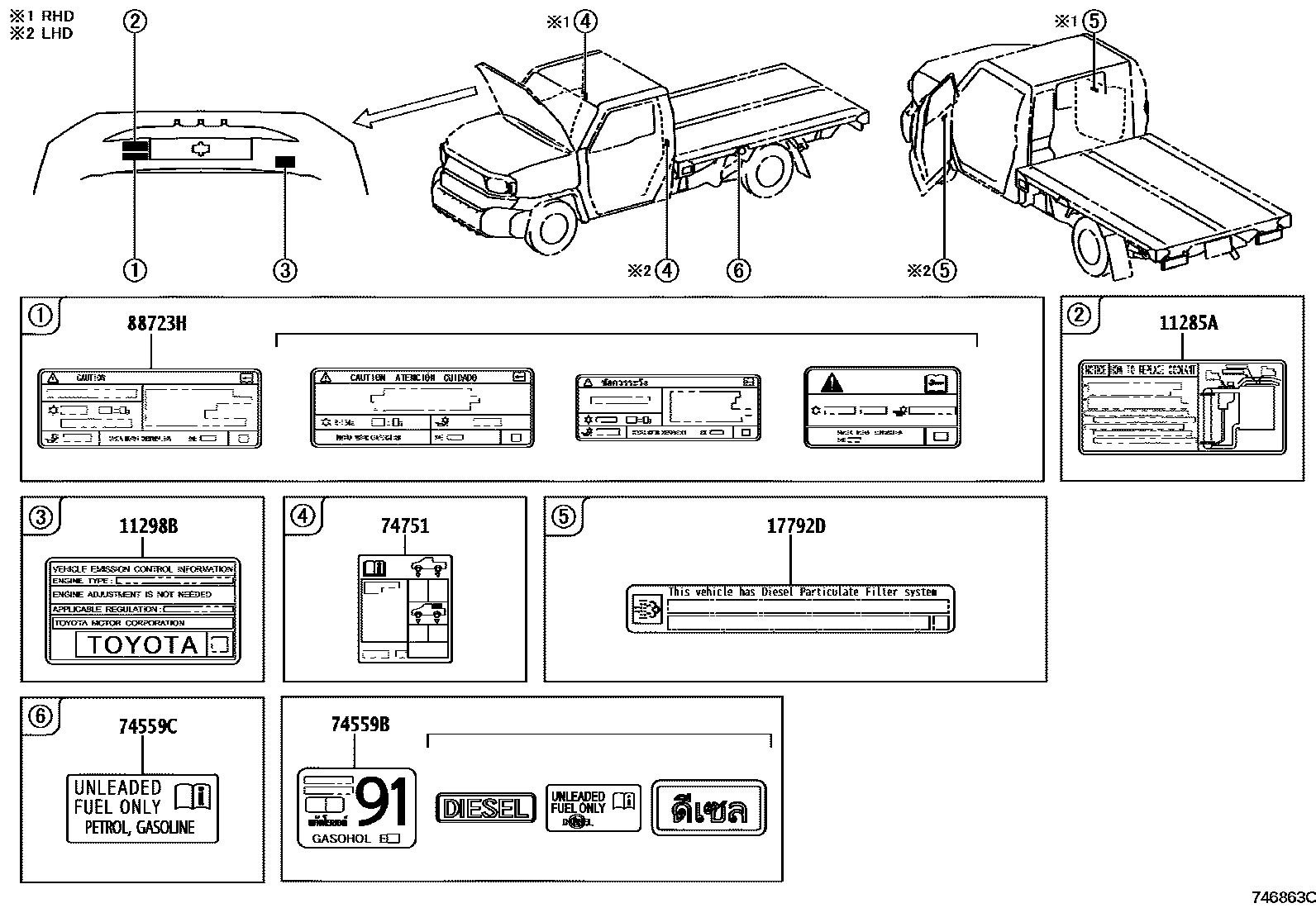

Toyota HILUX warning nameplate — Figure 7455
Toyota HILUX EPC diagram 7455, warning nameplate, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11285A | Coolant System Caution Labels | 11285-0E010 |
| 11298B | Emission Control Information Label | 11298-0C340 · 11298-0E040 |
| 17792D | Emission control device information label | 17792-11750 |
| 74559B | fuel information label | 74559-02050 · 74559-20140 · 74559-89101 · 74559-YE010 |
| 74559C | No. 2 fuel information label | 74559-60040 |
| 74751 | tire pressure information label | 42661-0KM70 · 42661-0KR00 |
| 88723H | Cooler maintenance warning label | 88723-0K261 · 88723-0K270 · 88723-0K350 · 88723-0K460 |
