Toyota HILUX 扶手和遮阳板 — Figure 7451

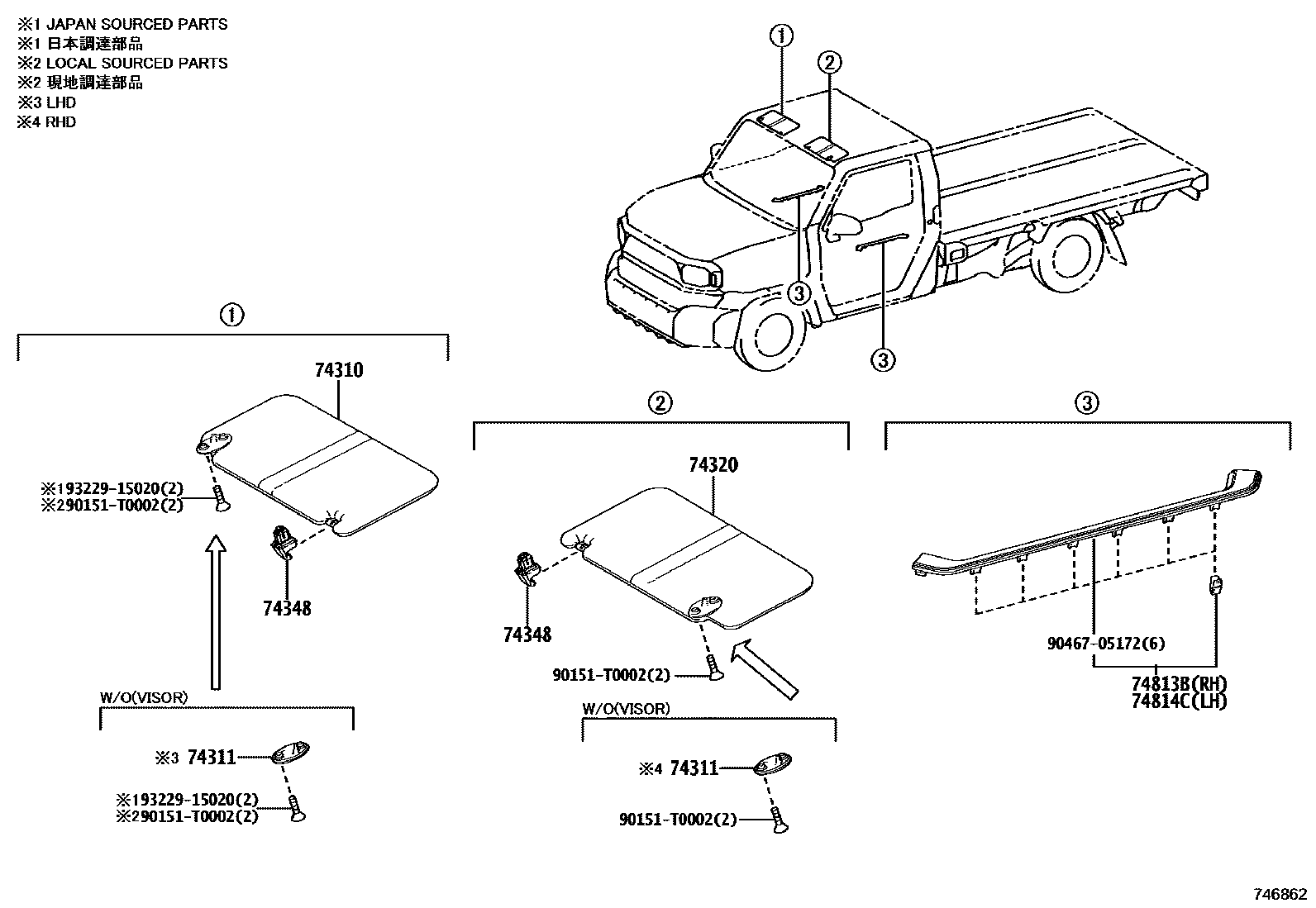

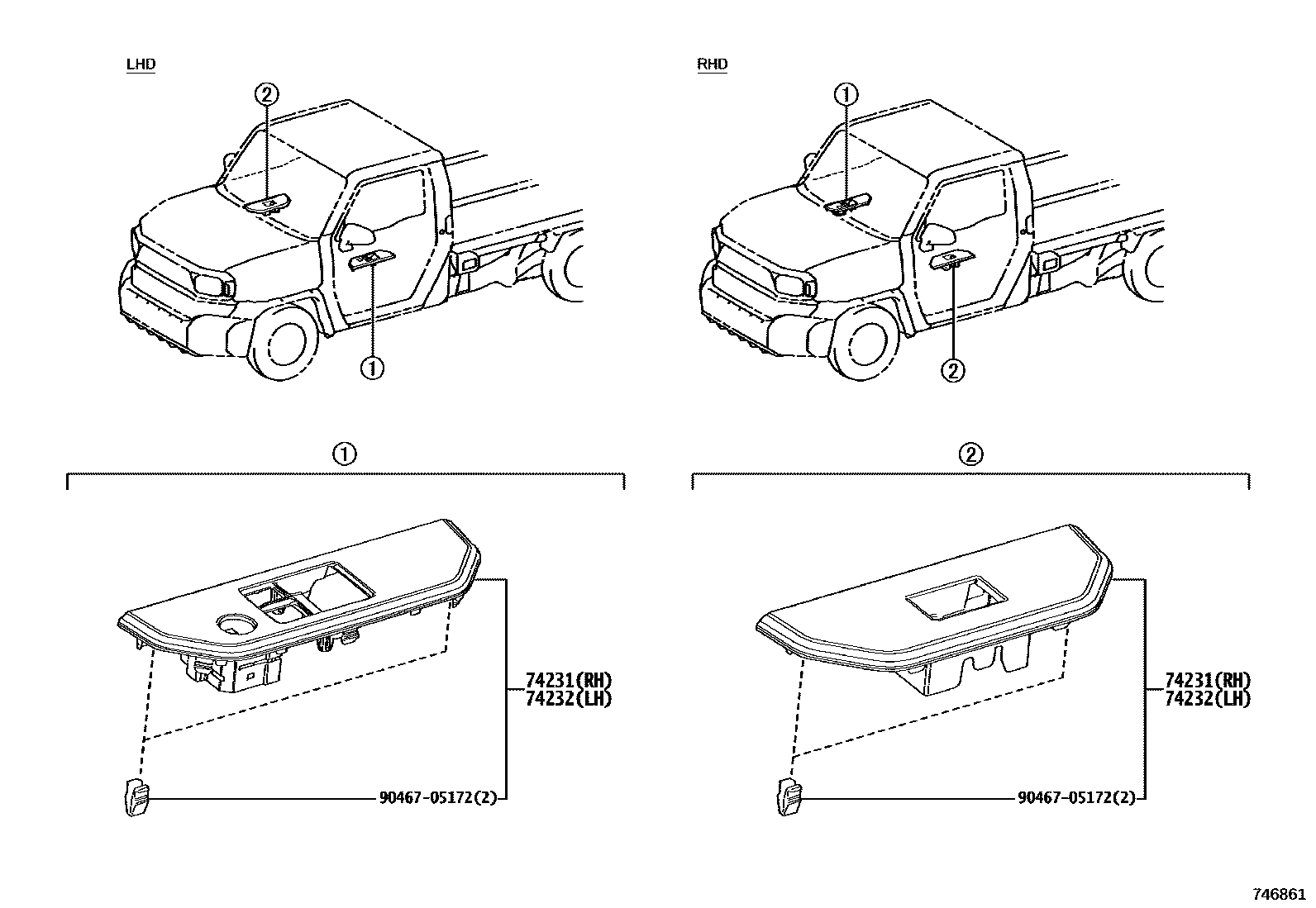

Toyota HILUX EPC diagram 7451, 扶手和遮阳板, with 2 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 74231 | Right front armrest upper panel | 74231-0KB40 · 74231-0KB50 · 74231-0KB90 |
| 74232 | Left front armrest upper panel | 74232-0KB50 · 74232-0KB60 |
| 74813B | Right front door handle | 74813-0K030 · 74813-0K050 |
| 74814C | Left front door handle | 74813-0K030 · 74813-0K050 |
