Toyota HILUX 前排座椅和座椅滑轨 — Figure 7156

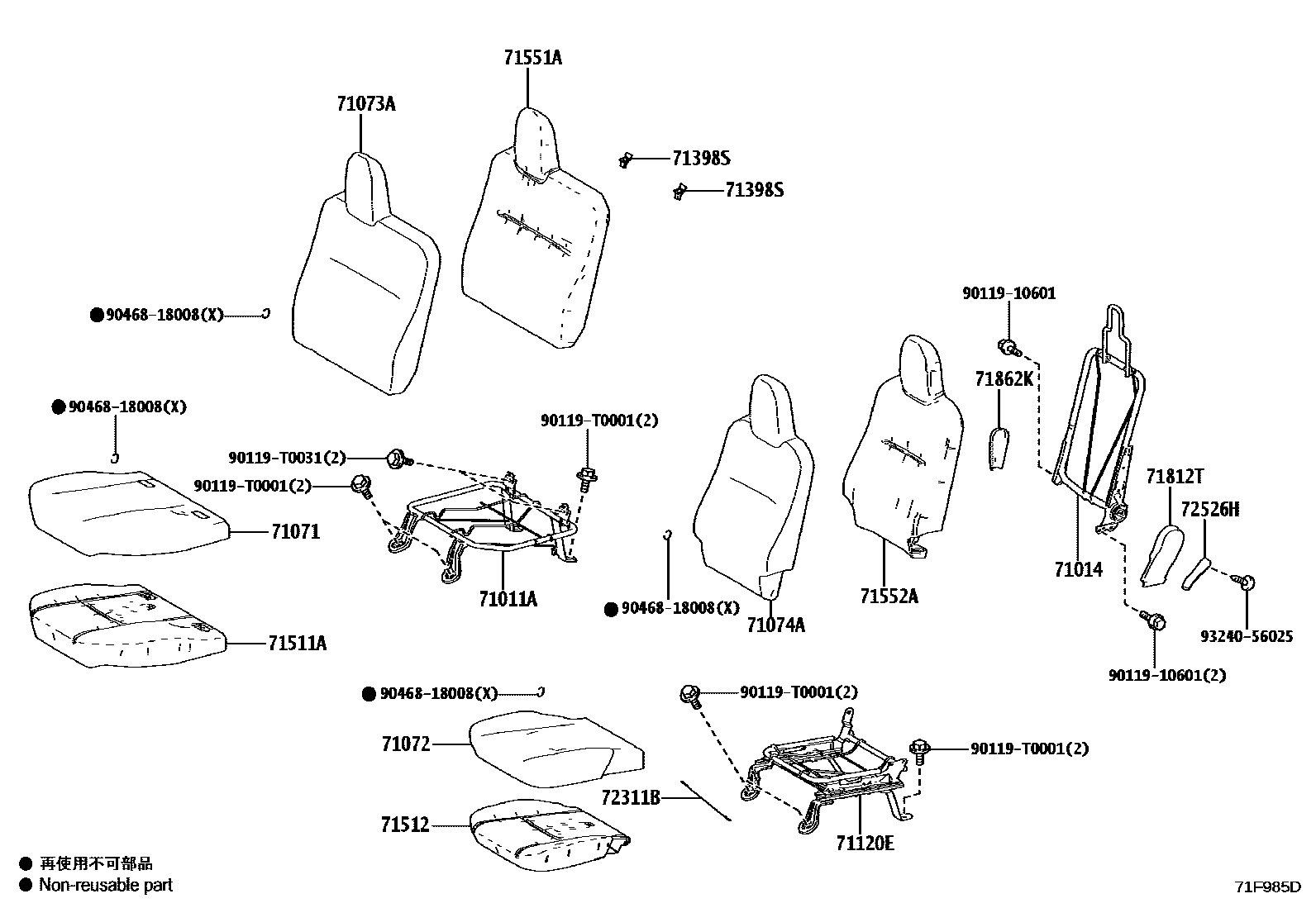

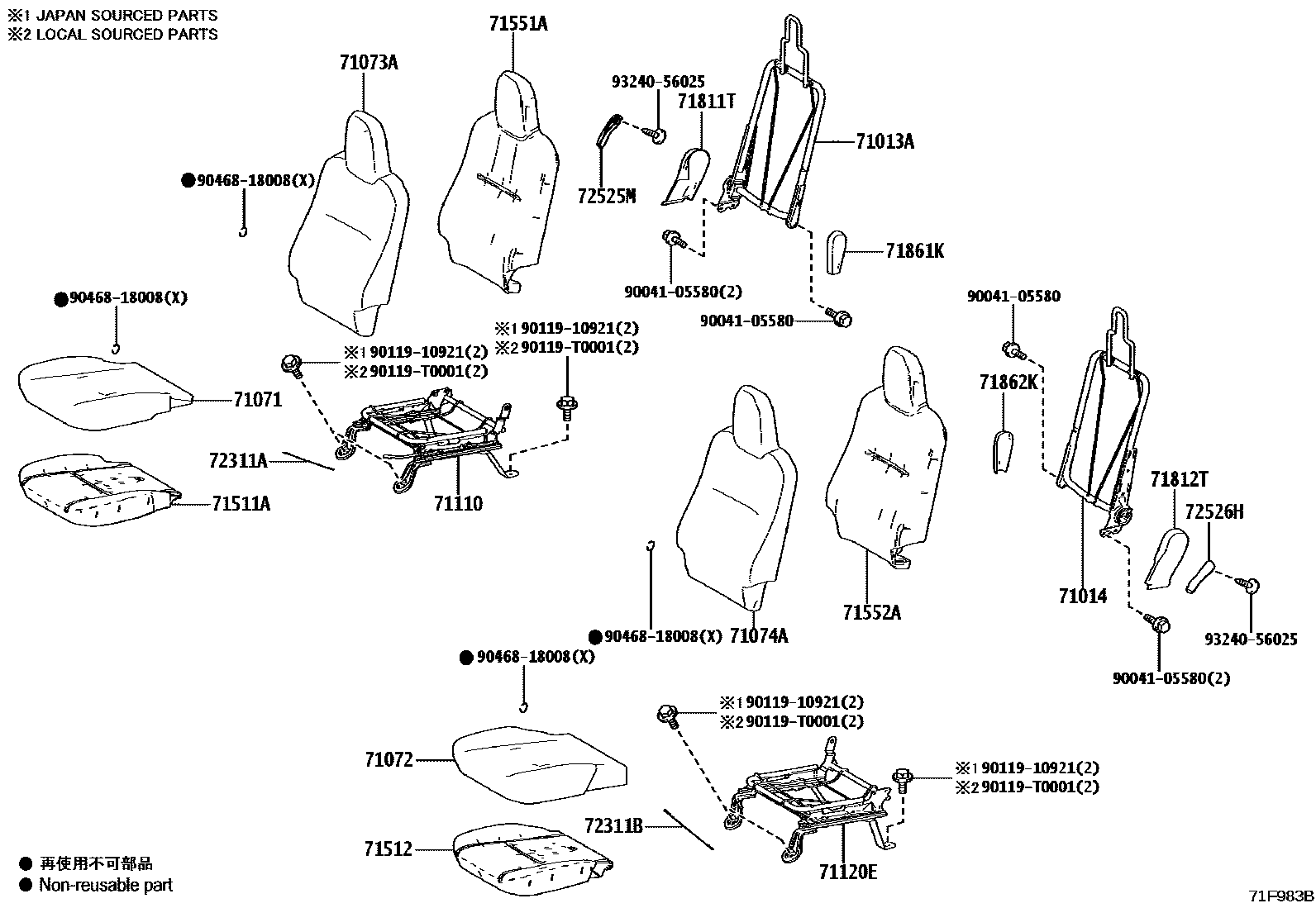

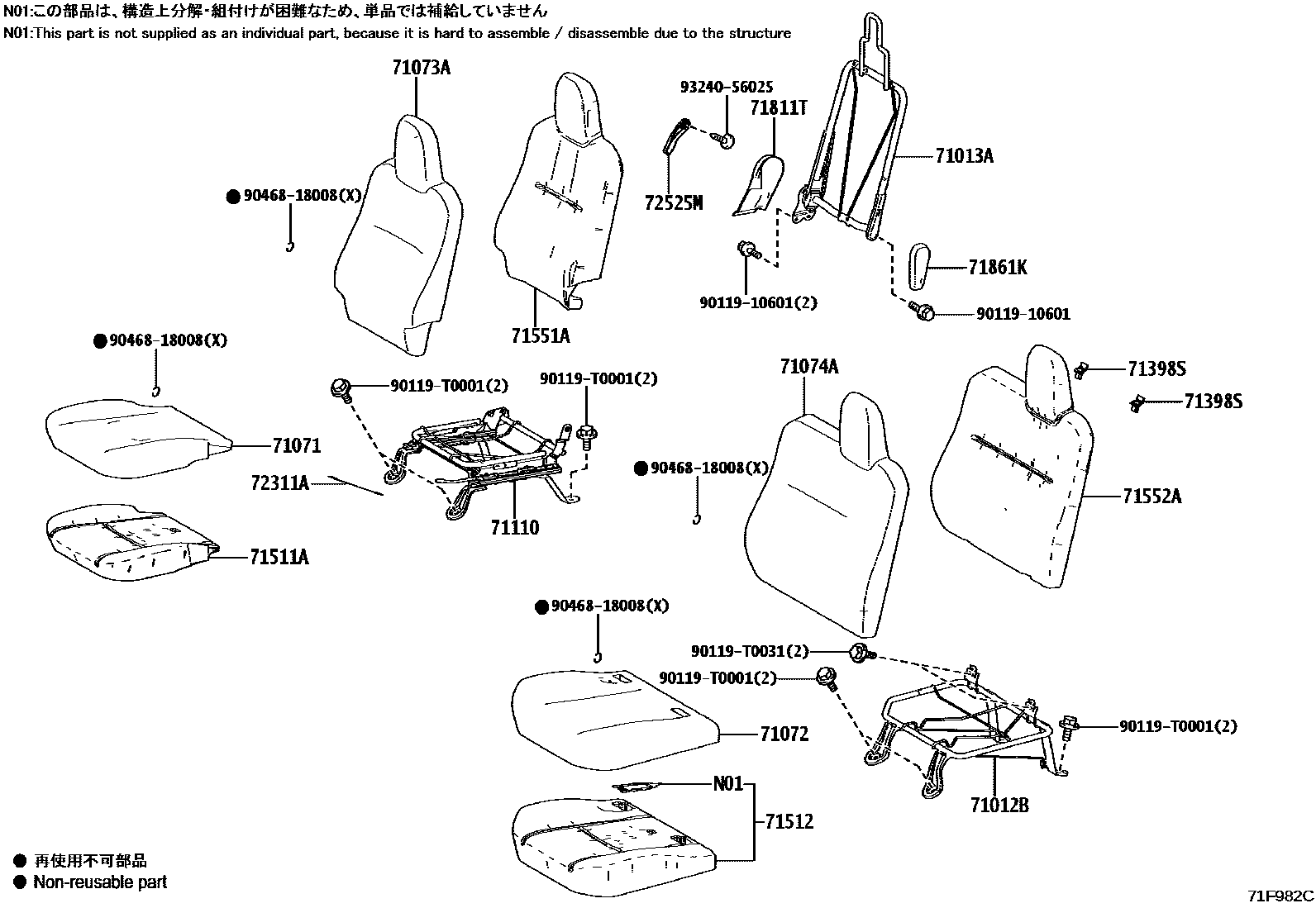

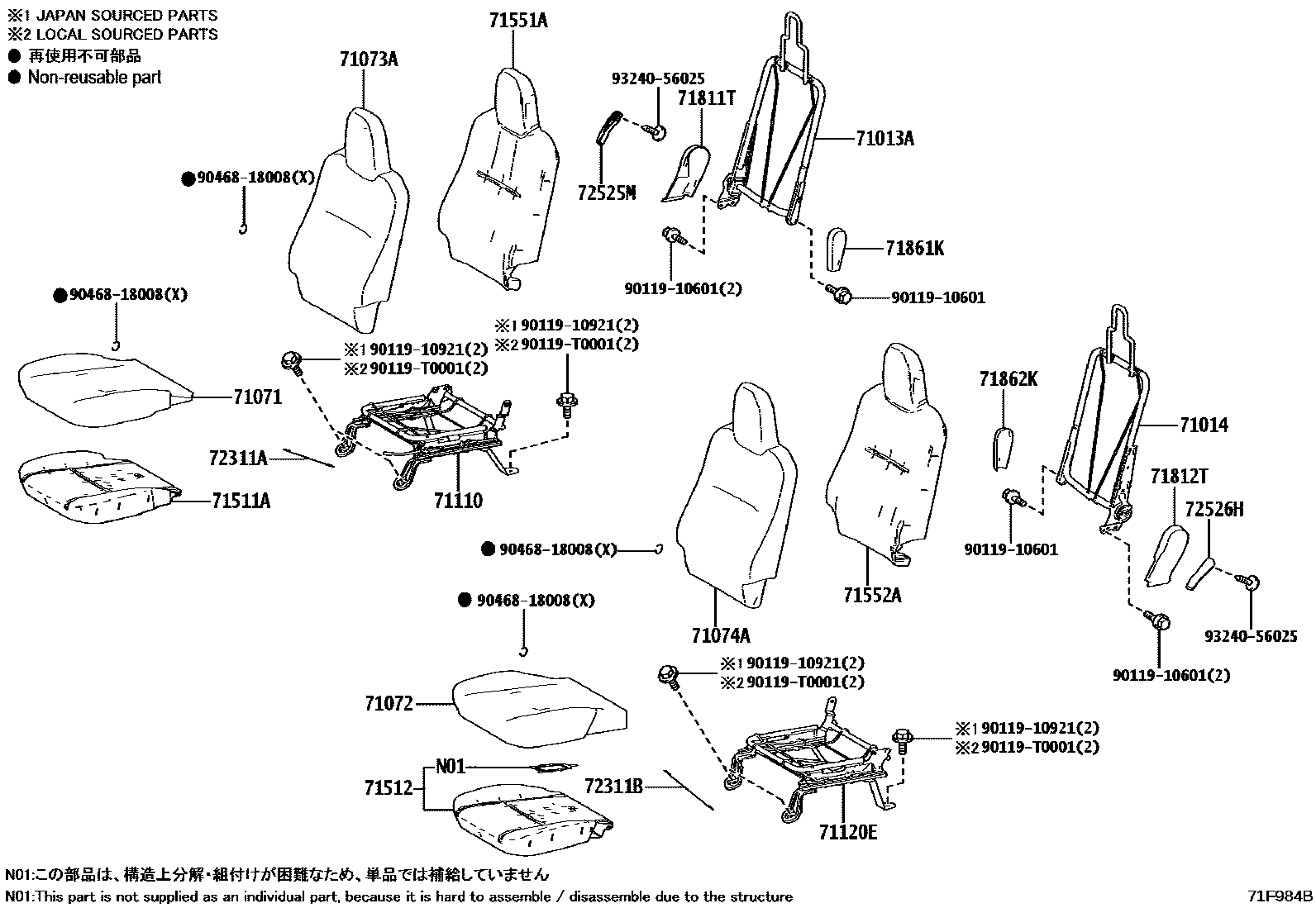

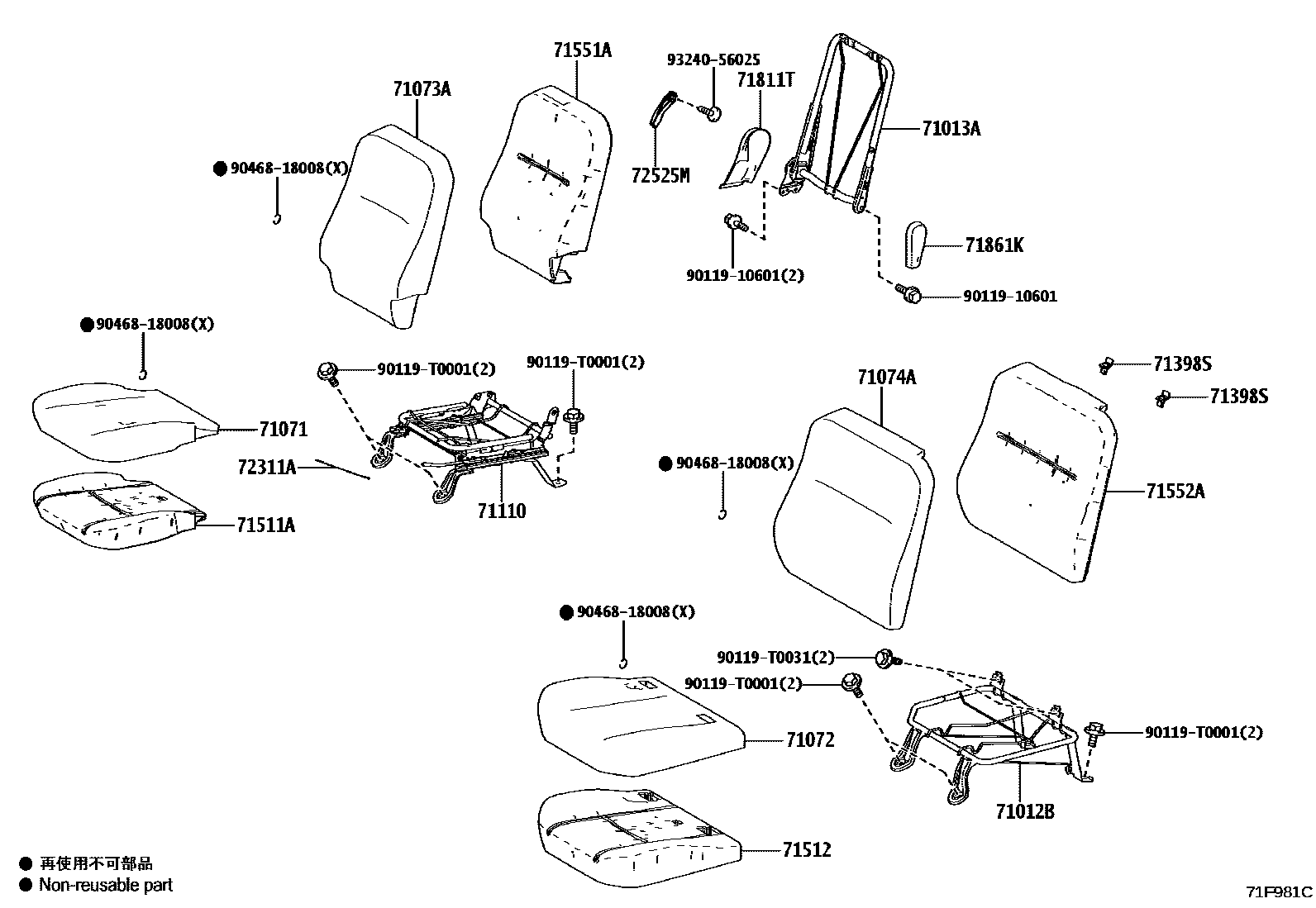

Toyota HILUX EPC diagram 7156, 前排座椅和座椅滑轨, with 5 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71011A | Front right seat cushion frame sub-assembly | 71011-0K640 · 71011-0K660 |
| 71012B | Front left seat cushion frame sub-assembly | 71012-0K150 |
| 71013A | Front right seat back frame sub-assembly | 71013-0KA30 · 71013-0KA40 · 71013-0KB00 |
| 71014 | Front left seat back frame sub-assembly | 71014-0KA00 · 71014-0KA30 |
| 71110 | Front right seat (with adjuster) frame assembly | 71110-0K080 · 71110-0K090 |
| 71120E | Front left seat (with adjuster) frame assembly | 71120-0K050 · 71120-0K060 |
| 71398S | SUPPORT, DOSSIER DE SIEGE AVANT | 71398-02040 |
| 71511A | Right front seat cushion | 71511-0KA40 · 71511-0KB00 · 71511-0KB10 · 71511-0KB20 |
| 71512 | Left front seat cushion | 71052-0K020 · 71052-0K030 · 71512-0KB90 · 71512-0KC00 · 71512-0KC10 |
| 71551A | Right front seat back | 71551-0KJ00 · 71551-0KJ10 · 71551-0KJ20 · 71551-0KJ50 · 71551-0KJ60 |
| 71552A | Front left seat back cushion | 71552-0KJ50 · 71552-0KJ60 · 71552-0KJ70 · 71552-0KK00 |
| 72311A | CABLE, EGALISATION GLISSIERE SIEGE, MD | 72311-0K010 · 72311-0K020 |
| 72311B | CABLE, EGALISATION GLISSIERE SIEGE, MG | 72311-0K010 · 72311-0K020 |
