Toyota HILUX seat belt — Figure 7152

Toyota HILUX EPC diagram 7152, seat belt, with 4 images and 1 PNC and OE references.

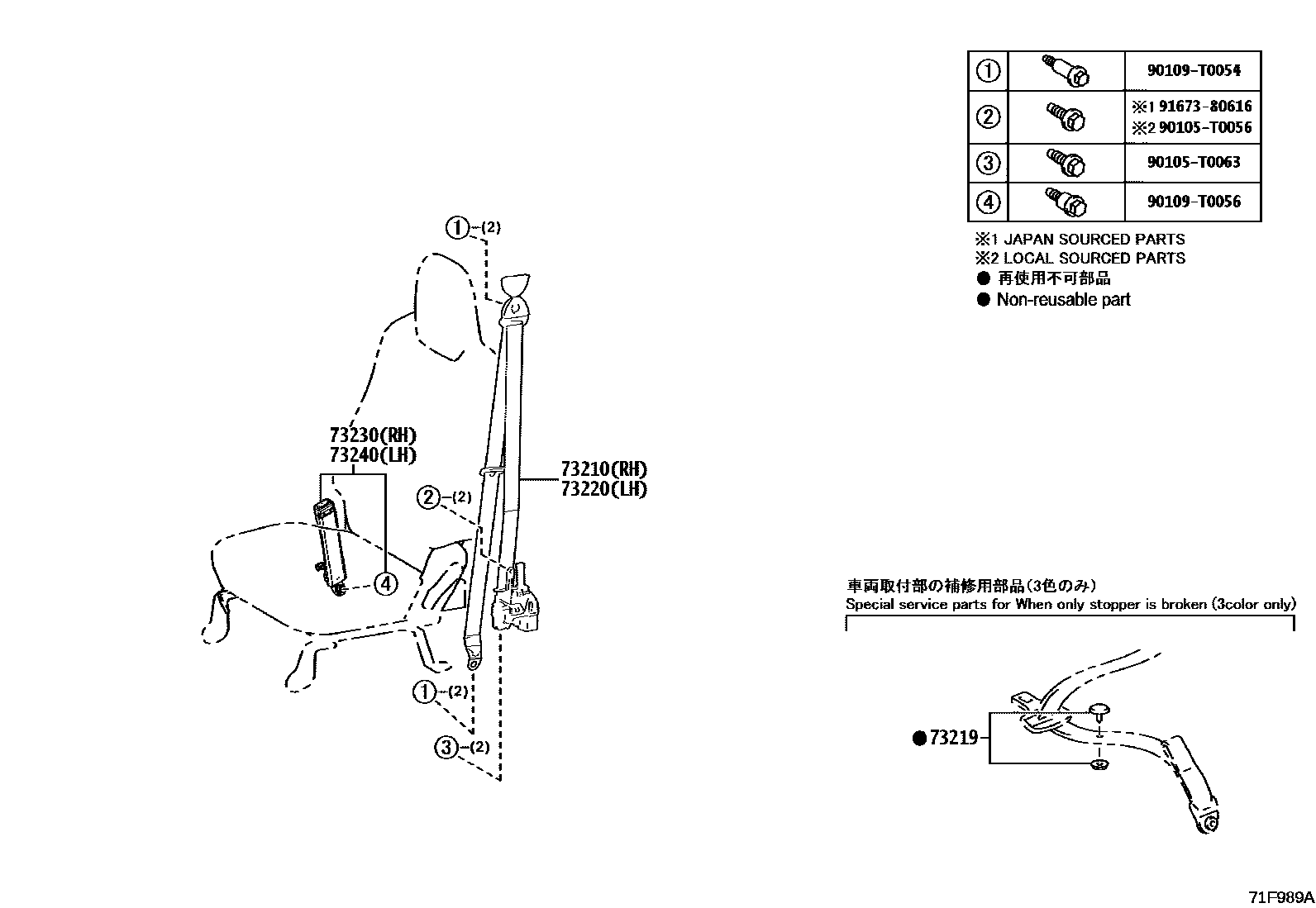

Toyota HILUX seat belt EPC diagram — 71F989A — seat belt — 71F989A (202312 – 999999)

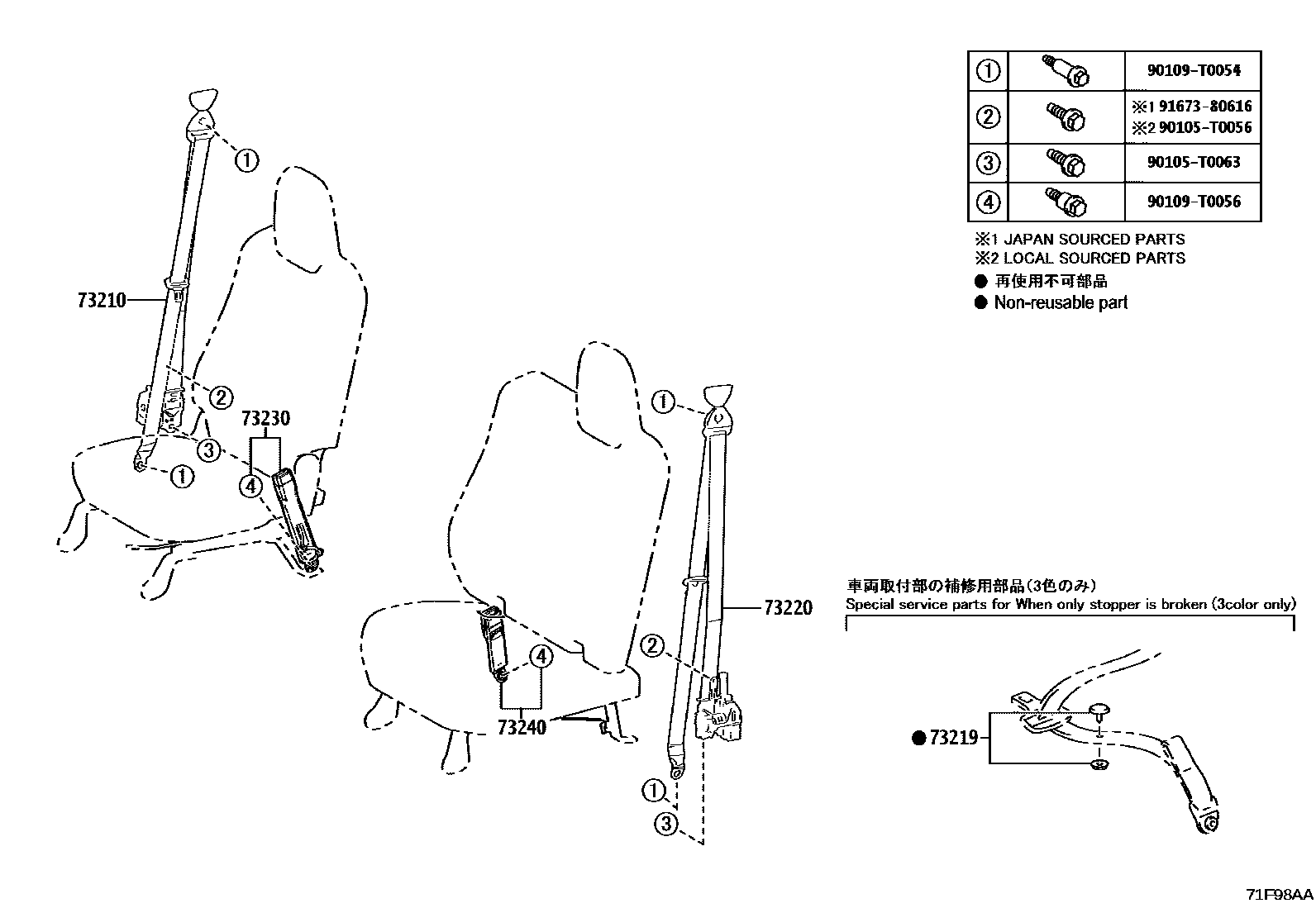

Toyota HILUX seat belt EPC diagram — 71F98AA — seat belt — 71F98AA (202312 – 999999)

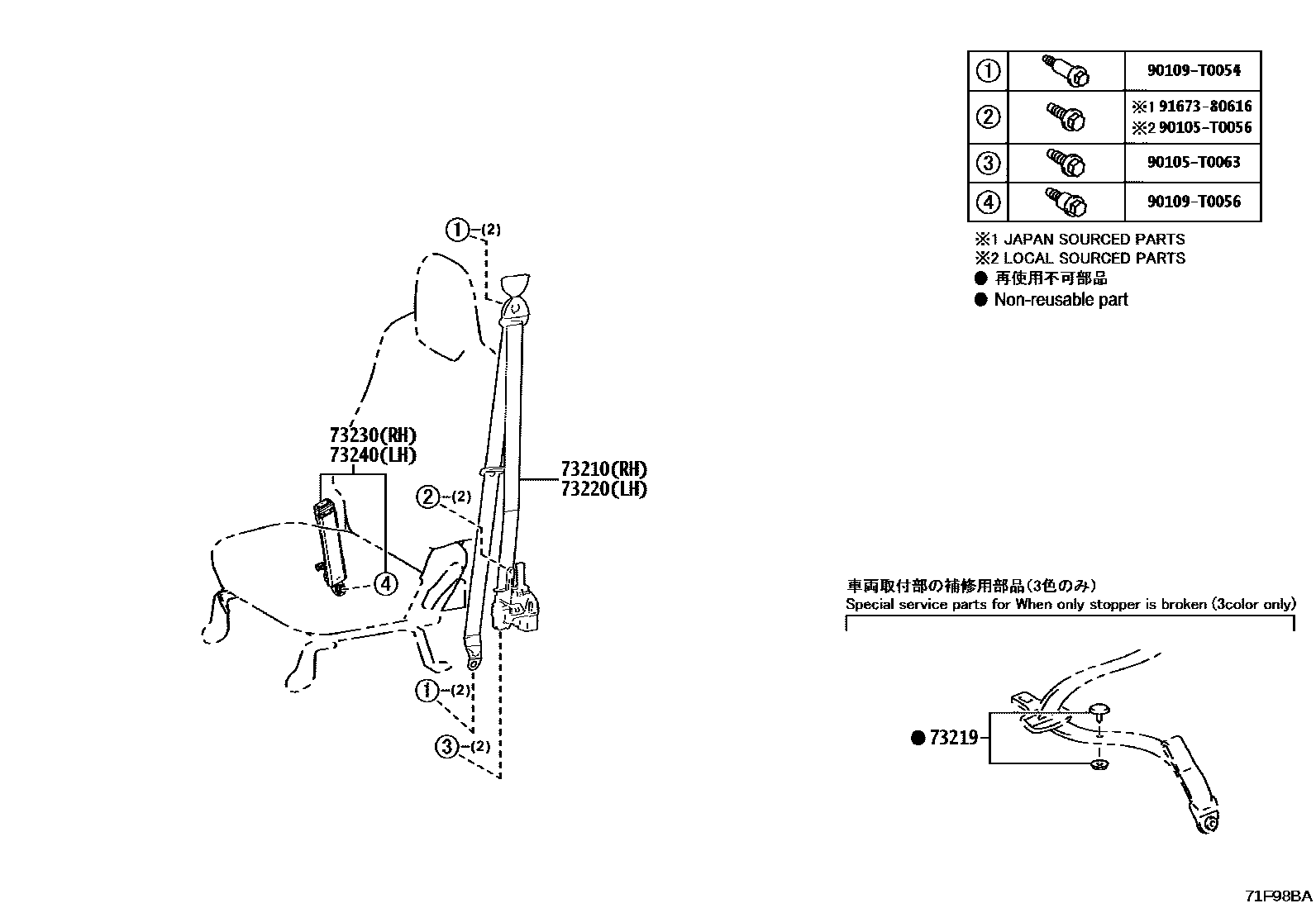

Toyota HILUX seat belt EPC diagram — 71F98BA — seat belt — 71F98BA (202312 – 999999)

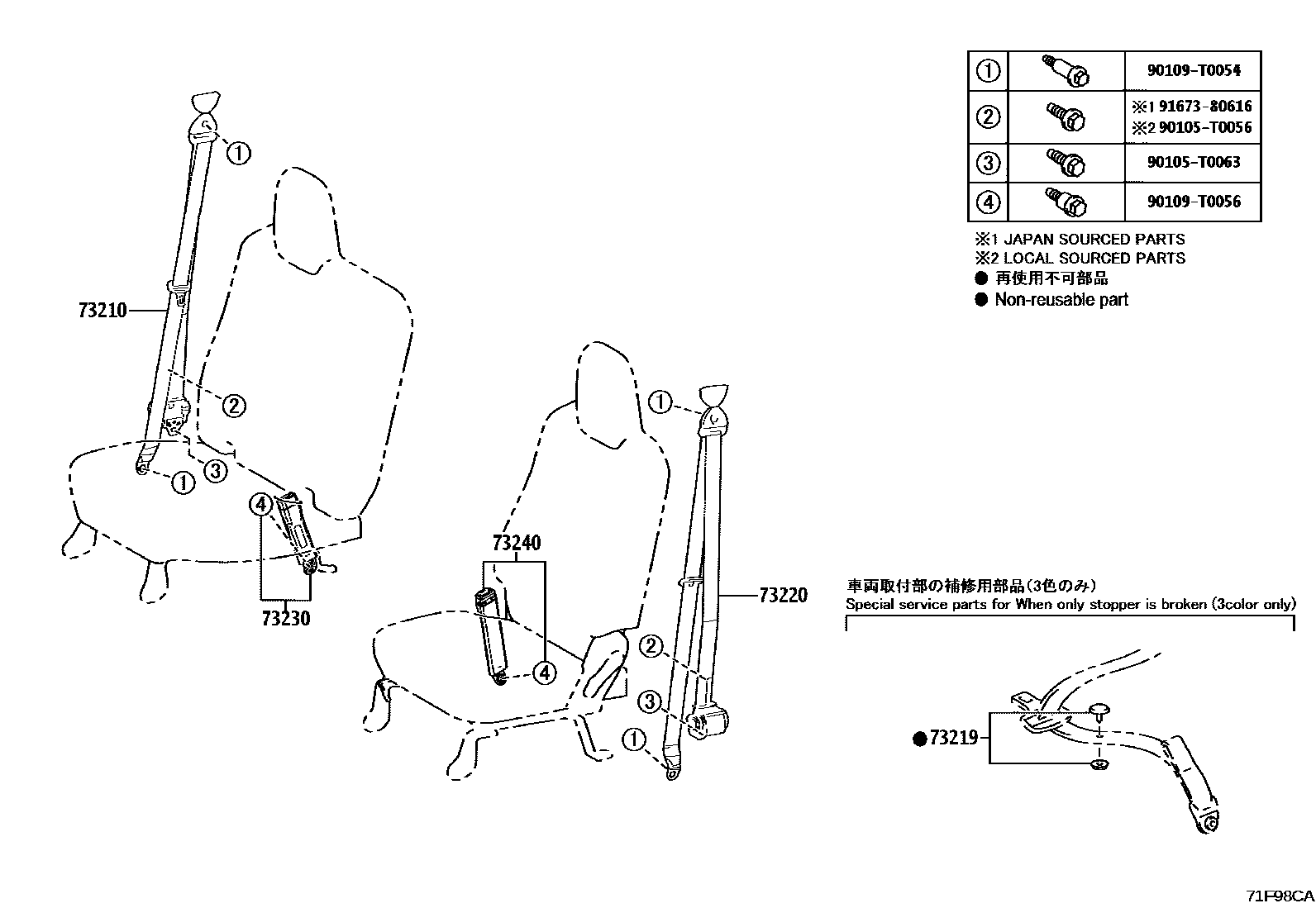

Toyota HILUX seat belt EPC diagram — 71F98CA — seat belt — 71F98CA (202312 – 999999)

PNC and OE references

PNC	Part name	OE numbers
73219	Tongue plate stop	73219-33010 · 73219-33020 · 73219-33030
