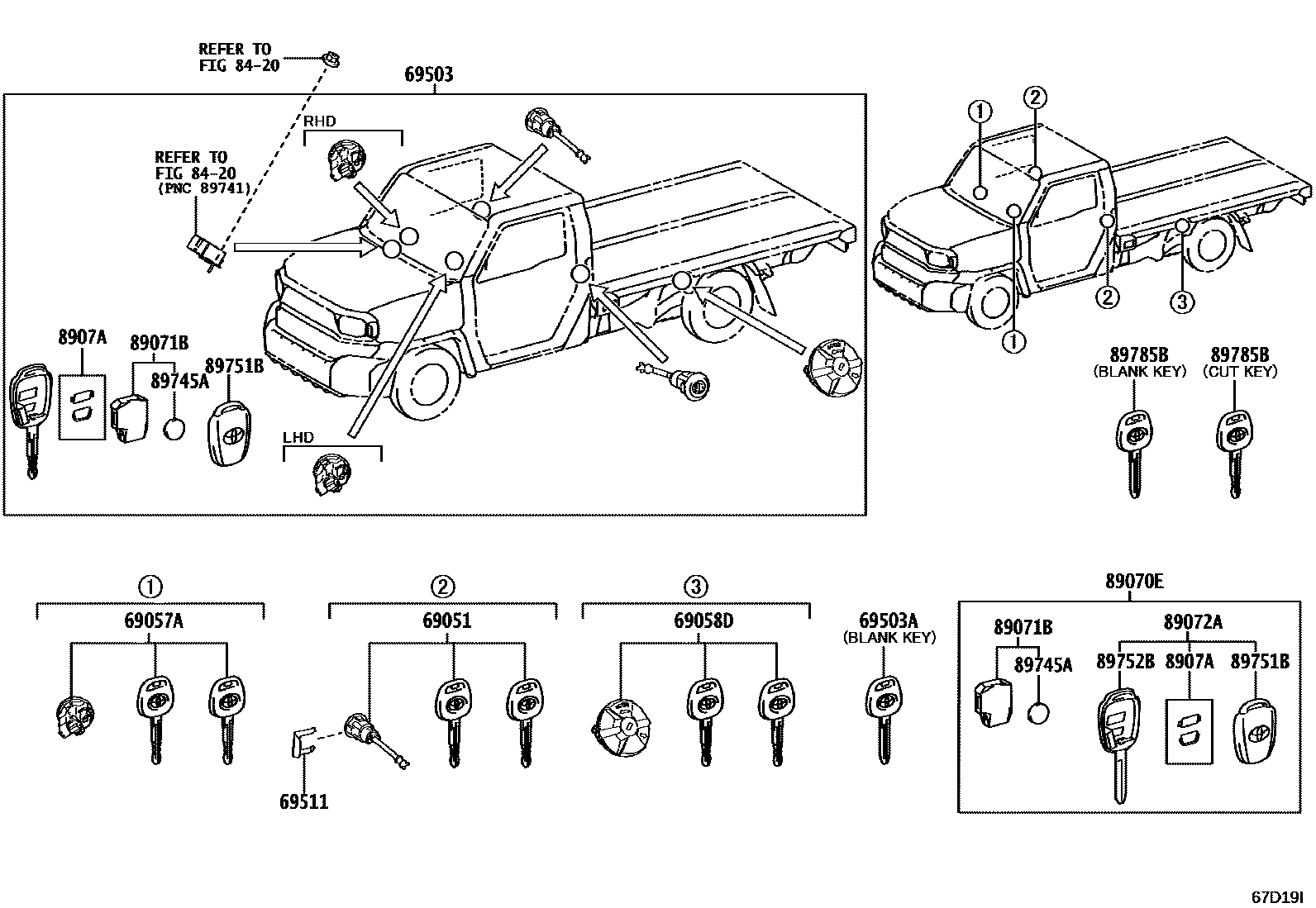

Toyota HILUX 锁芯组件 — Figure 6765
Toyota HILUX EPC diagram 6765, 锁芯组件, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-0K240 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-0K200 · 69057-0K210 · 69057-0K350 |
| 69058D | Fuel tank filler cap lock cylinder and key assembly | 69058-0K030 · 69058-0K060 |
| 69503 | Door lock cylinder components | 69005-0KM90 · 69005-0KN00 · 69005-0KN30 · 69005-0KN40 · 89704-F0820 · 89704-F0830 |
| 69503A | external tooth key | 69515-0K140 |
| 69511 | Front door lock cylinder fixing parts | 69511-KK010 |
| 89070E | Remote key assembly | 89070-0KR00 |
| 89071B | Remote key sub-assembly module assembly | 89071-0D071 |
| 89072A | Remote key shell assembly | 89072-0KA60 |
| 8907A | Transmitter switch assembly | 8907A-52010 |
| 89745A | Transmitter battery | 89745-0D040 |
| 89751B | Transmitter housing cover | 89751-42090 |
| 89752B | transmitter housing | 89752-0K470 |
| 89785B | transceiver key master transmitter | 89785-0D150 · 89785-0D170 |
