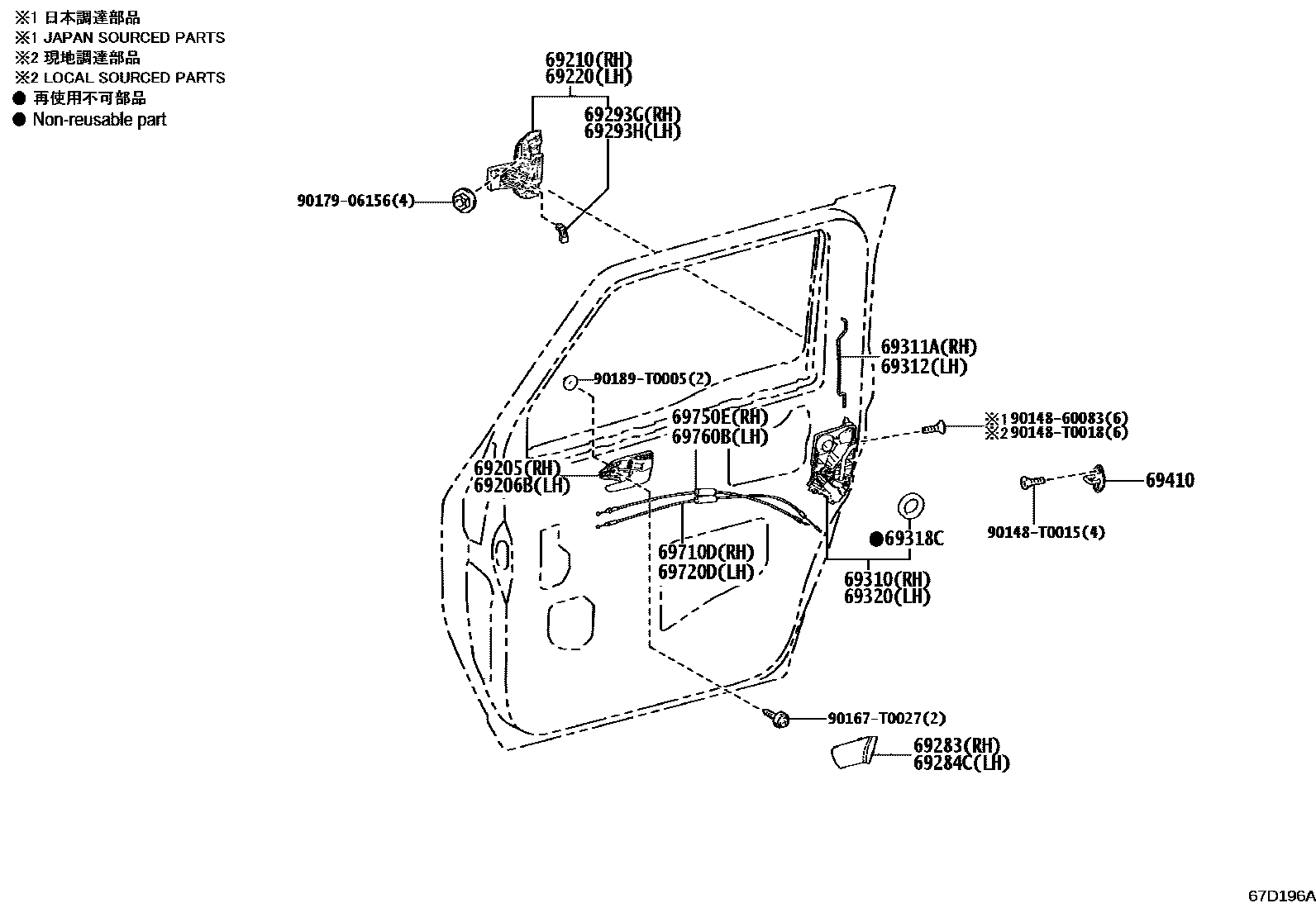

Toyota HILUX 前门锁和车门把手 — Figure 6753
Toyota HILUX EPC diagram 6753, 前门锁和车门把手, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69210 | Right front door outer handle assembly | 69210-0K440 |
| 69220 | Left front door outer handle assembly | 69220-0K010 |
| 69293G | Right front door outer handle buckle | 69293-0K090 |
| 69293H | Left front door outer handle buckle | 69293-0K130 |
| 69310 | Right front door lock assembly | 69030-0K280 · 69030-0K290 · 69310-0K140 · 69310-0K150 |
| 69311A | Right front door lock opening lever | 69311-0K200 |
| 69312 | Left front door lock opening lever | 69312-0K200 |
| 69318C | door lock harness seal | 69318-47010 |
| 69320 | Left front door lock assembly | 69040-0K230 · 69040-0K240 · 69320-0K140 · 69320-0K150 |
| 69410 | Front door lock plate assembly | 69410-0K070 |
| 69710D | Right front door lock remote control cable (for opening lever) | 69710-0K250 |
| 69720D | Left front door lock remote control cable (for opening lever) | 69710-0K250 |
| 69750E | Right front door inner locking cable (for locking/unlocking handle) | 69750-0K250 |
| 69760B | Left front door inner locking cable (for locking/unlocking handle) | 69750-0K250 |
