Toyota HILUX 后车身悬置 — Figure 6558

Toyota HILUX EPC diagram 6558, 后车身悬置, with 3 images and 2 PNC and OE references.

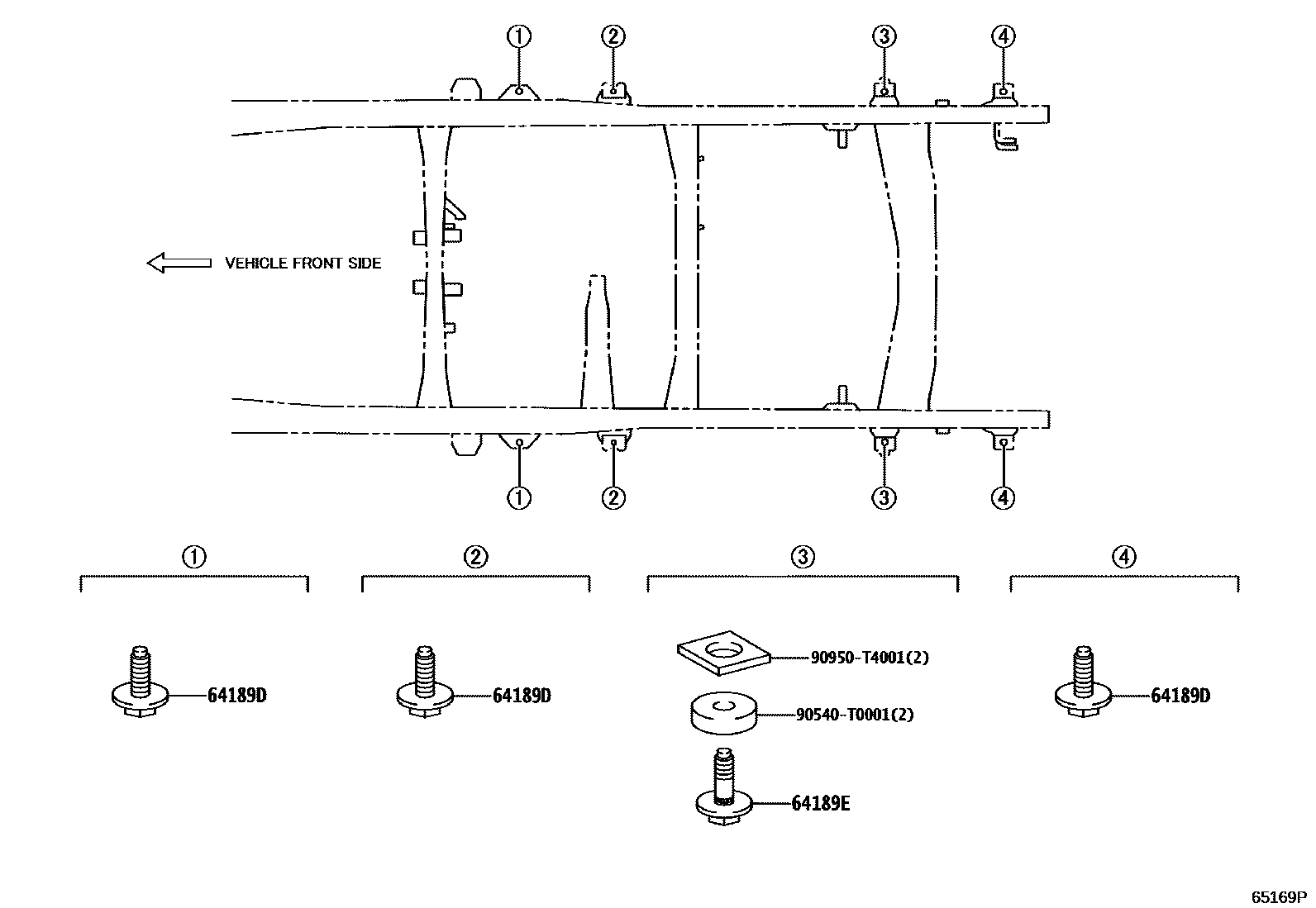

Toyota HILUX 后车身悬置 EPC diagram — 65169P — 后车身悬置 — 65169P (202311 – 999999)

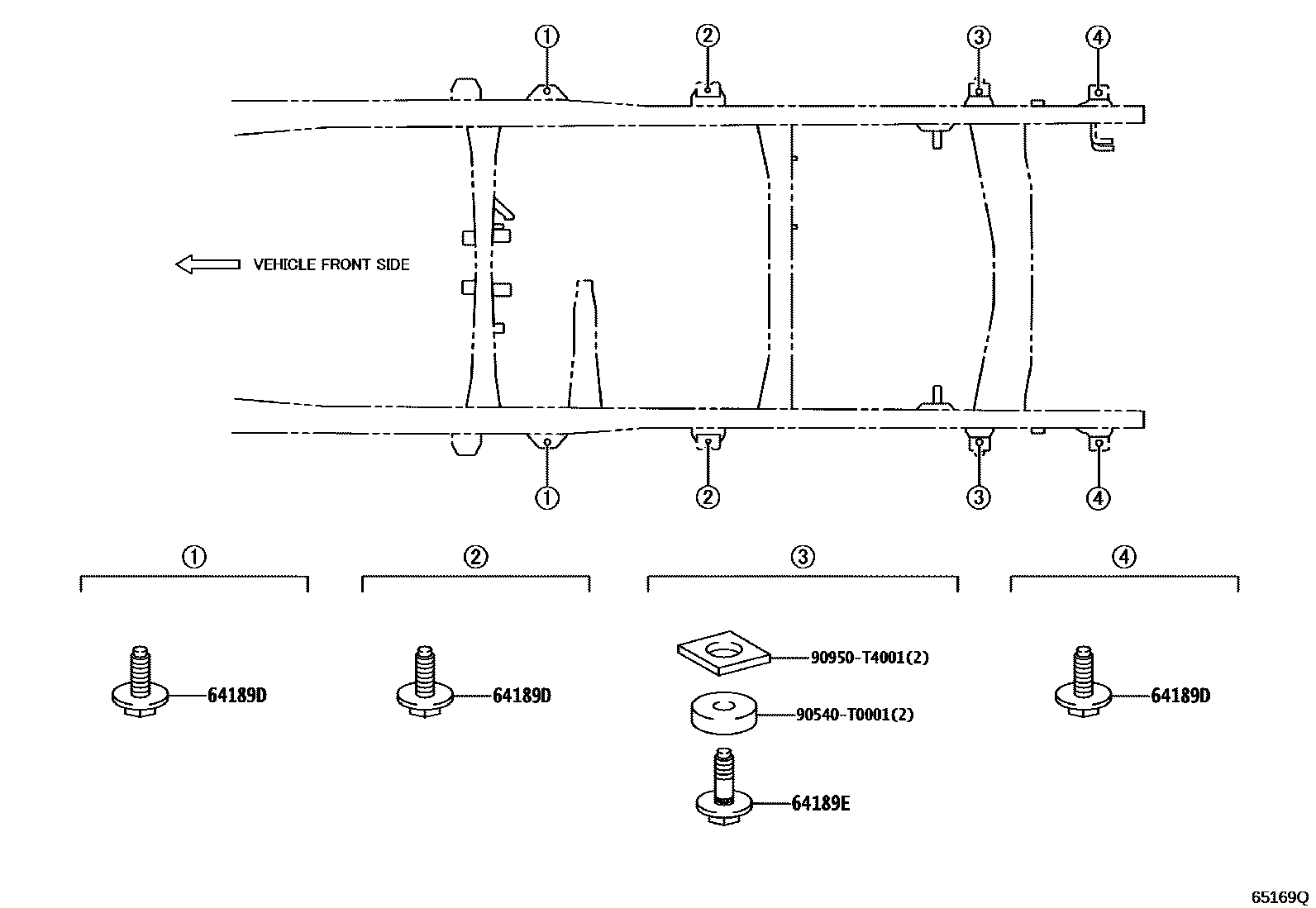

Toyota HILUX 后车身悬置 EPC diagram — 65169Q — 后车身悬置 — 65169Q (202311 – 999999)

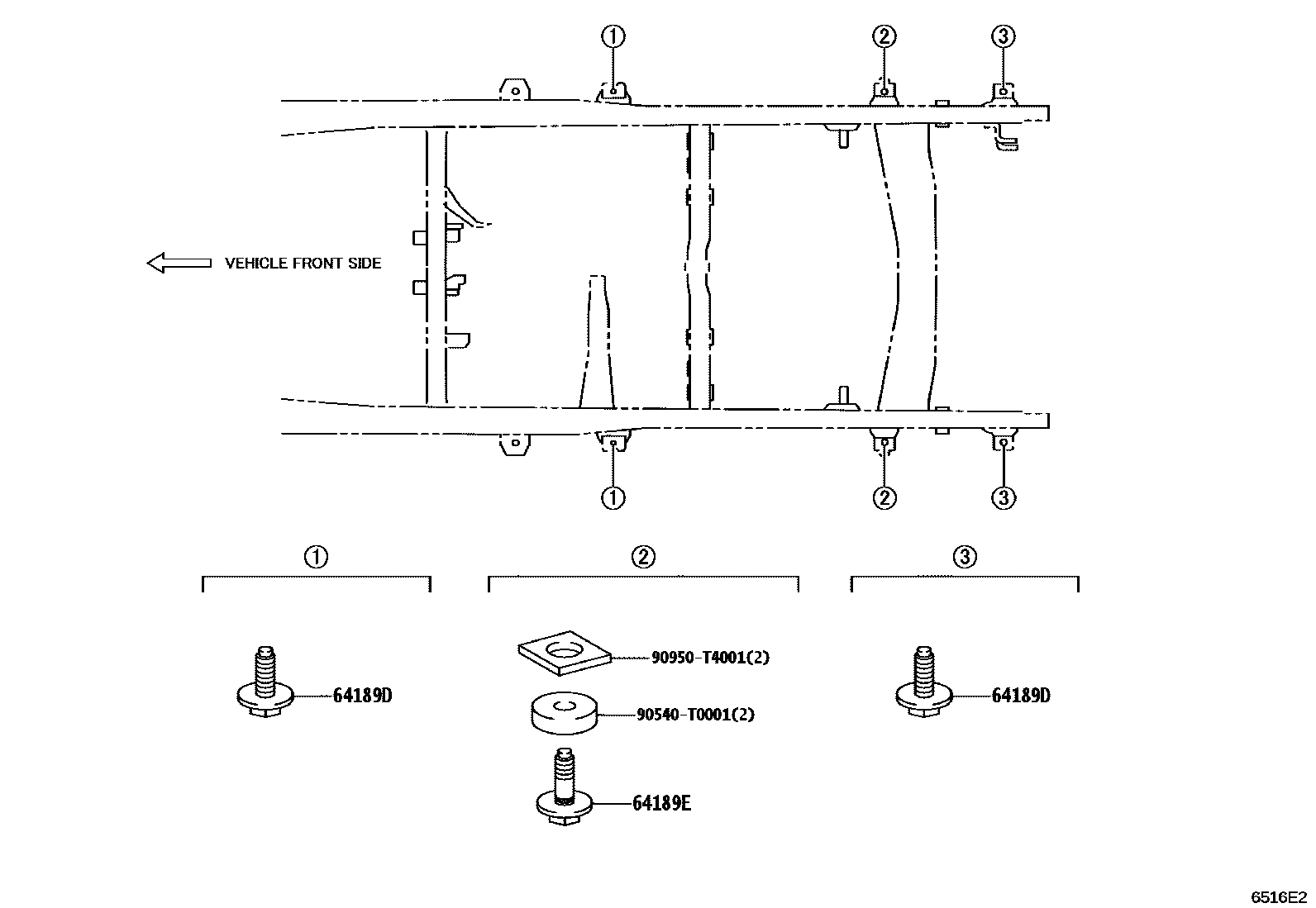

Toyota HILUX 后车身悬置 EPC diagram — 6516E2 — 后车身悬置 — 6516E2 (202510 – 999999)

PNC and OE references

PNC	Part name	OE numbers
64189D	Rear body mounting bolts	64189-0K010
64189E	Install the No. 2 bolt on the rear body	64189-0K020
