Toyota HILUX 后车身地板和翼子板 — Figure 6552

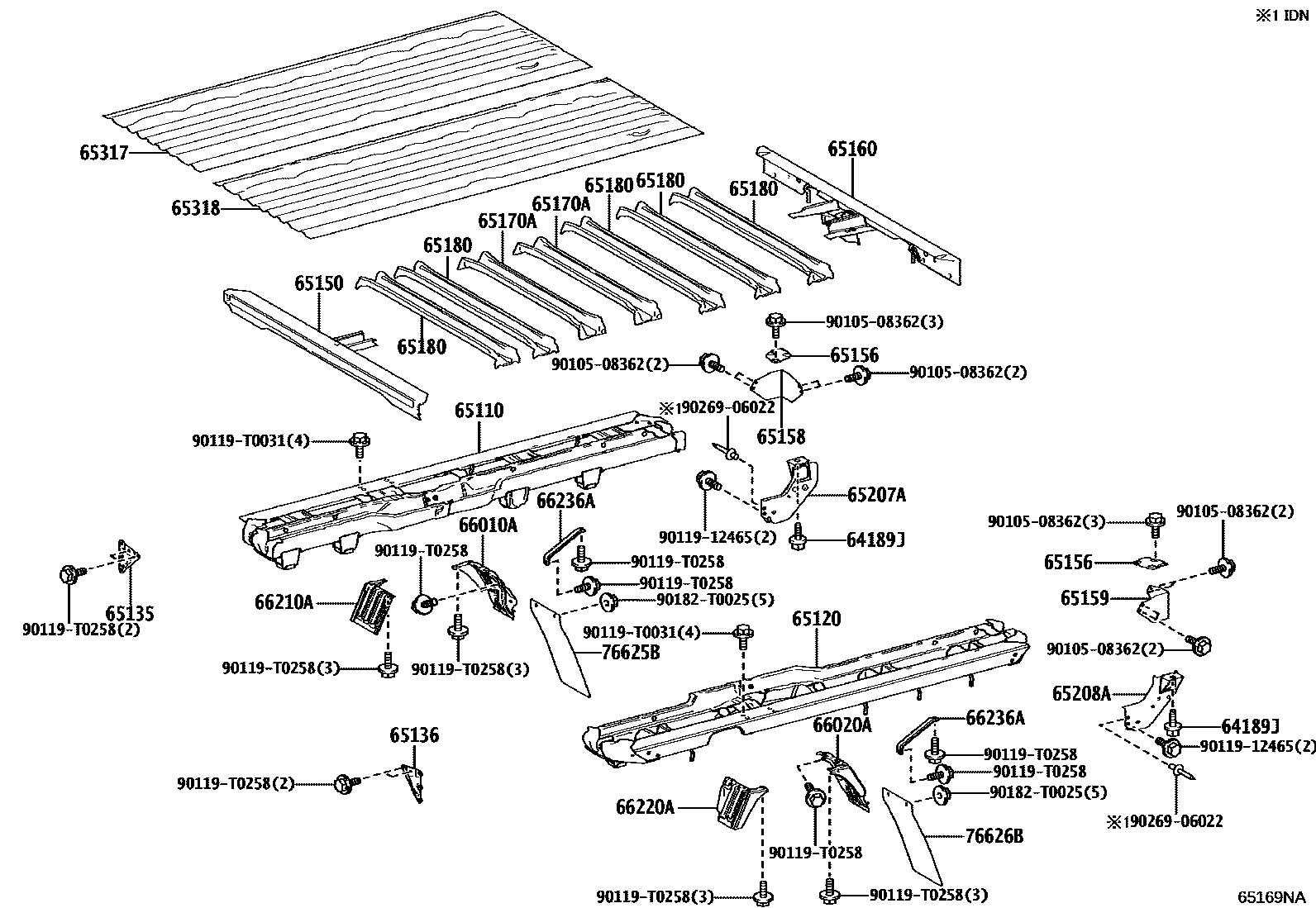

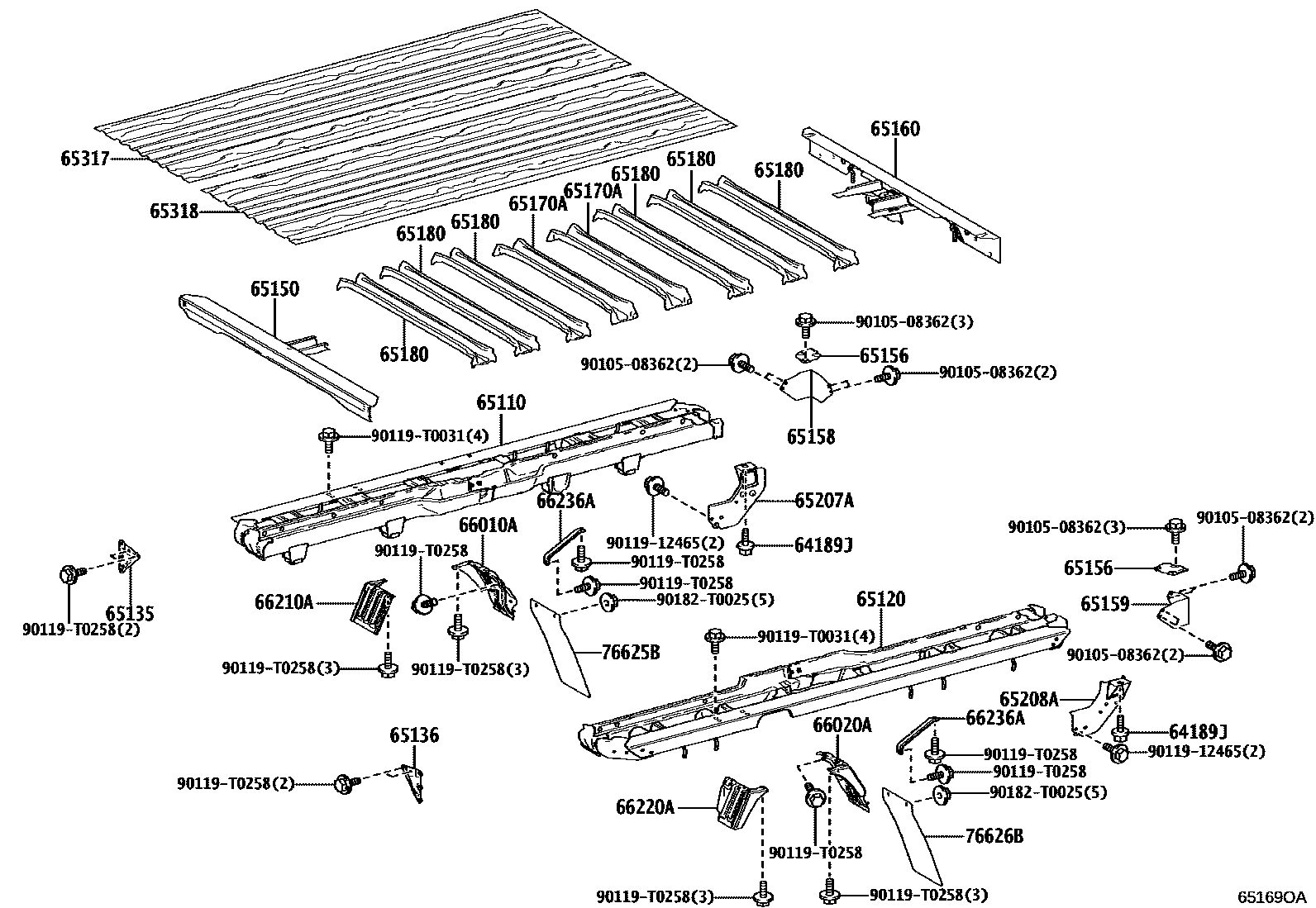

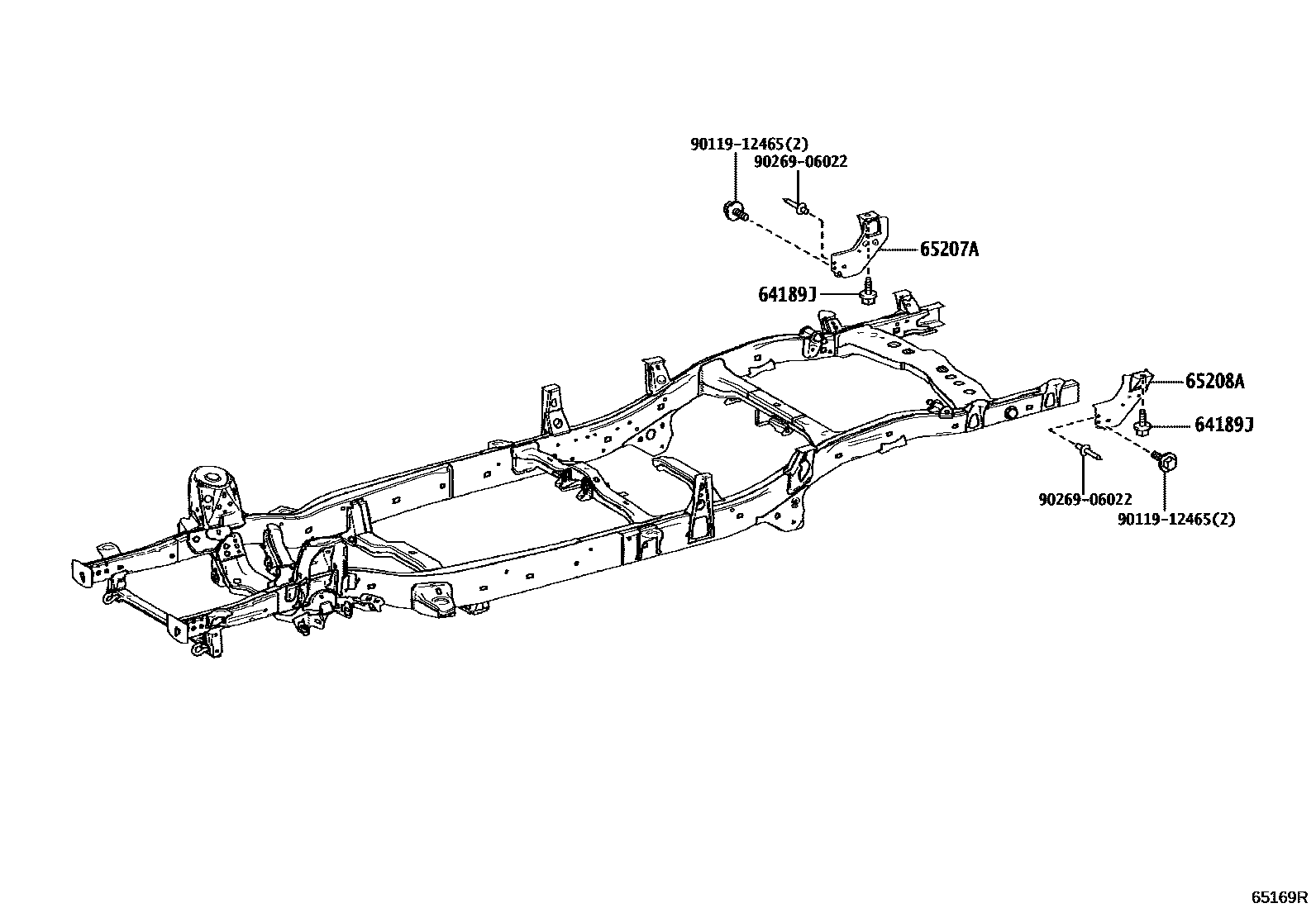

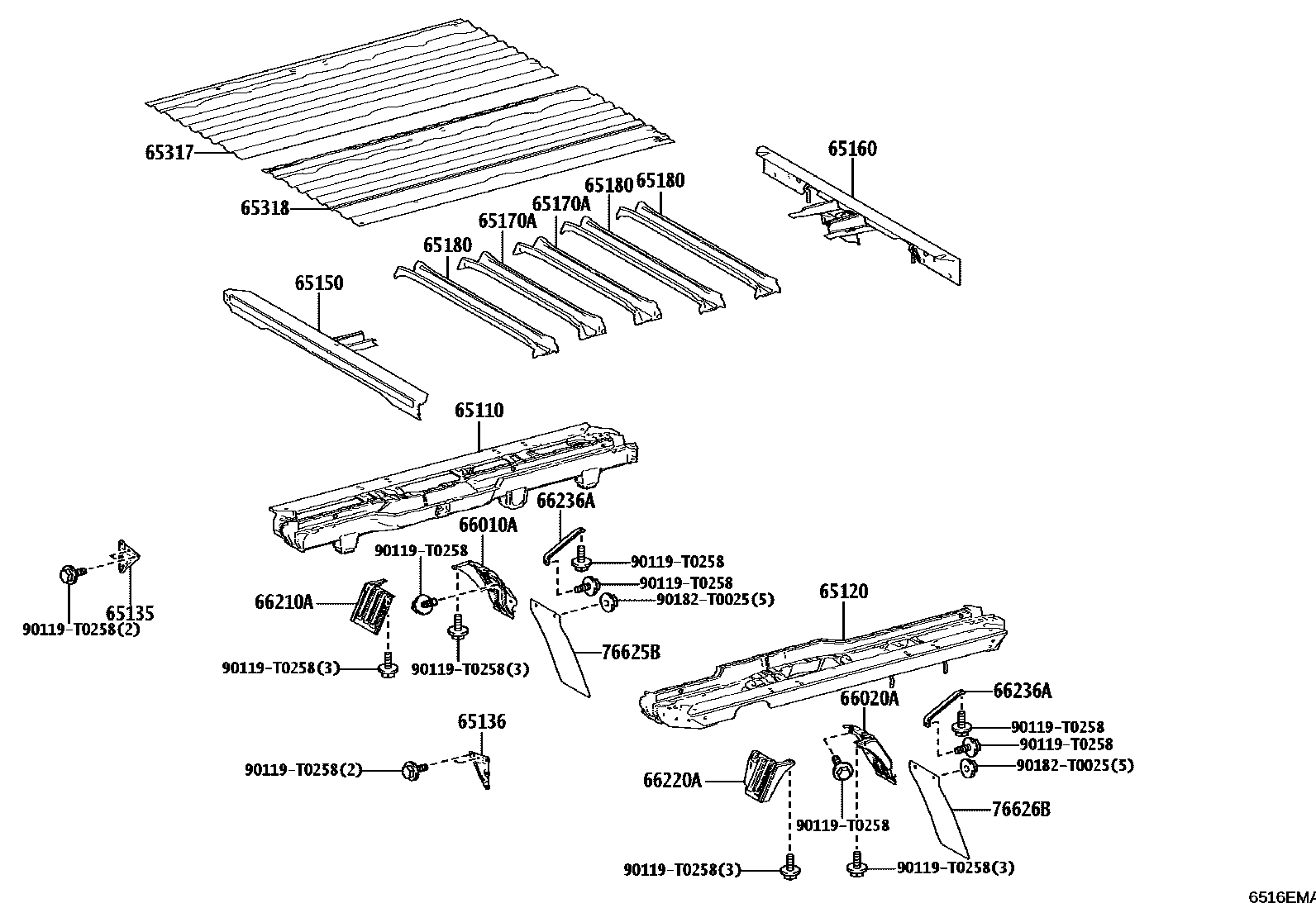

Toyota HILUX EPC diagram 6552, 后车身地板和翼子板, with 4 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64189J | BOULON, MONTAGE CORPS ARR | 64189-0K010 |
| 65110 | Right longitudinal beam assembly | 65110-0K020 · 65110-0K030 · 65110-0K050 |
| 65120 | Left longitudinal beam assembly | 65120-0K020 · 65120-0K030 · 65120-0K050 |
| 65135 | Stringer lining | 65135-0K011 |
| 65136 | RENFORT, PRINC BAS DE CAISSE, NO.2 | 65136-0K011 |
| 65150 | No. 1 crossbeam assembly | 65101-0K051 · 65101-0K060 |
| 65156 | Crossbeam right end cap | 65156-0K040 |
| 65158 | CACHE, EXT LONGERON TRANSVERSAL ARRIERE, MD | 65158-0K031 |
| 65159 | CACHE, EXT LONGERON TRANSVERSAL ARRIERE, MG | 65159-0K030 |
| 65160 | No. 2 beam assembly | 65102-0K040 · 65102-0K060 |
| 65170A | No. 3 beam assembly | 65171-0K030 |
| 65180 | No. 4 beam assembly | 65161-0K040 |
| 65207A | SOUS-ENS GOUSSET, LONGERON TRANSVERSAL, MD | 65207-0K030 |
| 65208A | SOUS-ENS GOUSSET, LONGERON TRANSVERSAL, MG | 65208-0K030 |
| 65317 | Floor right panel | 65317-0K080 · 65317-0K090 · 65317-0K110 |
| 65318 | Floor left panel | 65318-0K100 · 65318-0K110 · 65318-0K120 |
| 66010A | No. 2 right rear fender assembly | 66010-0K010 |
| 66020A | No. 2 left rear fender assembly | 66020-0K010 |
| 66210A | No. 1 right rear fender assembly | 66210-0K010 |
| 66220A | No. 1 left rear fender assembly | 66220-0K010 |
| 66236A | Rear fender No. 2 bracket | 66236-0K010 |
| 76625B | Right rear body fender | 76625-0K540 · 76625-0K541 |
| 76626B | Left rear body fender | 76625-0K540 · 76625-0K541 |
