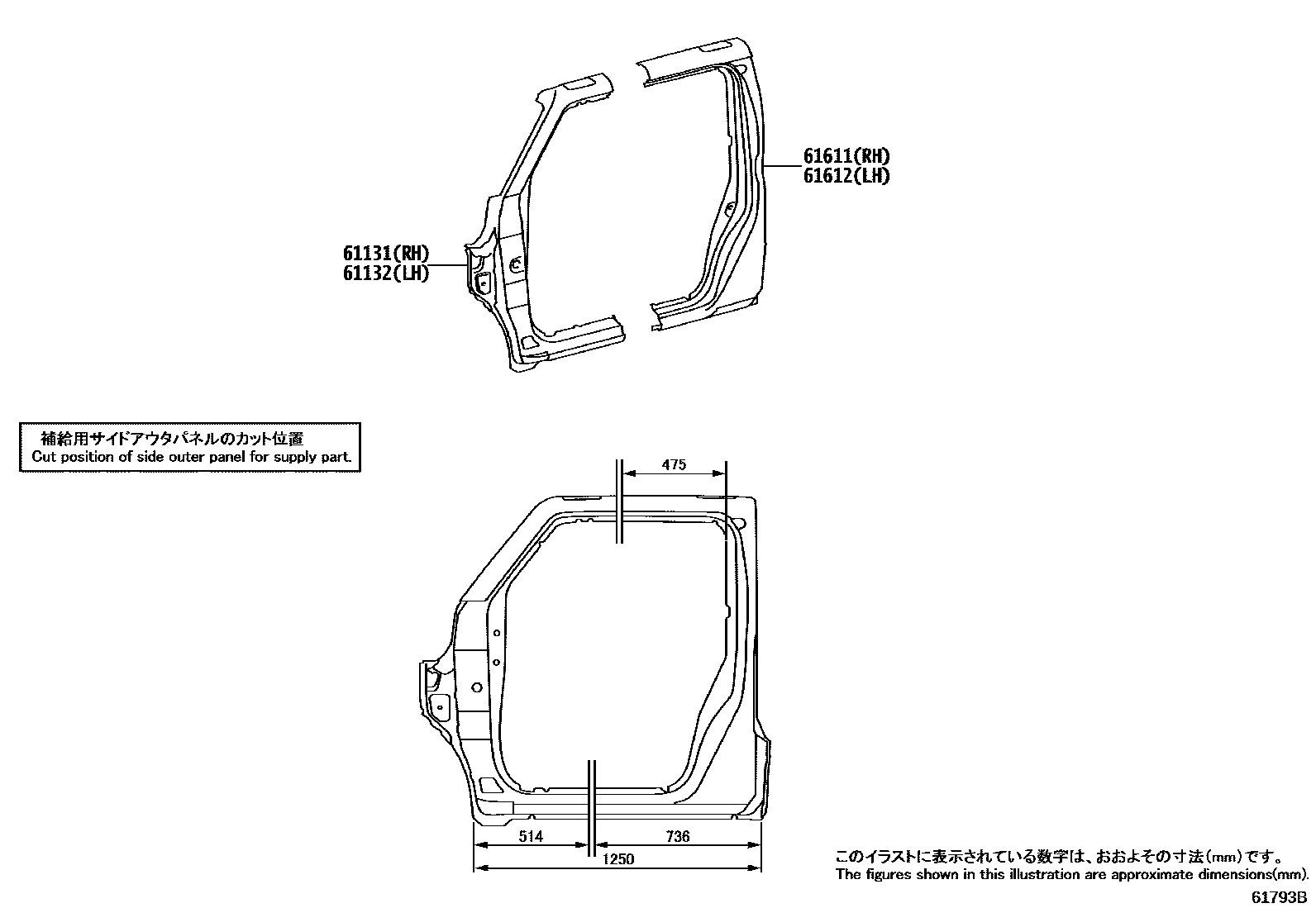

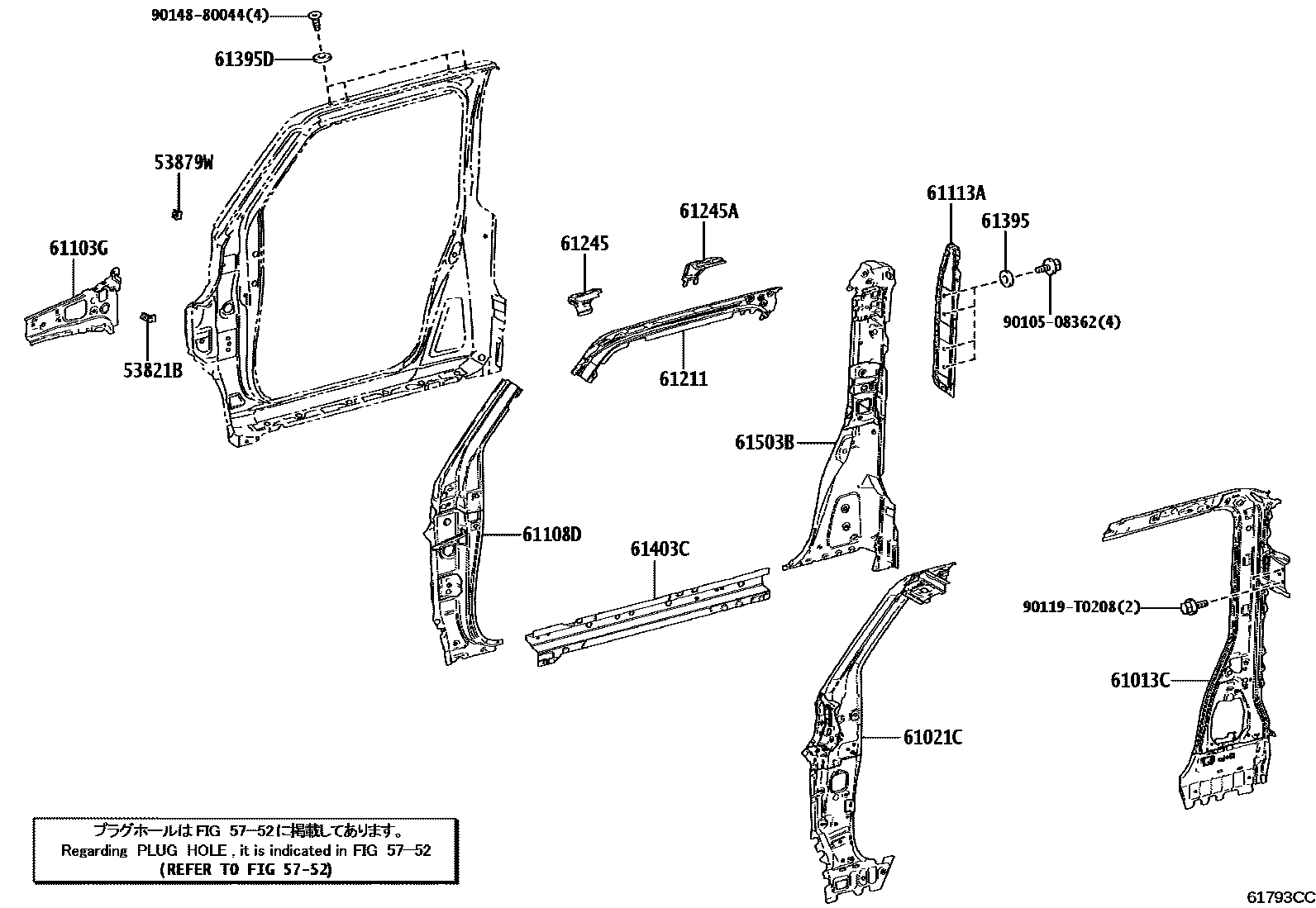

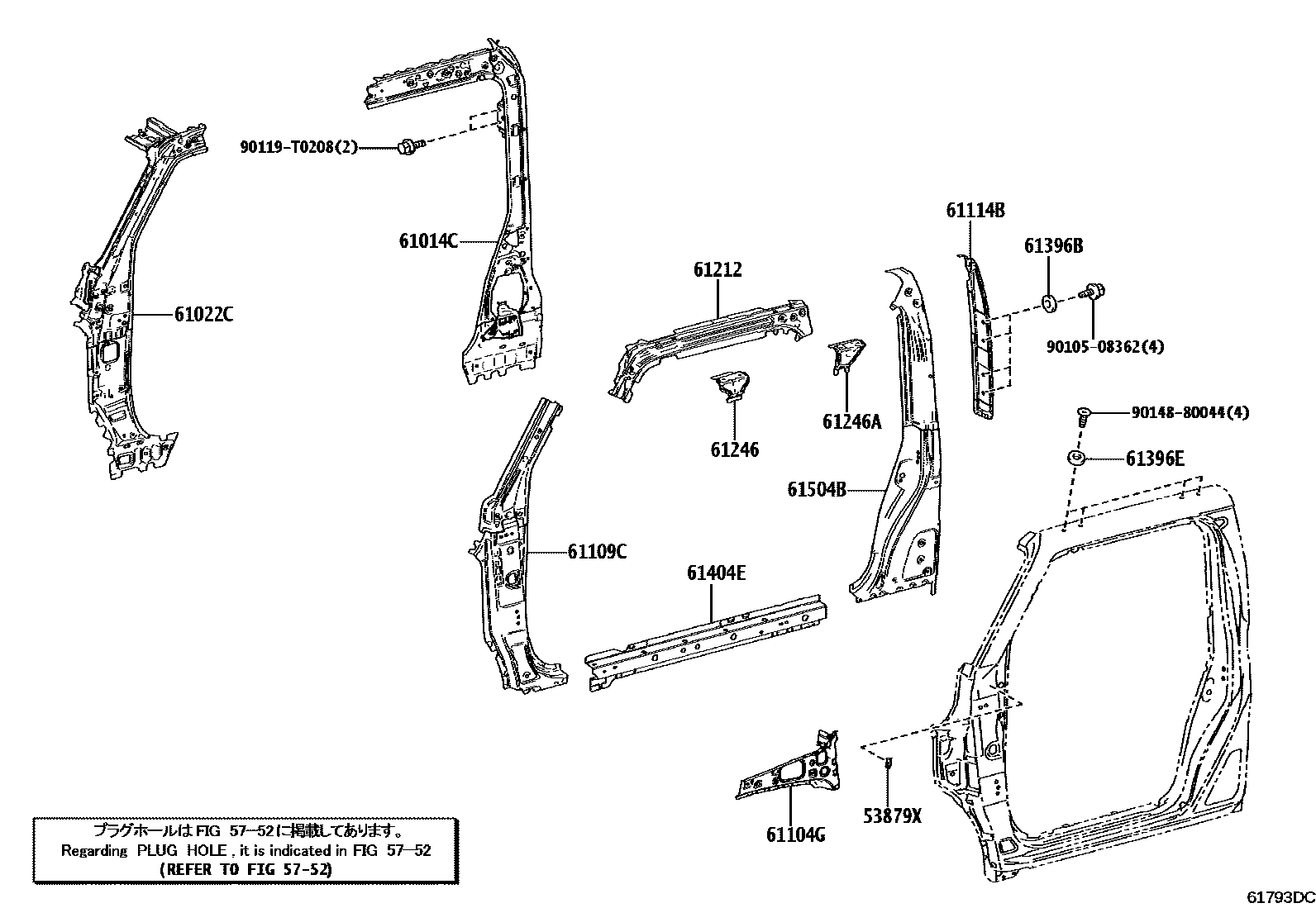

Toyota HILUX 侧梁 — Figure 6151
Toyota HILUX EPC diagram 6151, 侧梁, with 3 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53821B | Right front fender rear support | 53821-KK010 |
| 53879W | SUPPORT, PANNEAU LAT ARRIERE AILE AVANT, CENTRAL MD | 53879-68020 |
| 53879X | SUPPORT, PANNEAU LAT ARRIERE AILE AVANT, CENTRAL MG | 53879-68020 |
| 61013C | Right inner panel sub-assembly | 61013-KK100 |
| 61014C | Left inner panel sub-assembly | 61014-KK100 |
| 61021C | Right body front pillar sub-assembly | 61021-KK070 |
| 61022C | Left body front pillar sub-assembly | 61022-KK070 |
| 61103G | Right body front pillar lower corner panel sub-assembly | 61103-KK020 |
| 61104G | Left side body front pillar lower corner panel sub-assembly | 61104-KK020 |
| 61108D | Front panel right lower reinforcement sub-assembly | 61108-KK030 |
| 61109C | Front panel left lower reinforcement sub-assembly | 61109-KK030 |
| 61113A | No. 2 right outer panel | 61113-KK010 |
| 61114B | No. 2 left outer panel | 61114-KK010 |
| 61131 | Right body outer front upper pillar | 61131-KK050 |
| 61132 | Left body outer front upper pillar | 61132-KK050 |
| 61211 | Roof right outer longitudinal beam | 61211-KK040 |
| 61212 | Roof left outer longitudinal beam | 61212-KK040 |
| 61245 | Roof right outer longitudinal beam reinforcement | 61245-KK010 |
| 61245A | RENFORT, RAIL LATERAL TOIT, EXTERIEUR NO.2 MD | 61245-KK020 |
| 61246 | Roof left outer longitudinal beam reinforcement | 61246-KK010 |
| 61246A | RENFORT, RAIL LATERAL TOIT, EXTERIEUR NO.2 MG | 61246-KK020 |
| 61395 | Right body center pillar seal | 61395-KK010 |
| 61395D | JOINT, MONTANT CARROSSERIE CENTRAL, NO.2 MD | 61395-KK010 |
| 61396B | Left body center pillar seal | 61395-KK010 |
| 61396E | JOINT, MONTANT CARROSSERIE CENTRAL, NO.2 MG | 61395-KK010 |
| 61403C | Right door outer sill reinforcement sub-assembly | 61403-KK901 |
| 61404E | Left door outer sill reinforcement sub-assembly | 61404-KK901 |
| 61503B | Right side locking column reinforcement sub-assembly | 61503-KK902 |
| 61504B | Left side locking column reinforcement sub-assembly | 61504-KK902 |
| 61611 | Right side hoarding | 61611-KK050 · 61611-KK060 |
| 61612 | left side panel | 61612-KK050 · 61612-KK060 |
