Toyota HILUX 地板垫和消声垫 — Figure 5854

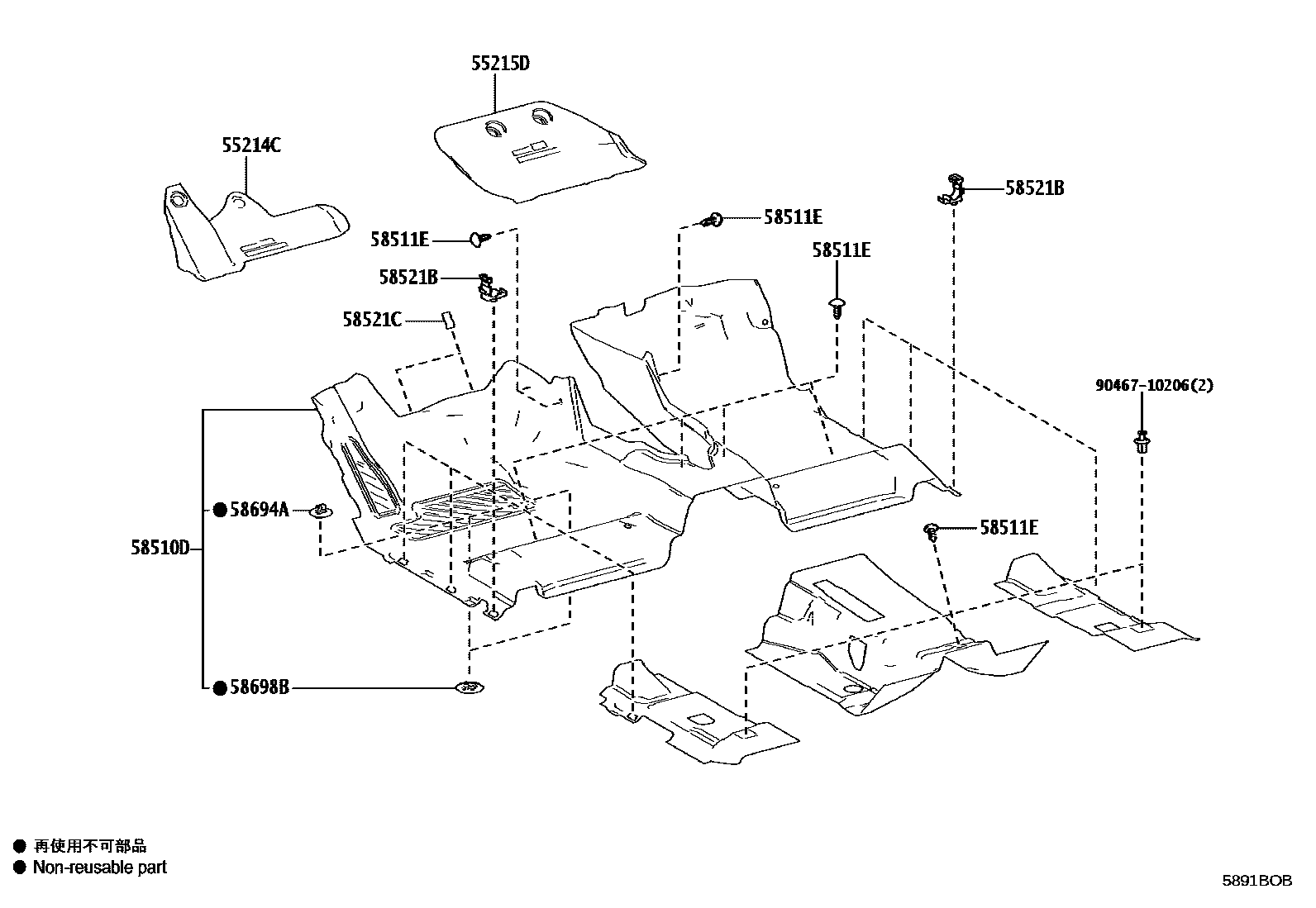

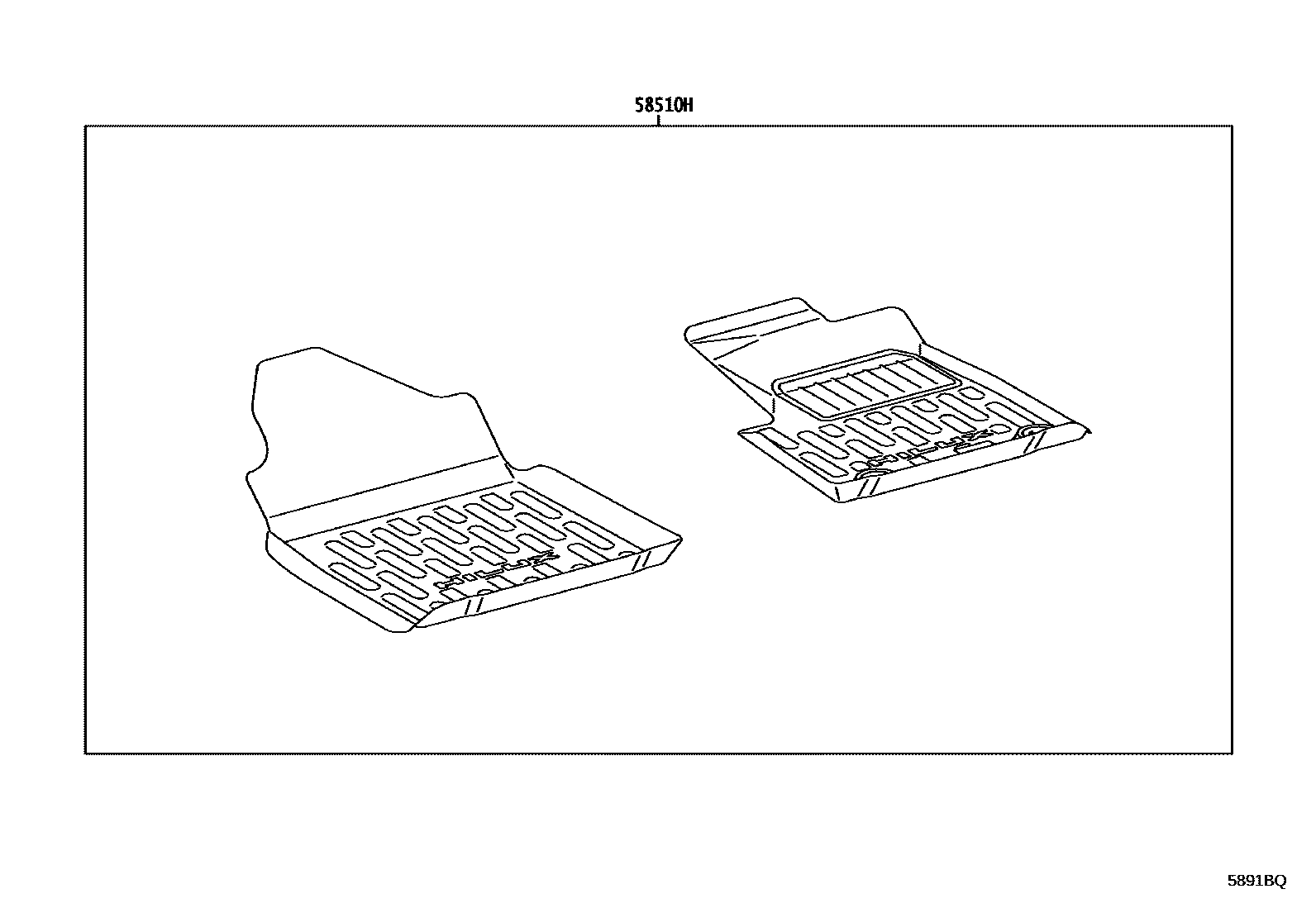

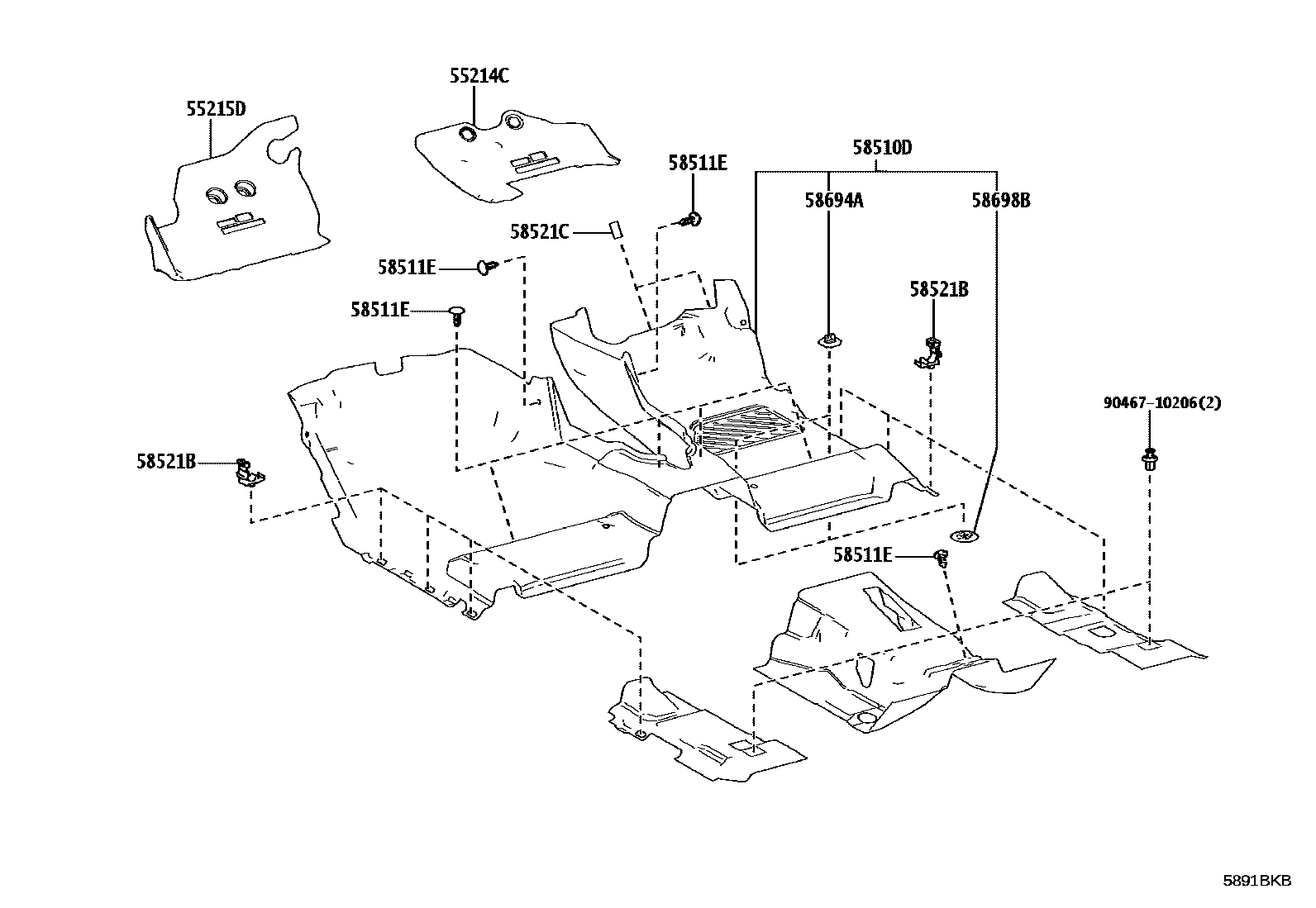

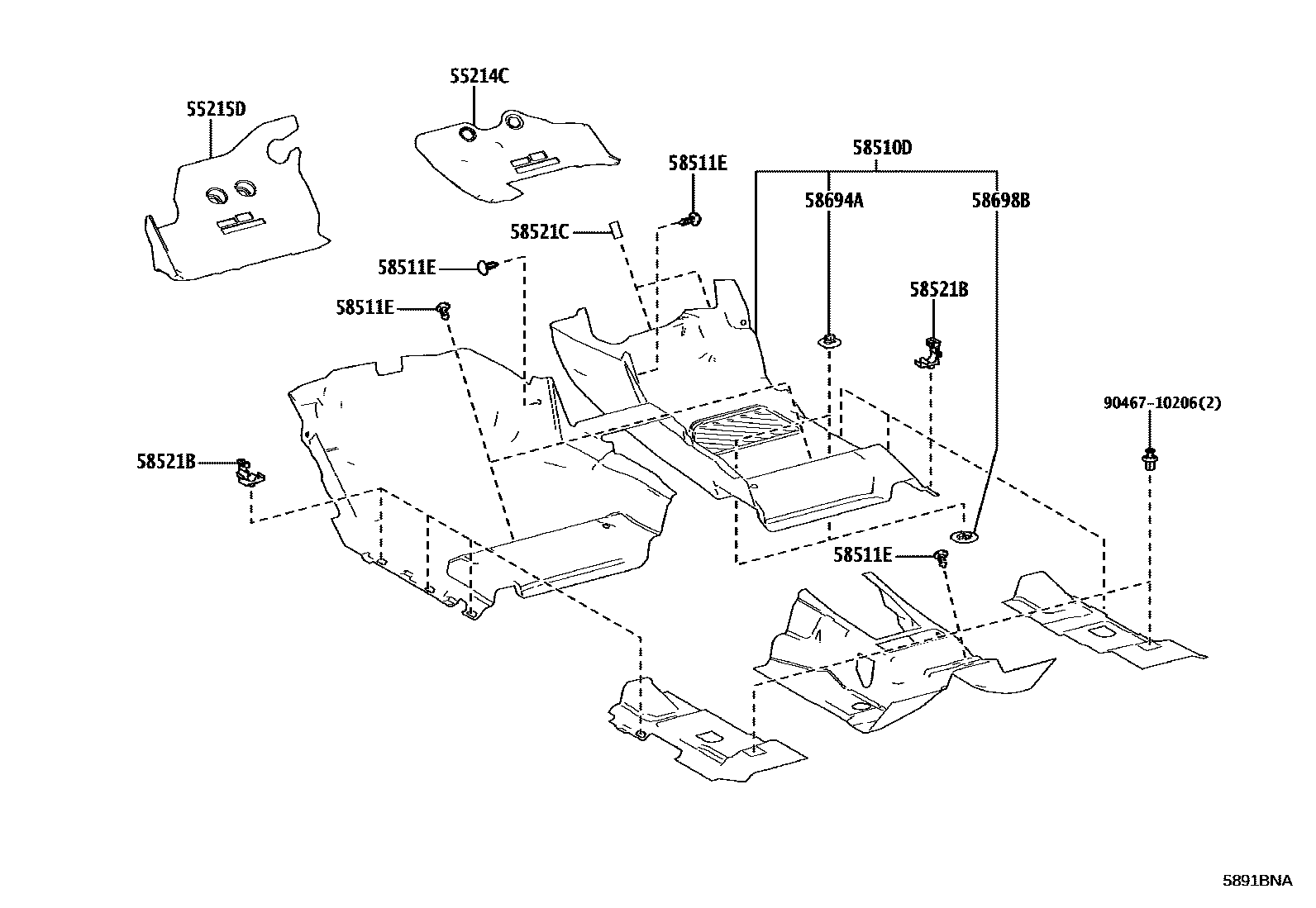

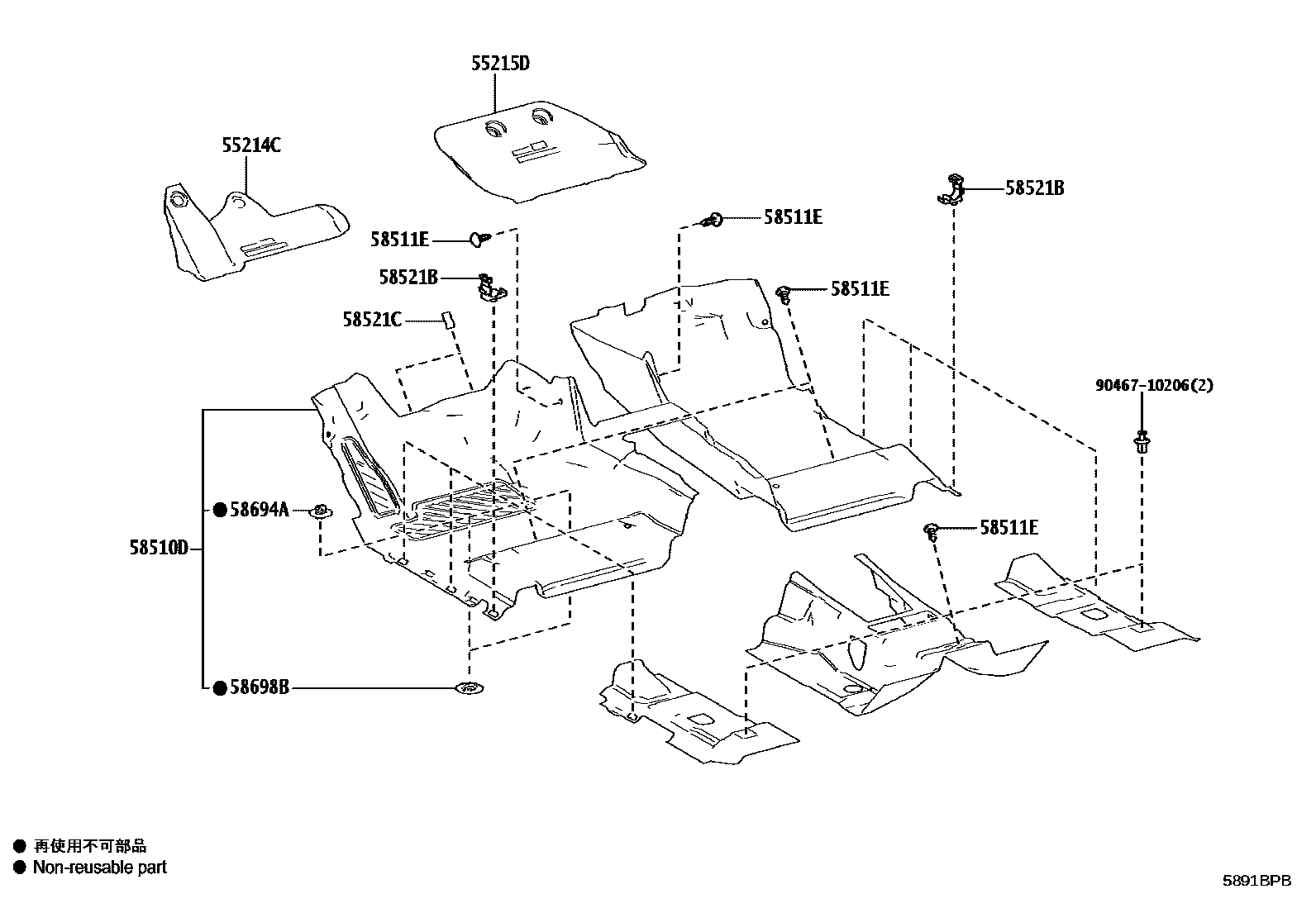

Toyota HILUX EPC diagram 5854, 地板垫和消声垫, with 5 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55214C | No. 2 insulation pad for front wall panel | 55214-KK010 · 55214-KK040 |
| 55215D | No. 3 insulation pad for front wall panel | 55215-KK010 · 55215-KK020 |
| 58521B | carpet hook | 58521-0K120 |
| 58521C | Carpet hook number 2 | 58522-0K010 |
| 58694A | Pad the fixing plate | 58694-0K010 |
| 58698B | Fixing plate under the pad | 58698-0K070 |
