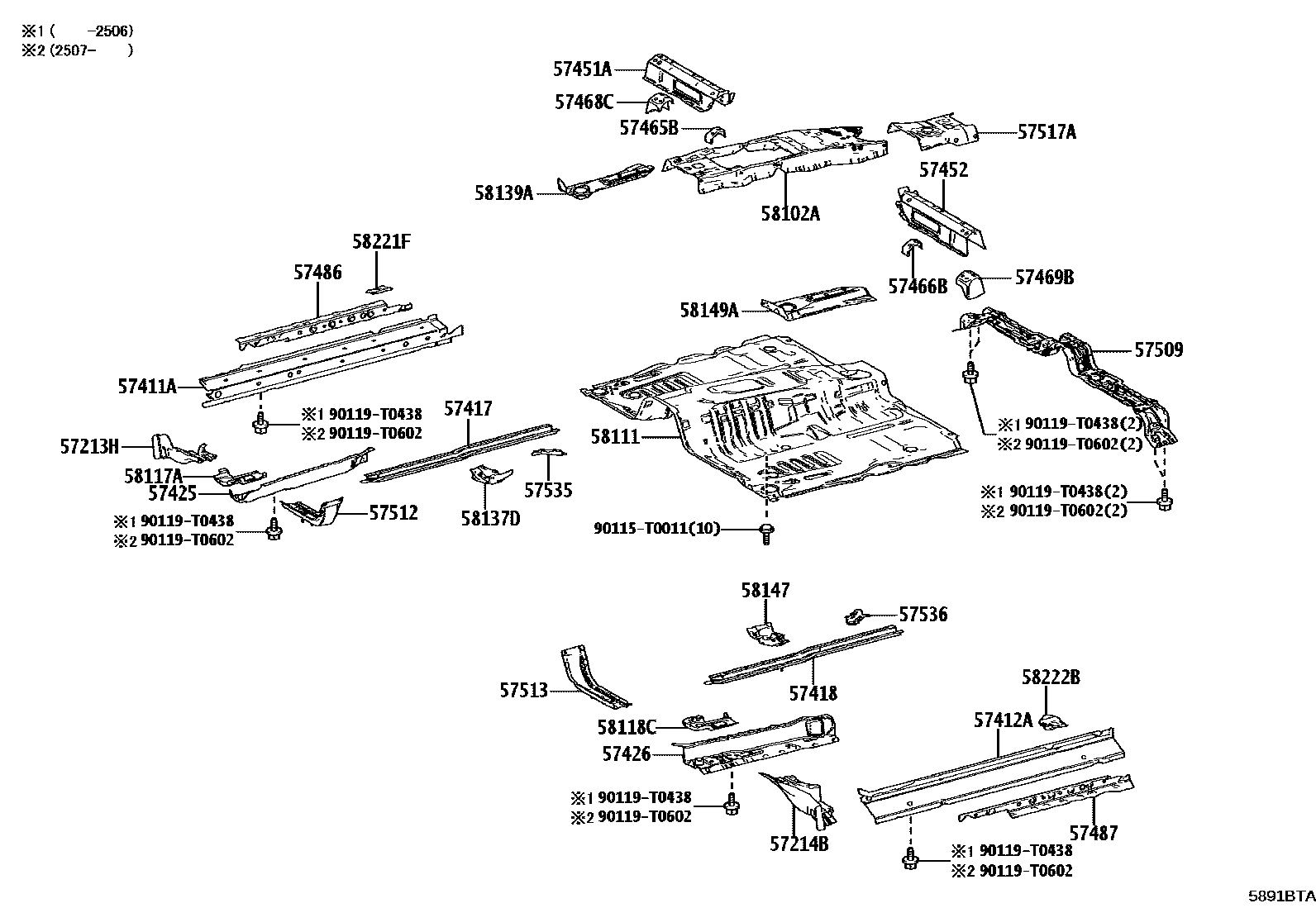

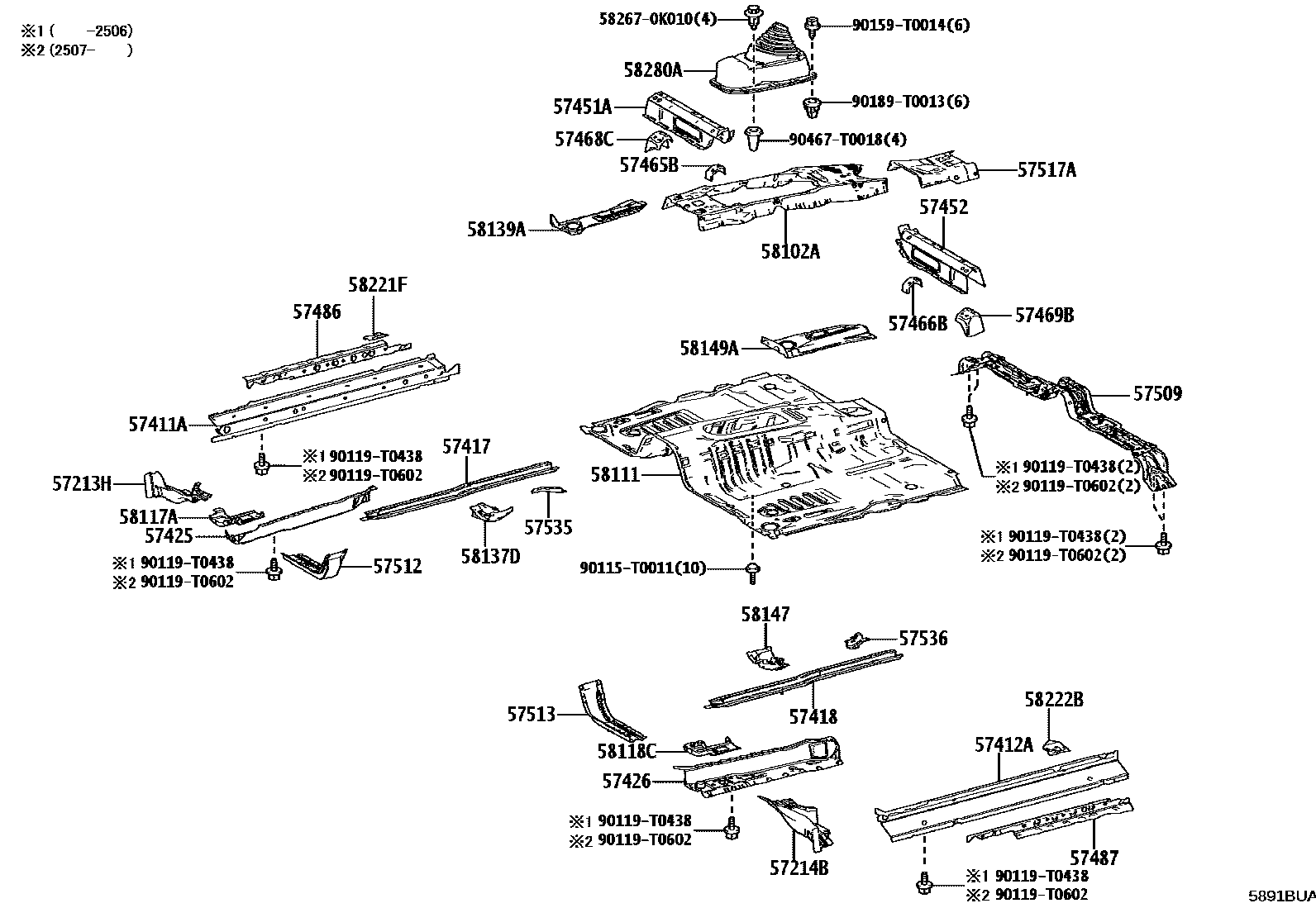

Toyota HILUX 前地板和前地板梁 — Figure 5851
Toyota HILUX EPC diagram 5851, 前地板和前地板梁, with 2 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 57213H | Right body No. 2 mounting bracket | 57213-KK010 |
| 57214B | Left body No. 2 mounting bracket | 57214-KK010 |
| 57411A | Floor right inner longitudinal beam | 57411-KK020 |
| 57412A | Floor left inner longitudinal beam | 57412-KK020 |
| 57417 | Front floor lower right reinforcement | 57417-0K010 |
| 57418 | Front floor lower left reinforcement | 57418-0K011 |
| 57425 | Front floor No. 2 right reinforcement | 57425-KK010 · 57425-KK020 |
| 57426 | Front floor No. 2 left reinforcement | 57426-KK010 · 57426-KK020 |
| 57451A | Front floor right cross member | 57451-KK010 |
| 57452 | Front floor left cross member | 57452-KK010 |
| 57465B | Front seat inner bracket | 57465-KK010 |
| 57466B | Front left seat inner bracket | 57465-KK010 |
| 57468C | Front right seat outer bracket | 57468-KK010 |
| 57469B | Front seat left outer bracket | 57469-KK010 |
| 57486 | Floor No. 1 right longitudinal beam reinforcement | 57486-KK010 |
| 57487 | Floor No. 1 left longitudinal beam reinforcement | 57487-KK010 |
| 57509 | Front floor center reinforcement sub-assembly | 57509-0G010 · 57509-KK010 · 57509-KK011 |
| 57512 | Front floor right reinforcement | 57512-0K030 |
| 57513 | Front floor left reinforcement | 57513-0K010 |
| 57517A | Front floor and rear reinforcement fixings | 57517-KK010 · 57517-KK020 · 57517-KK030 · 57517-KK040 |
| 57535 | Front floor right bracket | 57535-KK010 |
| 57536 | Front floor left bracket | 57536-KK010 |
| 58102A | Front floor reinforcement sub-assembly | 58102-KK010 · 58102-KK020 · 58102-KK030 · 58102-KK040 |
| 58111 | front floor pan | 58111-KK090 · 58111-KK110 · 58111-KK120 · 58111-KK130 |
| 58117A | Front floor right reinforcement | 58117-KK010 |
| 58118C | Front floor left reinforcement | 58118-KK010 |
| 58137D | Front floor shell right front bracket | 58137-KK010 |
| 58139A | Front floor right rear side panel | 58139-KK010 |
| 58147 | Front floor shell left front bracket | 58147-KK010 |
| 58149A | Front floor left rear side panel | 58149-KK010 |
| 58221F | Front floor right front reinforcement | 58221-KK020 |
| 58222B | Front floor left front reinforcement | 58222-KK020 |
| 58280A | Shift lever dust cover assembly | 58280-KK102 · 58280-KK220 · 58280-KK240 |
