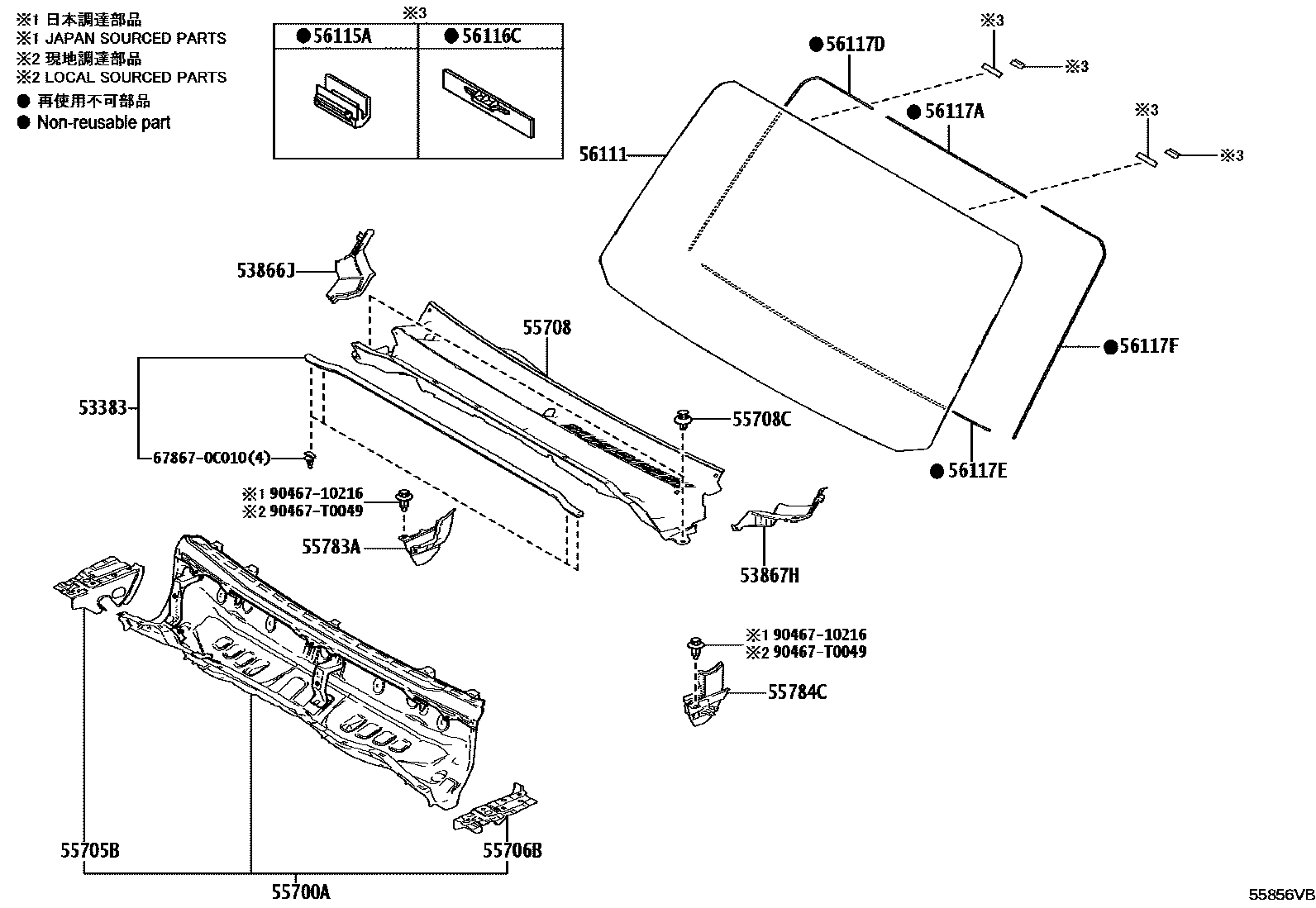

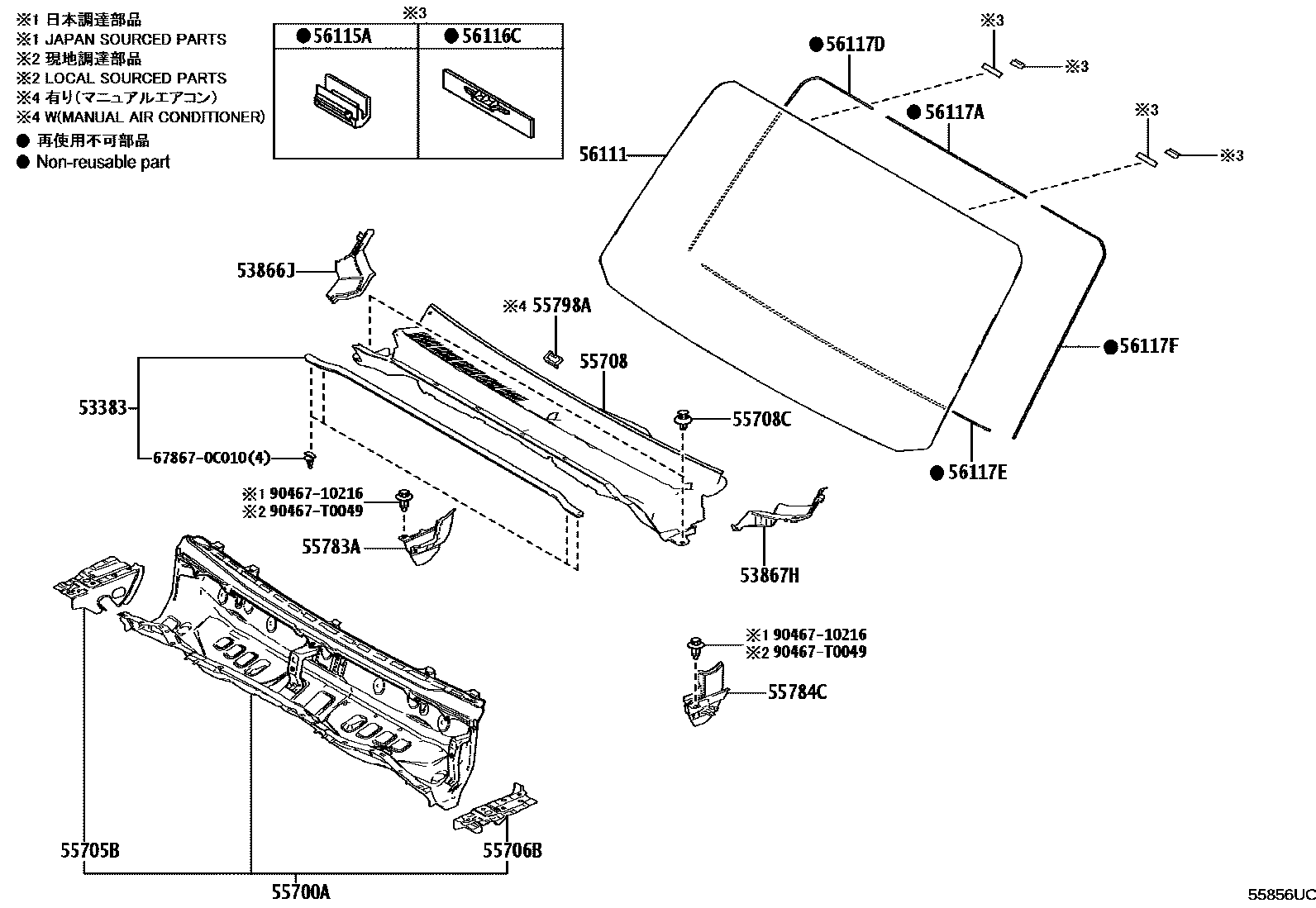

Toyota HILUX 前围板和挡风玻璃 — Figure 5553
Toyota HILUX EPC diagram 5553, 前围板和挡风玻璃, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53383 | Engine cover to cowl upper cover seal | 53383-KK010 |
| 53866J | Right front fender to cowl side seal | 53866-KK010 |
| 53867H | Left front fender to cowl side seal | 53867-KK010 |
| 55700A | Front cowl upper cover assembly | 55700-KK070 · 55700-KK080 · 55700-KK110 |
| 55705B | Right front wall upper side panel sub-assembly | 55705-KK020 |
| 55706B | Left front wall upper side panel sub-assembly | 55706-KK020 |
| 55708 | Ventilation grille sub-assembly on front apron | 55708-KK010 · 55708-KK020 · 55708-KK050 |
| 55708C | Ventilation grille clips on front apron | 90467-07215 · 90467-T0050 |
| 55783A | Front cowl upper cover silencer pad | 55783-KK010 |
| 55784C | Left front wall upper cover muffler pad | 55784-KK010 |
| 55798A | Front water pump seal bracket | 55798-0K010 |
| 56111 | windshield | 56101-0KR80 · 56101-0KR90 · 56101-F0720 |
| 56115A | Windshield block No. 1 | 56115-30100 |
| 56116C | Windshield block 2 | 56116-22050 |
| 56117A | Window glass adhesive seals | 56117-KK080 |
| 56117D | windshield adhesive seal | 56117-KK090 |
| 56117E | Window glass adhesive seals | 56117-KK100 |
| 56117F | Window glass adhesive seals | 56117-KK120 |
