Toyota HILUX 仪表板和手套箱 — Figure 5551

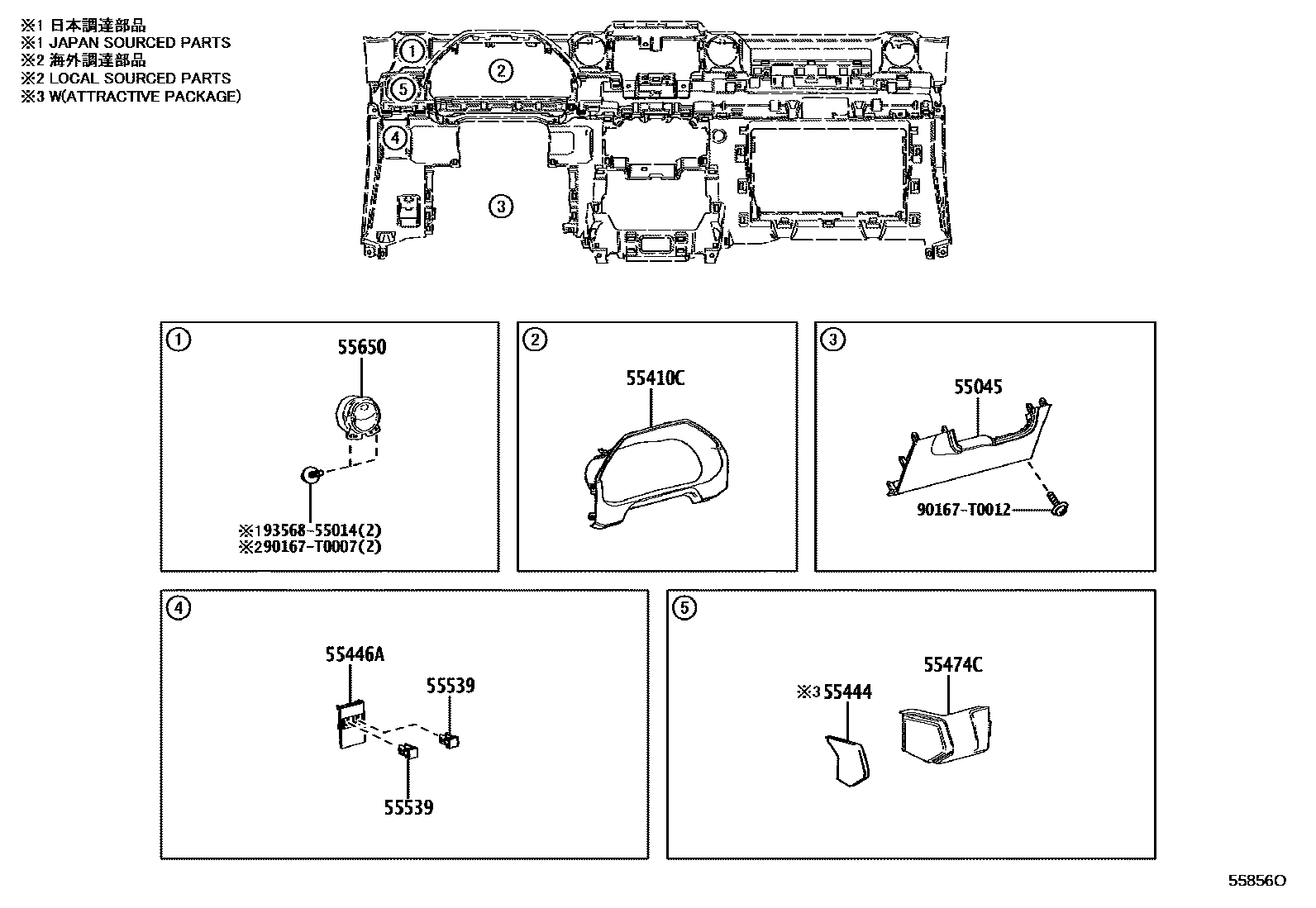

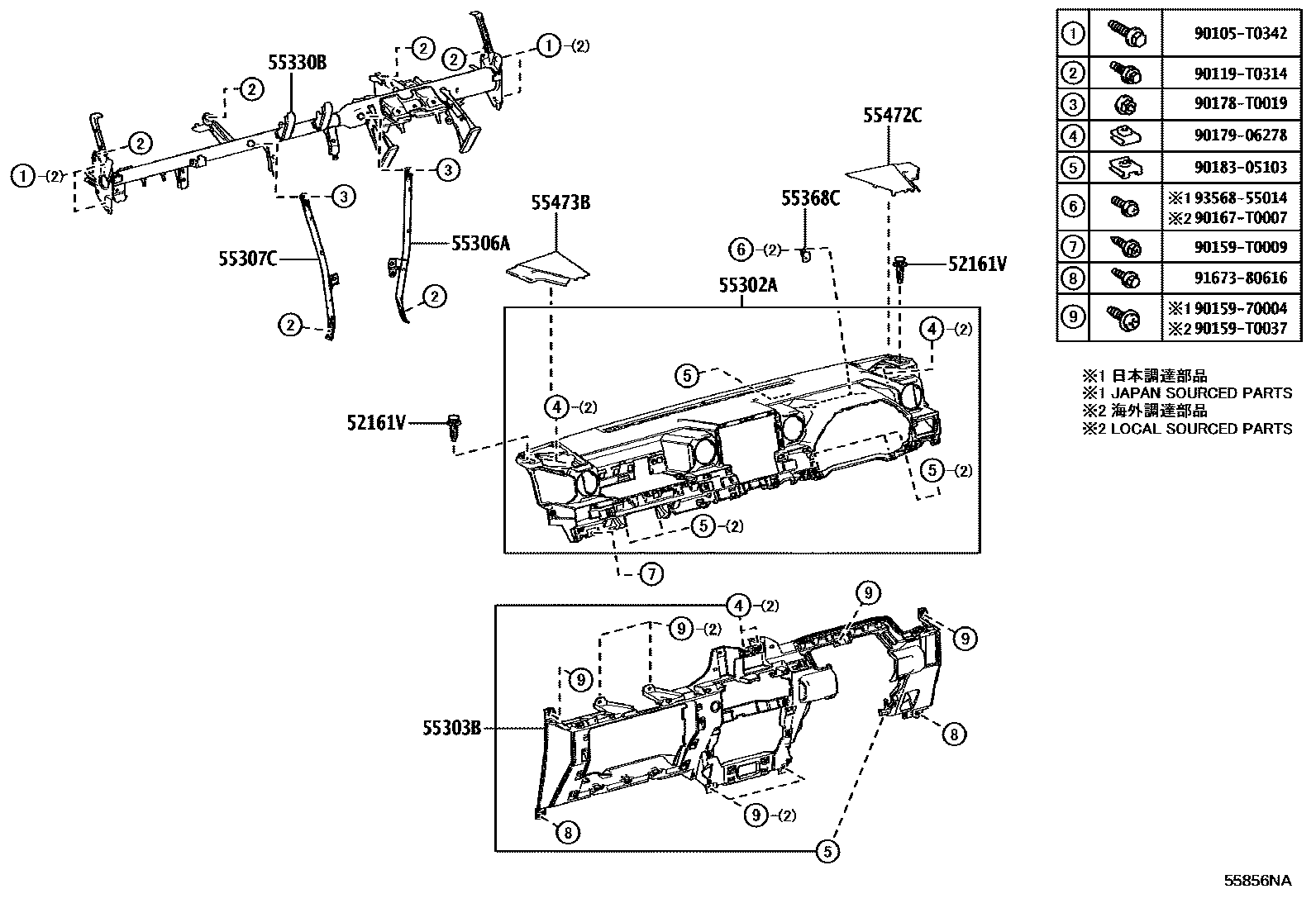

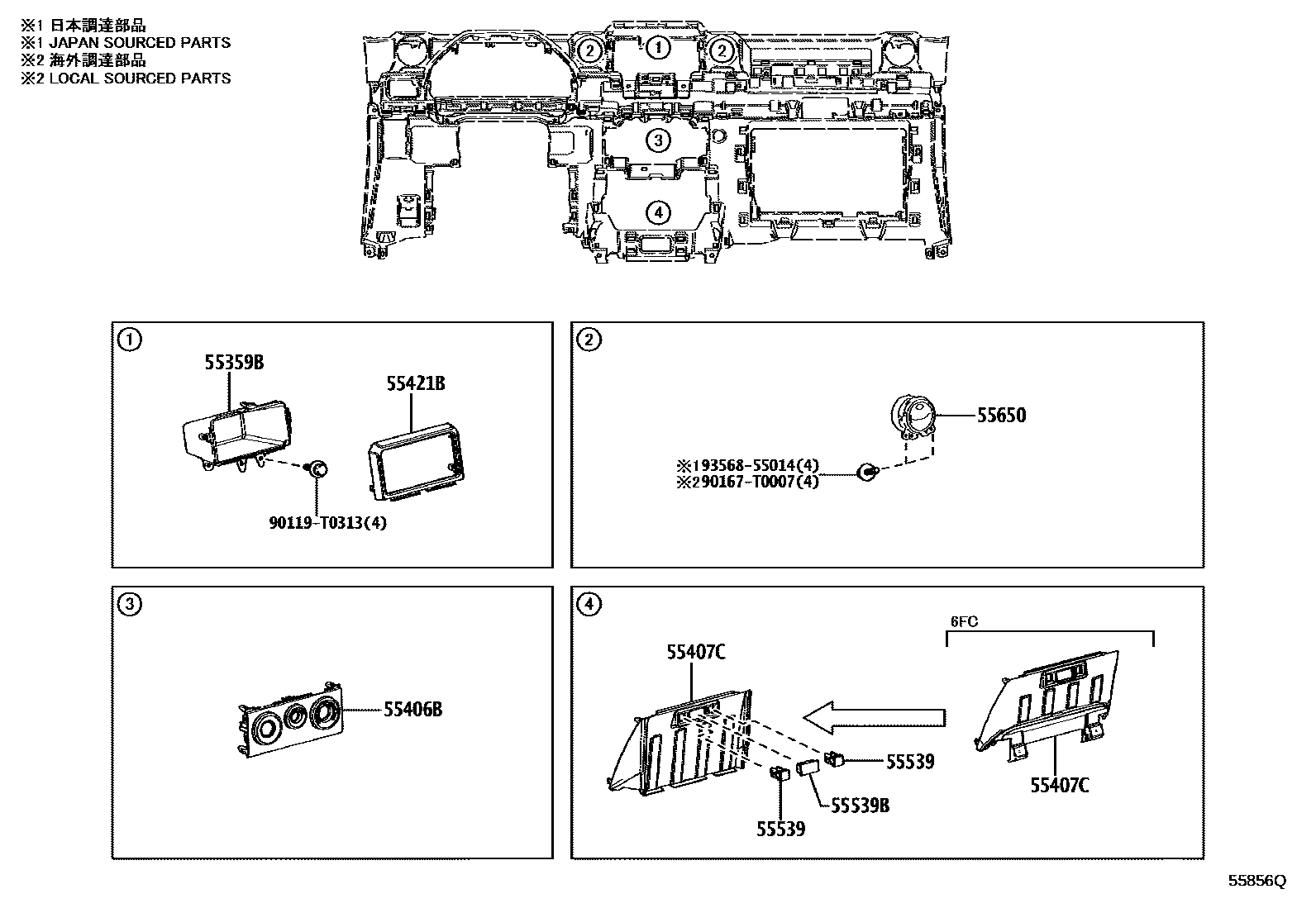

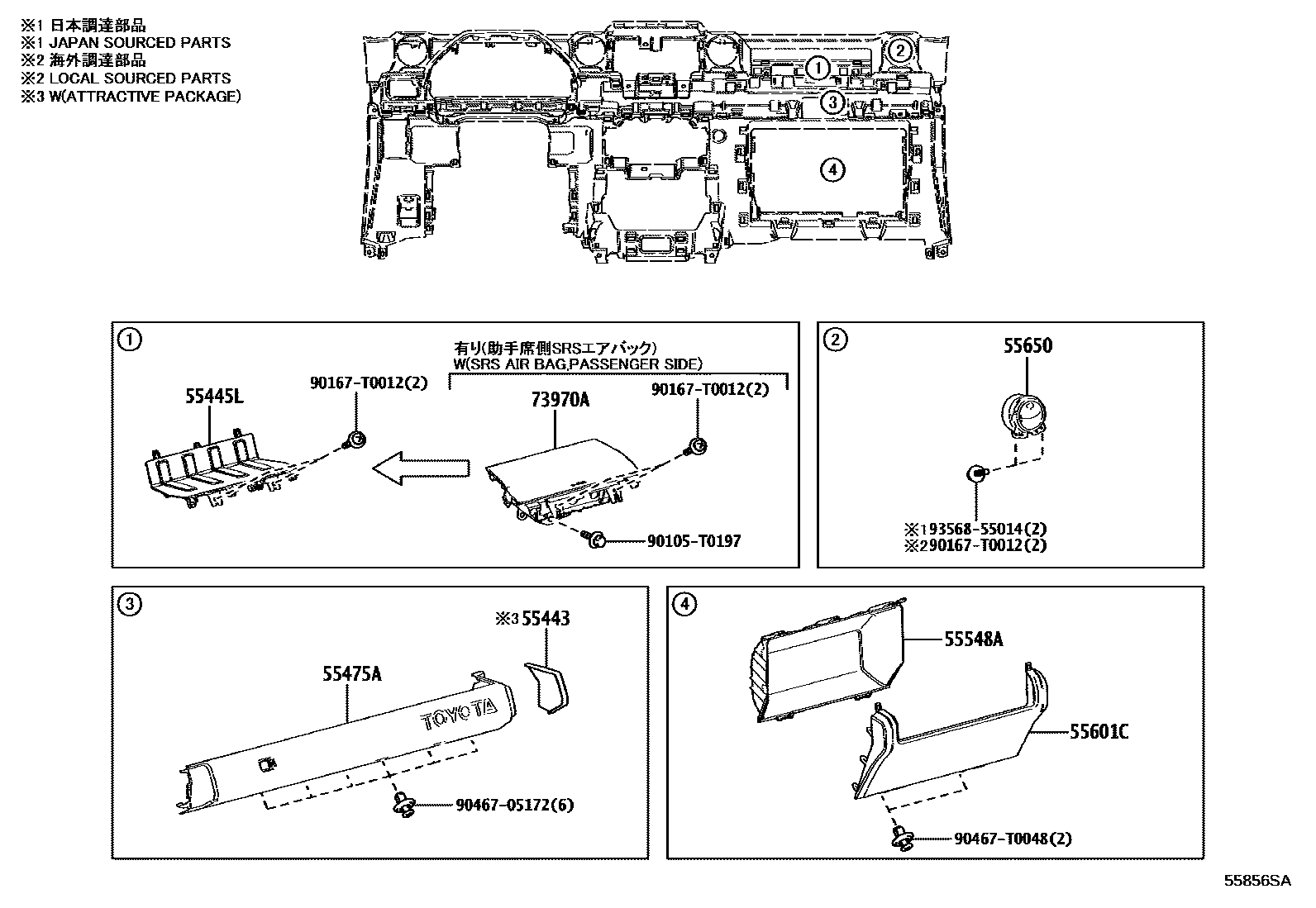

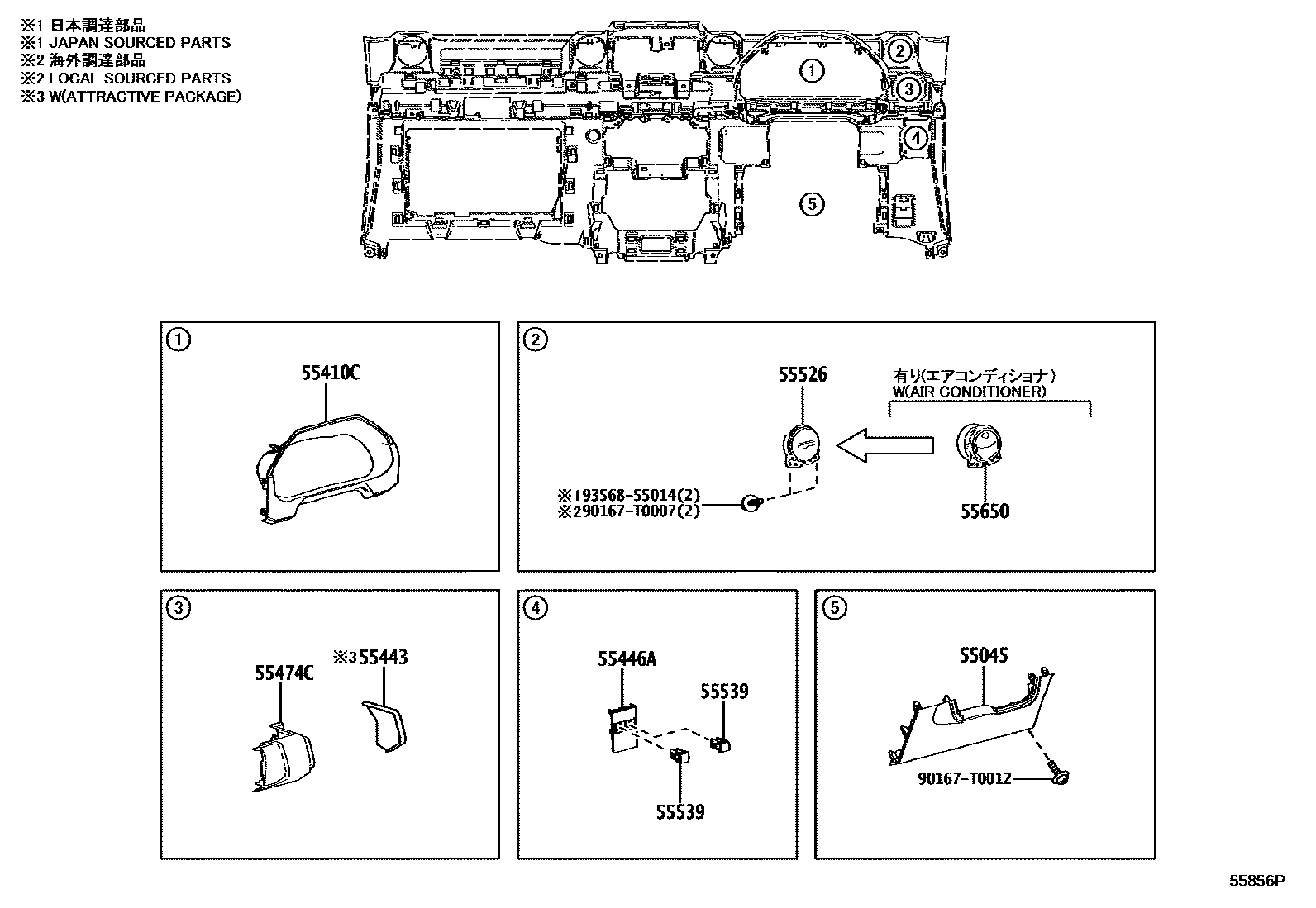

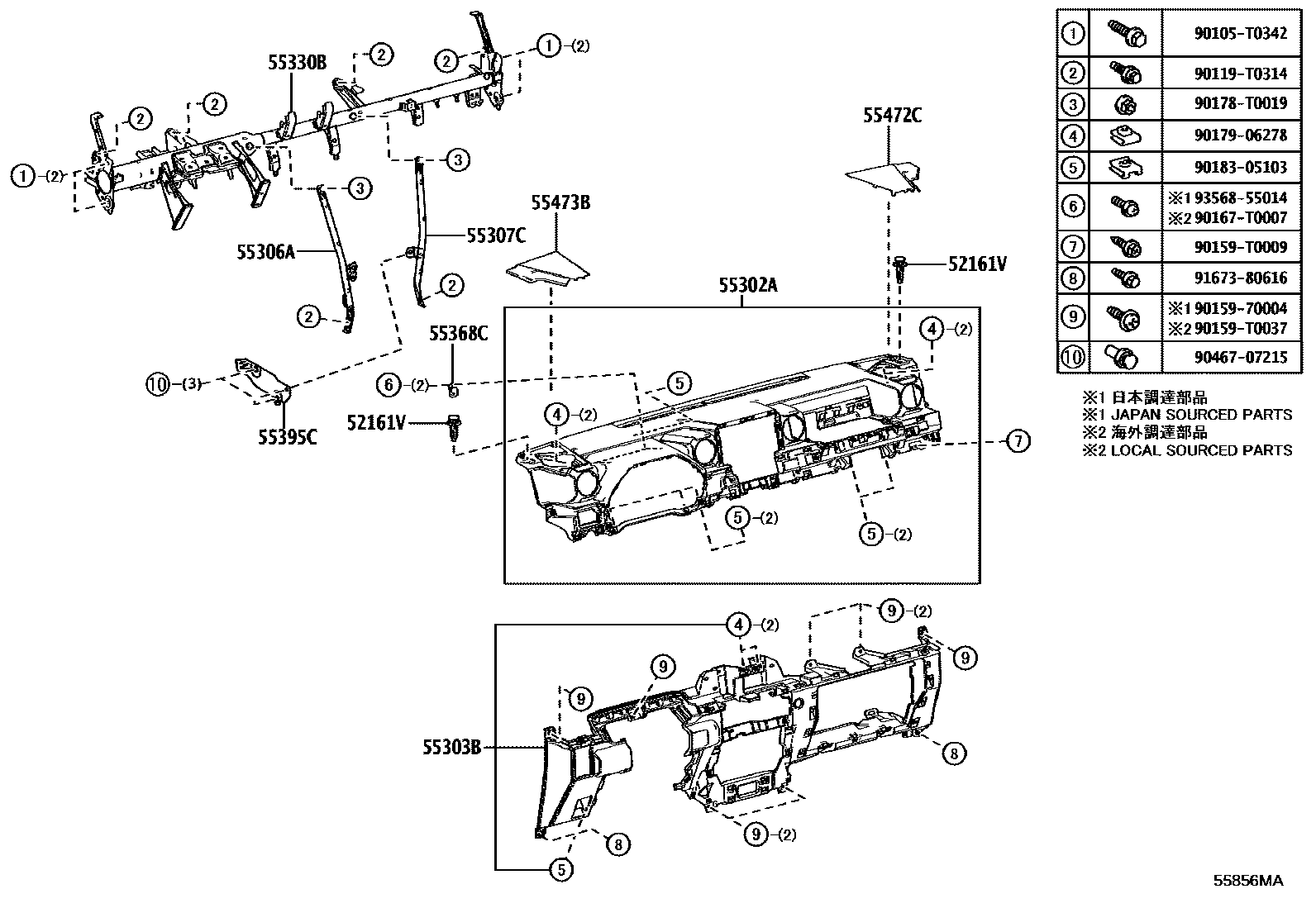

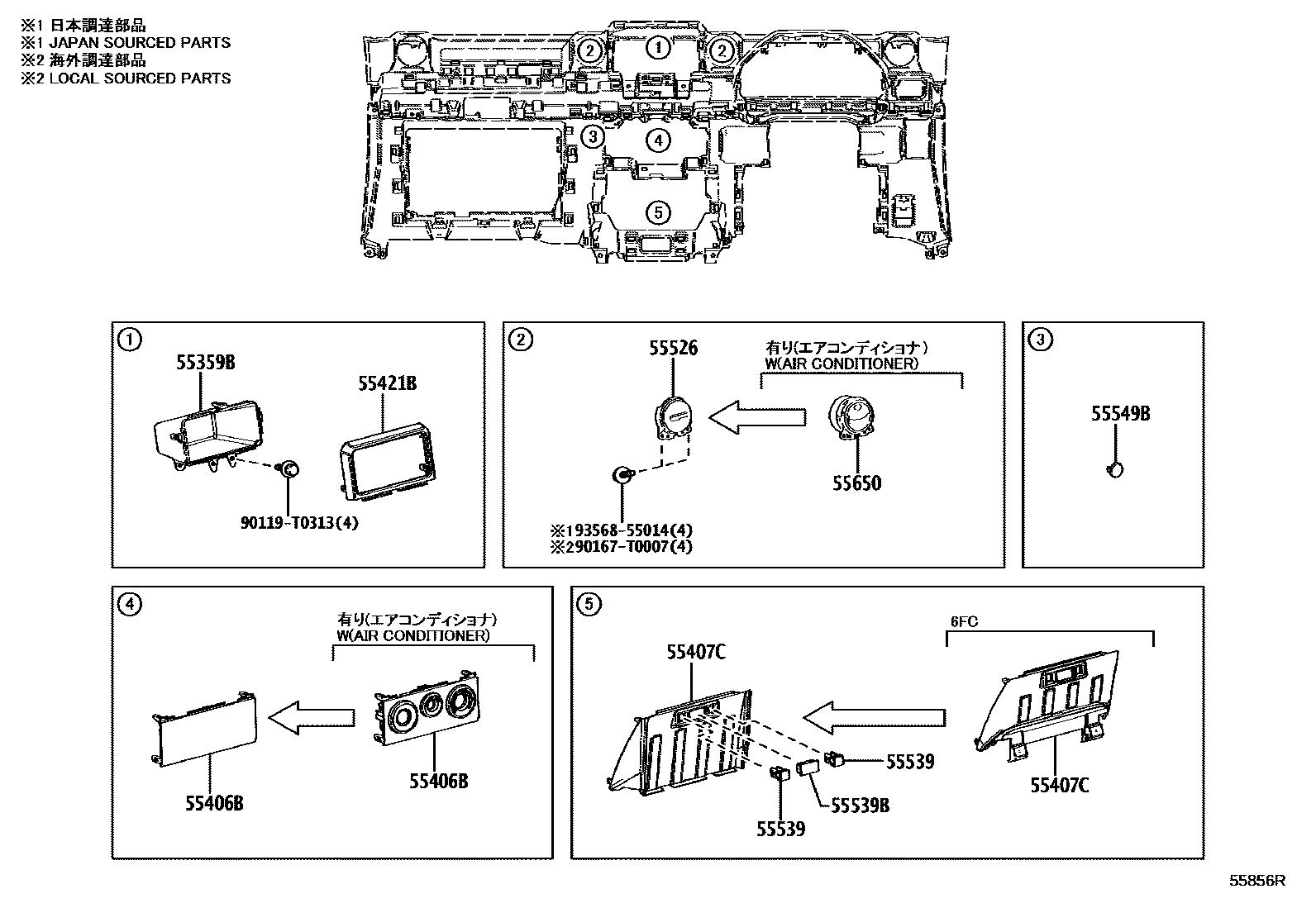

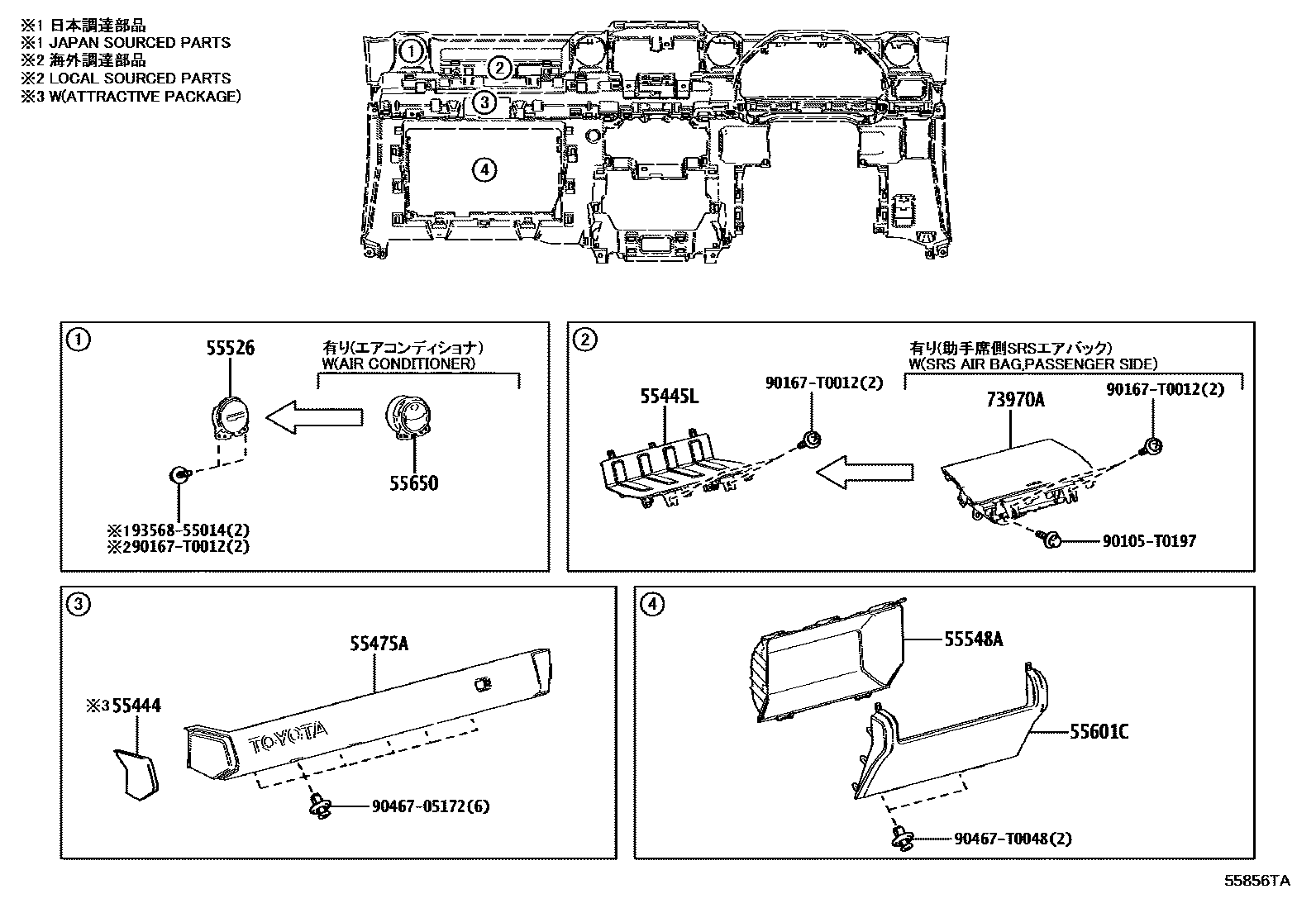

Toyota HILUX EPC diagram 5551, 仪表板和手套箱, with 8 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52161V | instrument panel insert | 52161-0K040 · 52161-16010 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-0K070 · 55306-0K080 · 55306-0K090 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55307-0K010 · 55307-0K020 · 55307-0K030 |
| 55330B | Instrument panel reinforcement assembly | 55330-0K470 · 55330-0K480 · 55330-0K490 · 55330-0K500 · 55330-0K510 · 55330-0K630 · 55330-0K640 |
| 55368C | Instrument mounting bracket | 55368-0K040 |
| 55395C | Instrument panel No. 1 left inner bracket cover | 55395-KK010 |
| 55443 | Decorative part on the right side of the instrument panel | 5547A-YY010 |
| 55444 | Instrument panel left trim | 5547B-YY010 |
| 55526 | Dashboard air register opening cover | 55526-0K010 |
| 55539 | Spare switch hole cover | 55539-06130 |
| 55650 | No. 1 air regulator assembly on instrument panel | 55650-0K230 · 55650-0K240 |
