Toyota HILUX 前翼子板挡泥板和前围板 — Figure 5355

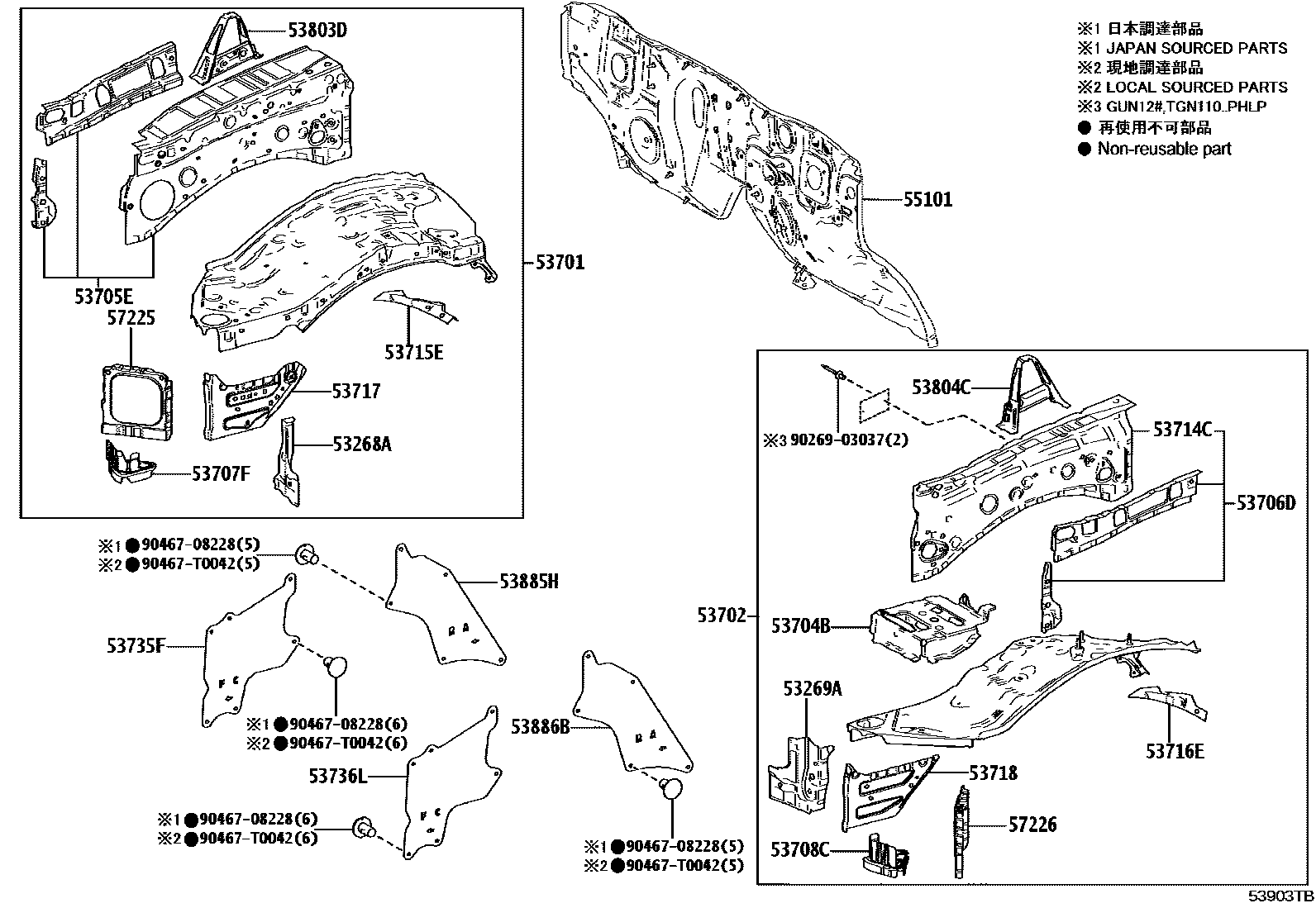

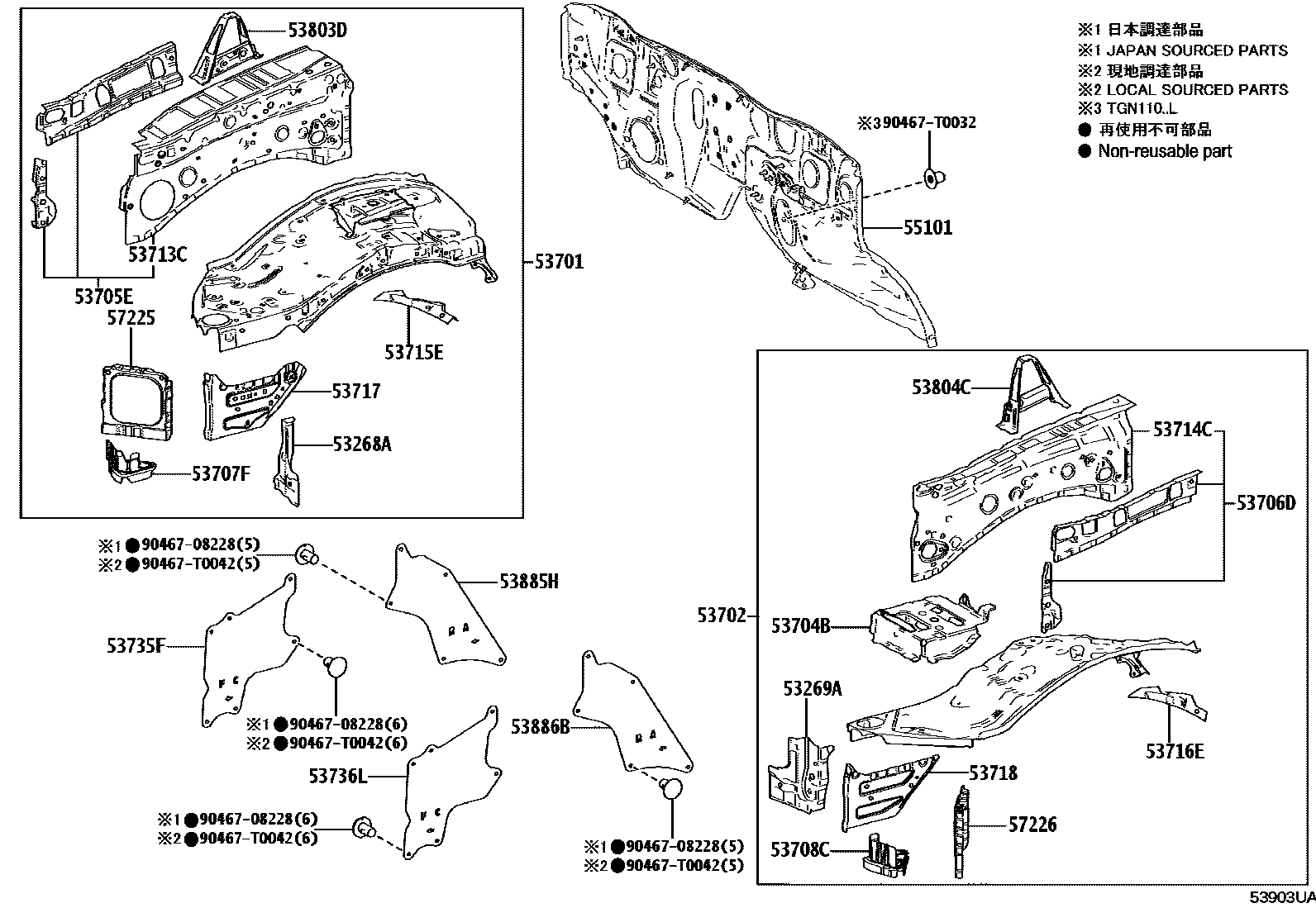

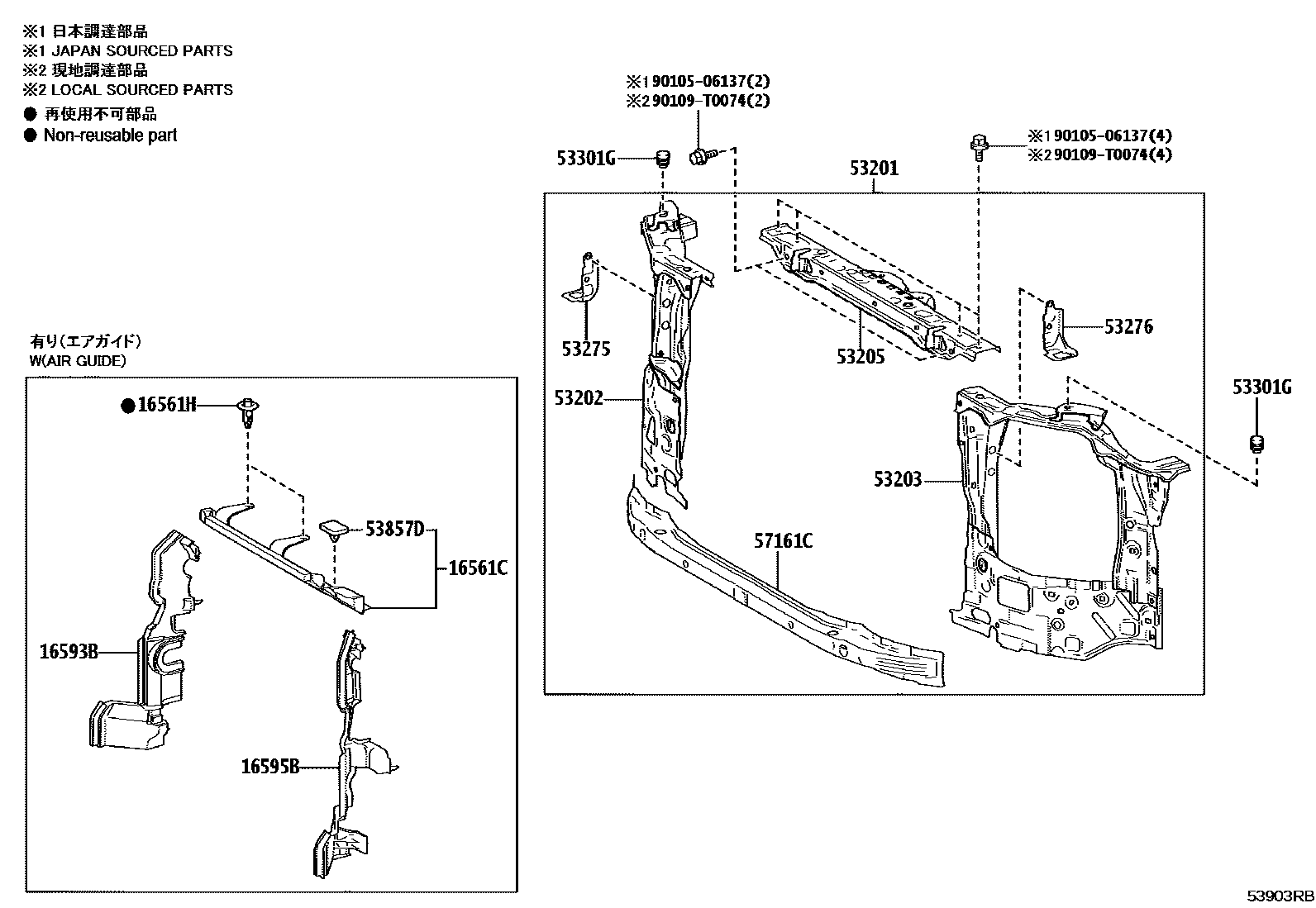

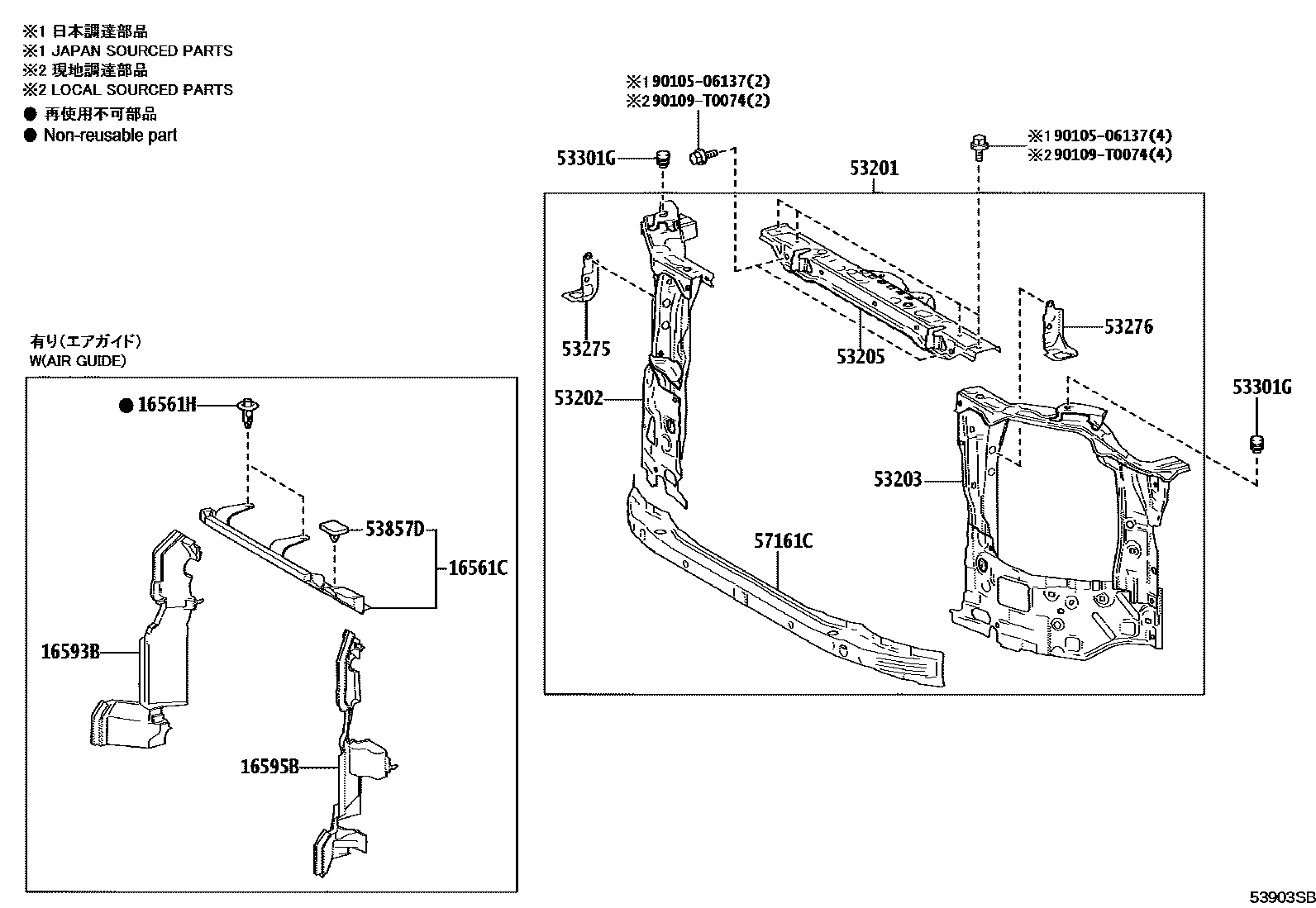

Toyota HILUX EPC diagram 5355, 前翼子板挡泥板和前围板, with 4 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16561C | Seal No. 1 (radiator to bracket) | 16561-0C020 |
| 16593B | No. 1 radiator right deflector | 16593-0C010 · 16593-0E020 |
| 16595B | No. 1 radiator left deflector | 16595-0C010 · 16595-0E010 |
| 53201 | Radiator bracket sub-assembly | 53201-KK090 |
| 53202 | Radiator right side bracket sub-assembly | 53202-KK030 |
| 53203 | Radiator left bracket sub-assembly | 53203-KK030 |
| 53205 | Radiator upper bracket sub-assembly | 53205-KK060 |
| 53268A | Install reinforcement on the right side of the radiator | 53268-KK010 |
| 53269A | Install reinforcement on the left side of the radiator | 53269-KK010 |
| 53275 | No. 1 right headlight lampshade mounting bracket | 53275-KK030 |
| 53276 | No. 1 left headlight cover mounting bracket | 53276-KK020 |
| 53301G | engine cover cushion | 90541-15037 |
| 53701 | Right front fender fender sub-assembly | 53701-KK630 · 53701-KK640 |
| 53702 | Left front fender fender sub-assembly | 53702-KK260 · 53702-KK270 |
| 53704B | Battery left side bracket sub-assembly | 53704-KK020 |
| 53705E | Front fender to front wall right side beam sub-assembly | 53705-KK010 |
| 53706D | Front fender to front wall left side beam sub-assembly | 53706-KK010 |
| 53707F | Right front fender fender lower corner plate sub-assembly | 53707-KK010 |
| 53708C | Left front fender fender lower corner plate sub-assembly | 53708-KK010 |
| 53713C | Right front fender fender front extension | 53713-KK050 |
| 53714C | Left front fender fender front extension | 53714-KK040 |
| 53715E | Right front fender fender rear extension | 53715-0K030 |
| 53716E | Left front fender fender rear extension | 53716-0K030 |
| 53717 | Right fender fender side panel | 53717-KK010 |
| 53718 | Left fender fender side panel | 53718-KK010 |
| 53735F | Front fender upper right seal | 53735-KK030 |
| 53736L | Front fender upper left seal | 53735-KK030 |
| 53803D | SOUS-ENS. PLAT. FIX. PANNEAU LAT. AVANT DROIT | 53803-KK010 |
| 53804C | SOUS-ENS DE SUPPORT, PANNEAU LATERAL AVANT, GA | 53804-KK020 |
| 53857D | ARRETOIR, RADIATEUR/JOINT SUPPORT | 53857-12010 |
| 53885H | Right fender fender seal | 53885-KK010 |
| 53886B | Left fender fender seal | 53885-KK010 |
| 55101 | Front apron sub-assembly | 55101-KK220 · 55101-KK230 · 55101-KK250 · 55101-KK271 · 55101-KK291 |
| 57161C | front cross member | 57161-KK030 |
| 57225 | Right front mounting bracket | 57225-KK010 |
| 57226 | Left front mounting bracket | 57226-KK010 |
