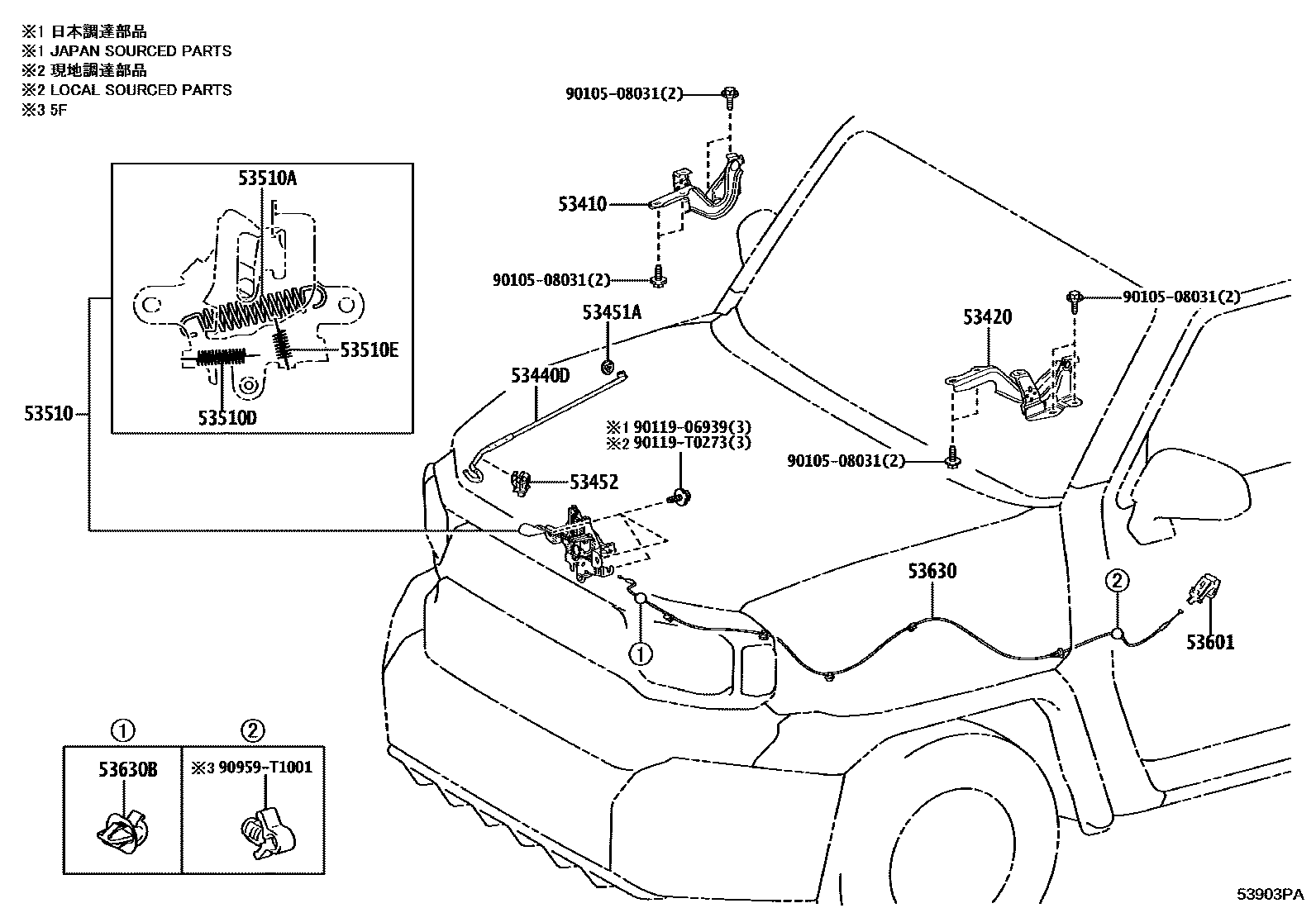

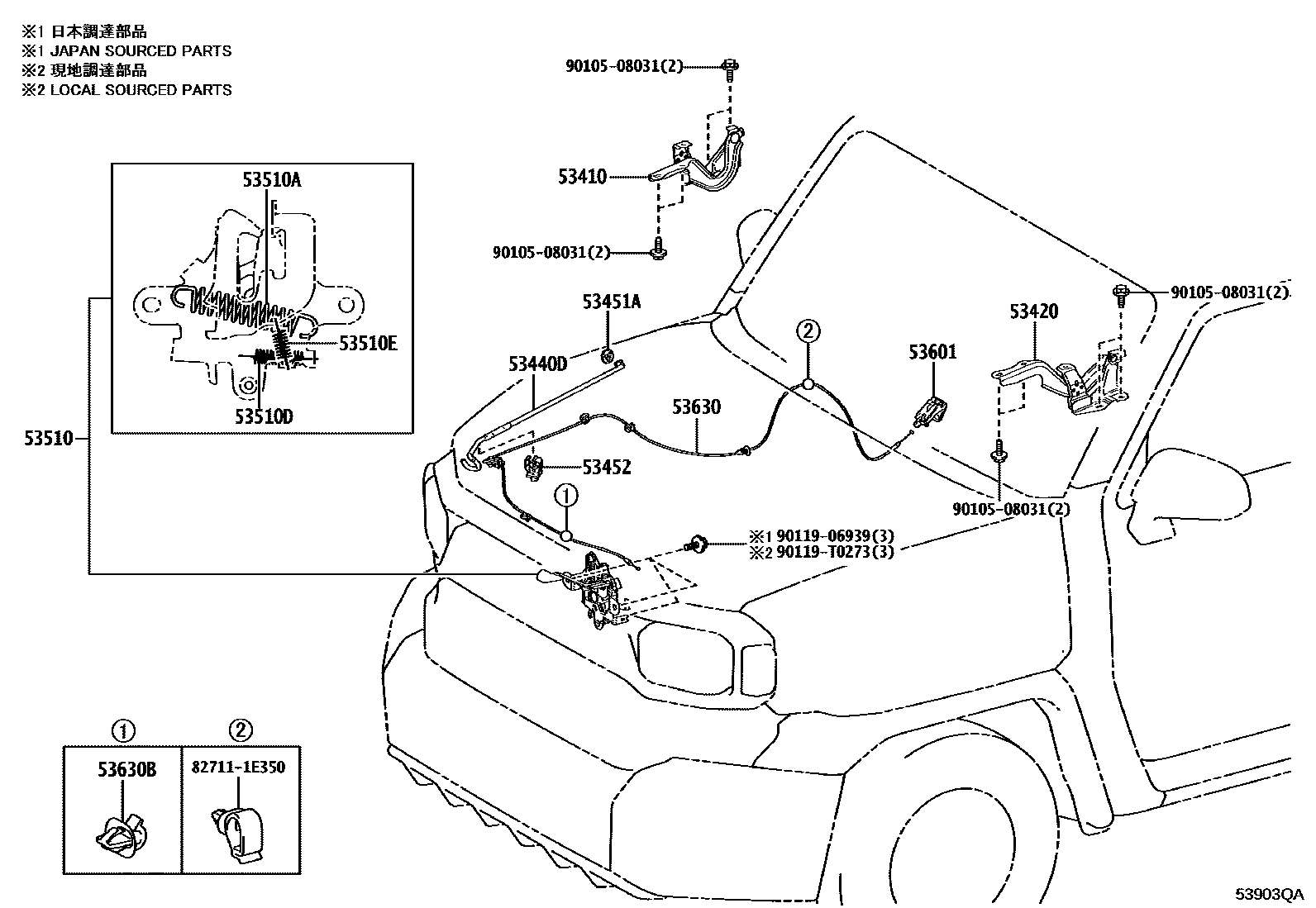

Toyota HILUX 发动机盖锁和铰链 — Figure 5354
Toyota HILUX EPC diagram 5354, 发动机盖锁和铰链, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53410 | Engine cover right hinge assembly | 53410-KK010 |
| 53420 | Engine cover left hinge assembly | 53420-KK010 |
| 53440D | Engine cover support rod assembly | 53440-KK010 |
| 53451A | Gasket (for engine cover support rod) | 90480-T0006 |
| 53452 | Engine cover stay rod fixing | 53452-26020 |
| 53510 | Engine cover lock assembly | 53510-KK010 · 53510-KK020 |
| 53510A | Tension spring (for hood lock) | 90506-18067 |
| 53510D | Tension spring (for hood lock) | 90506-T0004 |
| 53510E | Tension spring (for hood lock) | 90506-T0005 |
| 53630 | Engine hood lock control cable assembly | 53630-0K430 · 53630-0K440 |
| 53630B | Clip (for hood lock control cable) | 90469-T0003 |
