Toyota HILUX 前保险杠及附件 — Figure 5252

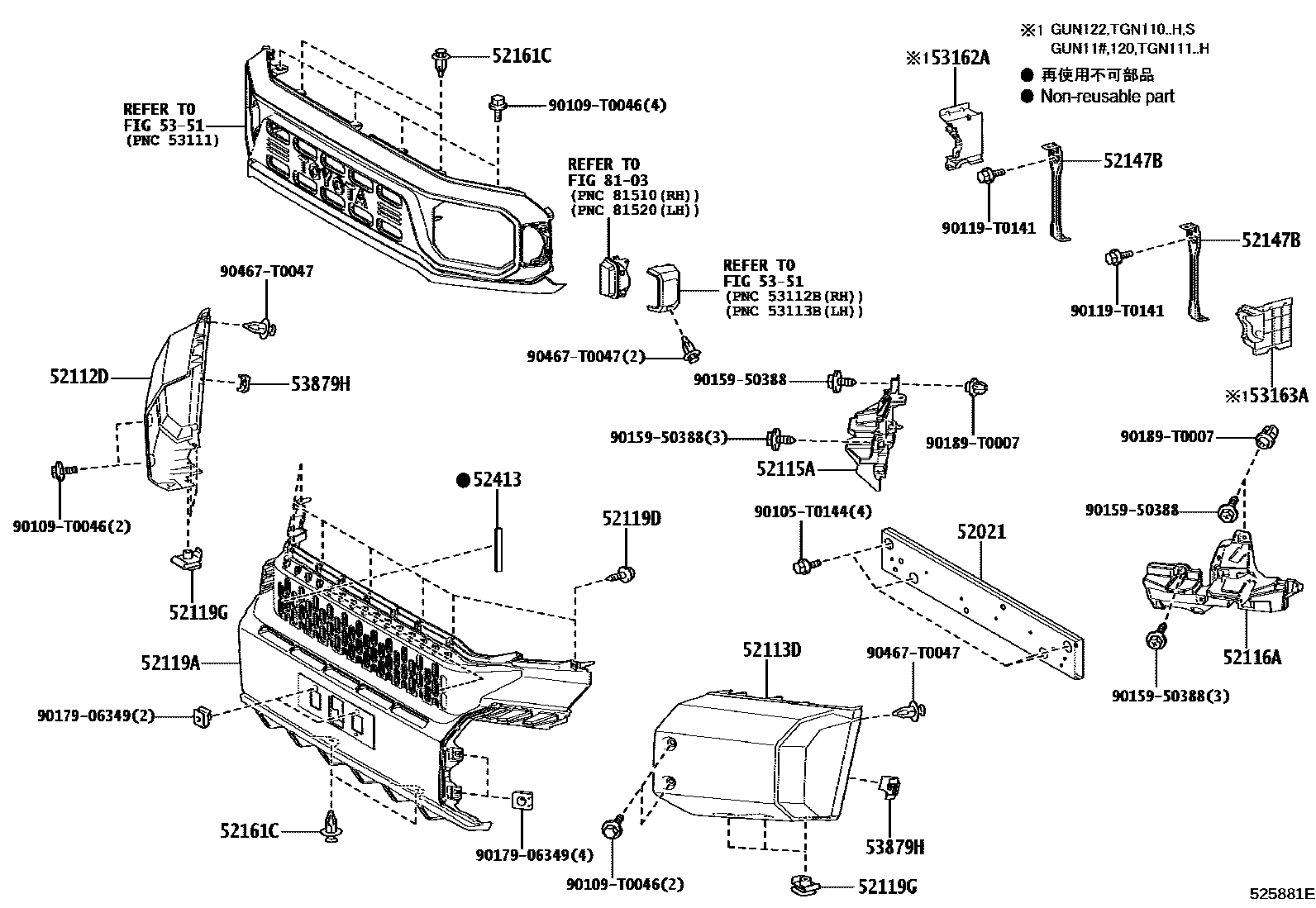

Toyota HILUX EPC diagram 5252, 前保险杠及附件, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52021 | Front bumper reinforcement sub-assembly | 52021-KK030 |
| 52112D | Front bumper right extension | 52112-0K320 · 52112-0K430 |
| 52113D | Front bumper left extension | 52113-0K320 · 52113-0K410 |
| 52115A | Front bumper right side bracket | 52115-0K160 |
| 52116A | Front bumper left bracket | 52116-0K160 |
| 52119A | front bumper cover | 52119-0KC50 · 52119-0KD10 |
| 52119D | Screw No. 1 | 90167-50063 |
| 52119G | No. 1 clip | 90467-05114 |
| 52147B | Front bumper mounting bracket | 52147-0K130 |
| 52161C | front bumper insert | 52161-0K040 |
| 52413 | Front bumper anti-collision bar liner | 52413-0K010 |
| 53162A | Front bumper right side baffle | 53162-KK010 |
| 53163A | Front bumper left side baffle | 53163-KK010 |
| 53879H | Front fender lining fixing parts | 53879-50020 |
