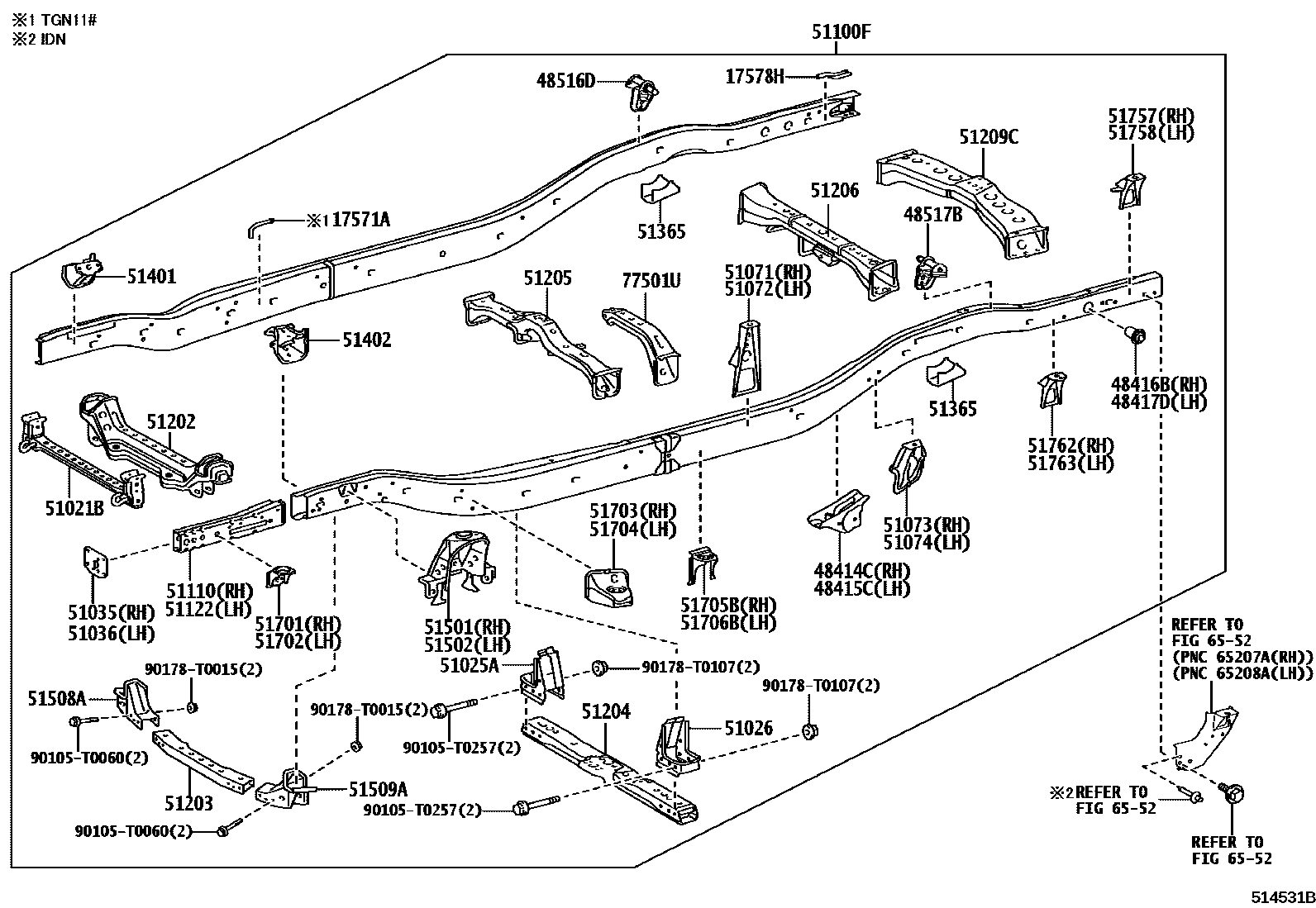

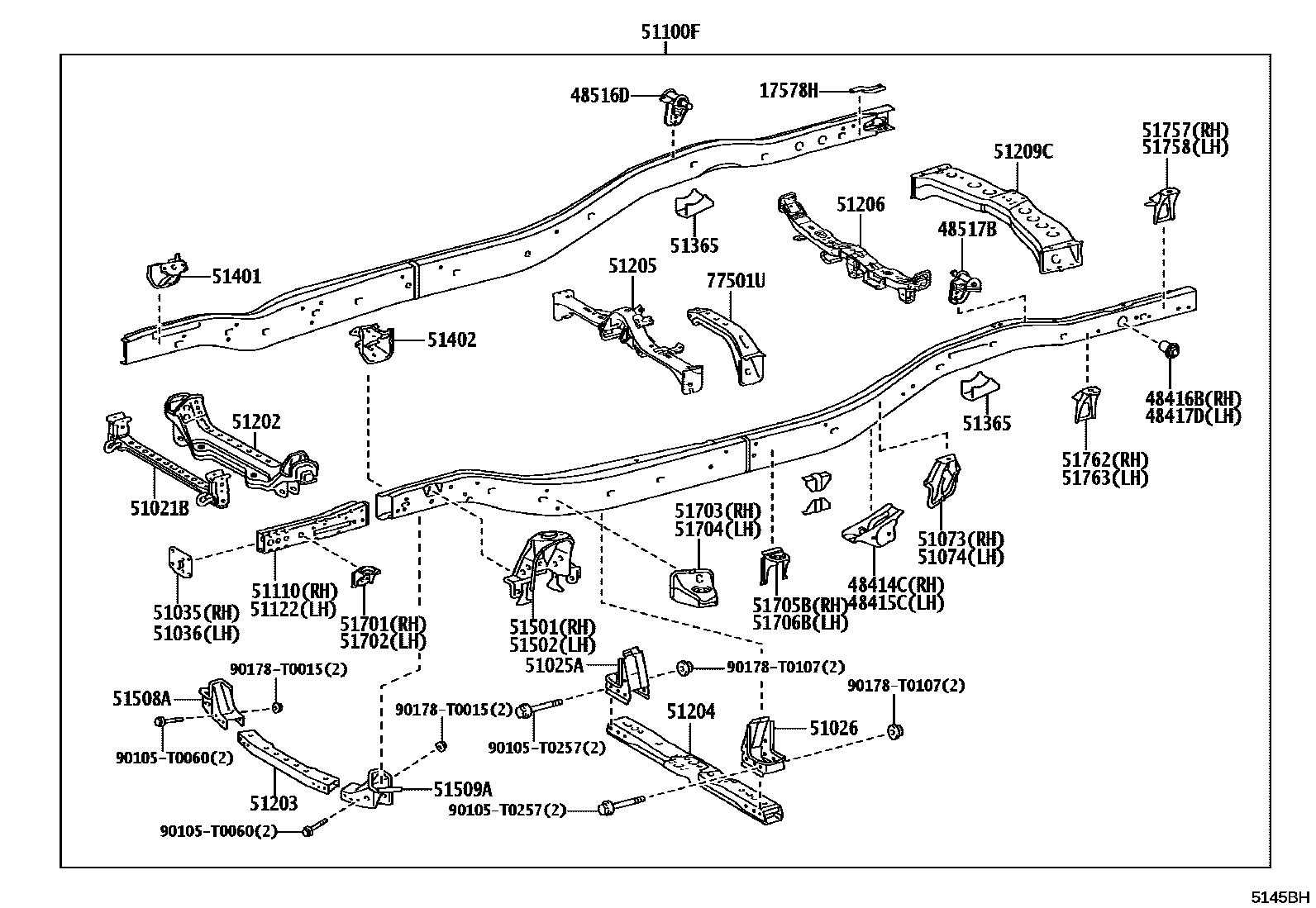

Toyota HILUX 车架 — Figure 5151
Toyota HILUX EPC diagram 5151, 车架, with 3 images and 46 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17571A | No. 9 exhaust pipe bracket | 17571-0L010 |
| 17578H | No. 10 exhaust pipe bracket | 17505-0L020 |
| 48414C | Right No. 3 spring bracket | 48404-KK030 |
| 48415C | No. 3 spring bracket on the left | 48407-KK030 |
| 48416B | Right No. 4 spring bracket | 48405-KK010 |
| 48417D | No. 4 spring bracket on the left | 48405-KK010 |
| 48516D | Right rear shock absorber upper bracket sub-assembly | 48505-KK030 |
| 48517B | Left rear shock absorber upper bracket sub-assembly | 48506-KK030 |
| 51021B | Frame auxiliary cross member sub-assembly | 51021-KK011 · 51021-KK030 · 51021-KK031 |
| 51025A | Frame No. 3 beam right side bracket sub-assembly | 51025-KK010 |
| 51026 | Frame No. 3 crossbeam left side bracket sub-assembly | 51026-KK010 |
| 51035 | Frame right longitudinal beam plate sub-assembly | 51035-KK010 |
| 51036 | Frame left longitudinal beam plate sub-assembly | 51036-KK010 |
| 51071 | Right rear body No. 1 mounting bracket sub-assembly | 51071-0K010 · 51071-0K011 · 51071-0K020 · 51071-0K021 |
| 51072 | Left rear body No. 1 mounting bracket sub-assembly | 51071-0K020 · 51071-0K021 · 51072-0K010 · 51072-0K011 |
| 51073 | Right rear body No. 2 mounting bracket sub-assembly | 51073-KK010 |
| 51074 | Left rear body No. 2 mounting bracket sub-assembly | 51074-KK010 |
| 51100F | Frame sub-assembly | 51001-KKE40 · 51001-KKE41 · 51001-KKE50 · 51001-KKE51 · 51001-KKE60 · 51001-KKE61 · 51001-KKE70 · 51001-KKE71 · 51002-KK810 |
| 51110 | Right longitudinal beam extension section assembly | 5103A-KK020 · 51110-KK906 |
| 51122 | Left longitudinal beam extension | 5103B-KK020 · 51122-KK906 |
| 51202 | Frame No. 1 cross member sub-assembly | 51201-KK010 · 51201-KK070 |
| 51203 | Frame No. 2 cross member sub-assembly | 51202-0K010 |
| 51204 | Frame No. 3 beam sub-assembly | 51203-KK210 · 51203-KK211 · 51203-KK230 · 51203-KK231 |
| 51205 | Frame No. 4 beam sub-assembly | 51204-KK040 · 51204-KK070 · 51204-KK140 |
| 51206 | Frame No. 5 beam sub-assembly | 51205-KK040 · 51205-KK041 · 51205-KK070 · 51205-KK071 · 51205-KK100 |
| 51209C | Frame rear cross member sub-assembly | 51209-KK010 · 51209-KK011 |
| 51365 | rear bumper stop | 57081-KK010 |
| 51401 | Engine right front mounting bracket sub-assembly | 51401-KK020 · 51401-KK040 |
| 51402 | Engine left front mounting bracket sub-assembly | 51402-KK020 · 51402-KK040 |
| 51501 | Right suspension arm bracket sub-assembly | 51501-KK010 |
| 51502 | Left suspension arm bracket sub-assembly | 51502-KK010 |
| 51508A | Right lower arm bracket sub-assembly | 51508-KK020 |
| 51509A | Left lower arm bracket sub-assembly | 51509-KK020 |

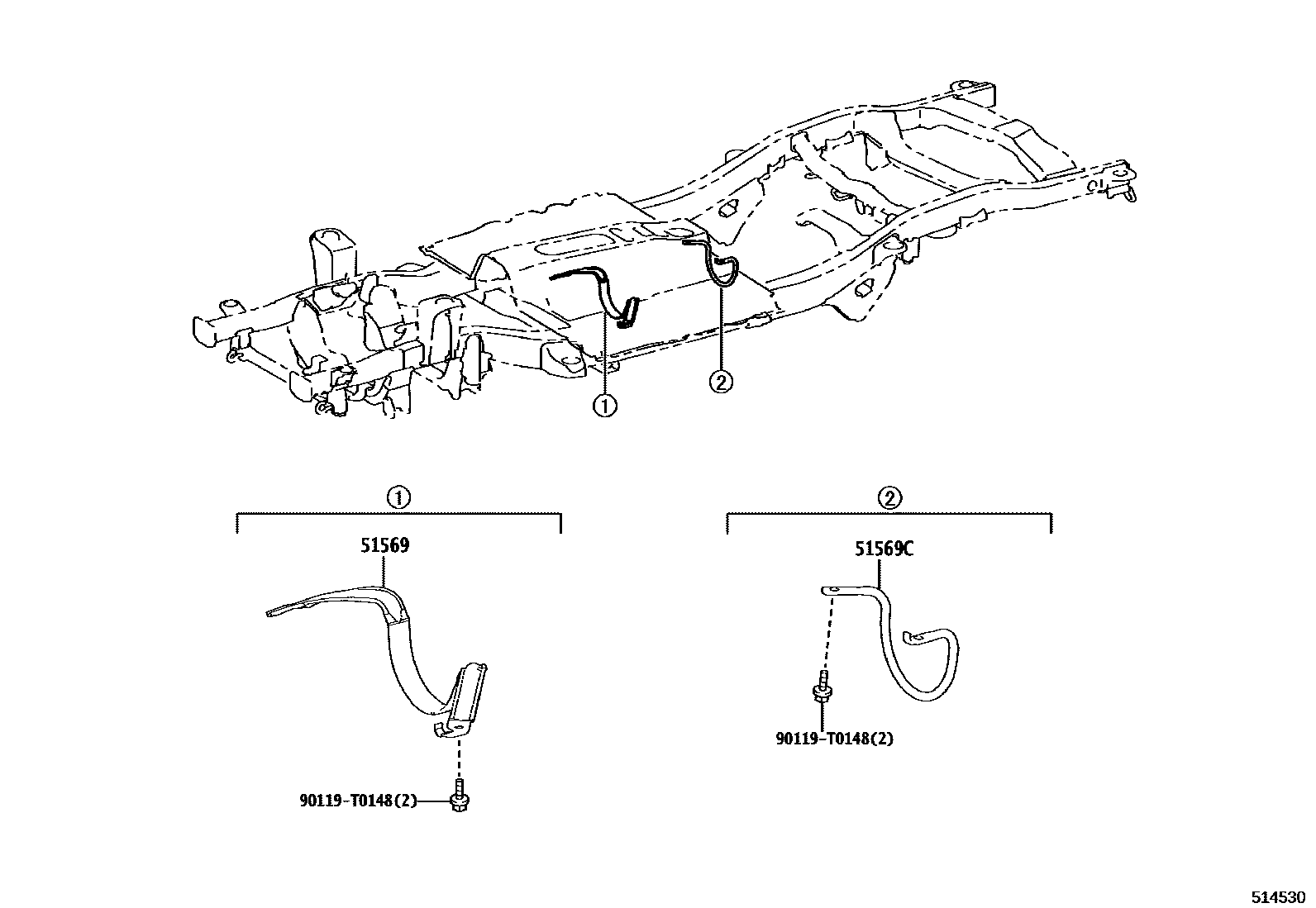

| 51569 | Drive shaft anti-collision block | 51569-KK120 |
| 51569C | Drive shaft anti-collision block | 51569-KK050 |
| 51701 | Cab suspension No. 1 right side bracket sub-assembly | 51701-KK010 |
| 51702 | Cab suspension No. 1 left side bracket sub-assembly | 51701-KK010 |
| 51703 | Cab suspension No. 2 right side bracket sub-assembly | 51703-KK010 |
| 51704 | Cab suspension No. 2 left side bracket sub-assembly | 51704-KK010 |
| 51705B | Cab suspension No. 3 right side bracket sub-assembly | 51731-KK030 · 51731-KK040 |
| 51706B | Cab suspension No. 3 left bracket sub-assembly | 51731-KK030 · 51732-KK040 |
| 51757 | Right body No. 4 bracket | 51077-KK010 · 51077-KK012 |
| 51758 | Left body No. 4 bracket | 51078-KK010 · 51078-KK012 |
| 51762 | Right body No. 5 bracket | 51075-KK010 · 51075-KK030 |
| 51763 | Left body No. 5 bracket | 51076-KK010 · 51076-KK030 |
| 77501U | Fuel tank bracket sub-assembly | 77501-0K020 · 77501-KK010 · 77501-KK040 |
