Toyota HILUX Front Spring & Shock Absorber — Figure 4803

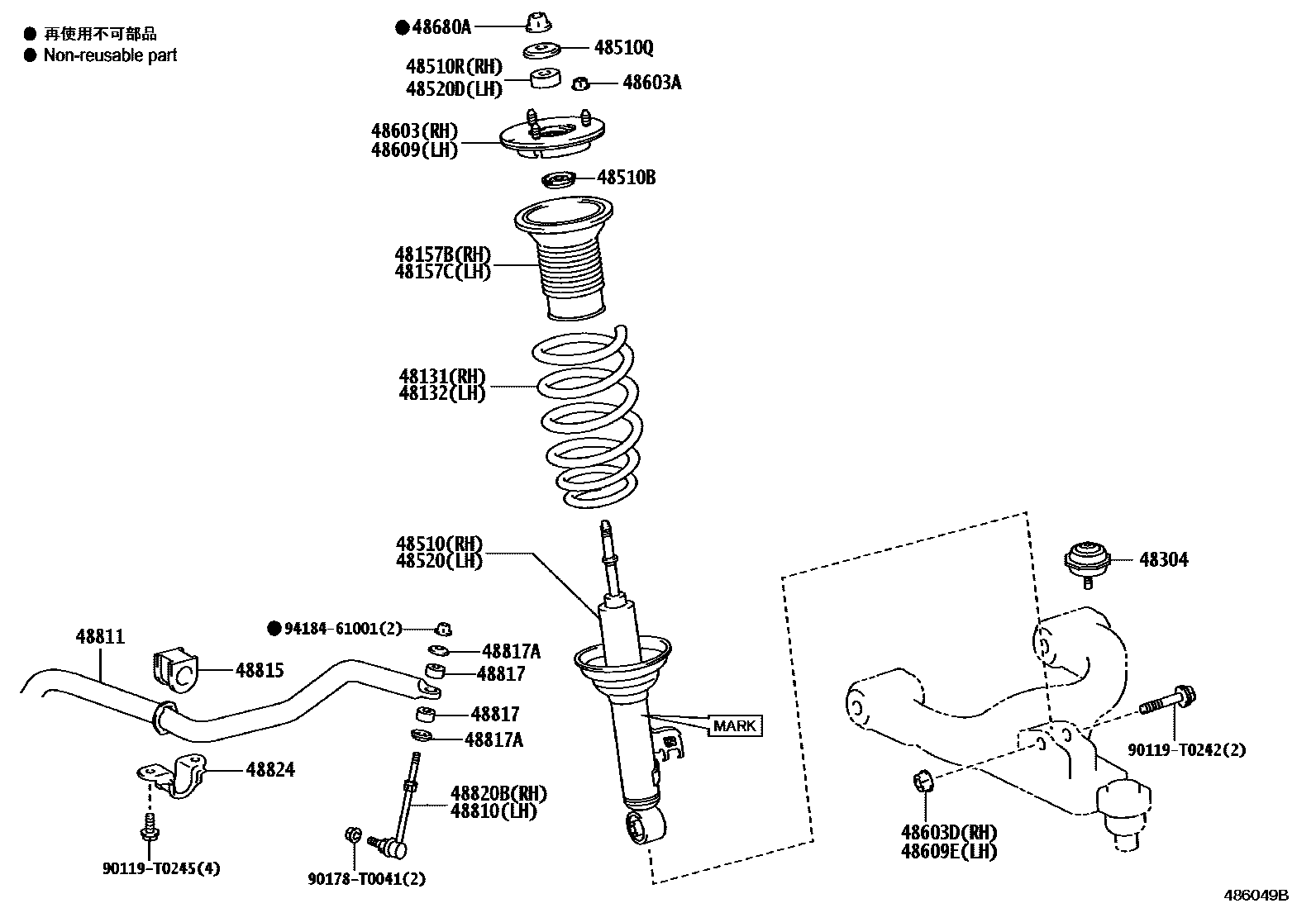

Toyota HILUX EPC diagram 4803, Front Spring & Shock Absorber, with 1 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48131 | Right front coil spring | 48131-0KU10 · 48131-0KV40 |
| 48132 | Left front coil spring | 48131-0KU10 · 48131-0KV40 |
| 48157B | Front coil spring upper right vibration isolation pad | 48157-0K010 |
| 48157C | Front coil spring upper left vibration isolation pad | 48157-0K010 |
| 48304 | No. 1 front spring buffer block sub-assembly | 48304-0K010 |
| 48510 | Right front shock absorber assembly | 48510-8Z677 · 48510-8Z678 |
| 48510B | No. 1 bumper plate (for front shock absorber) | 90948-T2003 |
| 48510Q | No. 3 cushion block (for front shock absorber) | 90948-T2004 |
| 48510R | Right front shock absorber No. 1 cushion pad | 90948-T1013 |
| 48520 | Left front shock absorber assembly | 48520-8Z481 · 48520-8Z482 |
| 48520D | Left front shock absorber No. 1 cushion pad | 90948-T1013 |
| 48603 | Right front suspension bearing sub-assembly | 48609-0K150 |
| 48603A | Nut (for front suspension mount) | 90178-T0050 |
| 48603D | Nut (for front mount to right front shock absorber) | 90178-T0048 |
| 48609 | Left front suspension bearing sub-assembly | 48609-0K150 |
| 48609E | Nut (for front mount to left front shock absorber) | 90178-T0048 |
| 48680A | Nut (for front mount to front shock absorber) | 90177-T0015 |
| 48810 | Left front stabilizer bar link assembly | 48820-0K010 · 48820-0K011 |
| 48811 | front stabilizer bar | 48811-0K230 |
| 48815 | Front stabilizer bar bushing No. 1 | 48815-0K050 |
| 48817 | Front stabilizer bar cushion | 90948-T1002 |
| 48817A | Crash pad block No. 1 (for front stabilizer bar) | 90948-T2002 |
| 48820B | Right front stabilizer bar link assembly | 48820-0K010 · 48820-0K011 |
| 48824 | front stabilizer bar bracket | 48824-KK030 |
