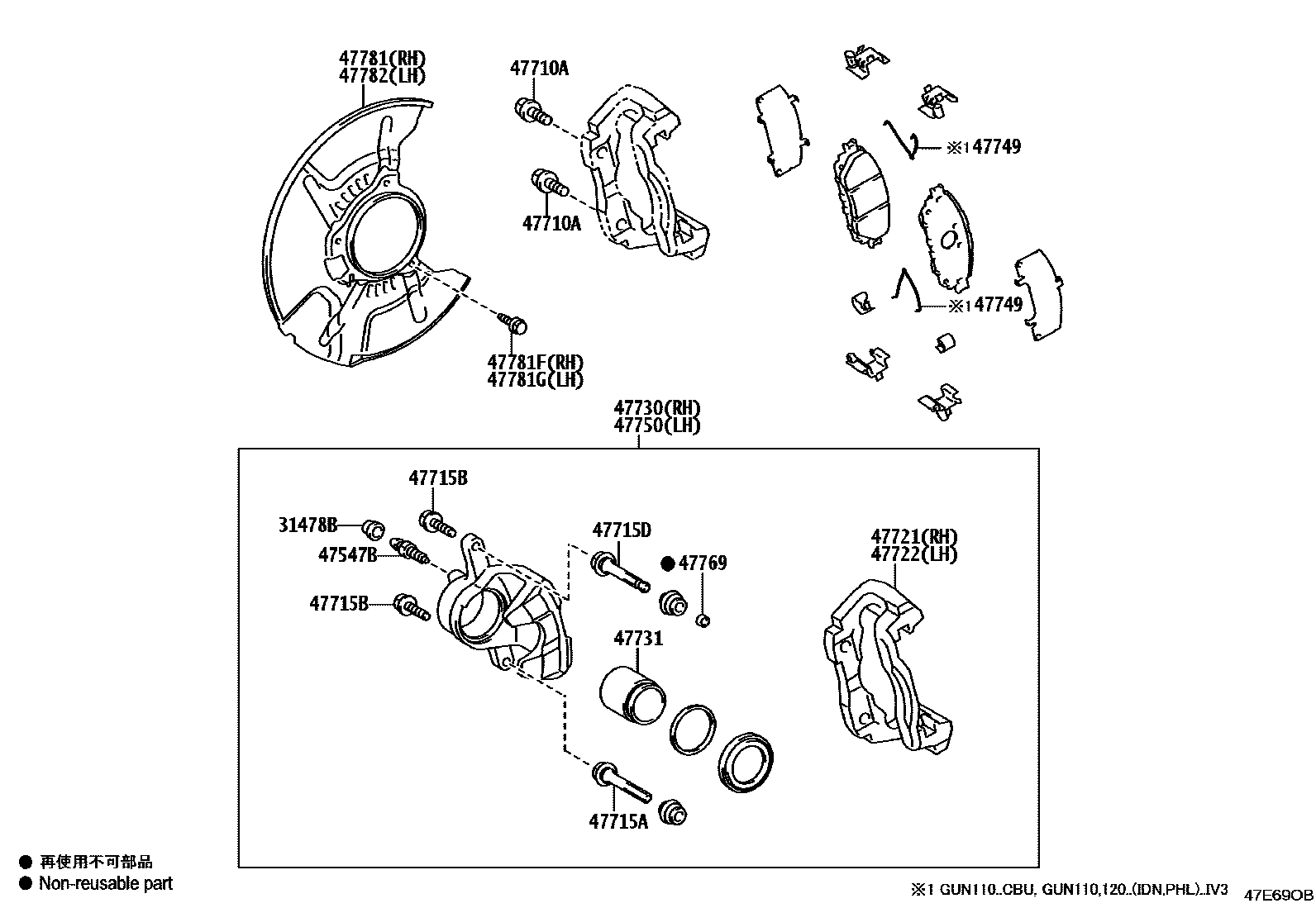

Toyota HILUX 前盘式制动器卡钳和防尘罩 — Figure 4705
Toyota HILUX EPC diagram 4705, 前盘式制动器卡钳和防尘罩, with 2 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

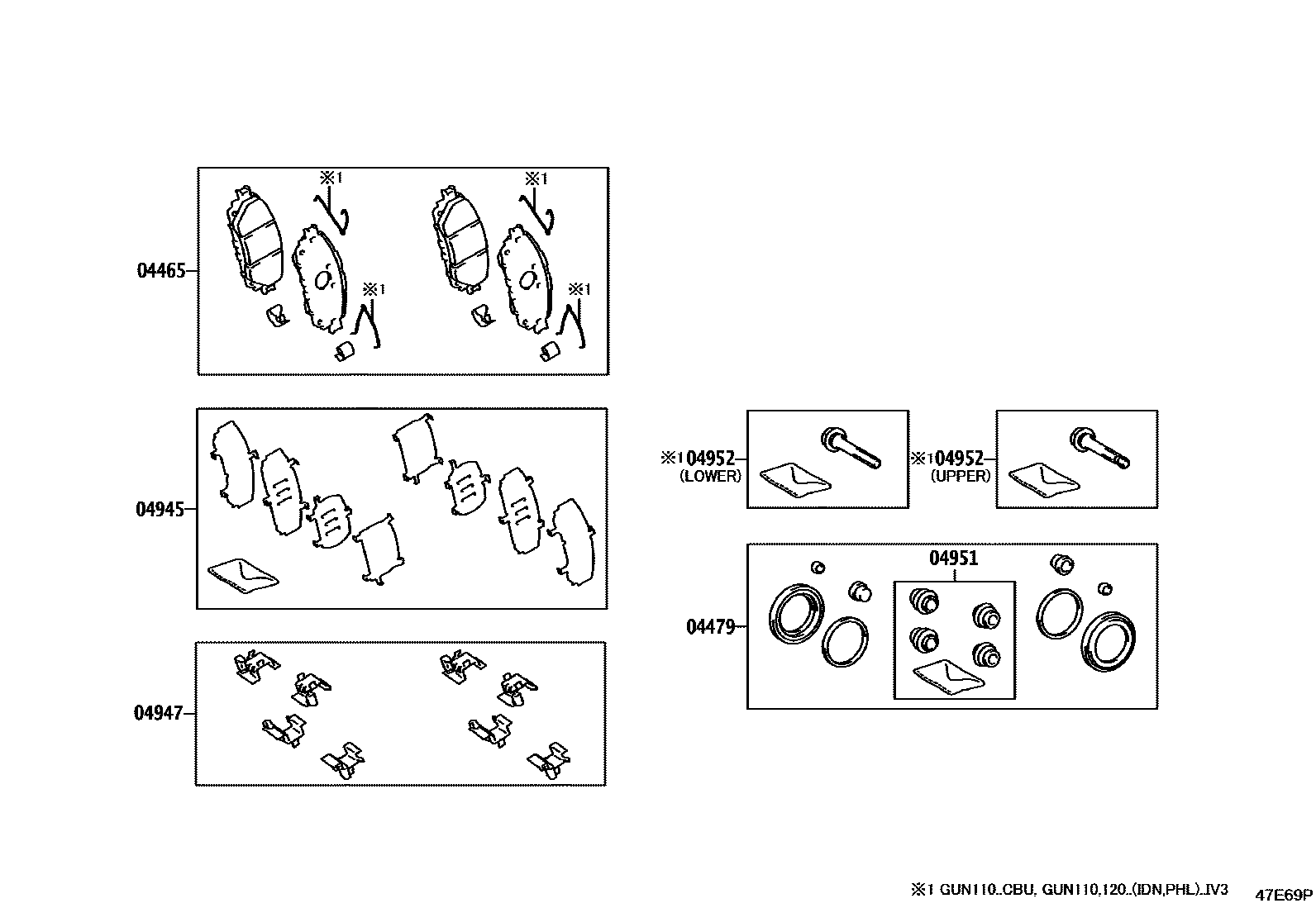

| 04465 | Front disc brake pad assembly | 04465-0K610 · 04465-0K630 |
| 04479 | Front disc brake cylinder assembly | 04478-0K170 · 04478-0K270 |
| 04945 | Front silencer gasket assembly | 04945-0K321 · 04945-0K390 |
| 04947 | Front disc brake mounting kit | 04947-0K090 · 04947-0K160 |
| 04951 | Front disc brake bushing assembly | 04951-0K010 |
| 04952 | Front disc brake cylinder sliding pin assembly | 04952-0K020 · 04952-0K030 |
| 31478B | Bleeder plug cap (for front disc brake) | 31478-0D040 |
| 47547B | Bleed plug (for front disc brake) | 47547-0D030 · 47547-20010 |
| 47710A | Hexagonal bolt (for front disc brake caliper) | 90105-T0326 |
| 47715A | Front disc brake cylinder sliding pin | 47714-0D230 |
| 47715B | Slide bolt (for front disc brake cylinder) | 90016-AA603 |
| 47715D | No. 2 front disc brake cylinder sliding pin | 47715-0K220 |
| 47721 | Right front disc brake cylinder retainer | 47721-0K230 · 47721-0K460 |
| 47722 | Left front disc brake cylinder retainer | 47722-0K230 · 47722-0K460 |
| 47730 | Right front disc brake cylinder assembly | 47730-0K230 · 47730-0K460 |
| 47731 | Front disc brake piston | 47731-0D220 · 47731-0K220 |
| 47749 | pin fixing clip | 47743-0K230 |
| 47750 | Left disc brake cylinder assembly | 47750-0K230 · 47750-0K460 |
| 47769 | No. 1 brake cylinder sliding sleeve (for front disc brake) | 47769-0K220 |
| 47781 | Right front disc brake dust cover | 47781-0K120 · 47781-0K330 · 47781-0K350 |
| 47781F | Bolt (for dust boot to right knuckle arm) | 90119-T0005 |
| 47781G | Bolt (for dust boot to left knuckle arm) | 90119-T0005 |
| 47782 | Left front disc brake dust cover | 47782-0K120 · 47782-0K330 · 47782-0K350 |
