Toyota HILUX 制动助力器和真空管 — Figure 4703

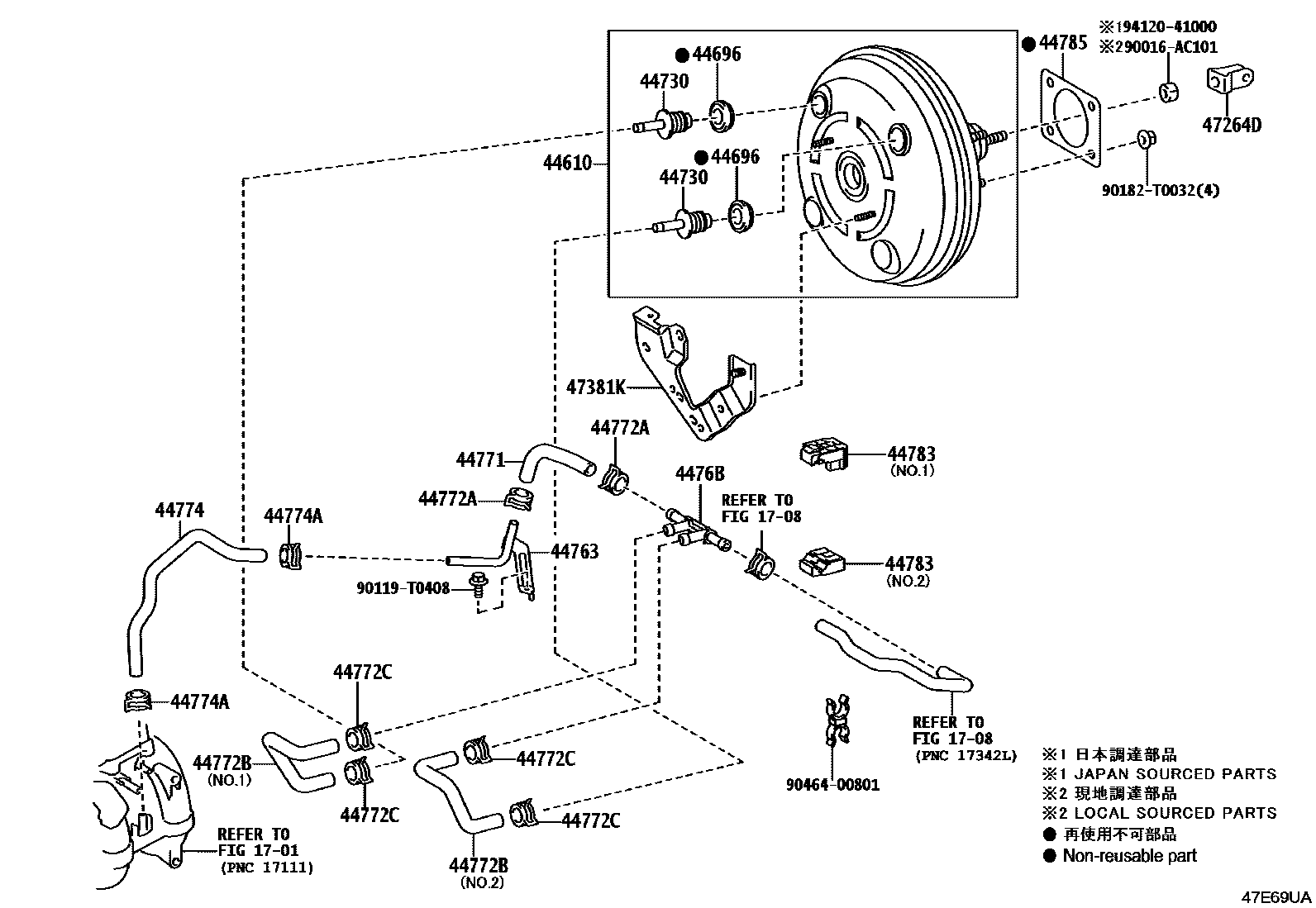

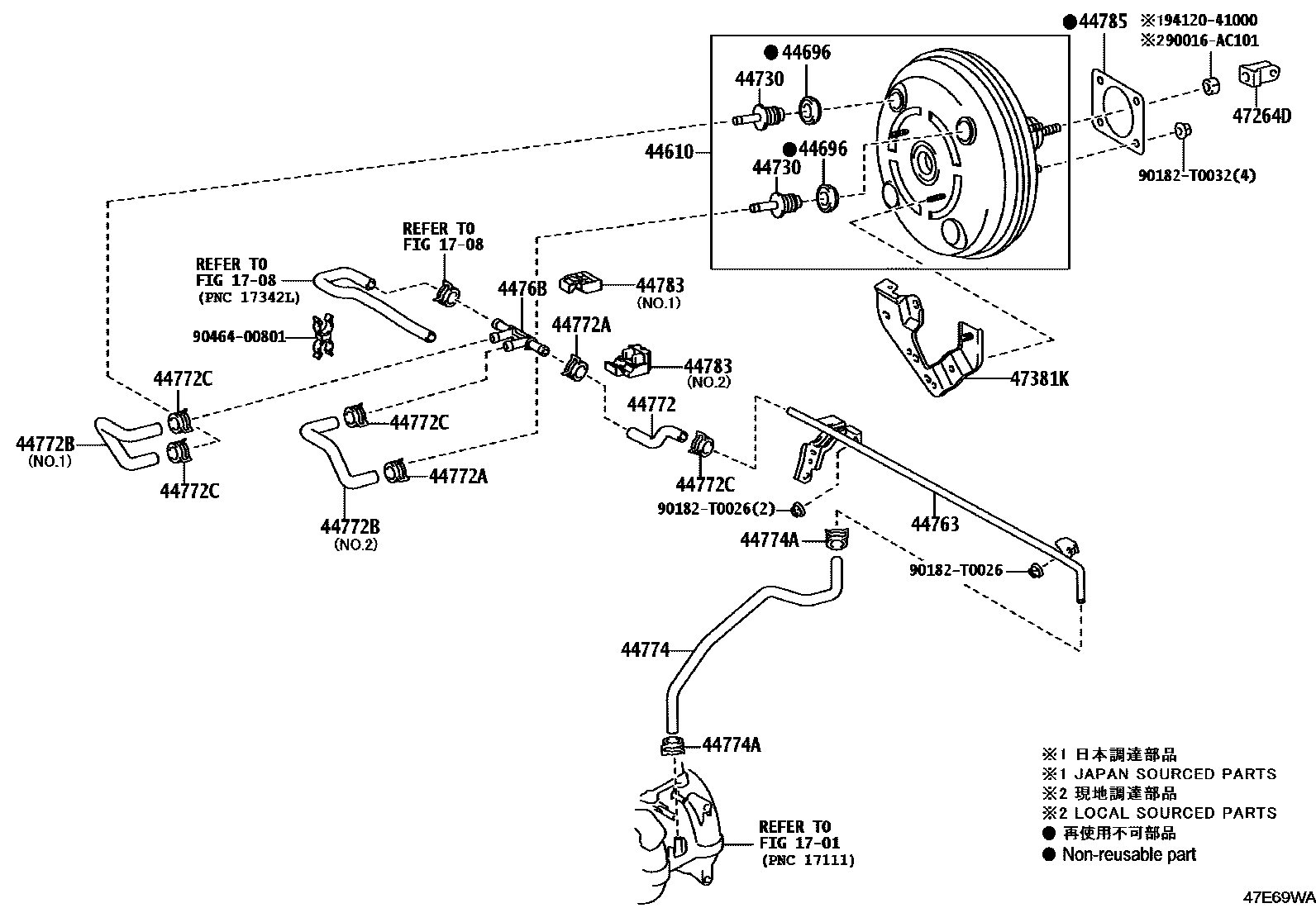

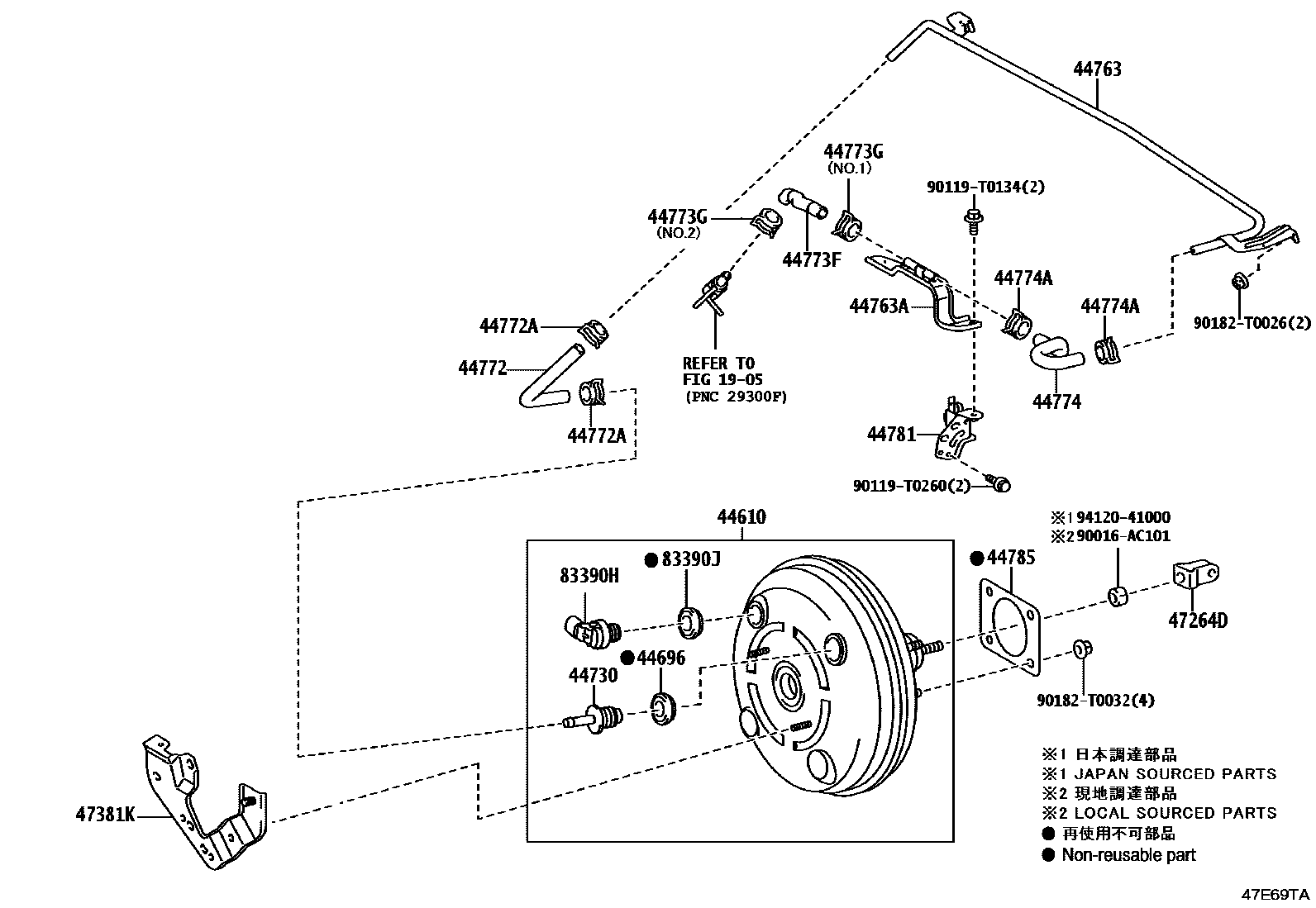

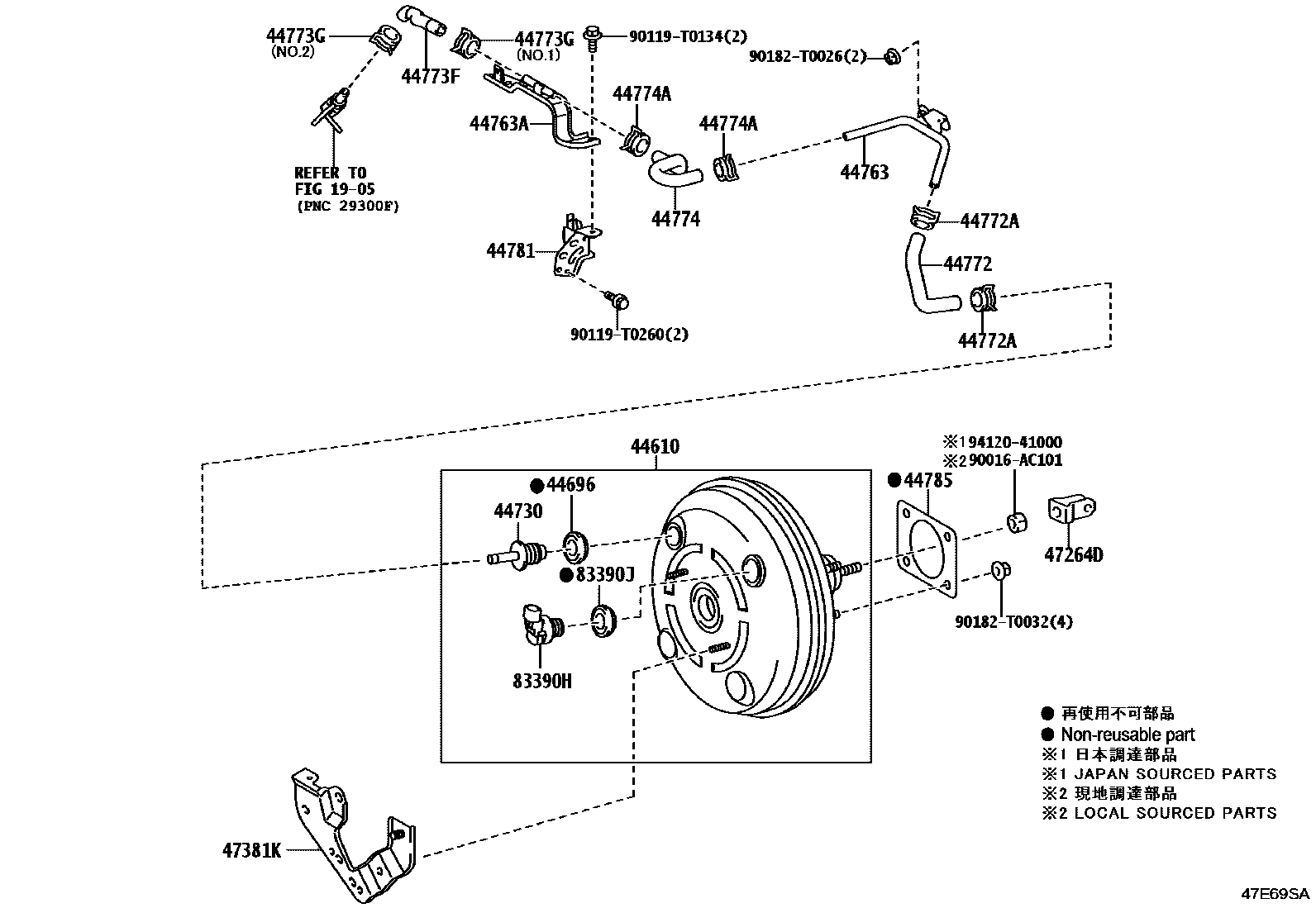

Toyota HILUX EPC diagram 4703, 制动助力器和真空管, with 4 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-0K580 · 44610-0K600 · 44610-0KA70 · 44610-0KA80 · 44610-0KA90 |
| 44696 | One-way valve seal | 90016-AT003 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-60070 |
| 44763 | booster vacuum tube | 44763-KK020 · 44763-KK040 · 44763-KK050 · 44763-KK160 · 44763-KK161 |
| 44763A | Pipe No. 1 (hose to hose) | 44763-KK080 |
| 4476B | Brake booster vacuum injection pump | 4476B-48010 |
| 44771 | Vacuum tube connector hose | 44771-KK070 |
| 44772 | Hoses (check valve to connector tube) | 44772-KK010 · 44772-KK040 · 44772-KK070 |
| 44772A | Clip (for check valve to connector tube) | 90466-T0019 |
| 44772B | Hoses (check valve to brake booster) | 44772-KK020 · 44772-KK030 |
| 44772C | Clip (for check valve to brake booster hose) | 90466-T0019 |
| 44773F | Hoses (connector to check valve) | 44773-KK030 |
| 44773G | Clamp (for connector to one-way valve hose) | 90466-T0019 · 90467-16014 |
| 44774 | Hoses (joints to connector tubes) | 44774-KK010 · 44774-KK020 · 44774-KK040 |
| 44774A | Clip (for fitting to connector tube hose) | 90466-T0019 |
| 44781 | hose holder | 44781-KK020 |
| 44783 | Vacuum hose clamp | 44783-0D020 · 44783-0D030 · 44783-0K010 |
| 44785 | brake booster pad | 44785-17010 |
| 47264D | Brake master cylinder push rod U-shaped clamp | 47264-04010 |
| 47381K | Brake booster tube clamp bracket | 47381-0K071 · 47381-0K100 |
| 83390H | Vacuum warning switch assembly | 83390-28120 |
| 83390J | Vacuum warning switch seal | 90016-AT003 |
