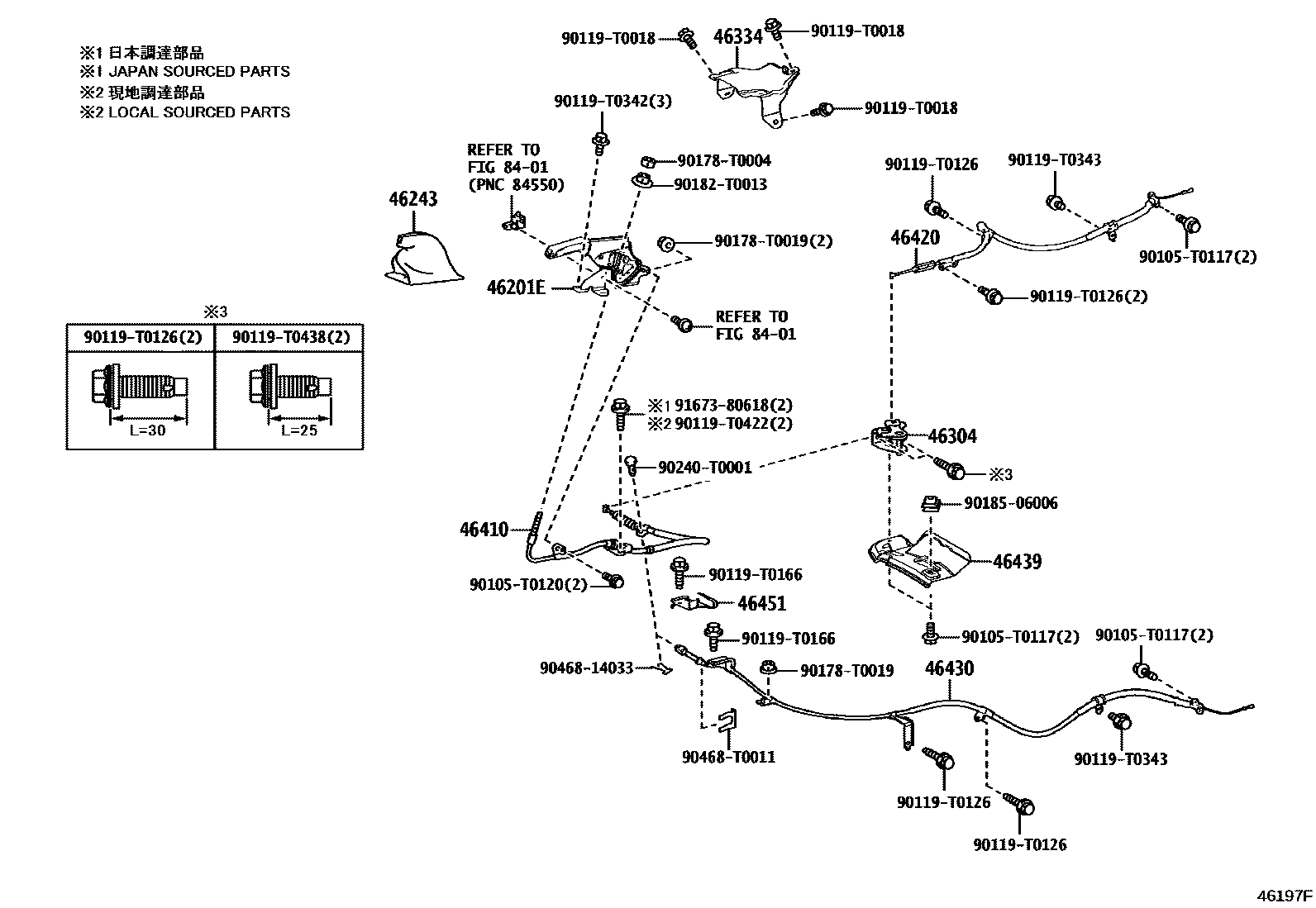

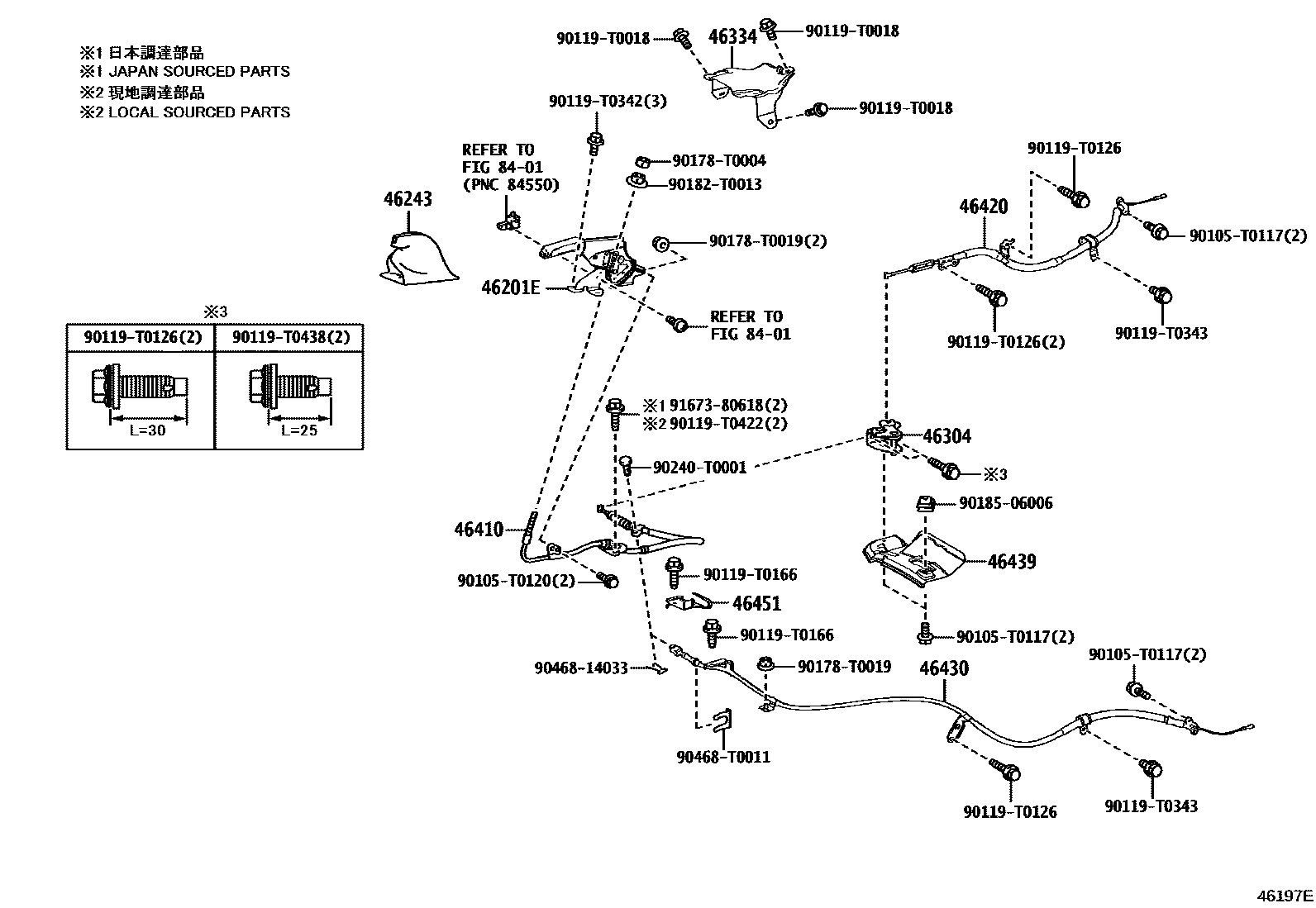

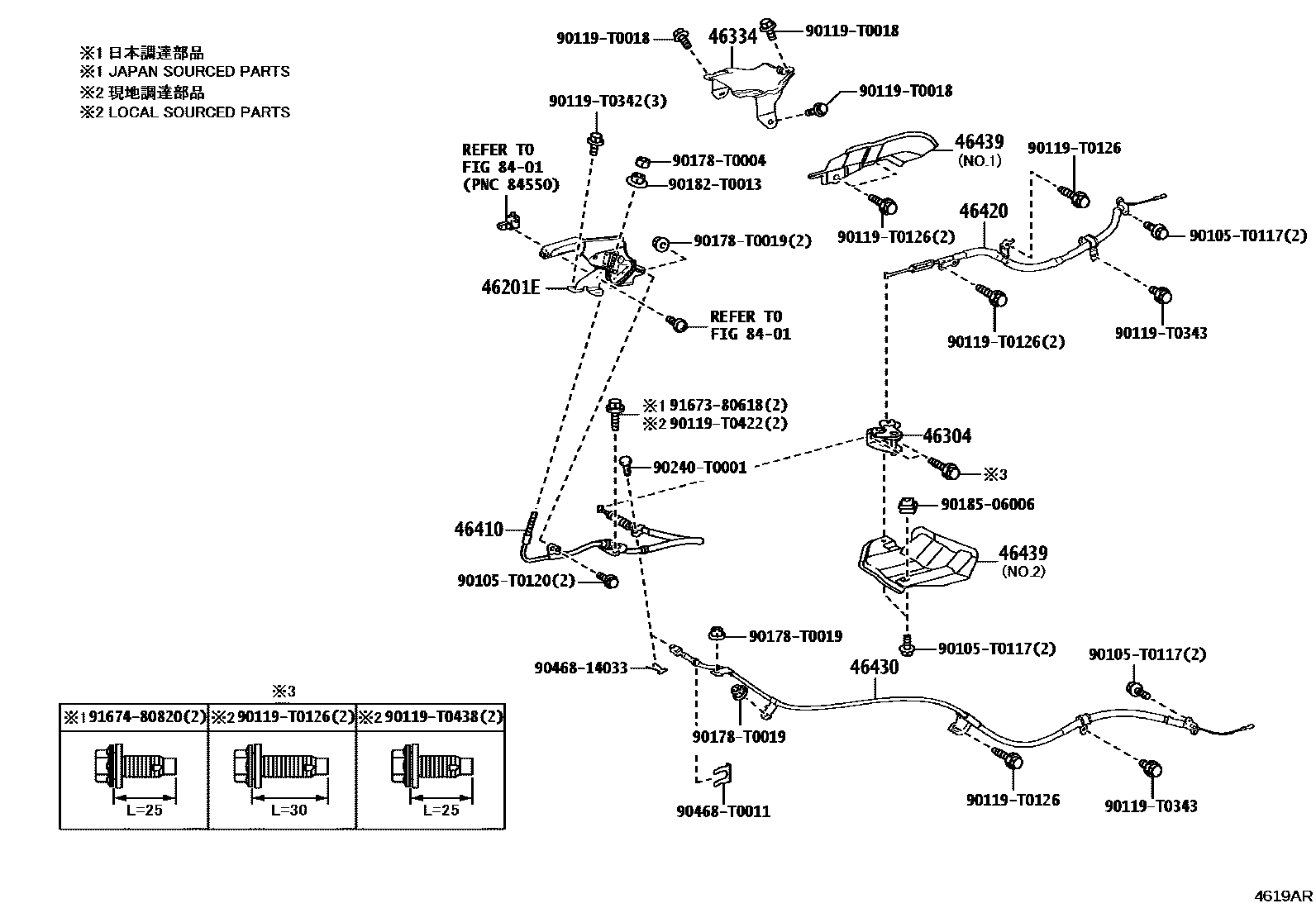

Toyota HILUX Parking Brake & Cable — Figure 4601
Toyota HILUX EPC diagram 4601, Parking Brake & Cable, with 3 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 46304 | Parking brake balancer sub-assembly | 46304-0G010 · 46304-0K050 |
| 46334 | Intermediate lever protector | 46334-0K020 |
| 46410 | Parking brake cable assembly No. 1 | 46410-0K080 · 46410-0K100 · 46410-0K120 |
| 46420 | Parking brake No. 2 cable assembly | 46420-0K150 · 46420-0K160 · 46420-0K390 |
| 46430 | Parking brake No. 3 cable assembly | 46430-0K150 · 46430-0K160 · 46430-0K290 |
| 46439 | Parking brake cable insulation pad | 46439-0G020 · 46439-0G030 · 46439-0K060 |
| 46451 | cable bracket | 46451-0K040 · 46451-0K050 · 46451-0K051 · 46451-0K060 |
