Toyota HILUX 前转向齿轮和连杆 — Figure 4505

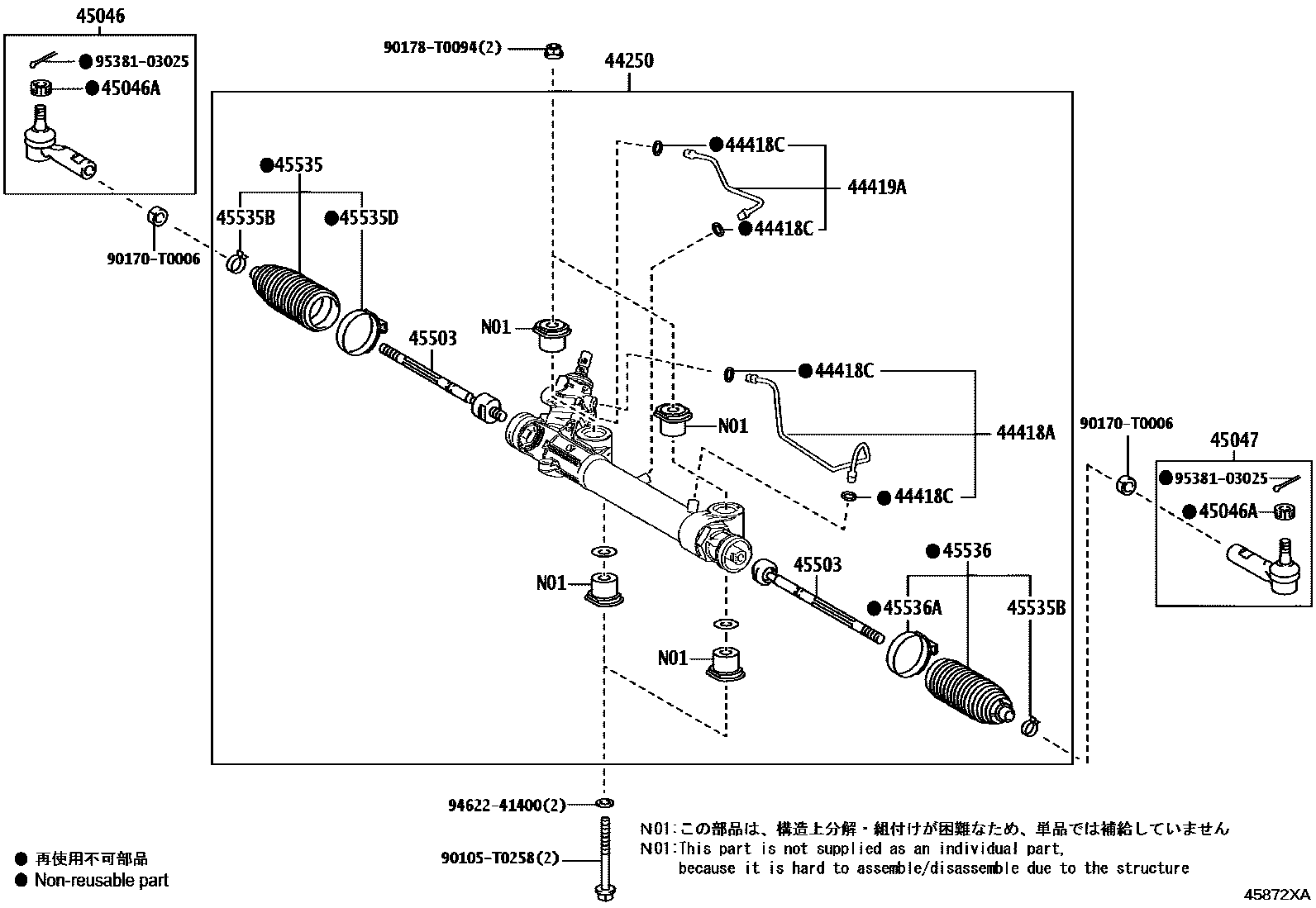

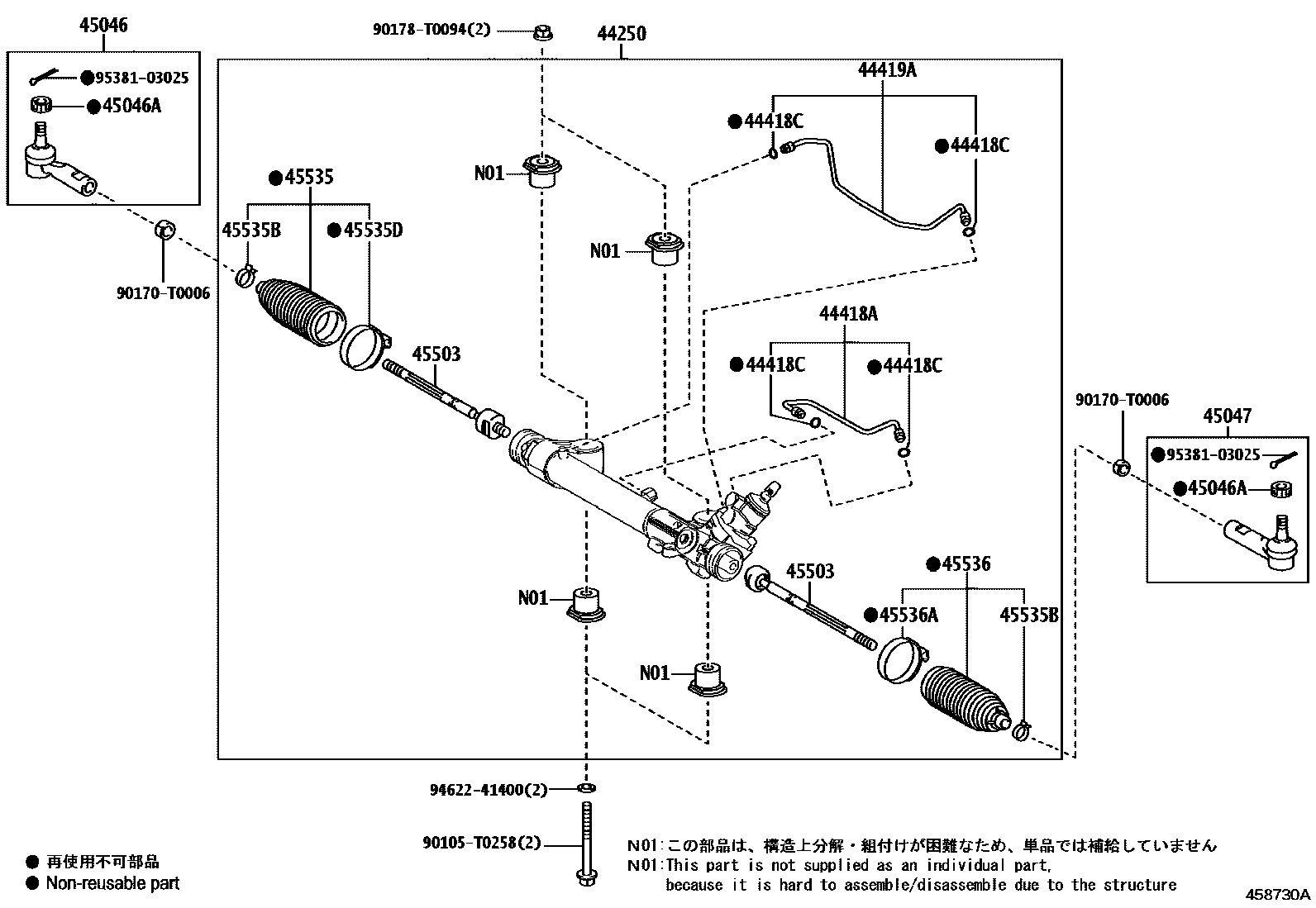

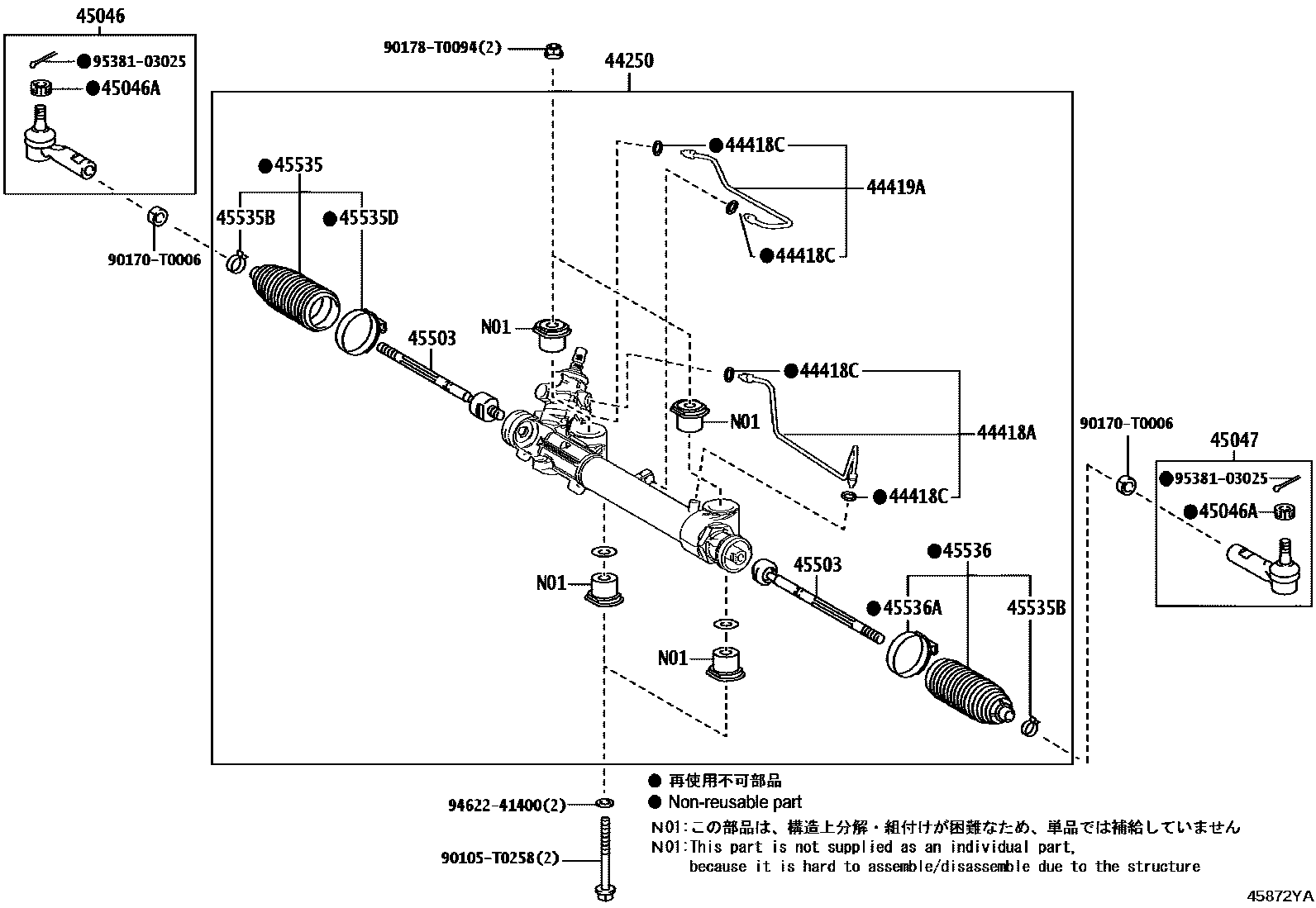

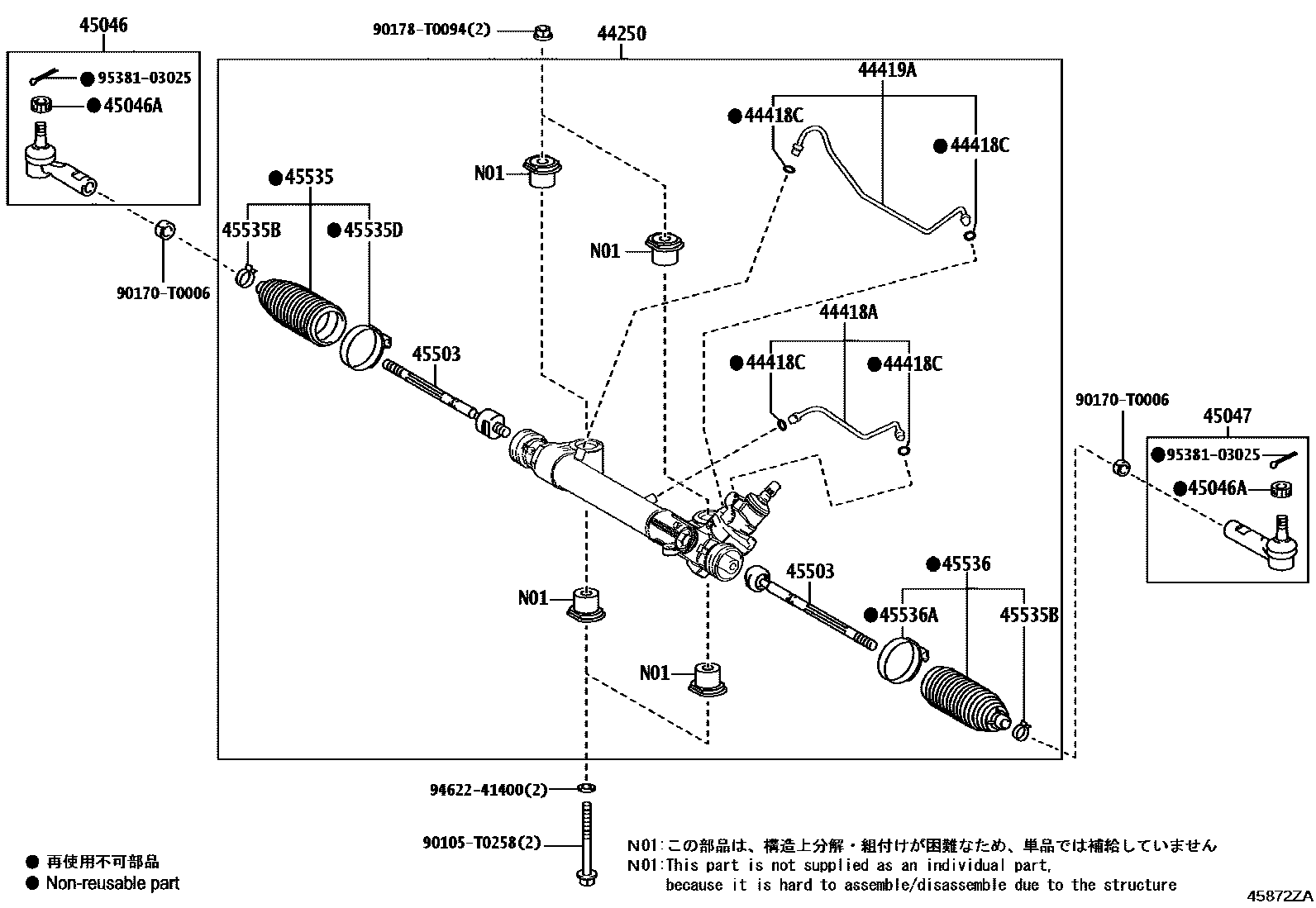

Toyota HILUX EPC diagram 4505, 前转向齿轮和连杆, with 4 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44250 | Power steering gear assembly (for rack and pinion) | 44250-0K643 · 44250-0K653 · 44250-0KA40 · 44250-0KA50 |
| 44418A | Right steering pressure oil pipe | 44418-0K190 · 44418-0K220 · 44418-0K240 · 44418-0K310 |
| 44418C | O-ring (for steering pressure oil pipe) | 90301-T0032 |
| 44419A | Left steering pressure oil pipe | 44419-0K190 · 44419-0K220 · 44419-0K240 · 44419-0K310 |
| 45046 | Right tie rod end sub-assembly | 45046-09780 |
| 45046A | Castle nuts (for tie rod ends) | 90171-T0004 |
| 45047 | Left tie rod end sub-assembly | 45046-09780 |
| 45503 | Steering rack end sub-assembly | 45503-0K110 · 45503-0K150 |
| 45535 | No. 1 steering rack dust cover | 45535-09380 · 45535-09730 |
| 45535B | Clamp (for steering rack dust boot) | 90466-T0004 |
| 45535D | Clamp (for No. 1 steering rack dust boot) | 45538-0K010 |
| 45536 | No. 2 steering rack dust cover | 45535-09380 · 45535-09730 |
| 45536A | Clamp (for No. 2 steering rack dust boot) | 45538-0K010 |
