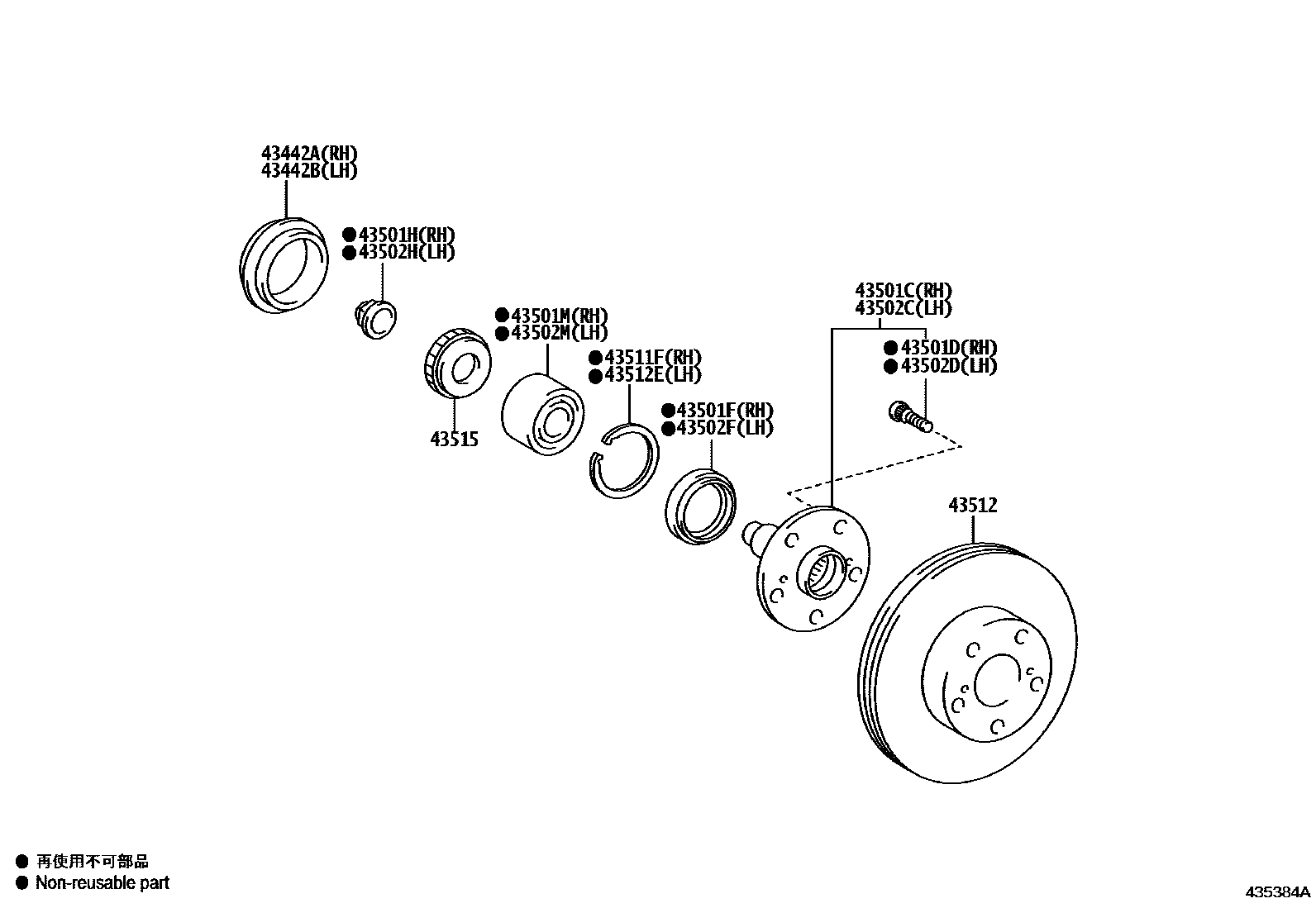

Toyota HILUX Front Axle Hub — Figure 4303
Toyota HILUX EPC diagram 4303, Front Axle Hub, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 43442A | Right steering knuckle grease retaining ring inner cover | 43442-0K010 |
| 43442B | Left steering knuckle grease retaining ring inner cover | 43442-0K010 |
| 43501C | Right front axle hub sub-assembly | 43502-KK030 · 43502-KK040 |
| 43501D | Hub bolt (for right front axle) | 90942-02081 |
| 43501F | Oil seal (for right front axle hub) | 90311-T0090 |
| 43501H | Nut (for front axle right half shaft) | 90179-24010 |
| 43501M | Inner bearing (for right front axle hub) | 90366-T0007 |
| 43502C | Left front axle wheel hub sub-assembly | 43502-KK030 · 43502-KK040 |
| 43502D | Hub bolt (for left front axle) | 90942-02081 |
| 43502F | Oil seal (for left front axle hub) | 90311-T0090 |
| 43502H | Nut (for front axle left half shaft) | 90179-24010 |
| 43502M | Inner bearing (for left front axle hub) | 90366-T0007 |
| 43511F | Hole snap ring (for right front axle hub) | 90521-T0003 |
| 43512 | front brake disc | 43512-0K290 · 43512-0K340 |
| 43512E | Hole snap ring (for left front axle hub) | 90521-T0003 |
| 43515 | Front anti-skid control rotor | 43515-0K010 |
