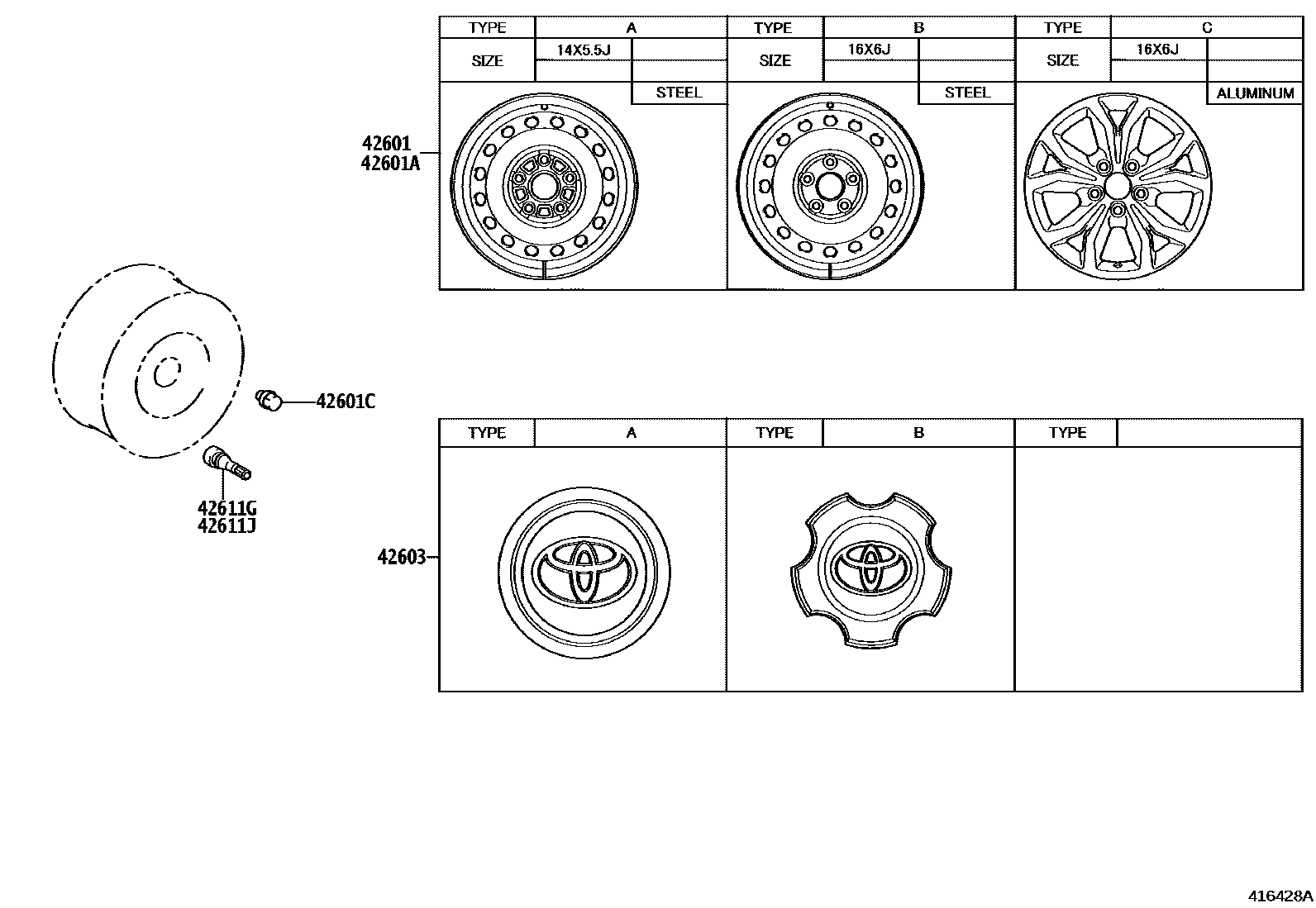

Toyota HILUX 车轮和车轮盖 — Figure 4103
Toyota HILUX EPC diagram 4103, 车轮和车轮盖, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42601 | spoke wheel | 42611-0KW90 · 42611-0KX00 · 42611-YYF70 |
| 42601A | Spoke wheel (for spare tire) | 42611-0KW90 · 42611-0KX00 |
| 42601C | Hub nut (for axle) | 90942-01051 · 90942-01109 |
| 42603 | Wheel hub decorative parts sub-assembly | 42603-0K290 · 4260B-0K110 · 4260B-0K430 |
| 42611G | Valve (for tubeless tires) | 90080-94031 · 90942-05009 |
| 42611J | Valve (for tubeless spare tire) | 90080-94031 · 90942-05009 |
