Toyota HILUX 后桥壳和差速器 — Figure 4101

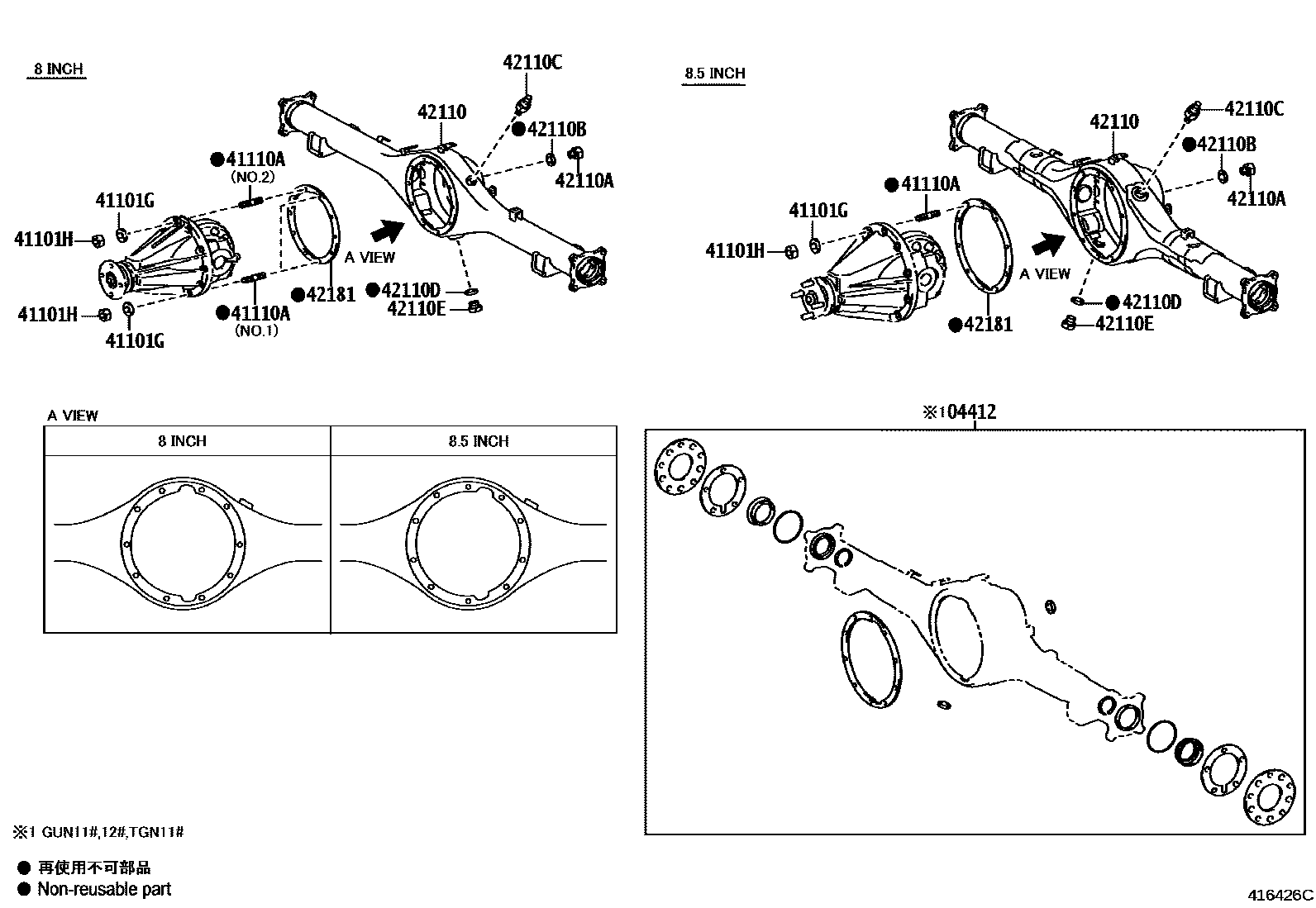

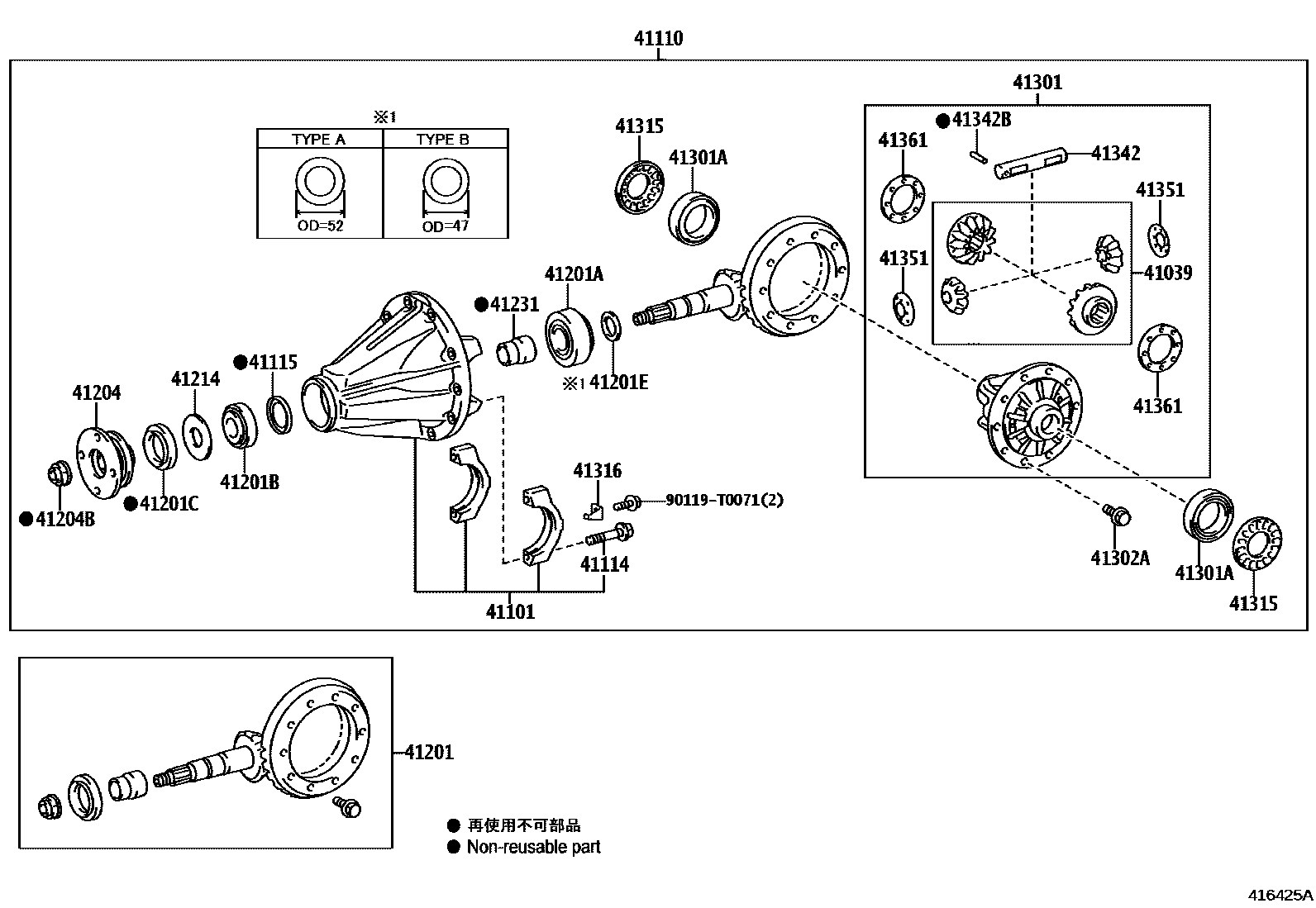

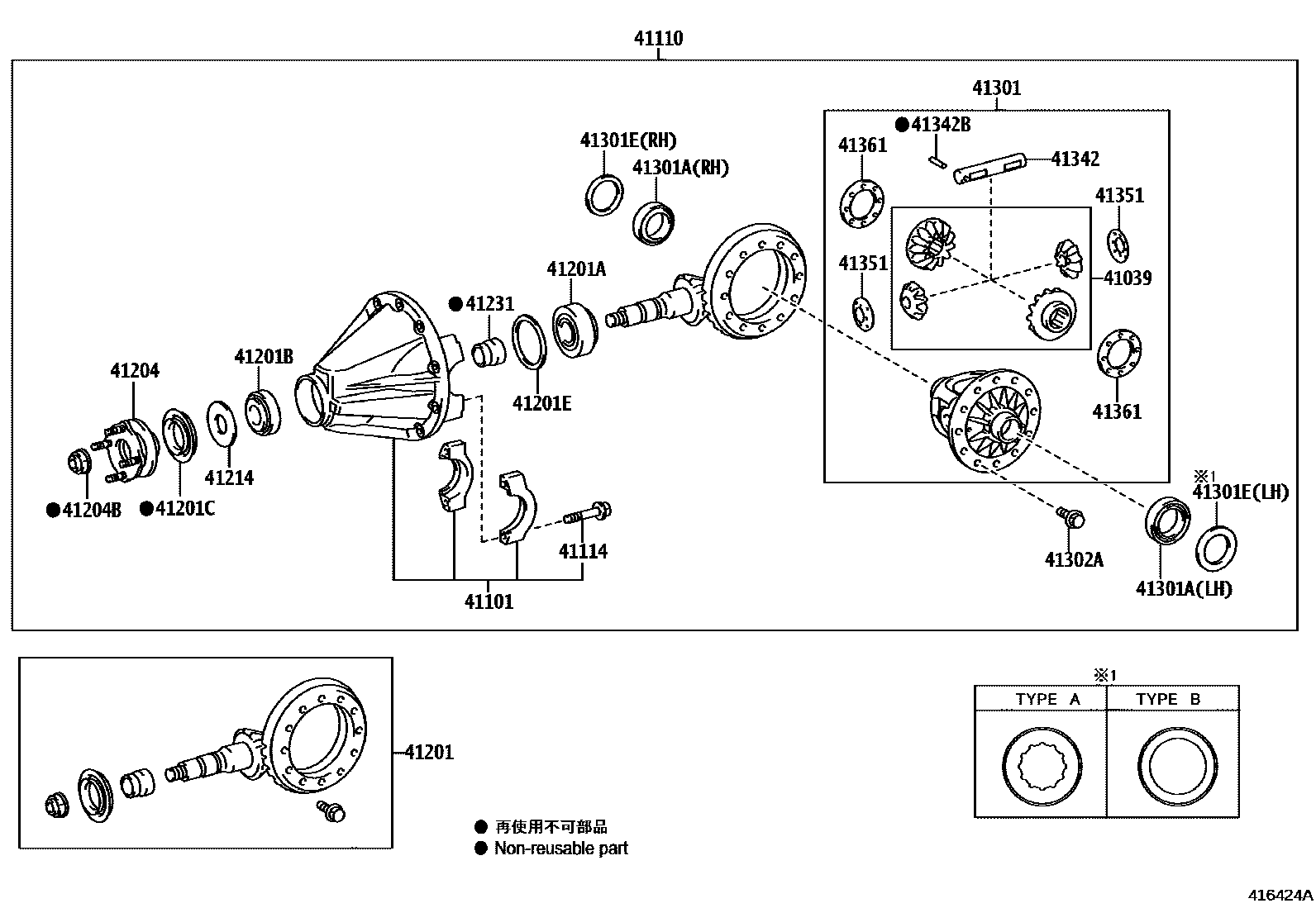

Toyota HILUX EPC diagram 4101, 后桥壳和差速器, with 3 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04412 | Rear differential carrier gasket assembly | 04412-0K500 · 04412-0K550 |
| 41039 | rear differential gear assembly | 41039-71011 · 41039-71070 |
| 41101 | Rear differential bracket sub-assembly | 41101-0K011 · 41101-0K070 |
| 41101G | Spring washer (for rear differential case assembly) | 90201-08002 · 94621-11000 |
| 41101H | Hex nut (for rear differential case assembly) | 90170-T0009 · 90170-T0017 |
| 41110 | Rear differential bracket assembly | 41110-0K570 · 41110-0K590 · 41110-0KB30 · 41110-0KB70 |
| 41110A | Bolt No. 1 (for rear differential case assembly) | 90116-08233 · 90116-08329 · 90116-10074 |
| 41114 | Rear differential bearing cap bolts | 90105-T0081 · 90109-T0030 |
| 41115 | Differential oil reservoir ring | 41115-0K010 |
| 41201 | Rear differential final drive gear assembly | 41201-09B60 · 41201-09B80 · 41201-09C40 · 41201-09C50 · 41201-09G10 · 41201-09G30 |
| 41201A | Rear bearing (for rear drive pinion) | 90366-T0065 · 90366-T0080 |
| 41201B | Front bearing (for rear drive pinion) | 90366-T0062 · 90366-T0083 |
| 41201C | Oil seal (for rear differential case) | 90311-T0065 · 90311-T0068 |
| 41201E | Front adjustment shim (for rear differential drive pinion spacer) | 90201-35497 · 90201-35498 · 90201-35499 · 90201-35500 · 90201-35501 · 90201-35502 · 90201-35503 · 90201-35504 · 90201-35505 · 90201-35506 · 90201-35507 · 90201-35508 · 90201-35509 · 90201-35510 · 90201-35511 · 90201-35512 · 90201-35513 · 90201-35514 · 90201-35515 · 90201-35516 · 90201-35517 · 90201-35518 · 90564-35109 · 90564-35110 · 90564-35111 · 90564-35112 · 90564-35113 · 90564-35114 · 90564-35115 · 90564-35116 · 90564-35117 · 90564-35118 · 90564-35119 · 90564-35120 · 90564-35121 · 90564-35123 · 90564-35124 · 90564-35125 · 90564-35126 · 90564-35127 · 90564-35128 · 90564-35129 · 90564-35130 · 90564-35131 · 90564-78001 · 90564-78002 · 90564-78003 · 90564-78004 · 90564-78005 · 90564-78006 · 90564-78007 · 90564-78008 · 90564-78009 · 90564-78010 · 90564-78011 · 90564-78012 · 90564-78013 · 90564-78014 · 90564-78015 · 90564-78016 · 90564-78017 · 90564-78018 · 90564-78019 · 90564-78020 · 90564-78021 · 90564-78022 · 90564-78023 · 90564-78024 |
| 41204 | Rear driving pinion rear coupling flange sub-assembly | 41204-0K100 · 41204-0K110 |
| 41204B | Nut (for rear driving pinion) | 90177-22003 · 90179-22029 |
| 41214 | Rear differential drive pinion oil retaining ring | 41214-0K040 · 41214-26011 |
| 41231 | Rear differential drive pinion bearing spacer | 41231-24010 · 41231-71010 |
| 41301 | Rear differential housing sub-assembly | 41301-0K110 · 41301-0K120 |
| 41301A | Bearings (for rear differential housing) | 90366-T0010 · 90366-T0068 · 90366-T0071 |
| 41301E | Gasket (for differential case) | 90201-52001 · 90201-52003 · 90564-46014 · 90564-46015 · 90564-46016 · 90564-46017 · 90564-46044 · 90564-46045 · 90564-46046 · 90564-46047 · 90564-46048 · 90564-46049 · 90564-46050 · 90564-46051 · 90564-46053 · 90564-46054 · 90564-46055 · 90564-46056 · 90564-46057 · 90564-46058 · 90564-46059 · 90564-46060 · 90564-46061 · 90564-46062 · 90564-46063 · 90564-46064 · 90564-46065 · 90564-46066 · 90564-46067 · 90564-46068 · 90564-46069 · 90564-59044 · 90564-59045 · 90564-59046 · 90564-59047 · 90564-59048 · 90564-59049 · 90564-59050 · 90564-59051 · 90564-59052 · 90564-59053 · 90564-59054 · 90564-59055 · 90564-59056 · 90564-59057 · 90564-59058 · 90564-59059 · 90564-59060 · 90564-59061 · 90564-59062 · 90564-59063 · 90564-59064 · 90564-59065 · 90564-59066 · 90564-59067 · 90564-59068 · 90564-59069 · 90564-59070 · 90564-59071 · 90564-59072 · 90564-59073 · 90564-59074 · 90564-59075 · 90564-59076 · 90564-59077 · 90564-59078 · 90564-59079 · 90564-59080 · 90564-59081 · 90564-59082 · 90564-59083 · 90564-59084 · 90564-59085 · 90564-59086 · 90564-59087 · 90564-59088 · 90564-59089 · 90564-59090 · 90564-59091 · 90564-59092 · 90564-59093 · 90564-59094 · 90564-59095 · 90564-59096 · 90564-59097 · 90564-59098 · 90564-59099 · 90564-59100 · 90564-59101 · 90564-59102 · 90564-59103 · 90564-59104 · 90564-59105 · 90564-59106 |
| 41302A | Bolt (for rear differential case) | 90105-T0268 · 90105-T0417 |
| 41315 | Rear differential bearing adjusting nut | 41315-0K010 · 41315-35020 |
| 41316 | Rear differential bearing adjustment nut locking piece | 41316-0K010 · 41316-35010 |
| 41342 | Rear differential planetary gear shaft | 41342-0K060 · 41342-0K070 |
| 41342B | Direct sales (for rear differential planetary gear shaft) | 90250-T0006 |
| 41351 | Rear differential planetary gear thrust washer | 41351-0K010 · 41351-0K040 · 41351-35030 |
| 41361 | No. 1 rear differential half gear thrust washer | 41361-0K020 · 41361-0K030 · 41361-0K040 · 41361-0K050 · 41361-0K060 · 41361-0K070 · 41361-0K080 · 41361-0K090 · 41361-0K110 · 41361-0K300 · 41361-0K310 · 41361-0K320 · 41361-0K330 · 41361-0K340 · 41361-0K350 · 41361-0K360 · 41361-0K370 |
| 42110 | Rear axle housing assembly | 42110-KK032 · 42110-KK052 · 42110-KK291 |
| 42110A | Screw plug (for rear axle housing oil filling port) | 90341-18006 |
| 42110B | Gasket (for rear axle housing oil filling plug) | 12157-10010 |
| 42110C | Breather plug (for rear axle housing) | 90930-03031 |
| 42110D | Gasket (for rear axle housing drain plug) | 12157-10010 |
| 42110E | Screw plug (for rear axle housing oil drain port) | 90341-18057 |
| 42181 | Rear differential case gasket | 42181-0K030 · 42181-KK010 |
