Toyota HILUX Propeller Shaft & Universal Joint — Figure 3701

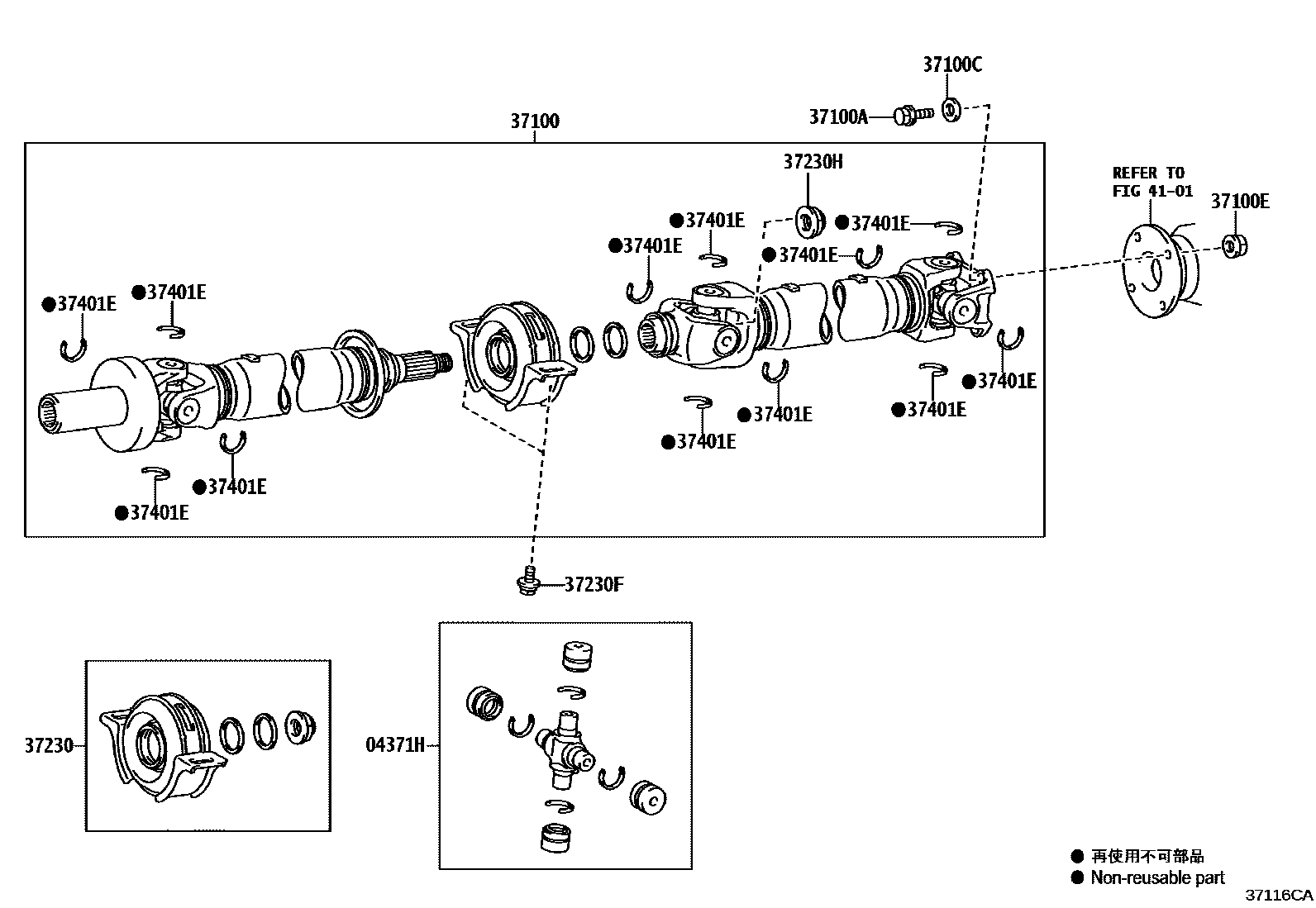

Toyota HILUX EPC diagram 3701, Propeller Shaft & Universal Joint, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04371H | Rear drive shaft universal joint cross shaft assembly | 04371-0K180 |
| 37100 | Drive shaft assembly with central bearing | 37100-0KK01 · 37100-0KK61 · 37100-0KK71 · 37100-0KM41 · 37100-0KM51 · 37100-0KS01 · 37100-0KV60 |
| 37100A | No. 1 bolt (used to secure the drive shaft and differential) | 90105-T0084 |
| 37100C | No. 1 washer (used to secure drive shaft and differential) | 90201-T0003 |
| 37100E | No. 2 nut (used to secure the drive shaft and differential) | 90178-T0024 |
| 37230 | No. 1 intermediate support bearing assembly | 37230-09010 · 37230-09011 · 37230-09020 · 37230-09021 |
| 37230F | No. 1 bolt (for intermediate support bearing) | 90119-T0148 |
| 37230H | No. 1 nut (for intermediate support bearing) | 90179-20018 |
| 37401E | Snap ring (for rear drive shaft universal joint cross shaft bearing) | 90520-T0007 · 90520-T0008 · 90520-T0009 · 90520-T0010 · 90520-T0011 · 90520-T0012 · 90520-T0013 · 90520-T0014 · 90520-T0015 · 90520-T0016 · 90520-T0017 · 90520-T0018 · 90520-T0019 · 90520-T0020 · 90520-T0021 · 90520-T0022 · 90520-T0023 · 90520-T0024 · 90520-T0025 · 90520-T0026 |
