Toyota HILUX 变速器油冷却器和配管(ATM) — Figure 3514

Toyota HILUX EPC diagram 3514, 变速器油冷却器和配管(ATM), with 2 images and 12 PNC and OE references.

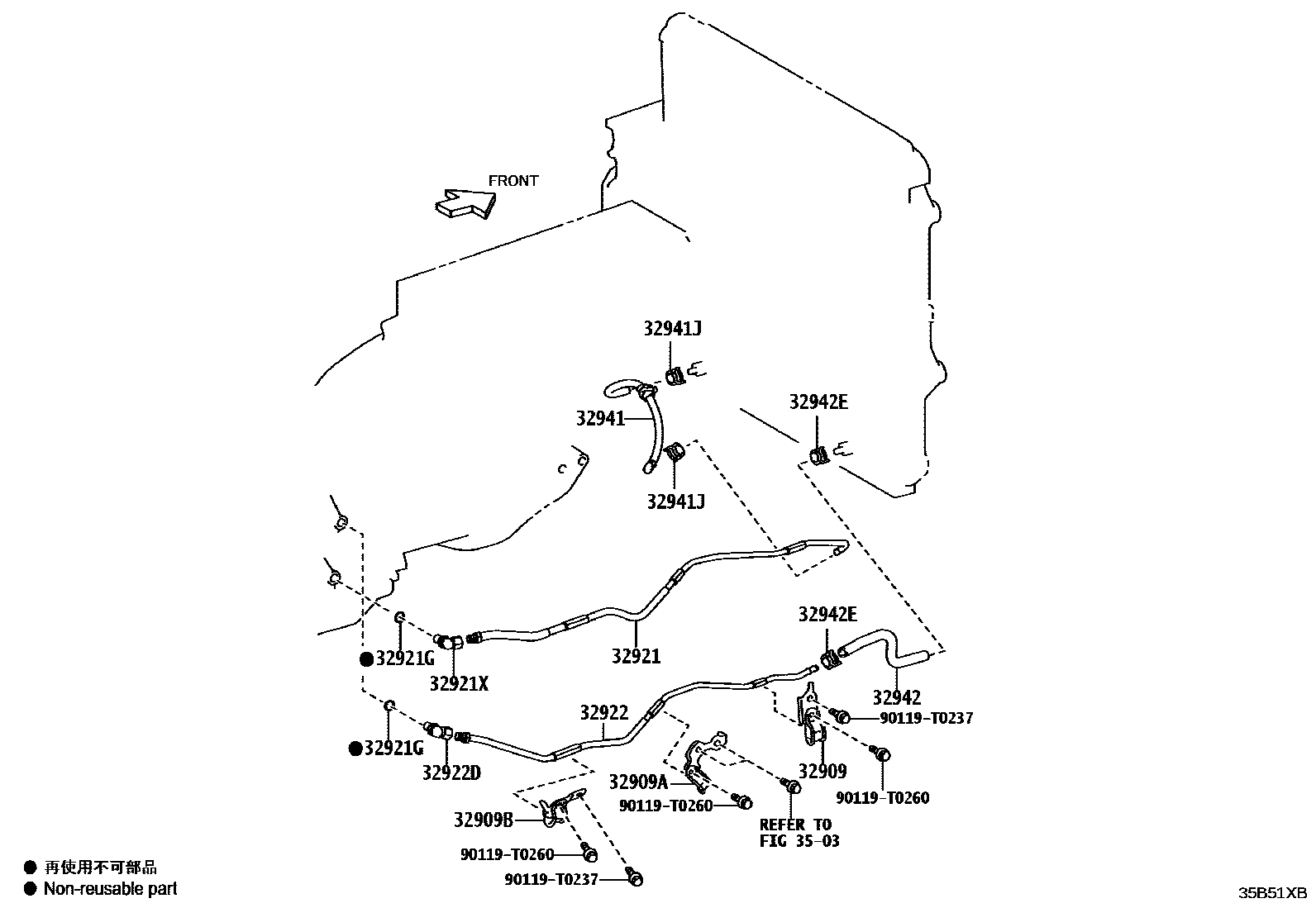

Toyota HILUX 变速器油冷却器和配管(ATM) EPC diagram — 35B51XB
变速器油冷却器和配管(ATM) — 35B51XB (202312 – 999999)

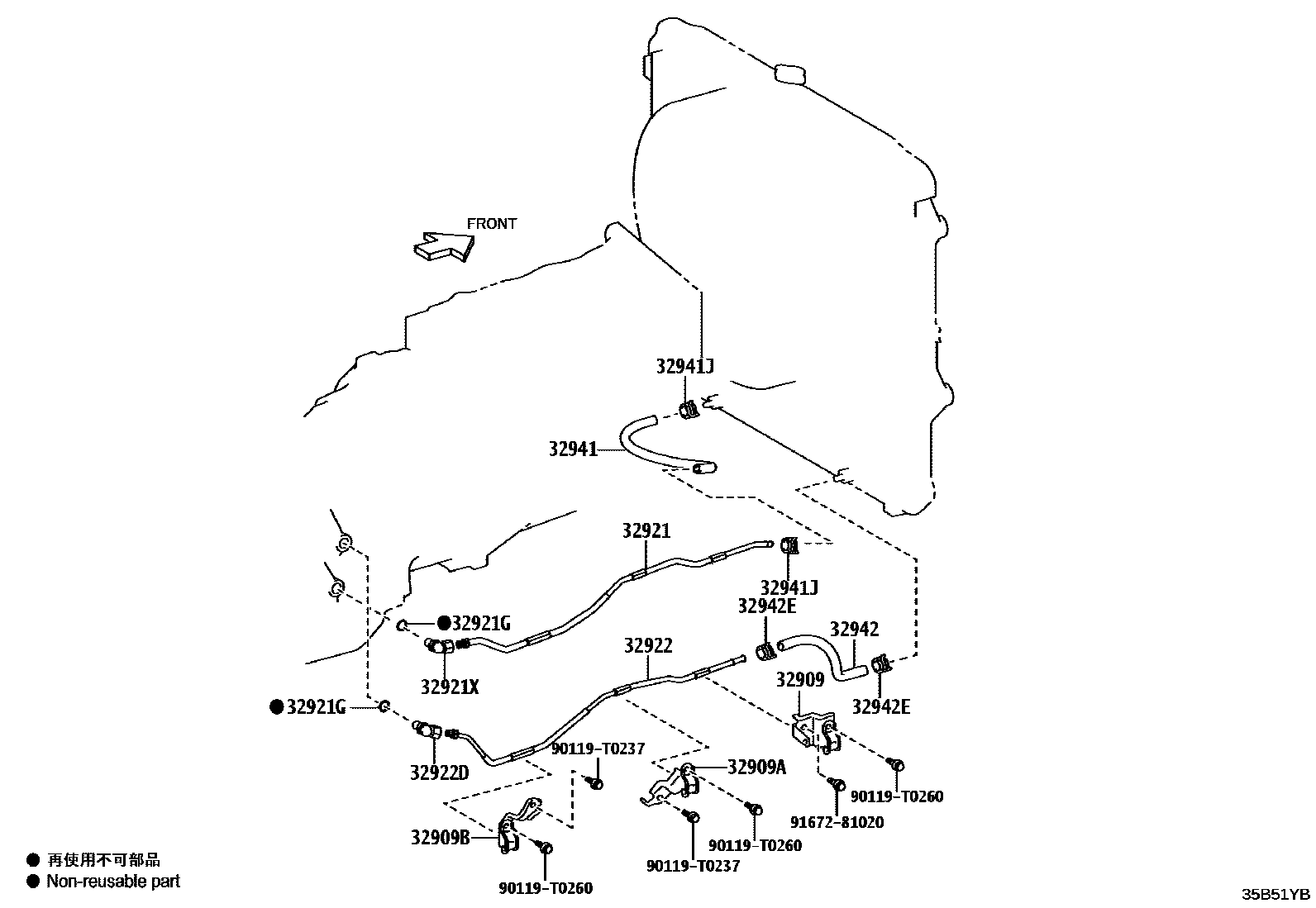

Toyota HILUX 变速器油冷却器和配管(ATM) EPC diagram — 35B51YB
变速器油冷却器和配管(ATM) — 35B51YB (202312 – 999999)

PNC and OE references

PNCPart nameOE numbers
32909Transmission oil cooler pipe No. 1 clamp sub-assembly32909-0K140 · 32909-0K170 · 32909-KK030 · 32909-KK090
32909ATransmission oil cooler pipe No. 2 clamp sub-assembly32909-0K130 · 32909-0K160 · 32909-KK020 · 32909-KK080
32909BTransmission oil cooler pipe No. 3 clamp sub-assembly32909-0K120 · 32909-0K150 · 32909-KK010 · 32909-KK070
32921No. 1 transmission oil cooler oil inlet pipe32921-0K090 · 32921-0K110
32921GO-ring (for transmission oil cooler pipe joint)90301-11030 · 90301-T0069
32921XTransmission oil cooler oil inlet joint or elbow90407-16009
32922No. 1 transmission oil cooler oil outlet pipe32922-0K090 · 32922-0K110
32922DTransmission oil cooler oil outlet connector or elbow90407-16009
32941No. 1 transmission oil cooler oil inlet hose32941-0K010 · 32941-0K030
32941JClamp No. 1 (for transmission oil cooler hose)90466-16004 · 90466-16005 · 90466-T0076
32942No. 1 transmission oil cooler oil outlet hose32942-0K010 · 32942-0K060
32942EClamp No. 2 (for transmission oil cooler hose)90466-16004 · 90466-16005 · 90466-T0076
