Toyota HILUX 换档拨叉和换档杆轴(MTM) — Figure 3307

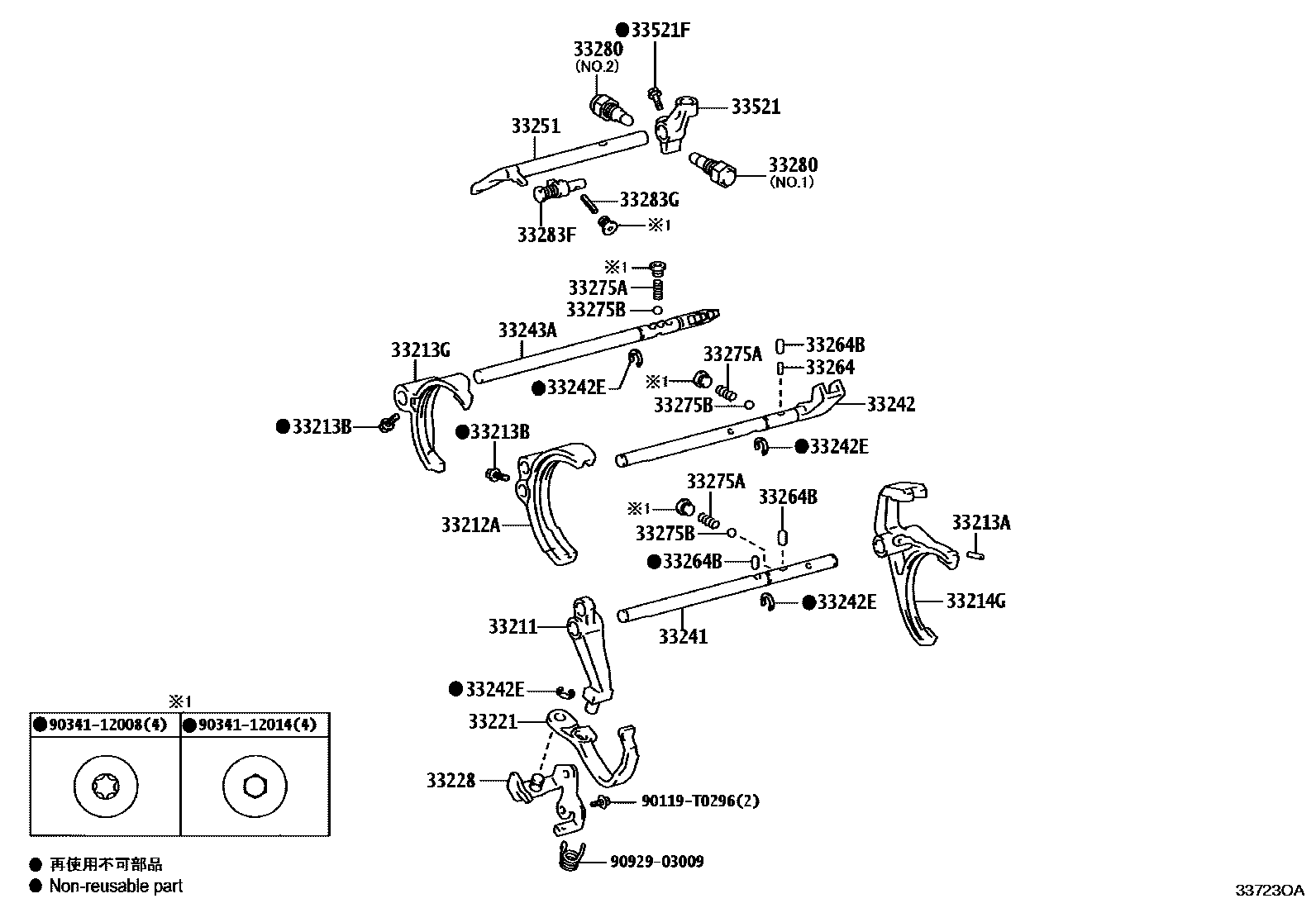

Toyota HILUX EPC diagram 3307, 换档拨叉和换档杆轴(MTM), with 1 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33211 | Reverse Shift Fork | 33211-0K071 |
| 33212A | No. 1 shift fork | 33212-0K030 · 33212-0K060 |
| 33213A | Slotted spring pin (for securing shift fork) | 90254-05016 |
| 33213B | Bolt (for securing shift fork) | 90105-T0157 |
| 33213G | No. 2 shift fork | 33213-0K040 |
| 33214G | No. 3 shift fork | 33230-35012 |
| 33221 | Reverse shift arm | 33221-0K070 |
| 33228 | Reverse shift arm bracket | 33228-0K060 |
| 33241 | Reverse shift fork shaft | 33244-0K072 |
| 33242 | No. 1 shift fork shaft | 33242-0K071 |
| 33242E | Shaft snap ring (for shift fork shaft) | 90520-12003 |
| 33243A | No. 2 shift fork shaft | 33243-0K040 |
| 33251 | shift lever | 33251-0K070 |
| 33264 | No. 1 shift interlock pin or steel ball | 90250-05029 |
| 33264B | Roller No. 1 (for shift interlock) | 90250-06032 · 90361-10003 |
| 33275A | Compression spring (for the lower side of the shift lock steel ball) | 90501-16199 · 90501-T0062 |
| 33275B | Gear shift lock steel ball | 90360-10003 · 90360-T0013 |
| 33280 | Reverse gear positioning pin assembly | 33280-35110 · 33280-35130 |
| 33283F | Reverse gear positioning pin | 33280-35100 |
| 33283G | Slotted spring pin (for reverse gear locating pin) | 90254-05001 |
| 33521 | shift lever housing | 33521-0K110 |
| 33521F | Pin or bolt (for shifter housing) | 90109-08305 · 90109-T0039 |
