Toyota HILUX 变速器齿轮(MTM) — Figure 3305

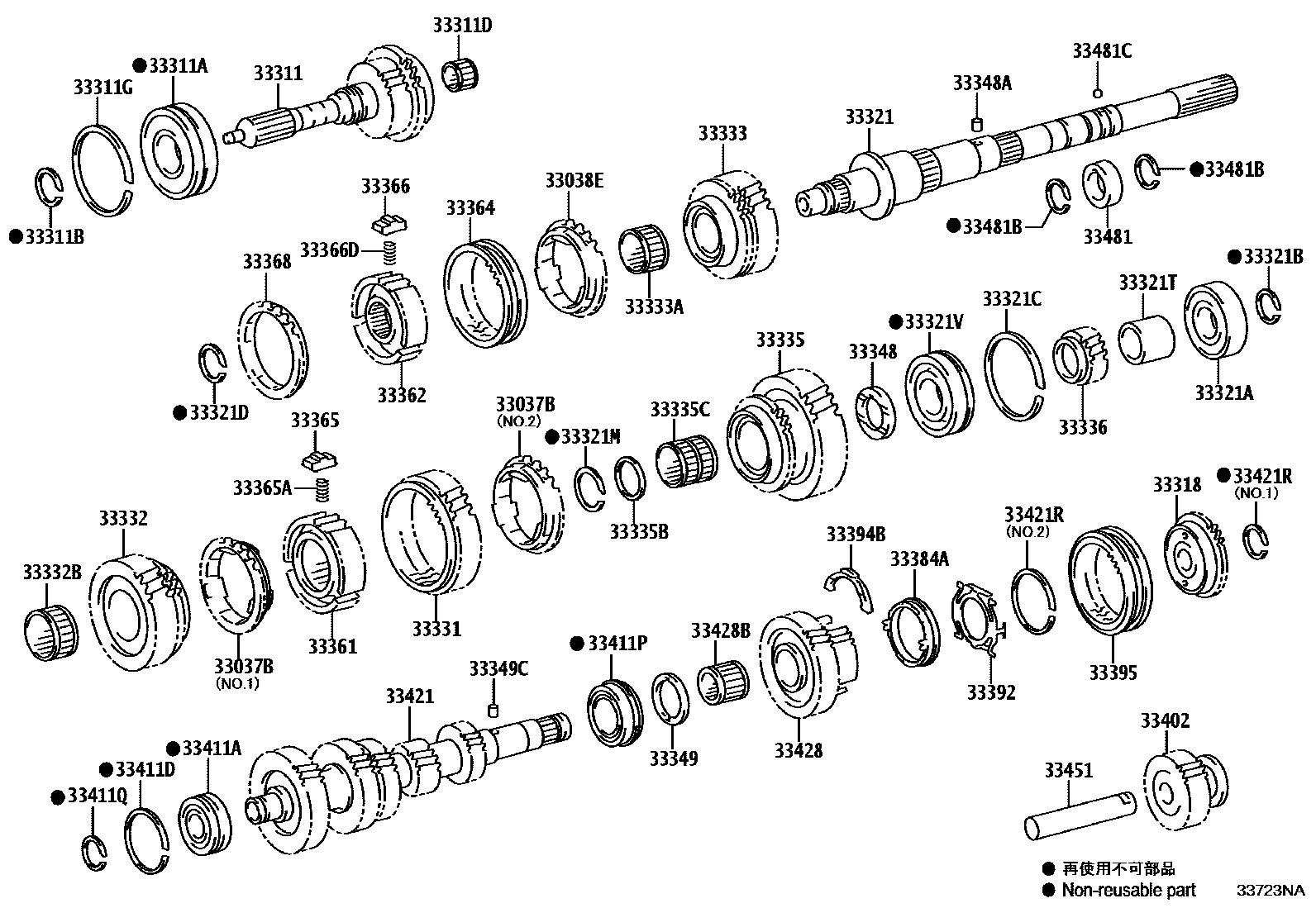

Toyota HILUX EPC diagram 3305, 变速器齿轮(MTM), with 1 images and 54 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33037B | No. 1 synchronizer lock ring assembly | 33037-0K030 · 33037-0K140 · 33037-0K150 · 33037-0K160 |
| 33038E | No. 2 synchronizer lock ring assembly | 33038-0K020 · 33038-0K030 |
| 33311 | input shaft | 33301-0K052 |
| 33311A | Bearing (for front input shaft) | 90363-T0048 |
| 33311B | Shaft snap ring (for front bearing) | 90520-T0239 · 90520-T0240 · 90520-T0241 · 90520-T0242 · 90520-T0243 · 90520-T0244 · 90520-T0245 |
| 33311D | Input shaft bearing | 90364-T0024 |
| 33311G | Shaft snap ring (for front bearing) | 90520-88001 |
| 33318 | No. 5 gear spline | 33318-0K040 |
| 33321 | output shaft | 33321-0K061 |
| 33321A | Bearings (for rear output shaft) | 90363-T0049 |
| 33321B | Shaft snap ring (for output shaft bearing) | 90520-T0252 · 90520-T0253 · 90520-T0254 · 90520-T0255 · 90520-T0256 · 90520-T0257 · 90520-T0258 · 90520-T0259 · 90520-T0260 · 90520-T0261 · 90520-T0262 · 90520-T0263 · 90520-T0264 · 90520-T0265 · 90520-T0266 · 90520-T0267 · 90520-T0268 |
| 33321C | Shaft snap ring (for output shaft bearing) | 90520-T0285 |
| 33321D | Shaft snap ring (for clutch hub assembly) | 90520-T0276 · 90520-T0277 · 90520-T0278 · 90520-T0279 · 90520-T0280 · 90520-T0281 · 90520-T0282 |
| 33321M | Shaft snap ring (for bearings) | 90520-T0269 · 90520-T0270 · 90520-T0271 · 90520-T0272 · 90520-T0273 · 90520-T0274 · 90520-T0275 |
| 33321T | Spacer (for output shaft) | 90387-T0010 |
| 33321V | Bearings (for center output shaft) | 90363-T0047 |
| 33331 | reverse gear | 33331-0K040 |
| 33332 | Second gear | 33033-0K050 |
| 33332B | Needle roller bearing (for second gear gear) | 90364-T0026 |
| 33333 | Third gear | 33034-0K150 |
| 33333A | Needle roller bearing (for third gear) | 90364-T0027 |
| 33335 | first gear | 33032-0K071 |
| 33335B | Spacer (for first gear bearing) | 90560-39002 |
| 33335C | Needle roller bearing (for first gear) | 90364-T0025 |
| 33336 | fifth gear | 33336-0K032 |
| 33348 | First gear thrust washer | 33348-0K020 · 33348-0K040 |
| 33348A | Pin or steel ball (for first gear thrust washer) | 90250-05026 |
| 33349 | Fifth gear thrust washer | 33346-0K020 |
| 33349C | Pin (for fifth gear thrust washer) | 90250-05026 |
| 33361 | No. 1 transmission clutch hub | 33361-0K050 |
| 33362 | No. 2 transmission clutch hub | 33362-0K050 |
| 33364 | No. 2 transmission hub sleeve | 33364-0K030 |
| 33365 | No. 1 synchromesh shift key | 33365-35060 |
| 33365A | compression spring | 90501-08212 · 90501-T0063 |
| 33366 | No. 2 synchromesh shift key | 33365-30060 |
| 33366D | compression spring | 90501-08212 · 90501-T0063 |
| 33368 | Synchronizer lock ring No. 2 | 33368-0K230 · 33368-0K270 |
| 33384A | No. 3 synchronizer outer locking ring | 33384-0K031 |
| 33392 | No. 3 synchromesh shift key spring | 33392-60040 |
| 33394B | No. 3 synchromesh shift key | 33394-0K020 |
| 33395 | No. 3 transmission hub sleeve | 33395-0K050 |
| 33402 | Reverse idler gear sub-assembly | 33402-0K060 |
| 33411A | Bearing or roller (for front countershaft gear) | 90365-T0011 |
| 33411D | No. 1 countershaft gear front bearing snap ring | 90520-56002 |
| 33411P | intermediate shaft intermediate bearing | 90365-T0012 |
| 33411Q | No. 2 countershaft gear front bearing snap ring | 90520-T0246 · 90520-T0247 · 90520-T0248 · 90520-T0249 · 90520-T0250 · 90520-T0251 |
| 33421 | countershaft gear | 33421-0K082 |
| 33421R | Shaft snap ring (for countershaft rear gear) | 90520-22016 · 90520-22017 · 90520-22018 · 90520-22019 · 90520-22020 · 90520-22021 · 90520-22022 · 90520-33021 |
| 33428 | Countershaft fifth gear | 33428-0K062 |
| 33428B | Bearings (for countershaft fifth gear) | 90364-T0028 |
| 33451 | Reverse gear idler shaft | 33451-0K040 |
| 33481 | Speedometer driving gear (MTM) | 33481-35160 · 33481-35190 |
| 33481B | Ring or spacer (for MTM speedometer driving gear) | 90520-T0283 |
| 33481C | Reverse gear shift positioning steel ball | 90360-06004 · 90360-T0011 |
