Toyota HILUX 离合器壳和变速器壳(MTM) — Figure 3302

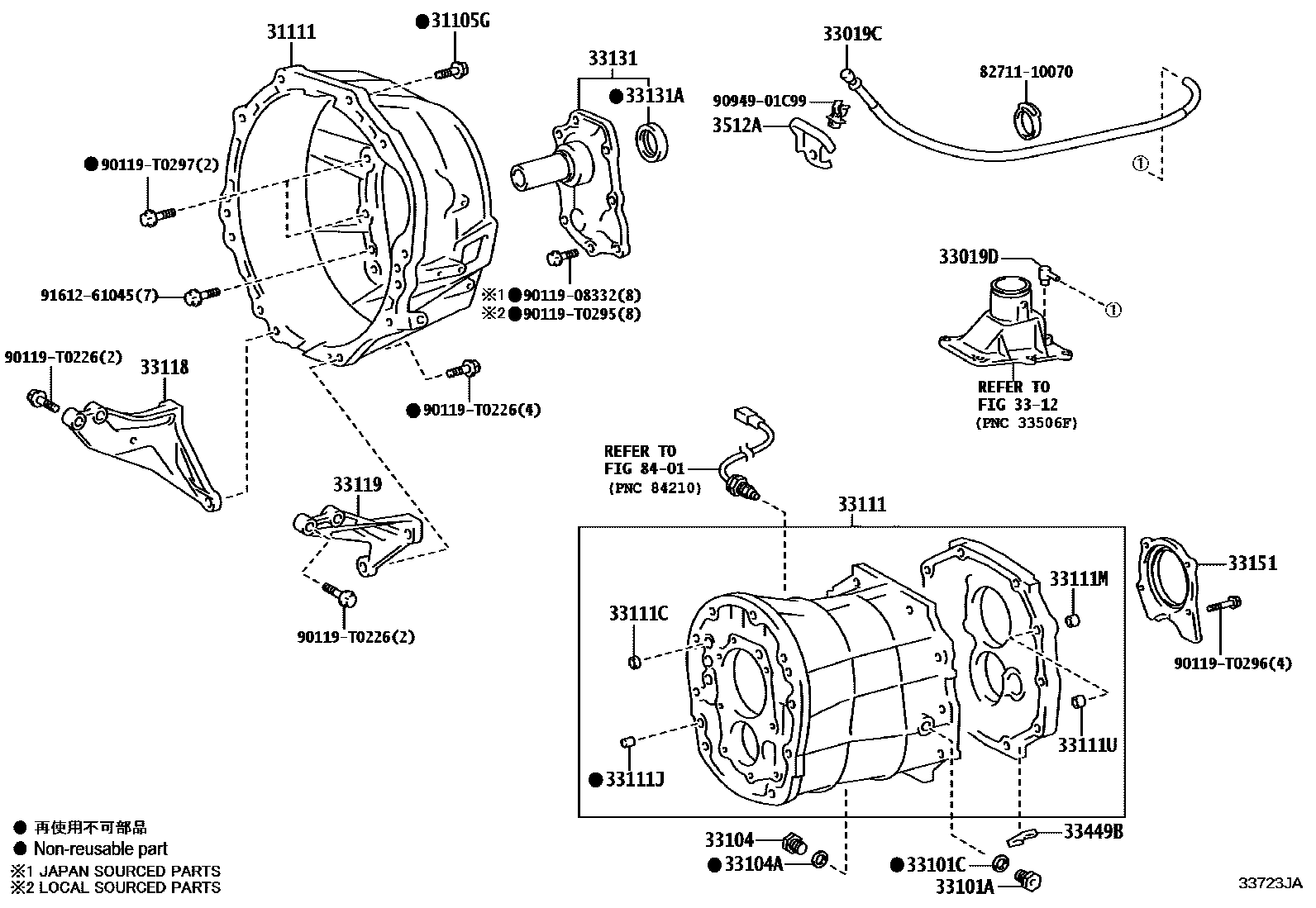

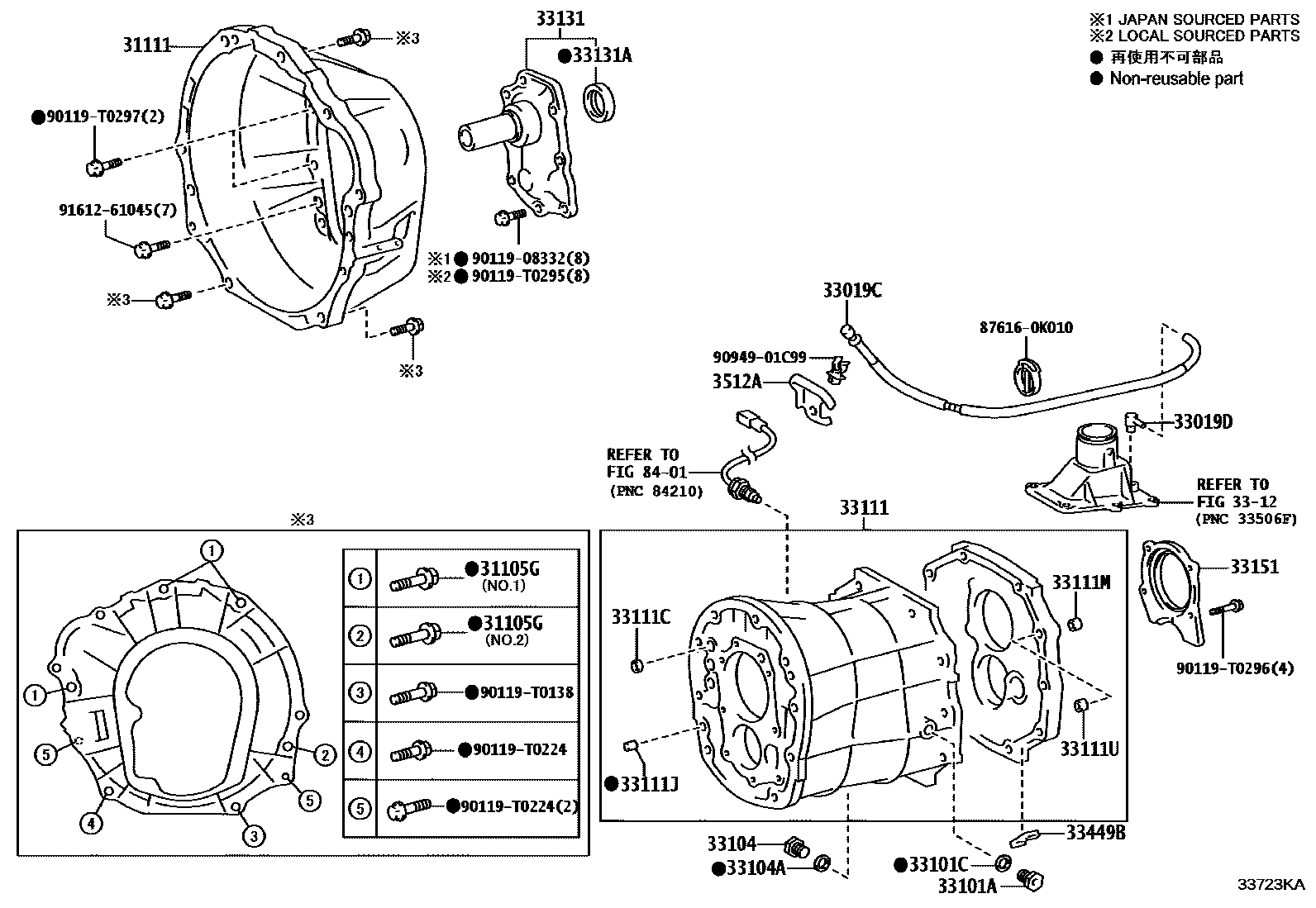

Toyota HILUX EPC diagram 3302, 离合器壳和变速器壳(MTM), with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31105G | Bolts (for securing transaxle housing and engine) | 90119-T0214 · 90119-T0215 · 90119-T0227 |
| 31111 | clutch housing | 31111-0K090 · 31111-0K100 |
| 33019C | Transmission breather sub-assembly | 33019-0K080 · 33019-0K160 |
| 33019D | Dual hose (for transmission breather hose) | 33191-0K020 · 33191-71010 |
| 33101A | Screw plug (for manual transmission oil filler port) | 90341-18006 |
| 33101C | Gasket (for manual transmission filler plug) | 90430-18008 |
| 33104 | Drain plug sub-assembly (MTM) | 90341-18006 |
| 33104A | Drain plug gasket (MTM) | 90430-18008 |
| 33111 | Manual transmission housing | 33101-0K031 |
| 33111C | Screw plug (for gearbox) | 96411-41800 |
| 33111J | Direct sales (for manual transmission) | 90250-12002 |
| 33111M | Ring pin (for gearbox) | 90253-15001 · 90253-T0011 |
| 33111U | Ring pin (for manual transmission) | 90253-15001 · 90253-T0011 |
| 33118 | Right reinforcement plate (MTM) | 33118-0K030 |
| 33119 | Left reinforcement plate (MTM) | 33119-0K020 |
| 33131 | Front bearing retainer (MTM) | 33018-0K071 · 33018-0K072 |
| 33131A | Oil seal (for transmission front bearing retainer) | 90311-T0094 · 90311-T0110 |
| 33151 | Output shaft rear bearing retainer (MTM) | 33151-0K040 |
| 33449B | derailleur magnet | 33449-35030 |
| 3512A | Transmission breather bracket No. 1 | 3512A-0K010 · 3512A-0K020 |
