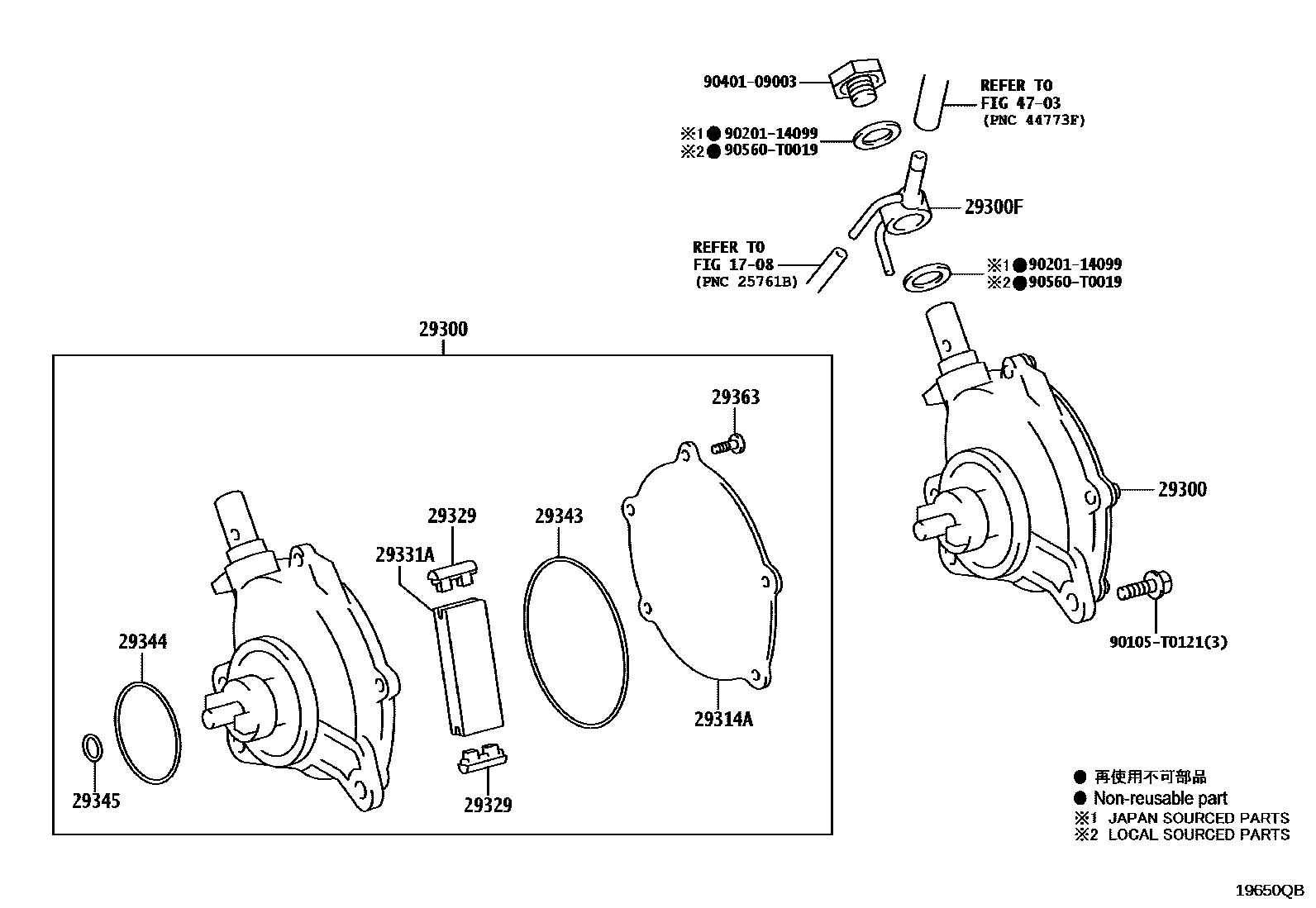

Toyota HILUX 真空泵 — Figure 1905
Toyota HILUX EPC diagram 1905, 真空泵, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 29300 | Vacuum pump assembly | 29300-08010 · 29300-0E011 · 29300-35010 |
| 29300F | Connector | 90405-T0005 |
| 29314A | end cap | 29314-0E010 · 29314-11020 |
| 29329 | Vane vacuum pump cover | 29329-0E010 · 29329-37010 |
| 29331A | vacuum pump blades | 29331-0E010 · 29331-11020 |
| 29343 | Vacuum pump No. 1 O-ring | 29343-0E010 · 29343-11020 |
| 29344 | Vacuum pump No. 2 O-ring | 29344-0E010 · 29344-22011 |
| 29345 | Vacuum pump No. 3 O-ring | 29345-0E010 · 29345-22011 |
| 29363 | Hollow vacuum pump screws | 29363-0E010 · 29363-25010 |
