Toyota HILUX Alternator — Figure 1903

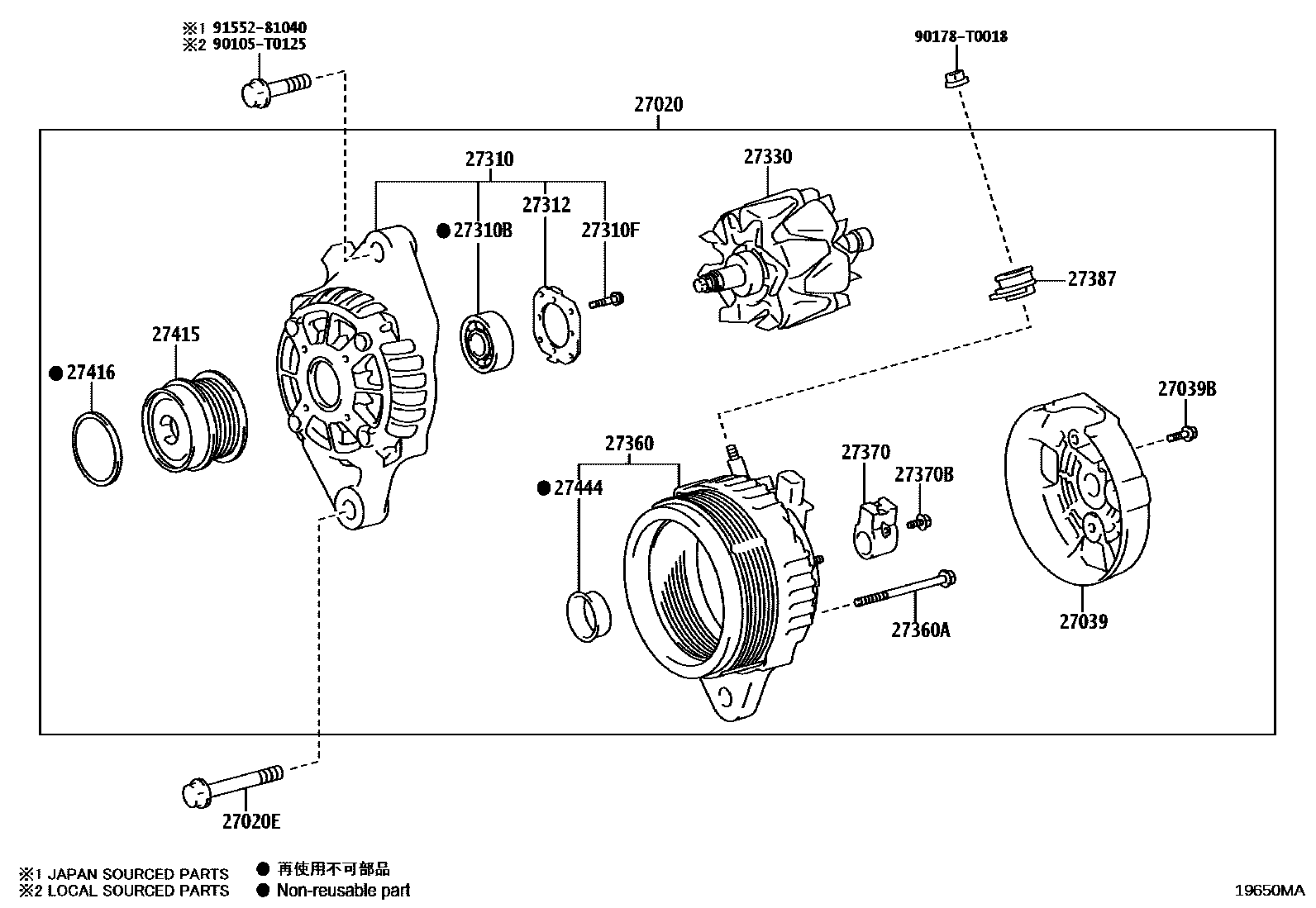

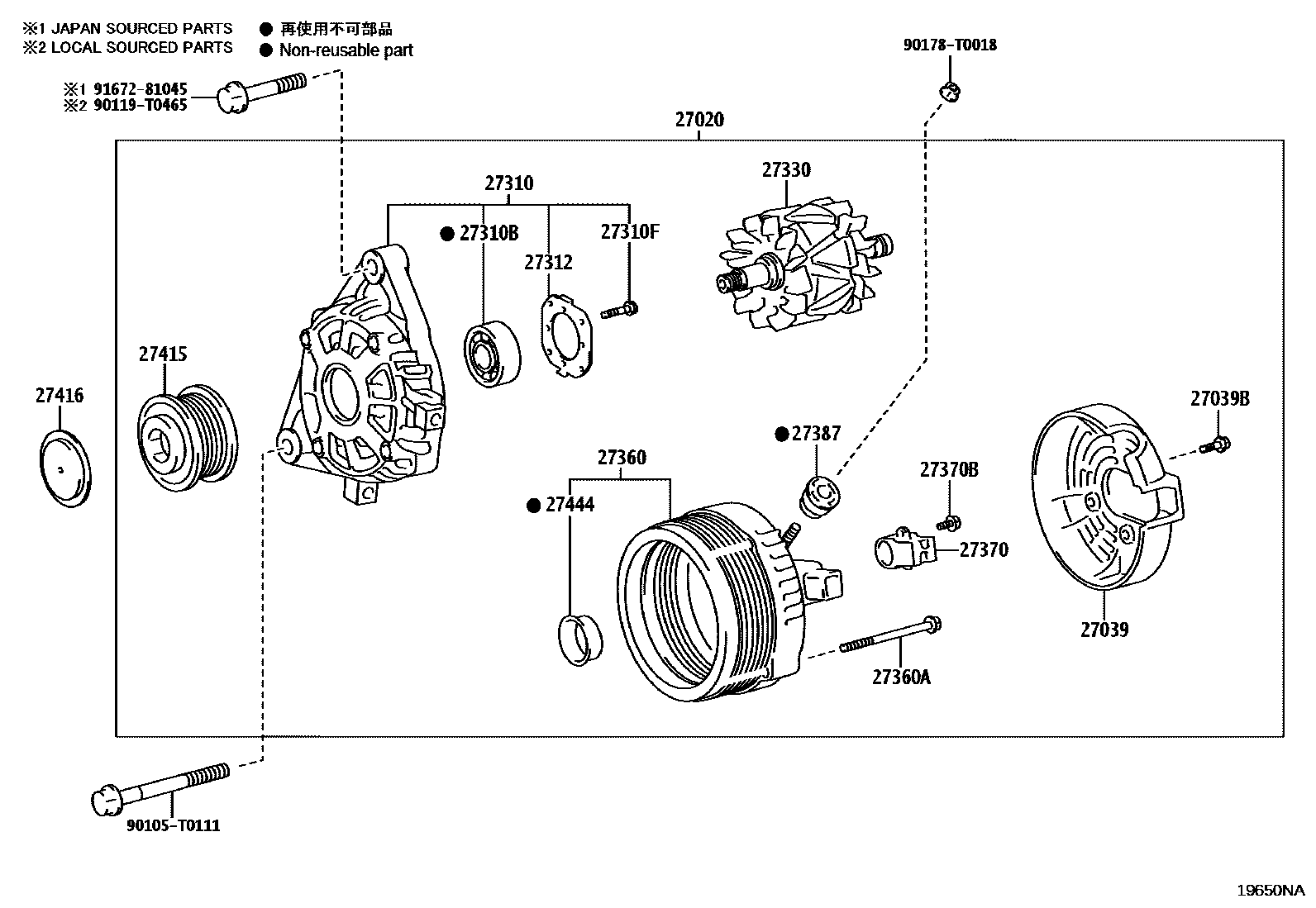

Toyota HILUX EPC diagram 1903, Alternator, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27020 | Alternator Assembly | 27060-0C110 · 27060-0L280 |
| 27020E | Bolts (for generator) | 90105-T0211 · 91552-81080 |
| 27039 | Alternator Rear End Cover | 27039-0M100 |
| 27039B | Bolts (for generator rear end cover) | 90068-04047 |
| 27310 | Alternator Drive End Frame Assembly | 27310-0C110 · 27310-0L310 |
| 27310B | Bearing (for Alternator Drive End Frame) | 90068-10029 |
| 27310F | Screws (for generator drive end cover) | 90068-00022 |
| 27312 | Retainer Plate | 27312-0C020 |
| 27330 | Alternator Rotor Assembly | 27330-0M100 |
| 27360 | Alternator Stator Coil Assembly | 27360-0C110 · 27360-0L220 |
| 27360A | Bolt (for generator coil) | 90068-04048 |
| 27370 | Alternator Brush Holder Assembly | 27370-0C020 · 27370-0M040 |
| 27370B | Screws (for generator brush holder) | 90068-00023 |
| 27387 | Terminal Insulator | 27387-0C020 |
| 27415 | PULLEY, ALTERNATOR W/CLUTCH | 27415-0L030 · 27415-0W053 |
| 27416 | Generator pulley cover | 27416-0L050 · 27416-0W050 |
| 27444 | Generator bearing cap seals | 27444-0Y180 |
